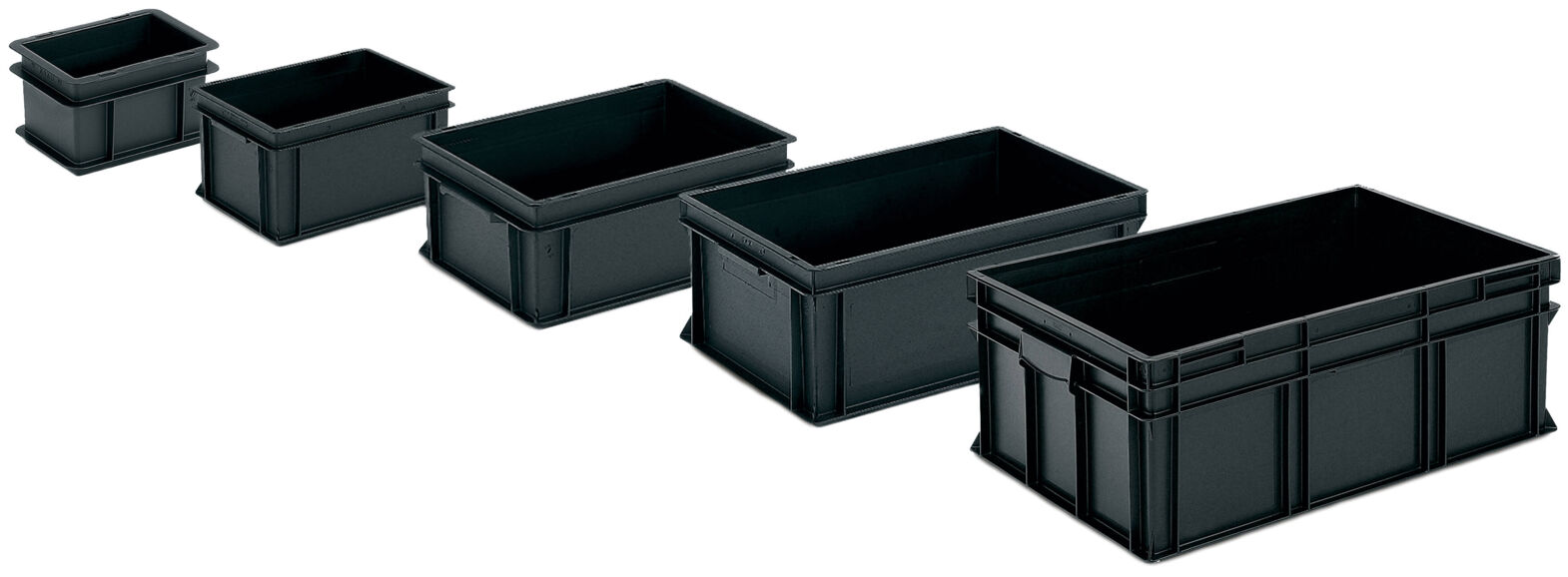

RAKO Euro container, reinforced ESD 600 x 400 x 145 mm
The storage and transport system ESD, produced by UTZ, especially the RAKO Euro container, enhanced ESD, provides optimal protection for electronic components against electrostatic discharge. This container is made from electrically conductive polypropylene, which meets the requirements of the ESD standard DIN EN 61340-5-1, thus creating a safe environment for sensitive components.
The external dimensions of the container are 600 x 400 x 145 mm, while the internal dimensions are 563 x 363 x 130 mm. The robust construction with a ribbed bottom increases stability and allows for a load capacity of up to 25 kg. With a volume of 26 liters and a weight of 1800 g, the container is stackable and efficiently uses available storage space.
The surface of the container has a resistance of 10^4 to 10^11 Ohm, and the black color scheme supports unobtrusive integration into existing storage and transport systems. This product thus combines functionality with high protection performance against mechanical damage, contamination, and moisture.
The external dimensions of the container are 600 x 400 x 145 mm, while the internal dimensions are 563 x 363 x 130 mm. The robust construction with a ribbed bottom increases stability and allows for a load capacity of up to 25 kg. With a volume of 26 liters and a weight of 1800 g, the container is stackable and efficiently uses available storage space.
The surface of the container has a resistance of 10^4 to 10^11 Ohm, and the black color scheme supports unobtrusive integration into existing storage and transport systems. This product thus combines functionality with high protection performance against mechanical damage, contamination, and moisture.
Details
- Material Material
- polypropylene
- Stackable Stackable
- yes
- Conductivity Conductivity
- volume conductive
- Color Color
- black
- Height [mm] Height [mm]
- 145
- Internal height
- 130
- Internal length
- 563
- Internal width Internal width
- 363
- Length [mm] Length [mm]
- 600
- Width [mm] Width [mm]
- 400
- Surface resistance Rs Surface resistance Rs
- 104 - 1011 Ω
- Volume Volume
- 26 l
- Load capacity Load capacity
- 25 kg
- Weight Weight
- 1800 g
Show accessories
The ESD storage and transport system by UTZ prevents a potential electrostatic discharge. Furthermore the robust plastic containers protect the content against mechanical damage, contamination or moisture.
ESD Storage and transport system for the protection against electrostatic discharge
Electronic components can be destroyed by electrostatic discharges. In order to protect those components against such damages, electronic mounting parts are often transported or stored in containers or on pallets made of electrically conductive plastic.
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Dimensions outside
inside LxWxH [mm]
Material
Stackable
Conductivity
Price
Compare
400 x 300 x 145
364 x 264 x 130
polypropylene
yes
volume conductive
600 x 400 x 145
563 x 363 x 130
polypropylene
yes
volume conductive
