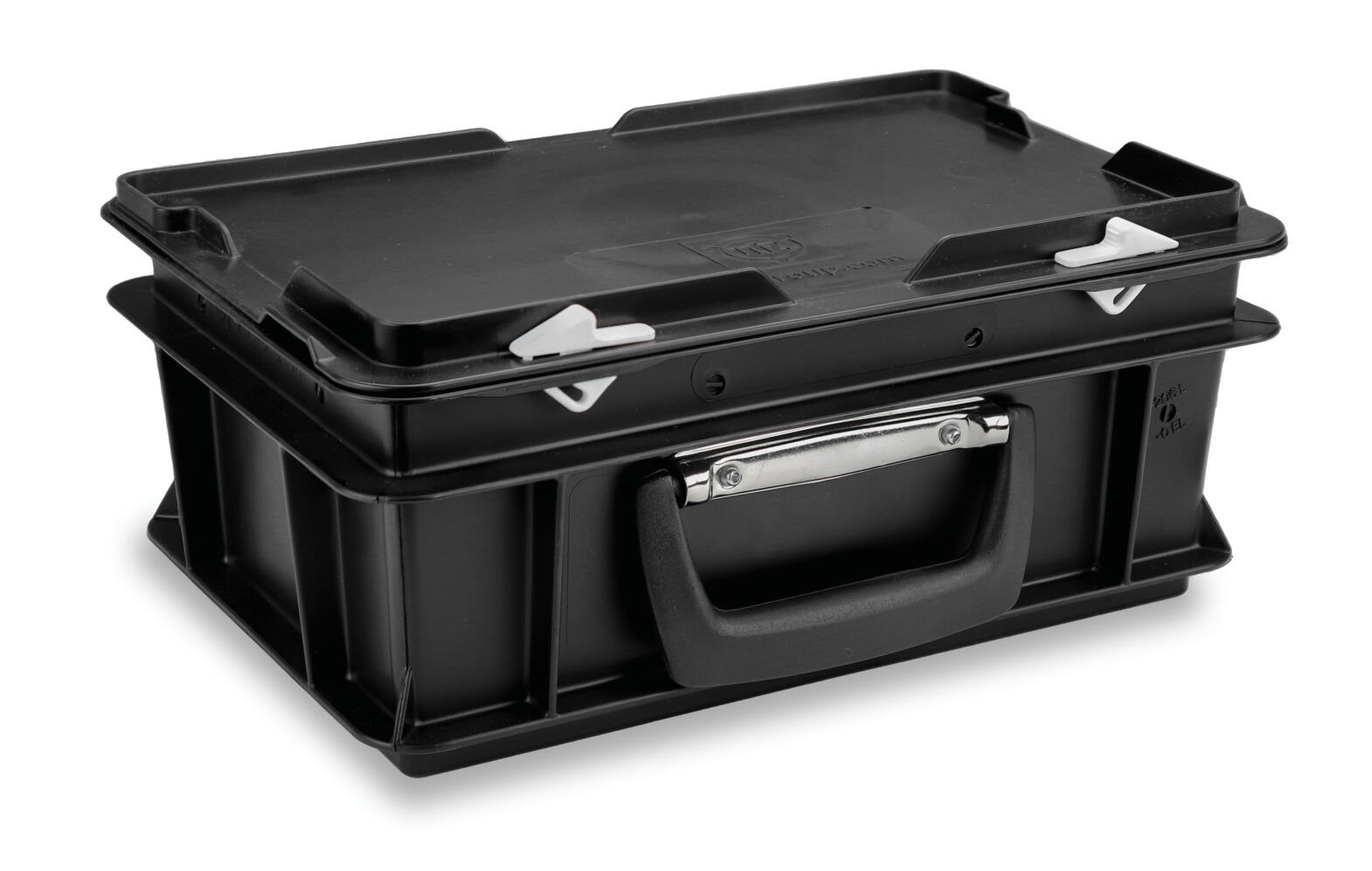

RAKO suitcase ESD 300 x 200 x 130 mm
(Product No.: 051312.K)
Notice

RAKO suitcase ESD 300 x 200 x 130 mm

dpvlink:
801
Tags:
Material:
polypropylene
Color:
black
Conductivity:
volume conductive
Stackable:
yes
Dimensions outside:
300 x 200 x 130
inside LxWxH [mm]:
258 x 160 x 115
Further product information
Imprinting / Printing for boxes
configure_now
Interlayers
configure_now
Parting Inserts
configure_now


21.60 CHF
21.60 CHF per PCE

PCE:
Compare Compare
Notice
Product Info
RAKO Case ESD 300 x 200 x 130 mm The RAKO Case ESD is a highly functional storage and transport system, specially developed to protect sensitive electronic components from electrostatic discharge. Made from electrostatically conductive polypropylene, this case not only protects against ESD but also against mechanical damage, contamination, and moisture. The stackable cases are designed according to the ESD standard DIN EN 61340-5-1, making them ideal for the safe transport and storage of electronic components. Technical Specifications: - Material: Polypropylene - Color: Black - Conductivity: Volume conductive - Stackable: Yes - External dimensions (LxWxH): 300 x 200 x 130 mm - Internal dimensions (LxWxH): 258 x 160 x 115 mm - Surface resistance: 10^4 - 10^11 Ω - Weight: 460 g - Volume: 5 l Item number: 051312.K
Material
Material
polypropylene
Color
Color
black
Conductivity
Conductivity
volume conductive
Stackable
Stackable
yes
Height [mm]
Height [mm]
130 mm
Internal height
Internal height
115 mm
Internal length
Internal length
258 mm
Internal width
Internal width
160 mm
Length [mm]
Length [mm]
300 mm
Width [mm]
Width [mm]
200 mm
Surface resistance Rs
Surface resistance Rs
104 - 1011 Ω
Volume
Volume
5 l
Weight
Weight
460 g
Common

The ESD storage and transport system by UTZ prevents a potential electrostatic discharge. Furthermore the robust plastic containers protect the content against mechanical damage, contamination or moisture.



ESD Storage and transport system for the protection against electrostatic discharge

Electronic components can be destroyed by electrostatic discharges. In order to protect those components against such damages, electronic mounting parts are often transported or stored in containers or on pallets made of electrically conductive plastic.


Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 302
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes
Configurators:
Interlayers
Configurators:
Parting Inserts

Product Family

Article imageArticle descriptionMaterialColorConductivityStackableDimensions outsideinside LxWxH [mm]PriceCompare
051312.K - RAKO suitcase ESD 300 x 200 x 130 mm 051312.K
RAKO suitcase ESD 300 x 200 x 130 mm 		polypropyleneblackvolume conductiveyes300 x 200 x 130258 x 160 x 115 21.60 CHF
051412.K - RAKO suitcase ESD 400 x 300 x 130 mm 051412.K
RAKO suitcase ESD 400 x 300 x 130 mm 		polypropyleneblackvolume conductiveyes400 x 300 x 130358 x 258 x 117 29.10 CHF
051417.K - RAKO suitcase ESD 400 x 300 x 185 mm 051417.K
RAKO suitcase ESD 400 x 300 x 185 mm 		polypropyleneblackvolume conductiveyes400 x 300 x 185358 x 258 x 165 32.10 CHF
051642.K - RAKO suitcase ESD 600 x 400 x 440 mm 051642.K
RAKO suitcase ESD 600 x 400 x 440 mm 		polypropyleneblackvolume conductiveyes600 x 400 x 440555 x 355 x 422 96.05 CHF
051612.K - RAKO suitcase ESD 600 x 400 x 132 mm 051612.K
RAKO suitcase ESD 600 x 400 x 132 mm 		polypropyleneblackvolume conductiveyes600 x 400 x 132558 x 358 x 116 52.95 CHF
051432.K - RAKO suitcase ESD 400 x 300 x 340 mm 051432.K
RAKO suitcase ESD 400 x 300 x 340 mm 		polypropyleneblackvolume conductiveyes400 x 300 x 340358 x 258 x 317 49.65 CHF
051406.K - RAKO suitcase ESD 400 x 300 x 80 mm 051406.K
RAKO suitcase ESD 400 x 300 x 80 mm 		polypropyleneblackvolume conductiveyes400 x 300 x 80358 x 258 x 62 29.10 CHF
051617.K - RAKO suitcase ESD 600 x 400 x 185 mm 051617.K
RAKO suitcase ESD 600 x 400 x 185 mm 		polypropyleneblackvolume conductiveyes600 x 400 x 185558 x 358 x 166 58.00 CHF
051322.K - RAKO suitcase ESD 300 x 200 x 230 mm 051322.K
RAKO suitcase ESD 300 x 200 x 230 mm 		polypropyleneblackvolume conductiveyes300 x 200 x 230258 x 158 x 217 31.40 CHF
051632.K - RAKO suitcase ESD 600 x 400 x 340 mm 051632.K
RAKO suitcase ESD 600 x 400 x 340 mm 		polypropyleneblackvolume conductiveyes600 x 600 x 340558 x 358 x 320 76.80 CHF
051622.K - RAKO suitcase ESD 600 x 400 x 235 mm 051622.K
RAKO suitcase ESD 600 x 400 x 235 mm 		polypropyleneblackvolume conductiveyes600 x 400 x 235557 x 357 x 216 70.40 CHF
051607.K - RAKO suitcase ESD 600 x 400 x 90 mm 051607.K
RAKO suitcase ESD 600 x 400 x 90 mm 		polypropyleneblackvolume conductiveyes600 x 400 x 90552 x 352 x 72 48.70 CHF
