WEZ Euro container ESD 400 x 300 x 100 mm, flat base

(Product No.: 4308.907.992)

(Product No.: 4308.907.992)

WEZ Euro container ESD 400 x 300 x 100 mm, flat base

Name: WEZ Euro container ESD 400 x 300 x 100 mm, flat base
SKU: 4308.907.992
Price: 15.25 CHF
Availability: InStock

ArticleNo: 4308.907.992

dpvlink:

831

Tags:

Dimensions outside:

400 x 300 x 101

inside LxWxH [mm]:

354 x 254 x 96

Material:

polypropylene

Conductivity:

volume conductive

Further product information

Imprinting / Printing for boxes
configure_now

Interlayers
configure_now

Parting Inserts
configure_now

15.25 CHF
15.25 CHF per PCE

PCE:

Compare

Notice

Product Info

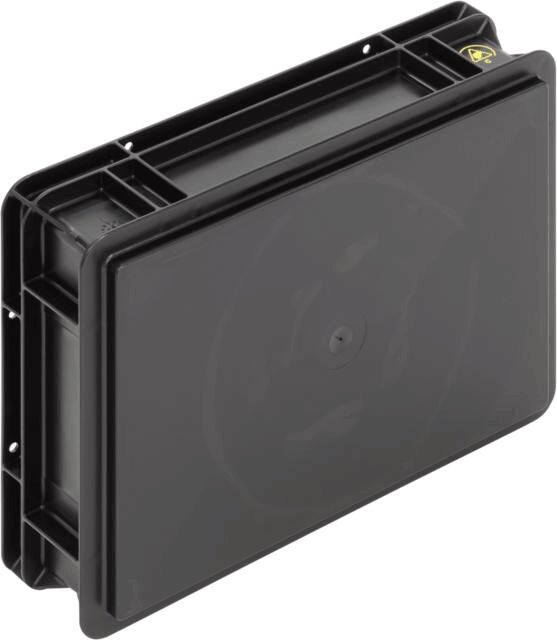

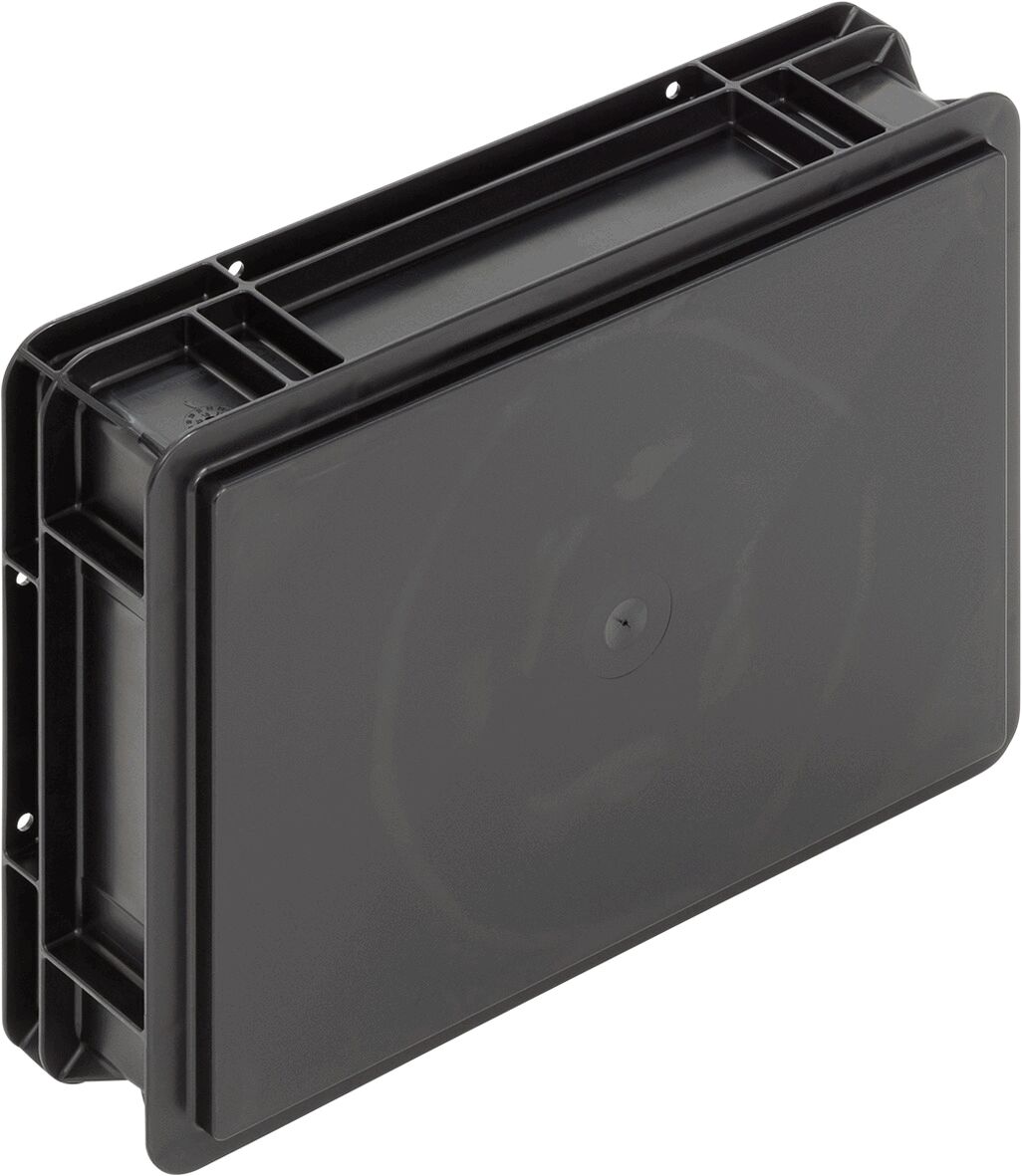

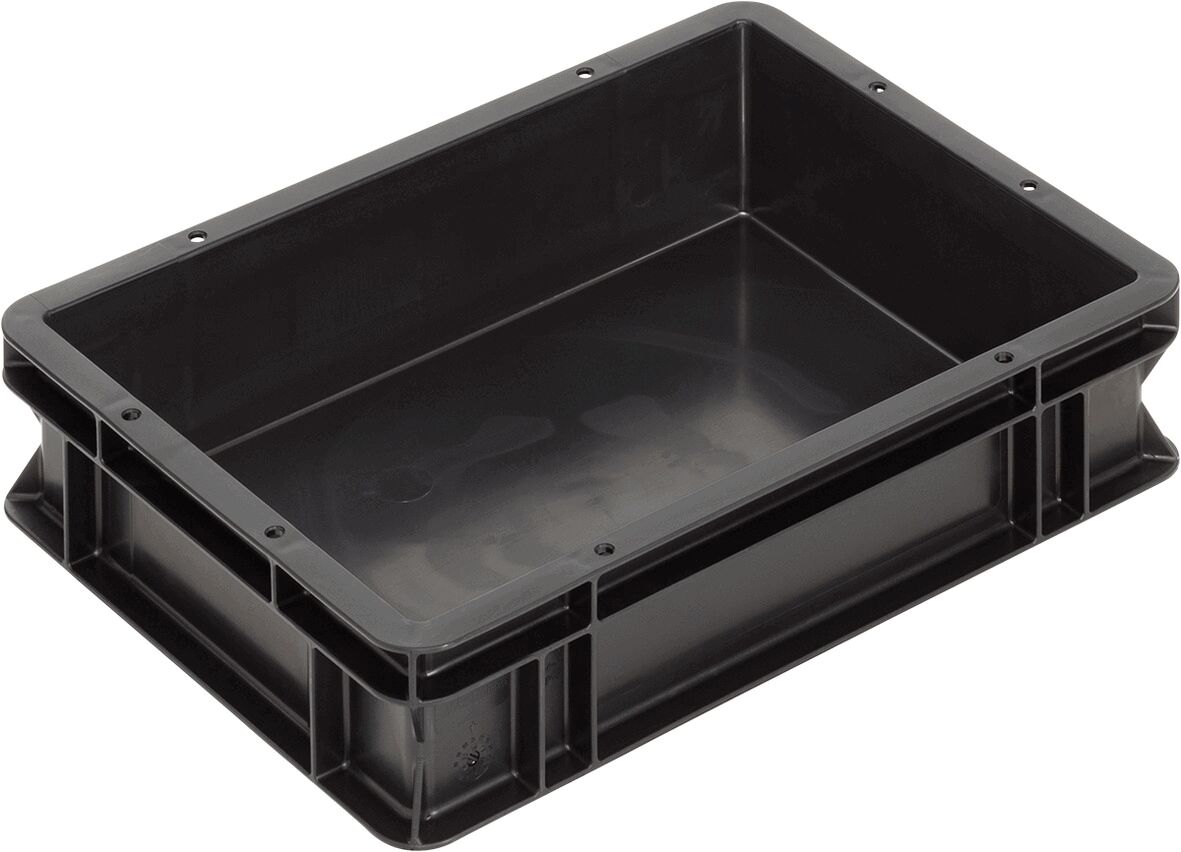

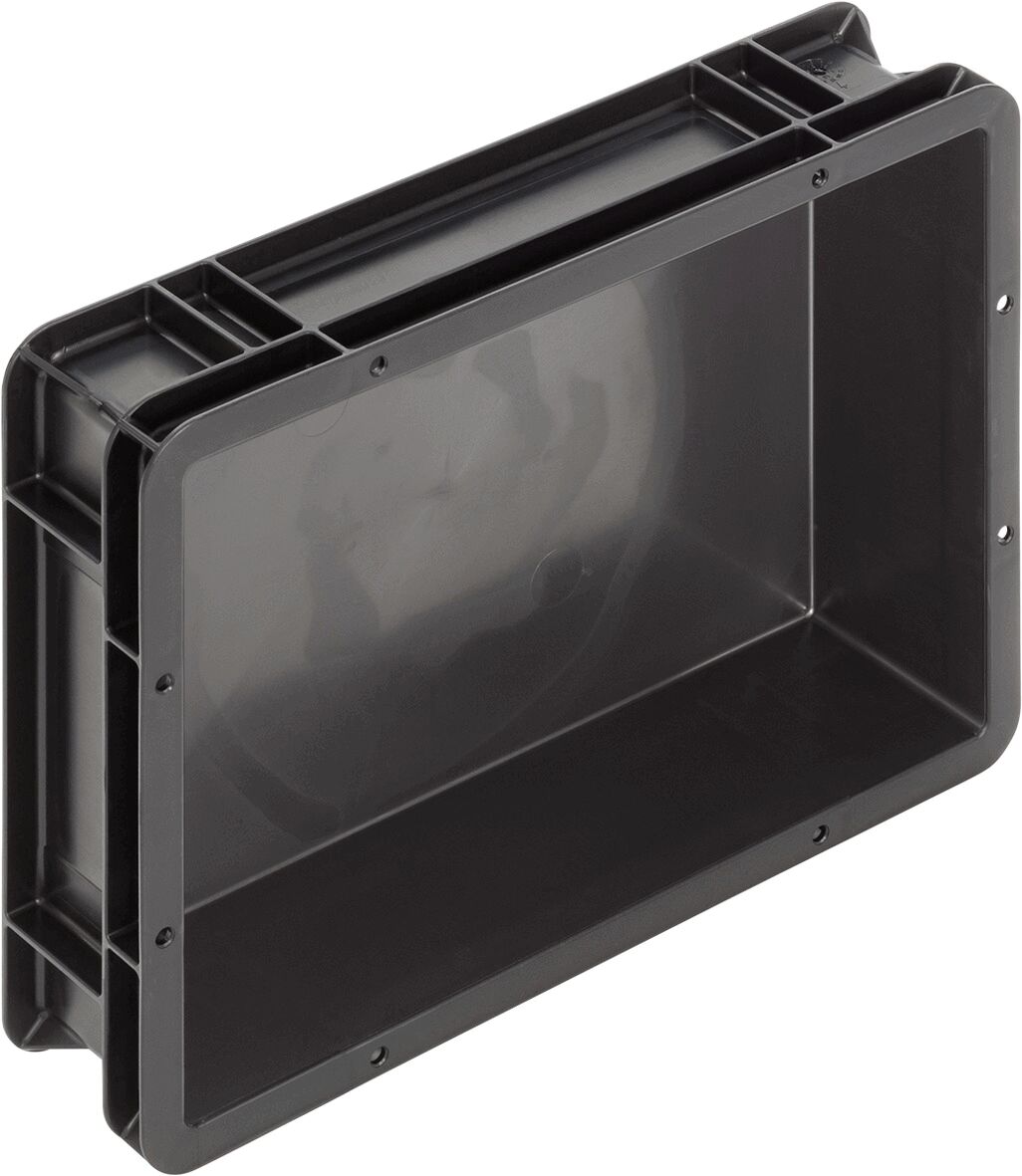

WEZ Euro Container ESD 400 x 300 x 100 mm, flat bottom The WEZ Euro container ESD with dimensions of 400 x 300 x 100 mm offers an efficient solution for the safe handling of sensitive electronic components. Made from electrostatically conductive polypropylene, this container is ideal for use in EPA areas, storage, and during transport. It complies with the ESD standard DIN EN 61340-5-1 and ensures ESD safety in both conductive and dissipative environments. The flat bottom design ensures smooth transport on conveyor systems such as roller conveyors and ball tables. Additionally, the container is stackable, but not on two containers of the next smaller base size. Technical specifications: - External dimensions (LxWxH): 400 x 300 x 101 mm - Internal dimensions (LxWxH): 354 x 254 x 96 mm - Material: Polypropylene - Conductivity: volume conductive - Surface resistance: 10^4 Ω - Color: Black - Weight: 933 g - Load capacity: 15 kg - Volume: 8.6 l - Stackable: Yes Item number: 4308.907.992 This Euro container combines decades of experience and expertise in plastic-appropriate solutions and offers a cost-effective, customized service for your specific requirements.

Details

Material Material: polypropylene
Conductivity Conductivity: volume conductive
Color Color: black
Height [mm] Height [mm]: 101
Internal height Internal height: 96
Internal length Internal length: 354
Internal width Internal width: 254
Length [mm] Length [mm]: 400
Width [mm] Width [mm]: 300
Surface resistance Rs Surface resistance Rs: 10⁴ Ω
Stackable Stackable: yes
Volume Volume: 8,6 l
Load capacity Load capacity: 15 kg
Weight Weight: 933 g

Show accessories

Common

WEZ - knowhow and experience

WEZ combines 50 years of experience in the field of plastic injection molding with up-to-date knowhow. Plastic compatible solutions, a cost-effective production and individual services about our products are the target for the product development of the BLACKLINE® range.

BLACKLINE® - Safety for electronic components

WEZ BLACKLINE® protects sensitive electronic components in the EPA, in the storage and during the transport. The system offers a guarantee for a ESD safe handling as well in the conductive as in the dissipative areas.

Accessories

Label holder, transparent 102 x 65 mm for...

Label holder outside 102 x 65 mm /
inside 90 x 52 mm self-adhesive

Article image	Article description	Dimensions outside	inside DxWxH	Material	Conductivity	Additional	Price
	6420.007.992 WEZ Euro container ESD 600 x 400 x 212 mm, flat base	600 x 400 x 212	554 x 354 x 208	polypropylene	volume conductive		37.20 CHF
	6426.007.992 WEZ Euro container ESD 600 x 400 x 278 mm, flat base	600 x 400 x 278	554 x 354 x 273	polypropylene	volume conductive		38.75 CHF
	6440.007.992 WEZ Euro container ESD 600 x 400 x 412 mm, flat base	600 x 400 x 412	554 x 354 x 407	polypropylene	volume conductive		56.25 CHF
	4304.007.992 WEZ Euro container ESD 400 x 300 x 53 mm, flat base	400 x 300 x 53	354 x 254 x 49	polypropylene	volume conductive		12.20 CHF
	6413.007.992 WEZ Euro container ESD 600 x 400 x 145 mm, flat base	600 x 400 x 145	554 x 354 x 141	polypropylene	volume conductive		28.80 CHF
	4320.007.992 WEZ Euro container ESD 400 x 300 x 212 mm, flat base	400 x 300 x 212	354 x 254 x 208	polypropylene	volume conductive		20.95 CHF
	4308.907.992 WEZ Euro container ESD 400 x 300 x 100 mm, flat base	400 x 300 x 101	354 x 254 x 96	polypropylene	volume conductive		15.25 CHF
	6408.007.992 WEZ Euro container ESD 600 x 400 x 100 mm, flat base	600 x 400 x 100	554 x 354 x 96	polypropylene	volume conductive		26.55 CHF
	4313.907.992 WEZ Euro container ESD 400 x 300 x 145 mm, flat base	400 x 300 x 145	354 x 254 x 141	polypropylene	volume conductive		16.05 CHF
	4332.007.992 WEZ Euro container ESD 400 x 300 x 320 mm, flat base	400 x 300 x 320	354 x 254 x 315	polypropylene	volume conductive		29.65 CHF
	3204.007.992 WEZ Euro container ESD 300 x 200 x 53 mm, flat base	300 x 200 x 53	260 x 160 x 51	polypropylene	volume conductive		6.90 CHF
	3208.007.992 WEZ Euro container ESD 300 x 200 x 100 mm, flat base	300 x 200 x 100	254 x 154 x 96	polypropylene	volume conductive		10.15 CHF
	3213.007.992 WEZ Euro container ESD 300 x 200 x 145 mm, flat base	300 x 200 x 145	254 x 154 x 141	polypropylene	volume conductive		11.90 CHF
	4326.007.992 WEZ Euro container ESD 400 x 300 x 278 mm, flat base	400 x 300 x 278	354 x 254 x 274	polypropylene	volume conductive		26.10 CHF
	6432.007.992 WEZ Euro container ESD 600 x 400 x 320 mm, flat base	600 x 400 x 320	554 x 354 x 314	polypropylene	volume conductive		39.85 CHF
	4313.097.992 WEZ Euro container light ESD 400 x 300 x 145 mm, flat base	400 x 300 x 145	354 x 254 x 141	polypropylene	volume conductive	light	14.30 CHF
	6413.097.992 WEZ Euro container light ESD 600 x 400 x 145 mm, flat base	600 x 400 x 145	554 x 354 x 141	polypropylene	volume conductive	light	21.35 CHF
	6404.007.992 WEZ Euro container ESD 600 x 400 x 56 mm, flat base	600 x 400 x 56	560 x 360 x 54	polypropylene	volume conductive		17.90 CHF
	2108.007.992 WEZ Euro container ESD 200 x 150 x 100 mm, flat base	200 x 150 x 100	155 x 106 x 97	polypropylene	volume conductive		7.65 CHF
