Interlayer PP cutting thickness 3.5 mm

(Product No.: 050.201.PP35.Z)

Interlayer PP cutting thickness 3.5 mm

ArticleNo: 050.201.PP35.Z

dpvlink:

705

Manufacturer:

Thickness [mm]:

3.5

Properties:

Note:

Cuttings, customer-specific manufacture available on request

Further product information

Printing Interlayers / Parting Inserts
configure_now

Parting Inserts
configure_now

Compare

Notice

Product Info

The interlayer PP cut-to-size with a thickness of 3.5 mm from EPAstore, manufactured by DPV, is a highly functional product for technical applications, characterized by its robustness and ESD safety. This interlayer is made of extruded polypropylene (PP) in a hollow chamber construction, which gives it exceptional stability with a weight of 800g/m². The material thickness is 3.5 mm, ensuring high abrasion resistance.

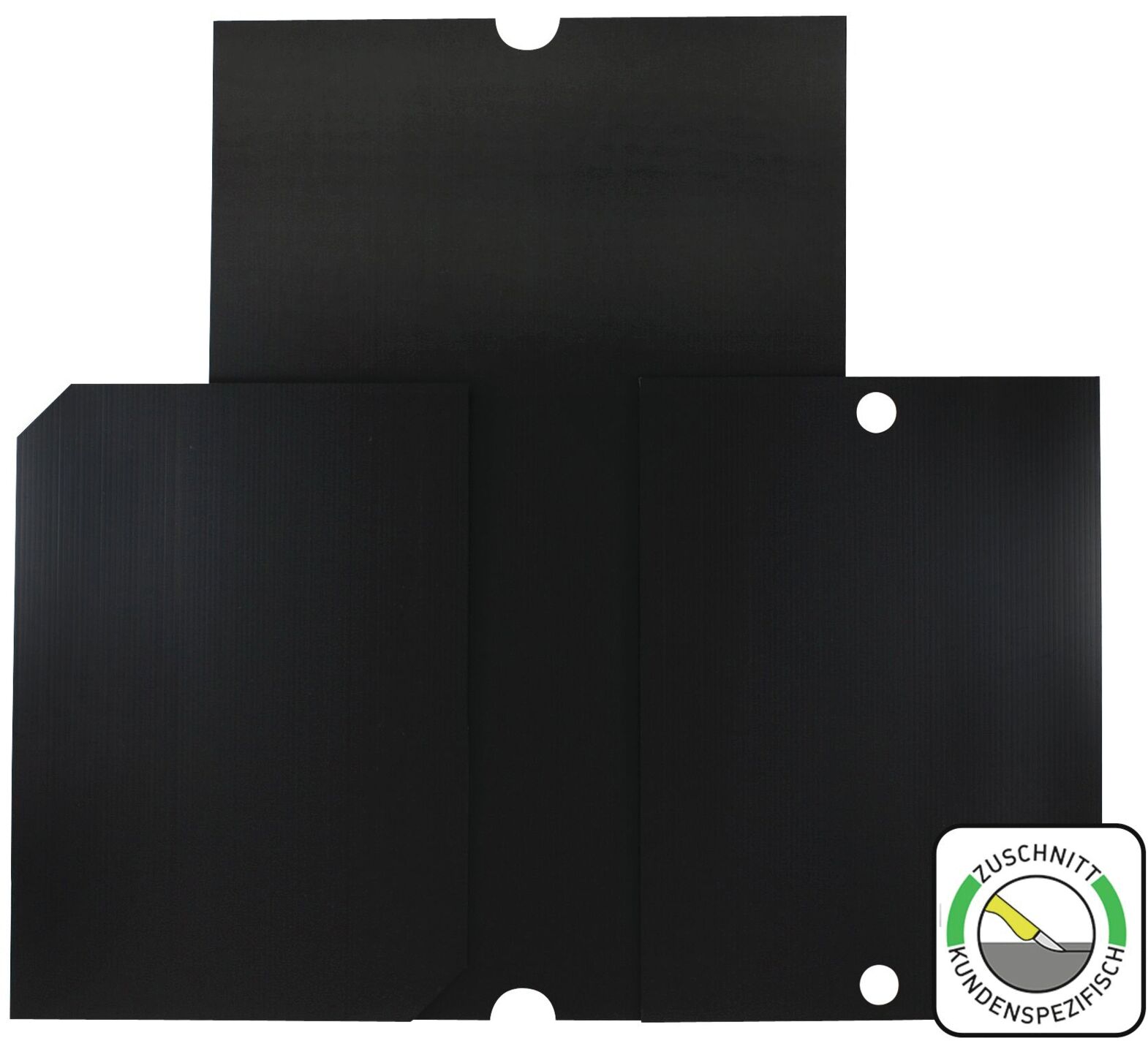

The surface is black and volume conductive, with a surface resistance of 10^6 Ω, which meets the ESD standard DIN EN 61340-5-1. The interlayer is available in three different versions with special grip cutouts: Type D with two beveled corners, Type A with semi-circular cutouts (34 x 17 mm), and Type C with round grip holes (30 mm diameter), which facilitate removal from Euro containers.
The dimensional tolerance of the cuts is +/- 1%, allowing for precise use in various applications. This product is ideal for environments where both mechanical resilience and ESD protection are required.

Details

Thickness [mm] Thickness [mm]: 3.5
Color Color: black
Length [mm] Length [mm]: -
Width [mm] Width [mm]: -
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Material Material: polypropylene
Material structure Material structure: cavity material
Weight [g/m²] Weight [g/m²]: 800

Cuttings, customer-specific manufacture available on request

Common

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 / 800 mm

Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

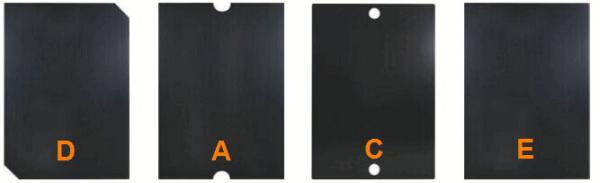

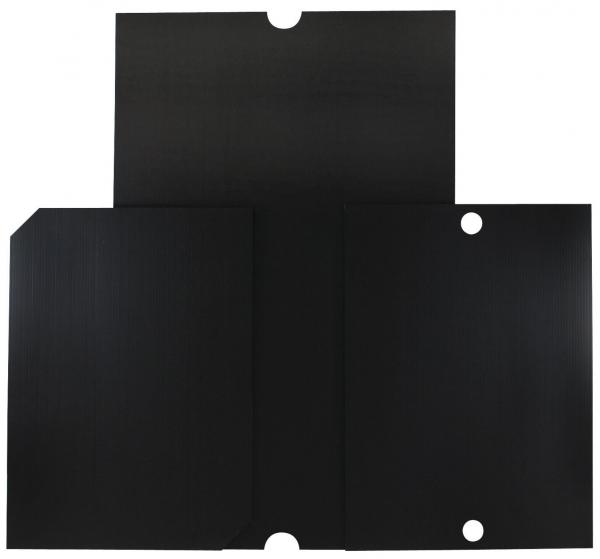

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 X 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

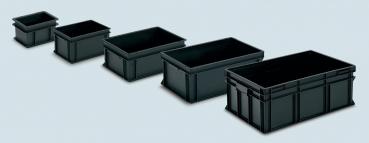

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PP

High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
