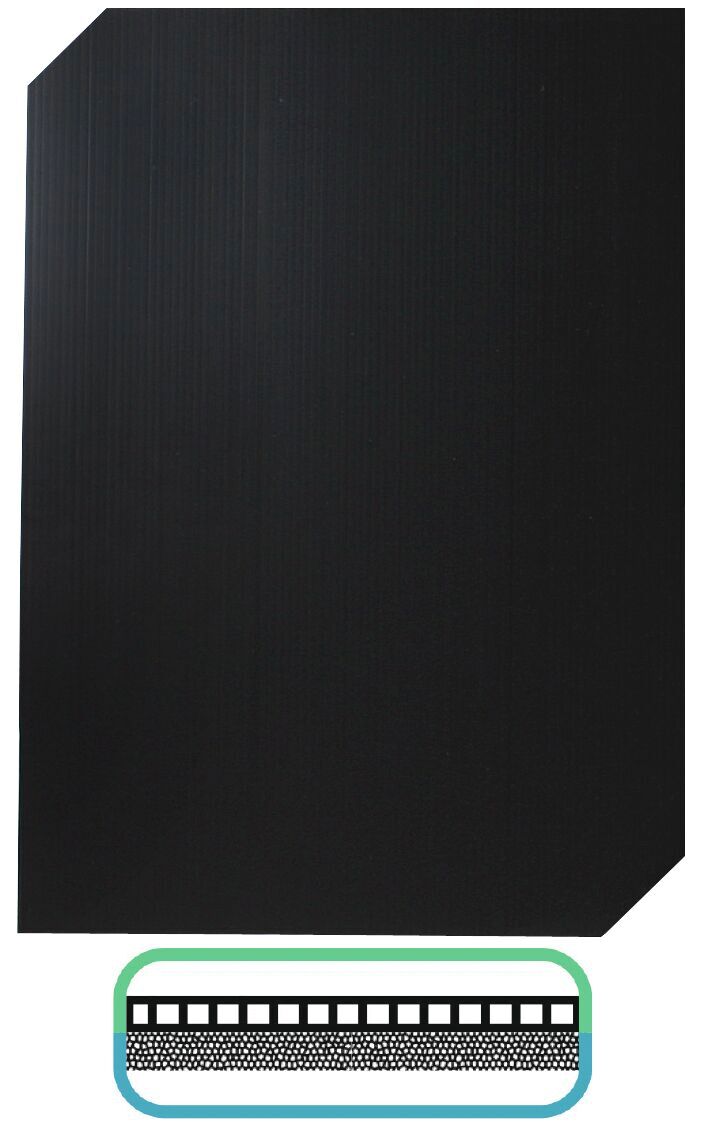

Interlayer PP with 3 mm PE foam ESD

(Product No.: 050.230.PE.3)

Interlayer PP with 3 mm PE foam ESD

Name: Interlayer PP with 3 mm PE foam ESD
SKU: 050.230.PE.3
Price: 4.70 CHF
Availability: InStock

ArticleNo: 050.230.PE.3

dpvlink:

15146

Manufacturer:

Dimensions LxW [mm]:

353 x 253

Thickness [mm]:

6.0

Cut-out:

Standard type D

Properties:

Note:

Cuttings, customer-specific manufacture available on request

Further product information

Printing Interlayers / Parting Inserts
configure_now

Parting Inserts
configure_now

4.70 CHF

1 PCE

Compare

Notice

Product Info

The intermediate layer PP from EPAstore, manufactured by DPV, combines functionality with technical sophistication. This product is made from extruded polypropylene (PP) with an incorporated 3 mm thick PE foam insert, utilizing the properties of a hollow chamber material with high abrasion resistance. The surface is black and volume conductive, with a surface resistance of 10^6 Ω, confirming compliance with the ESD standard DIN EN 61340-5-1.
The dimensions of the intermediate layer are 353 mm in length and 253 mm in width with a thickness of 6.0 mm and a weight of 600 g/m². Particularly practical are the integrated type D (standard) grip cutouts, which facilitate removal from Euro containers sized 400x300 mm. The product is also available in other versions with different grip cutouts, providing additional handling options.
This intermediate layer is ideal for applications where both protection and ESD safety are required. It offers a reliable solution for protecting sensitive components in technical environments.

Details

Thickness [mm] Thickness [mm]: 6.0
Cut-out Cut-out: Standard type D
Color Color: black
Length [mm] Length [mm]: 353
Width [mm] Width [mm]: 253
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Material Material: polypropylene / polyethylene
Material structure Material structure: cavity material
Suitable for containers Suitable for containers: 400x300
Weight [g/m²] Weight [g/m²]: 600

Cuttings, customer-specific manufacture available on request

Common

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 / 800 mm

Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 X 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PP

High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 308

Complete Catalog 2023 - 2024

EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions

Configurators:

Printing Interlayers / Parting Inserts

Configurators:

Parting Inserts

Product Family

Article image

Article description

Dimensions LxW [mm]

Thickness [mm]

Cut-out

Price

Compare

050.235
Interlayer PP type D, 553 x 353 x 3 mm

553 x 353

3.0

Standard type D

2.45 CHF

050.235.PE.3
Interlayer PP with 3 mm PE foam

550 x 350

6.0

Standard type D

6.85 CHF

050.230
Interlayer PP 3.0 type D, 353 x 253 x 3 mm ESD

353 x 253

3.0

Standard type D

1.55 CHF

050.201.PP30.Z
Interlayer PP cutting thickness 3.0 mm

- x -

3.0

050.231.A-30
Interlayer PP type A, 353 x 253 x 3 mm ESD

353 x 253

3.0

Type A

1.75 CHF

050.230.PE.3
Interlayer PP with 3 mm PE foam ESD

353 x 253

6.0

Standard type D

4.70 CHF

050.236.A-30
Interlayer PP type A, 553 x 353 x 3 mm

553 x 353

3.0

Type A

2.70 CHF

050.235.KLT
Interlayer PP type D, 540 x 360 x 3 mm (for KLT)

540 x 360

3.0

Standard type D

2.50 CHF

050.225.D-30
Interlayer PP type D, 254 x 154 x 3 mm ESD

254 x 154

3 mm

Standard type D

1.05 CHF

050.230.KLT
Interlayer PP type D, 340 x 260 x 3 mm (for KLT)

340 x 260

3.0

Standard type D

1.75 CHF

050.238.C-30
Interlayer PP type C, 553 x 353 x 3 mm

553 x 353

3.0

Type C

2.70 CHF

050.225.A-30
Interlayer PP type A, 254 x 154 x 3 mm ESD

254 x 154

3 mm

Type A

1.05 CHF

050.233.C-30
Interlayer PP type C, 353 x 253 x 3 mm ESD

353 x 253

3.0

Type C

1.75 CHF

050.235.PE.6
Interlayer PP with 6 mm PE foam

550 x 350

9.0

Standard type D

10.30 CHF

050.215.D-30
Interlayer PP type D, 753 x 553 x 3 mm

753 x 553

3.0

Standard type D

050.215.A-30
Interlayer PP type A, 753 x 553 x 3 mm

753 x 553

3.0

Type A

This product is compatible with (for example):

Euro container Light with fixed hinged lid...

Euro container light 400x300x335(320+15)mm/inside
360x260x295 mm, hinged lid, black
electrostatically conductive (DIN EN 61340-5-1)

Specific resistance / surface resistance 10H3 < 10H10
