Interlayer PS cutting thickness 1.5 mm ESD

(Product No.: 050.301.PS15.Z)

Interlayer PS cutting thickness 1.5 mm ESD

ArticleNo: 050.301.PS15.Z

Interlayer PS cutting thickness 1.5 mm ESD

dpvlink:

15144

Manufacturer:

Dimensions LxW [mm]:

- x -

Thickness :

1.5 mm

Properties:

Note:

Cuttings, customer-specific manufacture available on request

Further product information

Printing Interlayers / Parting Inserts
configure_now

Parting Inserts
configure_now

Compare

Notice

Product Info

Interlayer PS cutting thickness 1.5 mm ESD

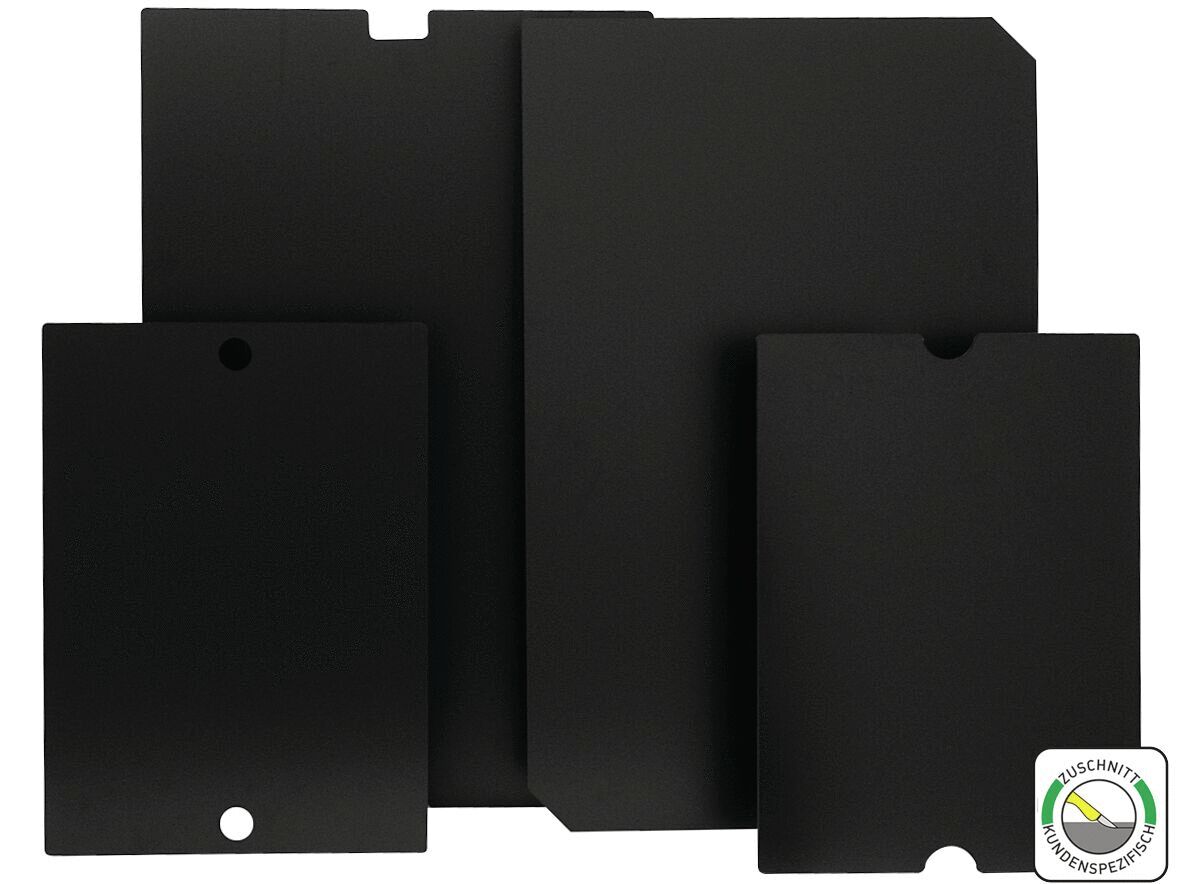

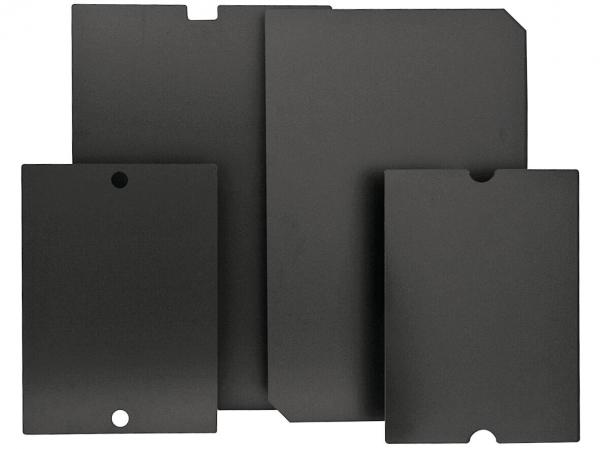

The interlayer PS cut-to-size with a thickness of 1.5 mm, ESD from EPAstore, manufactured by DPV, is a high-quality solution for technical applications requiring electrostatic discharge safety. The product is made of solid black polystyrene and has a thickness of 1.5 mm. It is volume conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-sensitive environments.

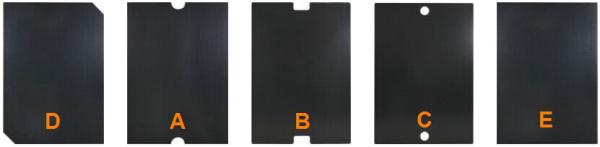

The interlayer is characterized by its high abrasion resistance and a dimensional tolerance of +/- 1%. With a surface and volume resistance of 10^6 Ω each, it provides reliable conductivity. The weight of the material is 1650 g/m². It is available in four different versions with grip cutouts that facilitate removal from Euro containers: Type D with two beveled corners, Type A with semi-circular cutouts, Type B with rectangular, and Type C with round grip holes.
This product combines functionality with technical precision and supports efficient work processes in industrial applications.

Details

Thickness Thickness: 1.5 mm
Color Color: black
Length Length: - mm
Width [mm] Width: - mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Volume resistance Volume resistance: 10⁶ Ω
Material Material: polystyrene
Material structure Material structure: solid material
Weight [g/m²] Weight [g/m²]: 1650

Cuttings, customer-specific manufacture available on request

Common

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm
Partition height:	- 80 / 120 / 180 mm

Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 x 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PS

High abrasion resistance, high stability, volume conductive. Typical surface resistance: R = 10^4–10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
