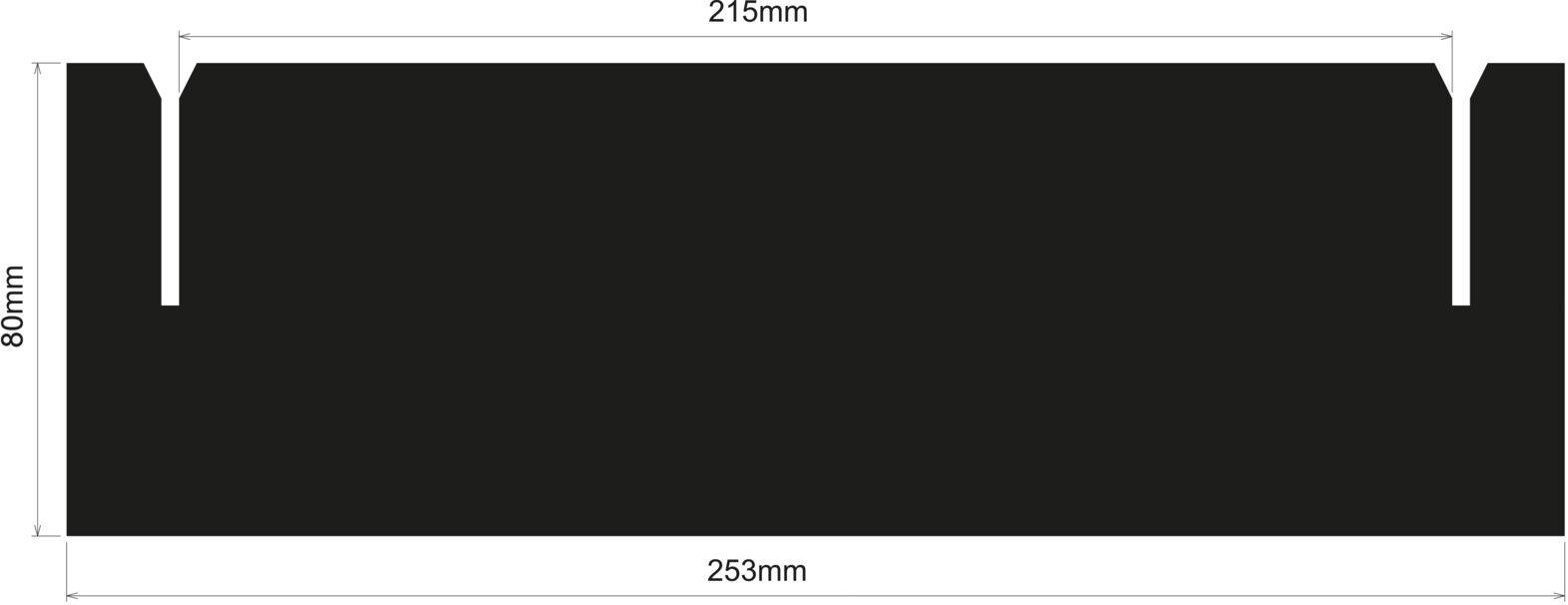

The image shows a black, rectangular shape measuring 253 mm in width and 50 mm in height. On the sides, there are two cutouts, each 215 mm wide.
PP Partition length 253 mm / height 80 mm / grid 215 mm ESD
(Product No.: 050.239.080.215)
The image shows a black, rectangular shape measuring 253 mm in width and 50 mm in height. On the sides, there are two cutouts, each 215 mm wide.
Notice

PP Partition length 253 mm / height 80 mm / grid 215 mm ESD

PP Partition length 253 mm / height 80 mm / grid 215 mm ESD

dpvlink:
14878
Manufacturer:
Compartments:
1
Slots:
2
External support:
yes
Properties:
Further product information
Printing Interlayers / Parting Inserts
configure_now
Parting Inserts
configure_now


chevron-down
0.85 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

PP Partition length 253 mm / height 80 mm / grid 215 mm ESD

The PP ribbed wall from EPAstore, manufactured by DPV, is a highly functional partition for Euro containers sized 400 x 300 mm. This ribbed wall has a length of 253 mm and a height of 80 mm, with a material thickness of 3 mm. The product is characterized by its volume conductivity, which is certified according to DIN EN 61340-5-1, and offers a surface resistance of 10^6 Ω.
The black PP ribbed wall is made of polypropylene and uses a honeycomb material that has a weight of 600 g/m². It is equipped with two slots at a grid of 215 mm and has an external rib of about 16 mm. This product is ideally suited for dividing storage and transport containers, enhancing the organization and protection of the items stored within.
Compartments
Compartments
1
Slots
Slots
2
External support
External support
yes
Color
Color
black
Height
Height
80 mm
Length
Length
253 mm
Thickness
Thickness
3 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
106 Ω
Material
Material
polypropylene
Grid spacing
Grid spacing
215 mm
Material structure
Material structure
cavity material
Suitable for containers
Suitable for containers
400x300 mm
Weight [g/m²]
Weight [g/m²]
600
Common

PP cavity material:

  • made of extruded polypropylene (PP)
  • high abrasion resistance
  • low weight


In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.



Technical data for standard versions

Lateral length container:- 300 / 400 / 600 mm outside
-  253 / 353 / 553 mm inside
Partition heights:- 80 / 120 / 180 mm
Thicknesses:- 3.0 mm (weight 600g/m²)
- 3.5 mm extra sturdy (weight 800g/m²)

- available with different raster widths/numbers of subdivisions
- volume conductive
- In compliance with ESD standard DIN EN 61340-5-1



customizable



Upon request - Standard partitions

  • specific heights between 30 - 600 mm
  • handhold cut-outs

Also for KLT containers



H=Partition height (80, 120 or 180 mm)
L=Partition length (253, 353 or 553 mm)
G=Grid spacing
AS=External support (if existing)
SW=Slot width



In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:- 300 / 400 / 600 / 800 mm
Thicknesses:- 3.0 mm (weight 600g/m²)
- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1


Handhold cut-outs for easier removal from Euro containers available in 3 versions:

  • Standard: 2 corners sloped
  • Type A: 2 handhold cut-outs semicular 34 X 17 mm
  • Type C: 2 grip holes round 30 mm





In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements



PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight



PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability



PE foam:
- made of polyethylene foam (PE)
- abrasion-resistant and corrosion-free
- very low weight


Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.



Pictograms
Material PP
High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.
ESD-compliant
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
