PP Partition length 353 mm / height 80 mm / grid 41 mm ESD

(Product No.: 050.240.080.41)

PP Partition length 353 mm / height 80 mm / grid 41 mm ESD

Name: PP Partition length 353 mm / height 80 mm / grid 41 mm ESD
SKU: 050.240.080.41
Price: 1.30 CHF
Availability: InStock

ArticleNo: 050.240.080.41

dpvlink:

14868

Manufacturer:

Compartments:

Grid spacing [mm]:

41 mm

Slots:

External support:

Properties:

Further product information

Printing Interlayers / Parting Inserts
configure_now

Parting Inserts
configure_now

1.30 CHF
1.30 CHF per PCE

PCE:

Compare

Notice

Product Info

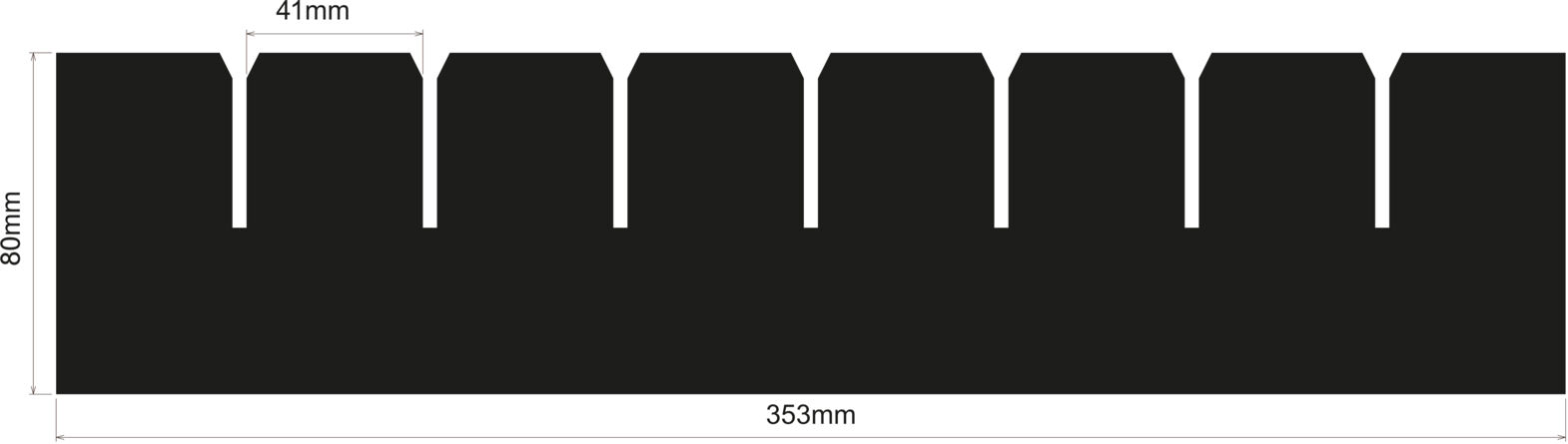

PP Ribbed Wall Length 353 mm / Height 80 mm / Grid 41 mm / ESD
This PP ribbed wall is specifically designed for Euro containers sizes 600x400 and 400x300 mm, providing an effective solution for the safe storage and retrieval of electrostatically sensitive components. The material is made of extruded polypropylene (PP) with a hollow chamber structure, ensuring high abrasion resistance and a low weight of 600 g/m². The ribbed wall is electrostatically volume conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-protected areas (EPA).
Technical Data:
- Length: 353 mm
- Height: 80 mm
- Thickness: 3 mm
- Grid: 41 mm
- Division: 8 grids (7 slots)
- Outer rib: no
- Surface resistance: 10^6 Ω
- Color: Black
- Material: Polypropylene hollow chamber
- Suitable for container sizes: 600x400 / 400x300 mm
The ribbed wall is configured without outer ribs, which increases flexibility and adaptability. It is ideal for use in tall Euro containers, as it can also be manufactured with handle cut-outs to facilitate the removal of components.
Item number: 050.240.080.41

Details

Compartments Compartments: 8
Grid spacing [mm] Grid spacing [mm]: 41 mm
Slots Slots: 7
External support External support: no
Color Color: black
Height [mm] Height [mm]: 80 mm
Length [mm] Length [mm]: 353 mm
Thickness [mm] Thickness [mm]: 3 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Material Material: polypropylene
Material structure Material structure: cavity material
Suitable for containers Suitable for containers: 600x400 / 400x300
Weight [g/m²] Weight [g/m²]: 600

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available with different raster widths/numbers of subdivisions
- volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Partition height (80, 120 or 180 mm)
L	=	Partition length (253, 353 or 553 mm)
G	=	Grid spacing
AS	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 / 800 mm

Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 X 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PP

High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 309

Complete Catalog 2023 - 2024

EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions

Configurators:

Printing Interlayers / Parting Inserts

Configurators:

Parting Inserts

Product Family

Article image	Article description	Compartments	Grid spacing [mm]	Slots	External support	Price
	050.240.080.20 PP Partition length 353 mm / height 80 mm / grid 20 mm ESD	15	20 mm	14	no	1.55 CHF
	050.240.080.78 PP Partition length 353 mm / height 80 mm / grid 78 mm ESD	4	78 mm	5	yes	1.25 CHF
	050.240.080.55 PP Partition length 353 mm / height 80 mm / grid 55 mm ESD	6	55 mm	5	no	1.25 CHF
	050.240.080.20.A PP Partition length 353 mm / height 80 mm / grid 20 mm with external supports ESD	14	20 mm	15	yes	1.60 CHF
	050.240.080.32 PP Partition length 353 mm / height 80 mm / grid 32 mm ESD	10	32 mm	9	no	1.45 CHF
	050.240.080.41 PP Partition length 353 mm / height 80 mm / grid 41 mm ESD	8	41 mm	7	no	1.30 CHF
	050.240.080.105 PP Partition length 353 mm / height 80 mm / grid 105 mm ESD	3	105 mm	4	yes	1.20 CHF
	050.240.080.67 PP Partition length 353 mm / height 80 mm / grid 67 mm ESD	5	67 mm	4	no	1.15 CHF
	050.240.080.159 PP Partition length 353 mm / height 80 mm / grid 159 mm ESD	2	159 mm	3	yes	1.05 CHF
	050.240.080.317 PP Partition length 353 mm / height 80 mm / grid 317 mm ESD	1	317 mm	2	yes	1.10 CHF
