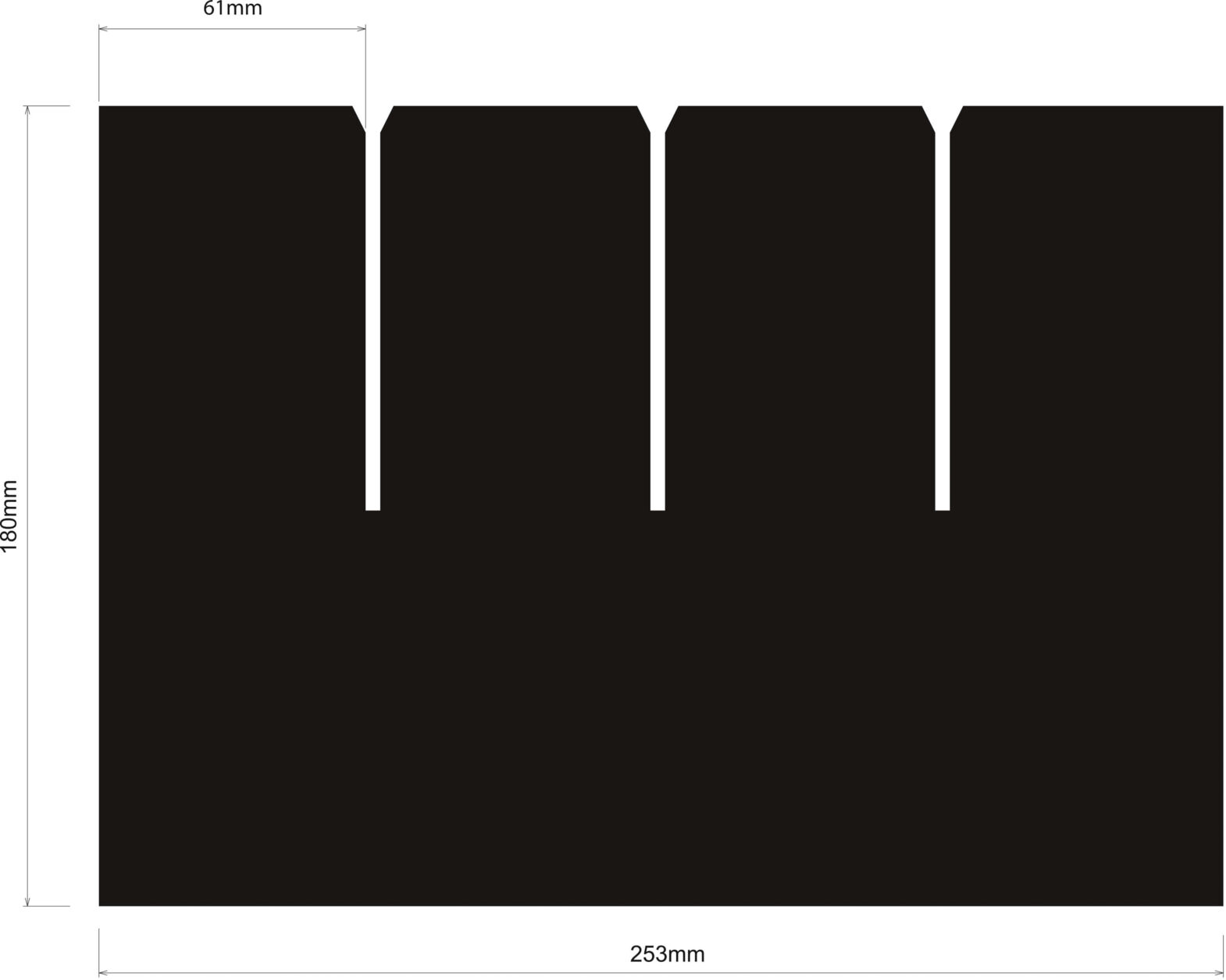

This PS grid wall with dimensions 253 x 180 x 1.85 mm is ideally suited for Euro containers sized 400 x 300 mm. The product is made from high-quality solid polystyrene and features electrostatic conductivity that meets the DIN EN 61340-5-1 ESD standards, ensuring your electronic components are protected from electrostatic discharge. The grid wall is specifically designed for use in ESD-sensitive environments and aids in the efficient removal of components from containers.
Technical Specifications:
- Division: 4 grids of 61 mm (3 slots)
- Height: 180 mm
- Length: 253 mm
- Material thickness: 1.85 mm
- Surface and volume resistance: 10^6 Ω
- Weight: 2090 g/m²
- Color: Black
- No external grid present
The combination of functionality and protection makes this product an ideal choice for technical applications where precision and safety are paramount.
Item number: 050.339.180.61
Details
- Compartments Compartments
- 4
- Grid spacing [mm] Grid spacing [mm]
- 61 mm
- Slots Slots
- 3
- External support External support
- no
- Color Color
- black
- Height [mm] Height [mm]
- 180 mm
- Length [mm] Length [mm]
- 253 mm
- Thickness [mm] Thickness [mm]
- 1.85 mm
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 106 Ω
- Volume resistance Volume resistance
- 106 Ω
- Material Material
- polystyrene
- Material structure Material structure
- solid material
- Suitable for containers Suitable for containers
- 400x300
- Weight [g/m²] Weight [g/m²]
- 2090
In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.
The ESD-safe parting inserts for Euro containers complete your workstation.
Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.
Technical data for standard versions
| Lateral length container: | - 300 / 400 / 600 mm outside |
| - 253 / 353 / 553 mm inside | |
| Partition heights: | - 80 / 120 / 180 mm |
| Thicknesses: | - 1.5 mm |
| - 1.8 mm | |
| - 2.0 mm |
- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1
customizable
Upon request - Standard partitions
- specific heights between 30 - 600 mm
- handhold cut-outs
Also for KLT containers
| H | = | Height of the parting insert (80, 120 or 180 mm) |
| L | = | Length of the parting insert (253, 353 or 553 mm) |
| G | = | Grid spacing |
| ES | = | External support (if existing) |
| SW | = | Slot width |
Technical data for standard versions
| Lateral length container: | - 300 / 400 / 600 mm |
| Partition height: | - 80 / 120 / 180 mm |
| Thicknesses: | - 1.5 mm |
| - 1.8 mm | |
| - 2.0 mm |
- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1
Handhold cut-outs for easier removal from Euro containers available in 3 versions:
- Standard: 2 corners sloped
- Type A: 2 handhold cut-outs semicular 34Â x 17 mmÂ
- Type C: 2 grip holes round 30 mm
In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements
PP cavity material:
- made of extruded polypropylene (PP)Â
- high abrasion resistance
- low weight
PS solid material:
- made of polystyrene (PS)Â
- high abrasion resistance
- high stability
- made of polyethylene foam (PE)Â
- abrasion-resistant and corrosion-free
- very low weight
Our standard dimensions are based on the most commonly used Euro transport containers.
If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Compartments | Grid spacing [mm] | Slots | External support | Price | Compare |
|---|---|---|---|---|---|---|---|
|
050.339.180.110 PS Partition length 253 mm / height 180 mm / grid 110 mm ESD | 2 | 110 mm | 3 | yes | 2.75 CHF | |
|
|
050.339.180.215 PS Partition length 253 mm / height 180 mm / grid 215 mm ESD | 1 | 215 mm | 2 | yes | 2.65 CHF | |
|
|
050.339.180.20 PS Partition length 253 mm / height 180 mm / grid 20 mm ESD | 11 | 20 mm | 10 | no | 3.45 CHF | |
|
|
050.339.180.29 PS Partition length 253 mm / height 180 mm / grid 29 mm ESD | 8 | 29 mm | 7 | no | 3.15 CHF | |
|
|
050.339.180.39 PS Partition length 253 mm / height 180 mm / grid 39 mm ESD | 6 | 39 mm | 5 | no | 2.95 CHF | |
|
|
050.339.180.48 PS Partition length 253 mm / height 180 mm / grid 48 mm ESD | 5 | 48 mm | 4 | no | 2.80 CHF | |
|
|
050.339.180.61 PS Partition length 253 mm / height 180 mm / grid 61 mm ESD | 4 | 61 mm | 3 | no | 2.70 CHF | |
|
|
050.339.180.72 PS Partition length 253 mm / height 180 mm / grid 72 mm ESD | 3 | 72 mm | 4 | yes | 2.65 CHF | |
