PS Partition length 253 mm / height 80 mm / grid 61 mm ESD

(Product No.: 050.339.080.61)

PS Partition length 253 mm / height 80 mm / grid 61 mm ESD

Name: PS Partition length 253 mm / height 80 mm / grid 61 mm ESD
SKU: 050.339.080.61
Price: 1.45 CHF
Availability: InStock

ArticleNo: 050.339.080.61

dpvlink:

14937

Manufacturer:

Compartments:

Grid spacing [mm]:

61 mm

Slots:

External support:

Properties:

Further product information

Printing Interlayers / Parting Inserts
configure_now

Parting Inserts
configure_now

Minimum order:

8 PCE

1.45 CHF

8 PCE

Compare

Notice

Product Info

PS Rib Wall Length 253 mm / Height 80 mm / Grid 61 mm / ESD

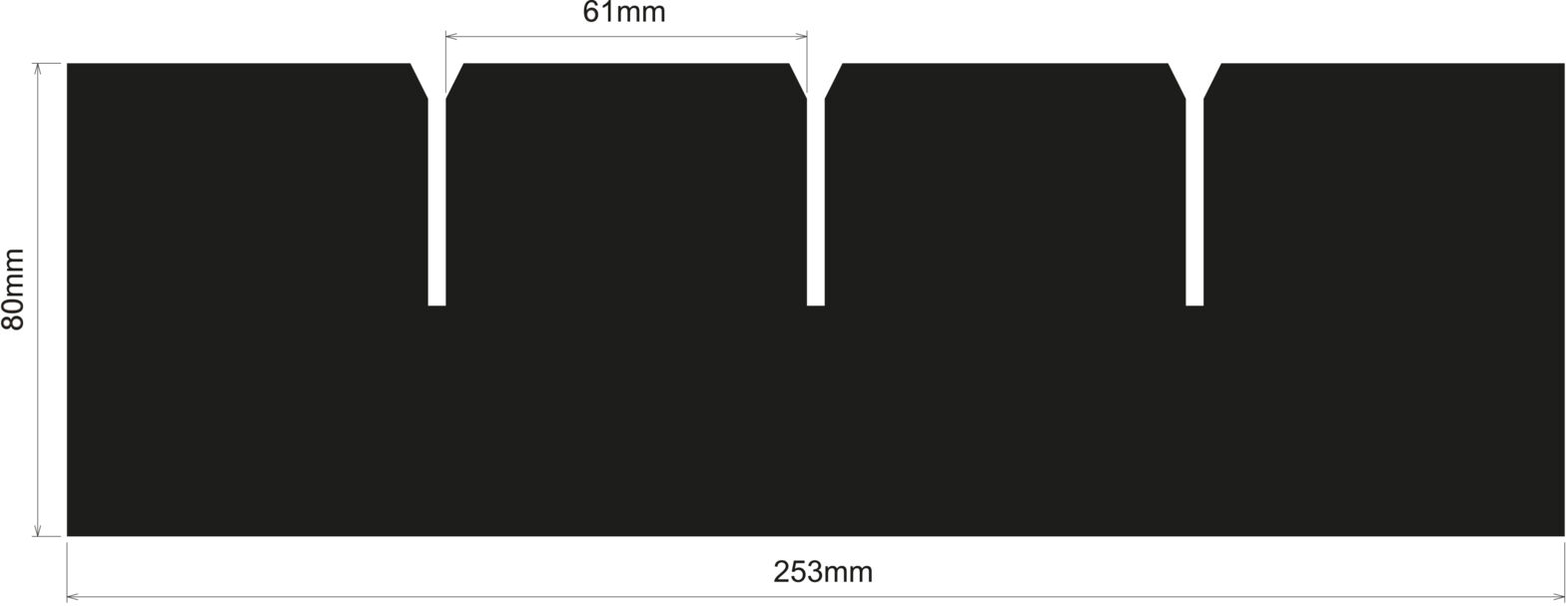

This PS rib wall with dimensions 253 x 80 x 1.85 mm is specifically designed for Euro containers sized 400 x 300 mm and supports efficient organization and safe storage of components. The material is made from highly stable solid polystyrene with a thickness of 1.85 mm, which is electrostatically conductive and thus meets the requirements of the ESD standard DIN EN 61340-5-1. This ensures protection against electrostatic discharge, which is particularly important in electronics manufacturing. Technical Specifications: - Length: 253 mm - Height: 80 mm - Grid size: 61 mm - Divisions: 4 - Slots: 3 - Surface resistance Rs: 10^6 Ω - Volume resistance: 10^6 Ω - Color: Black - Weight: 2090 g/m² - Material: Polystyrene - Suitable for containers: 400x300 mm The rib wall is not only functional but also adaptable, as it is designed without an outer rib, allowing for flexible use. Ideal for use in areas where precise component removal is required.
Item number: 050.339.080.61

Details

Compartments Compartments: 4
Grid spacing [mm] Grid spacing [mm]: 61 mm
Slots Slots: 3
External support External support: no
Color Color: black
Height [mm] Height [mm]: 80 mm
Length [mm] Length [mm]: 253 mm
Thickness [mm] Thickness [mm]: 1.85 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Volume resistance Volume resistance: 10⁶ Ω
Material Material: polystyrene
Material structure Material structure: solid material
Suitable for containers Suitable for containers: 400x300
Weight [g/m²] Weight [g/m²]: 2090

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Height of the parting insert (80, 120 or 180 mm)
L	=	Length of the parting insert (253, 353 or 553 mm)
G	=	Grid spacing
ES	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm
Partition height:	- 80 / 120 / 180 mm

Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 x 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PS

High abrasion resistance, high stability, volume conductive. Typical surface resistance: R = 10^4–10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
