PS Partition length 553 mm / height 80 mm / grid 52 mm ESD

(Product No.: 050.341.080.52)

PS Partition length 553 mm / height 80 mm / grid 52 mm ESD

Name: PS Partition length 553 mm / height 80 mm / grid 52 mm ESD
SKU: 050.341.080.52
Price: 3.00 CHF
Availability: InStock

ArticleNo: 050.341.080.52

dpvlink:

14994

Manufacturer:

Compartments:

Grid spacing [mm]:

52 mm

Slots:

External support:

Properties:

Note:

Other heights from 30-600 mm with cut-outs customizable

Further product information

Printing Interlayers / Parting Inserts
configure_now

Parting Inserts
configure_now

Minimum order:

4 PCE

3.00 CHF
3.00 CHF per PCE

PCE:

Compare

Notice

Product Info

PS Ribbed Wall Length 553 mm / Height 80 mm / Pitch 52 mm / ESD

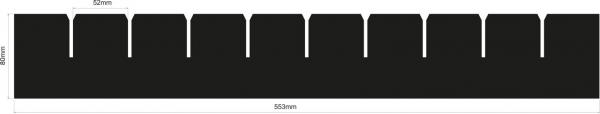

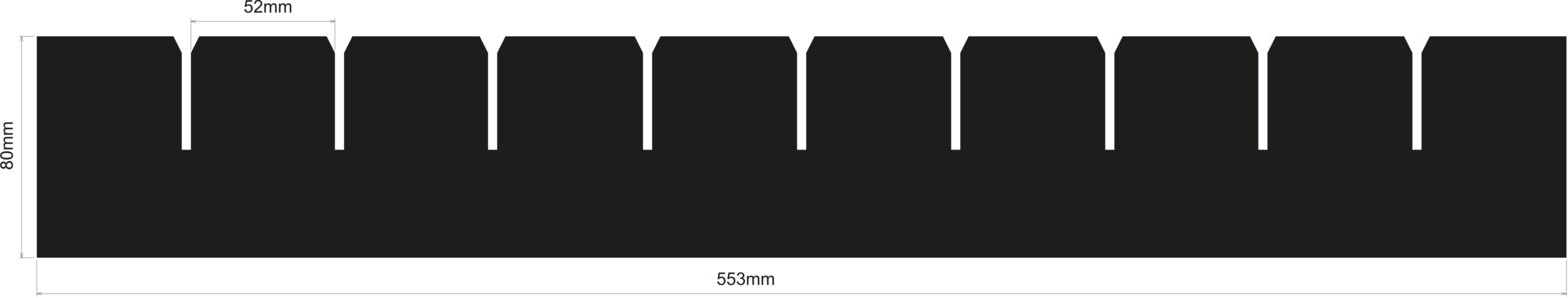

This PS ribbed wall with a length of 553 mm and a height of 80 mm is specifically designed for Euro containers sized 600 x 400 mm. The product made from highly stable solid polystyrene features a material thickness of 1.85 mm and is electrostatically conductive, meeting the requirements of the ESD standard DIN EN 61340-5-1. It serves to effectively subdivide containers and facilitates the removal of components. The ribbed wall is manufactured without an external rib and offers a subdivision into 10 pitches of 52 mm each, with a total of 9 slots. Technical Data: - Length: 553 mm - Height: 80 mm - Thickness: 1.85 mm - Pitch: 52 mm - Slots: 9 - Surface resistance Rs: 10^6 Ω - Volume resistance: 10^6 Ω - Color: Black - Weight: 2090 g/m² - Material: Polystyrene
This product is ideal for use in areas where protection against electrostatic discharge is required and supports organized storage and handling of sensitive electronic components.
Item number: 050.341.080.52

Details

Compartments Compartments: 10
Grid spacing [mm] Grid spacing [mm]: 52 mm
Slots Slots: 9
External support External support: no
Color Color: black
Height [mm] Height [mm]: 80 mm
Length [mm] Length [mm]: 553 mm
Thickness [mm] Thickness [mm]: 1.85 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Volume resistance Volume resistance: 10⁶ Ω
Material Material: polystyrene
Material structure Material structure: solid material
Suitable for containers Suitable for containers: 600x400
Weight [g/m²] Weight [g/m²]: 2090

Other heights from 30-600 mm with cut-outs customizable

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Height of the parting insert (80, 120 or 180 mm)
L	=	Length of the parting insert (253, 353 or 553 mm)
G	=	Grid spacing
ES	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm
Partition height:	- 80 / 120 / 180 mm

Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 x 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PS

High abrasion resistance, high stability, volume conductive. Typical surface resistance: R = 10^4–10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 312

Complete Catalog 2023 - 2024

EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions

Configurators:

Printing Interlayers / Parting Inserts

Configurators:

Parting Inserts

Product Family

Article image	Article description	Compartments	Grid spacing [mm]	Slots	External support	Price
	050.341.080.52 PS Partition length 553 mm / height 80 mm / grid 52 mm ESD	10	52 mm	9	no	3.00 CHF
	050.341.080.257 PS Partition length 553 mm / height 80 mm / grid 257 mm ESD	2	257 mm	3	yes	2.70 CHF
	050.341.080.20 PS Partition length 553 mm / height 80 mm / grid 20 mm	24	20 mm	23	no	3.65 CHF
	050.341.080.23 PS Partition length 553 mm / height 80 mm / grid 23 mm ESD	20	23 mm	21	yes	3.55 CHF
	050.341.080.34 PS Partition length 553 mm / height 80 mm / grid 34 mm ESD	15	34 mm	14	no	3.25 CHF
	050.341.080.84 PS Partition length 553 mm / height 80 mm / grid 84 mm ESD	6	84 mm	7	yes	2.90 CHF
	050.341.080.127 PS Partition length 553 mm / height 80 mm / grid 127 mm ESD	4	127 mm	5	yes	2.80 CHF
	050.341.080.43 PS Partition length 553 mm / height 80 mm / grid 43 mm ESD	12	43 mm	11	no	3.10 CHF
	050.341.080.66 PS Partition length 553 mm / height 80 mm / grid 66 mm ESD	8	66 mm	7	no	2.90 CHF
	050.341.080.76 PS Partition length 553 mm / height 80 mm / grid 76 mm ESD	7	76 mm	6	no	2.85 CHF
	050.341.080.101 PS Partition length 553 mm / height 80 mm / grid 101 mm ESD	5	101 mm	6	yes	2.85 CHF
	050.341.080.170 PS Partition length 553 mm / height 80 mm / grid 170 mm ESD	3	170 mm	4	yes	2.75 CHF
Show Compare List (0)

This product is compatible with (for example):

Euro container Light with fixed hinged lid...

Euro container light 600x400x435(220+15) mm/inside
560x360x405 mm, hinged lid, black
usable inner height: 405 mm
electrostatically conductive (DIN EN 61340-5-1)
Specific resistance / surface resistance 10H3 < 10H10
