Drawer with corrugated base ESD

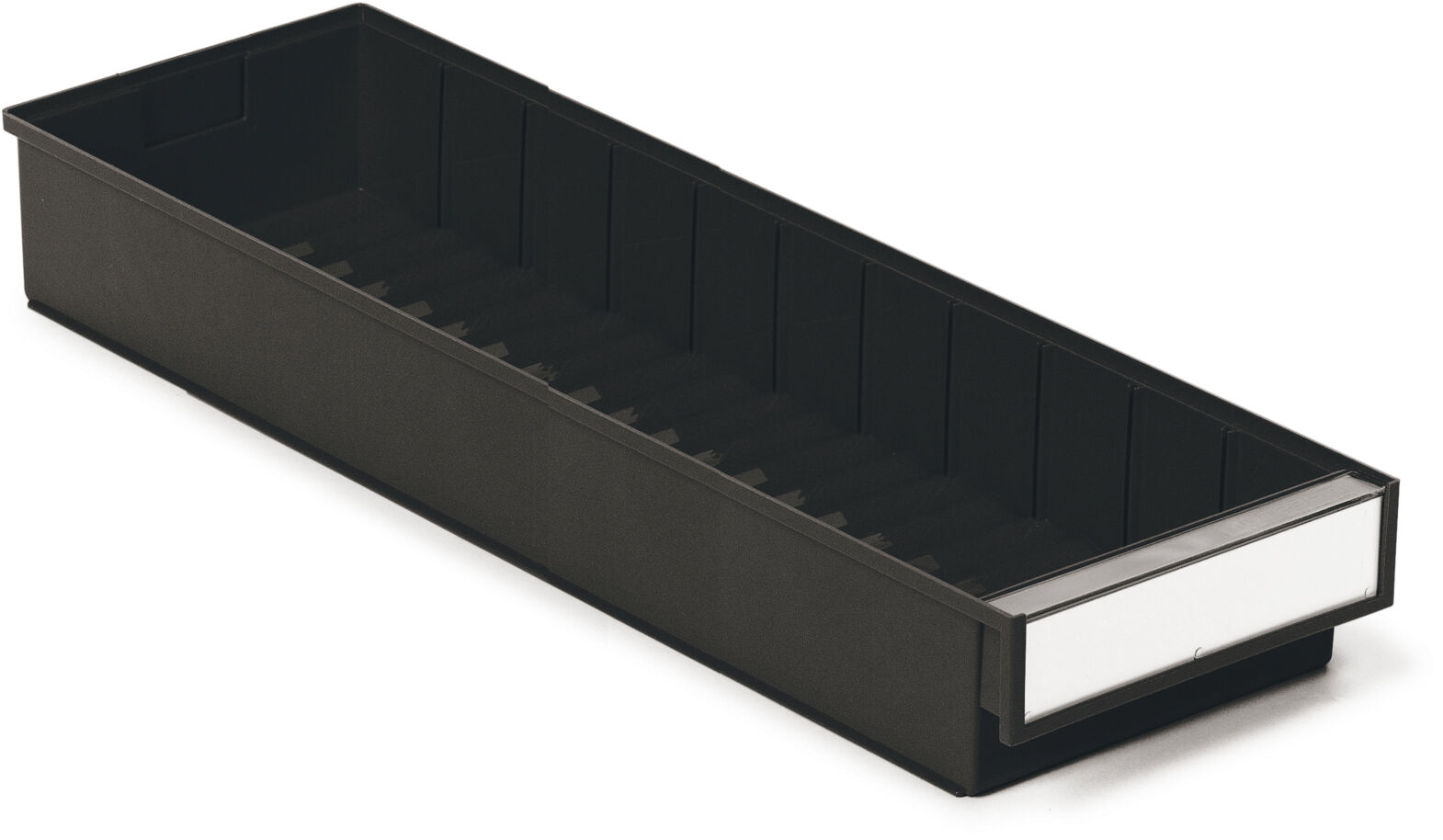

ESD Drawer with Corrugated Bottom
This ESD drawer with a corrugated bottom is specifically designed for metric shelving systems and offers an efficient storage solution for sensitive electronic components. The drawer is electrically conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-protected areas. It is stackable and can be expanded with compatible dividers for flexible partitioning, which improves organization and accessibility. The package includes the drawer, a label, and a clear protective cover.
Technical Specifications:
- External dimensions: 600 x 186 x 82 mm (LxWxH)
- Internal dimensions: 557 x 167 x 70 mm (LxWxH)
- Volume: 6.5 l
- Material: Polypropylene
- Color: Black
- Temperature resistance: -20 to 70 °C
- Suitable for cleanroom use
Item number: 050.135
Part No. 6020-4 ESD
This ESD drawer with a corrugated bottom is specifically designed for metric shelving systems and offers an efficient storage solution for sensitive electronic components. The drawer is electrically conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-protected areas. It is stackable and can be expanded with compatible dividers for flexible partitioning, which improves organization and accessibility. The package includes the drawer, a label, and a clear protective cover.
Technical Specifications:
- External dimensions: 600 x 186 x 82 mm (LxWxH)
- Internal dimensions: 557 x 167 x 70 mm (LxWxH)
- Volume: 6.5 l
- Material: Polypropylene
- Color: Black
- Temperature resistance: -20 to 70 °C
- Suitable for cleanroom use
Item number: 050.135
Part No. 6020-4 ESD
Details
- Width [mm] Width [mm]
- 186 mm
- Height [mm] Height [mm]
- 82 mm
- Depth [mm] Depth [mm]
- 600 mm
- Internal width Internal width
- 167 mm
- Internal height Internal height
- 70 mm
- Internal depth Internal depth
- 557 mm
- Volume Volume
- 6.5 l
- Cleanroom Cleanroom
- suitable
- Color Color
- black
- Conductivity Conductivity
- conductive
- Material Material
- polypropylene
- Temperature range Temperature range
- -20 - 70 °C
