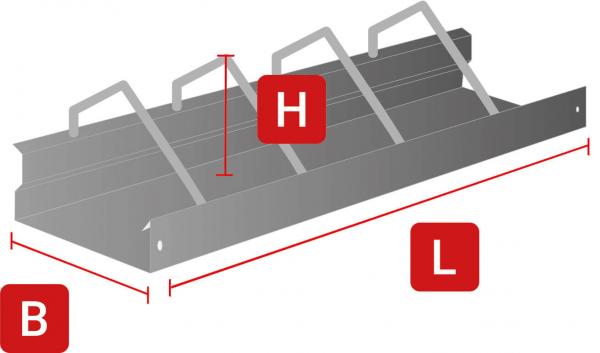

The image shows a gray metal object with three vertical supports. It has a horizontal base and is marked in the dimensions width (W), height (H), and length (L).
Reel rack configurable with movable wire dividers
(Product No.: 090.015)
The image shows a gray metal object with three vertical supports. It has a horizontal base and is marked in the dimensions width (W), height (H), and length (L).

Reel rack configurable with movable wire dividers

Reel rack configurable with movable wire dividers

dpvlink:
5750
Manufacturer:
Properties:
Further product information


Compare Compare
Notice
Product Info

Reel rack configurable with movable wire dividers

The customizable reel rack from EPAstore, made by DPV, offers an optimal solution for efficiently storing and organizing SMD reels. This product is especially suitable for use in transport carts and shelving units, and supports reels with diameters ranging from 180 to 380 mm.
The sturdy metal construction made of steel and stainless steel is galvanized to resist corrosion and ensure durability. The stainless steel brackets of the rack are variably pluggable and can flexibly adapt to different reel sizes thanks to a 32 mm hole grid. Optional handles and labeling rails can be added to improve handling and visibility.
This product meets the ESD standard DIN EN 61340-5-1, making it safe for use in ESD-sensitive environments. With the reel rack from EPAstore, you not only optimize your workspace but also increase efficiency through faster access and better organization of your SMD reels.
Color
Color
grey
Material
Material
steel / steel
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a metallic holding device with several angled metal bars. There is a rounded edge at the bottom and a small round elevation in the center.
ESD Carrying handle for SMD reel rack
Handle for SMD reel rack 090.001 + 090.005
(2 handles are needed per reel rack)
dpvlink
7043

6.40 CHF
The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
ESD Magnet labeling strip
Magnet labeling strips, white 40 x 25 mm
PU = 50 pieces
dpvlink
7043

25.75 CHF
The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
ESD Magnet labeling strip
Magnet labeling strips, 40 x 540 mm
Width 40 mm, length 540 mm
suitable for reel racks 090.001 + 090.005
dpvlink
7043

5.60 CHF
The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
ESD Magnet labeling strip
Magnet labeling strips, white
width 40 mm, length 960 mm
suitable for reel rack 090.010
dpvlink
7043

8.95 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 346
Complete Catalog 2023 - 2024

Product Family

SMD Reel rack with movable wire dividers

Article image
Article description
Color
Material
Length
Width [mm]
Height [mm]
Reel diameter
Reels
Price
Compare
090.015 - Reel rack configurable with movable wire dividers
090.015
Reel rack configurable with movable wire dividers
grey
steel / steel





-
090.002 - Reel rack 988 ESD
090.002
Reel rack 988 ESD


988 mm
195 mm
110 mm
180 mm
32
99.85 CHF
090.001 - Reel rack 540 ESD
090.001
Reel rack 540 ESD


540 mm
195 mm
110 mm
180 mm
32
64.80 CHF
090.005 - Reel rack 540 ESD
090.005
Reel rack 540 ESD


540 mm
284 mm
175 mm
180-380 mm
32
72.65 CHF
090.010 - Reel rack 988 ESD
090.010
Reel rack 988 ESD


988 mm
284 mm
175 mm
180-380 mm
60
103.80 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a gray metal object with three vertical supports. It has a horizontal base and is marked in the dimensions width (W), height (H), and length (L).
Reel rack configurable with movable wire...
Reel rack, special length
Dimensions: ___x___x___ mm (LxWxH)
with …. wire dividers,
for SMD reels diameter ___ mm
Material: steel / galvanized,
wire divider : stainless steel
dpvlink
5750

Price on request

This product is similar to:

The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
ESD Magnet labeling strip
Magnet labeling strips, white 40 x 25 mm
PU = 50 pieces
dpvlink
7043

25.75 CHF
The image shows a metal dish rack with multiple compartments. It contains round, flat plates in various colors, which are arranged at an angle.
Reel rack 988 ESD
Reel Rack 988 mm, with 31 wire dividers
Dimensions: 988 x 195 mm (LxB)
for max. 32 SMD reels, diameter 180 mm
Material: steel / galvanized
wire dividers: stainless steel
dpvlink
5750

99.85 CHF
The image shows a metal dish rack with multiple compartments. It contains round, flat plates in various colors, which are arranged at an angle.
Reel rack 988 ESD
Reel rack 988 mm, with 31 wire dividers
Dimensions: 988 x 284 mm (LxW)
for max 60 SMD reels diameter 180 - 380mm
Material: steel / galvanized,
wire divider : stainless steel
dpvlink
5750

103.80 CHF
The image shows a metal dish rack with multiple compartments. It contains round, flat plates in various colors, which are arranged at an angle.
Reel rack 540 ESD
Reel rack 540 mm, with 17 wire dividers
Dimensions: 540 x 195 mm (L xWB)
for max 32 SM reels diameter 180 mm
Material: steel / galvanized,
wire divider : stainless steel
dpvlink
5750

64.80 CHF
