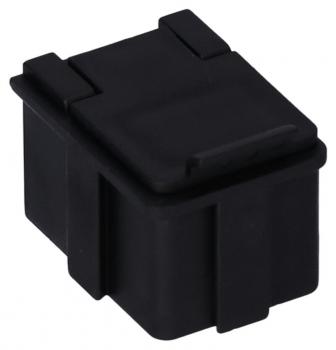

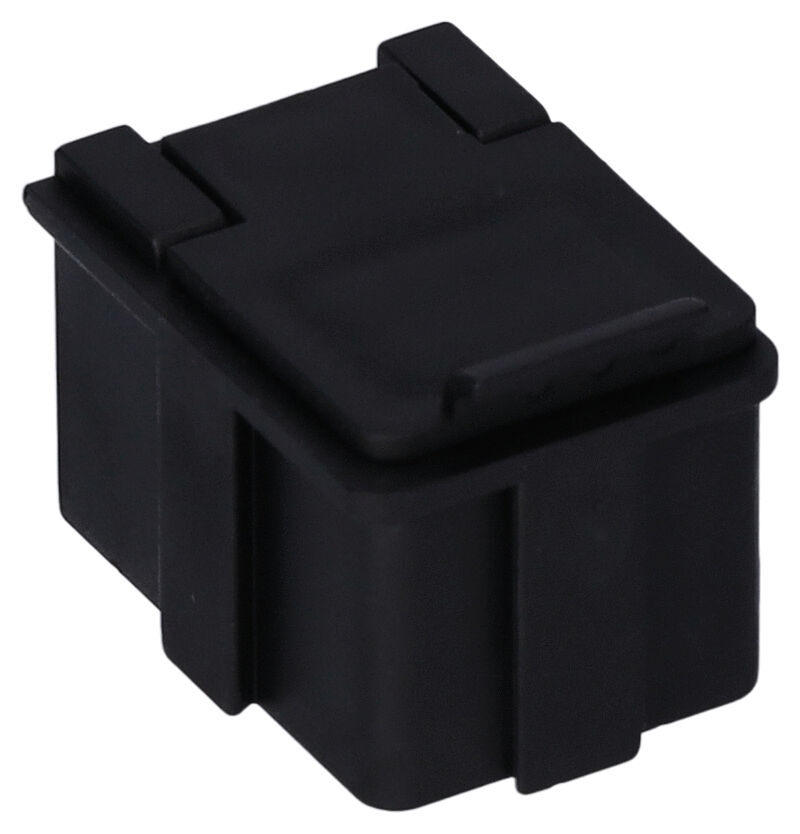

SMD folding box size N1 (small), conductive
SMD Folding Box Size N1 (small), conductive
This SMD folding box size N1 (small) is ideal for the clear and accessible storage of SMD components. It is electrically conductive and meets the standard DIN EN 61340-5-1. The box can be integrated into assembly cabinets of size 2.0. The lid and the bottom are held in black and can be exchanged by simple handling. They remain standing on their own when opened and feature a spring pressure closure for secure closing. Labels for marking can be easily attached.
Technical Data:
- Length: 29.4 mm
- Width: 21.8 mm
- Height: 21 mm
- Interior dimensions (LxWxH): 16x12x15 mm
- Surface resistance Rs: 10^3 - 10^5 Ω
- Color: Black
- Weight: 4.7 g
- Continuous usage temperature: -20 to 80 °C
Item number: 038.401.
Details
- Length [mm] Length [mm]
- 29.4 mm
- Width [mm] Width [mm]
- 21.8 mm
- Height [mm] Height [mm]
- 21 mm
- Internal length Internal length
- 16 mm
- Inner width Internal width
- 12 mm
- Internal height Internal height
- 15 mm
- Color Color
- black
- Conductivity Conductivity
- conductive
- Surface resistance Rs Surface resistance Rs
- 103 - 105 Ω
- Size Size
- N1 (small)
- Continuous use temperature Continuous use temperature
- -20-80 °C
- Weight [g] Weight [g]
- 4.7 g
For a clear and ready-to-hand storage respectively provision of SMD components. The lids can be easily exchanged, stay open independently and can be closed by spring pressure. Labels for inscription can be simply affixed. The SMD folding boxes can be exactly integrated into the racks of size 2.0.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Length [mm] | Width [mm] | Height [mm] | Internal length | Inner width | Internal height | Price | Compare |
|---|---|---|---|---|---|---|---|---|---|
|

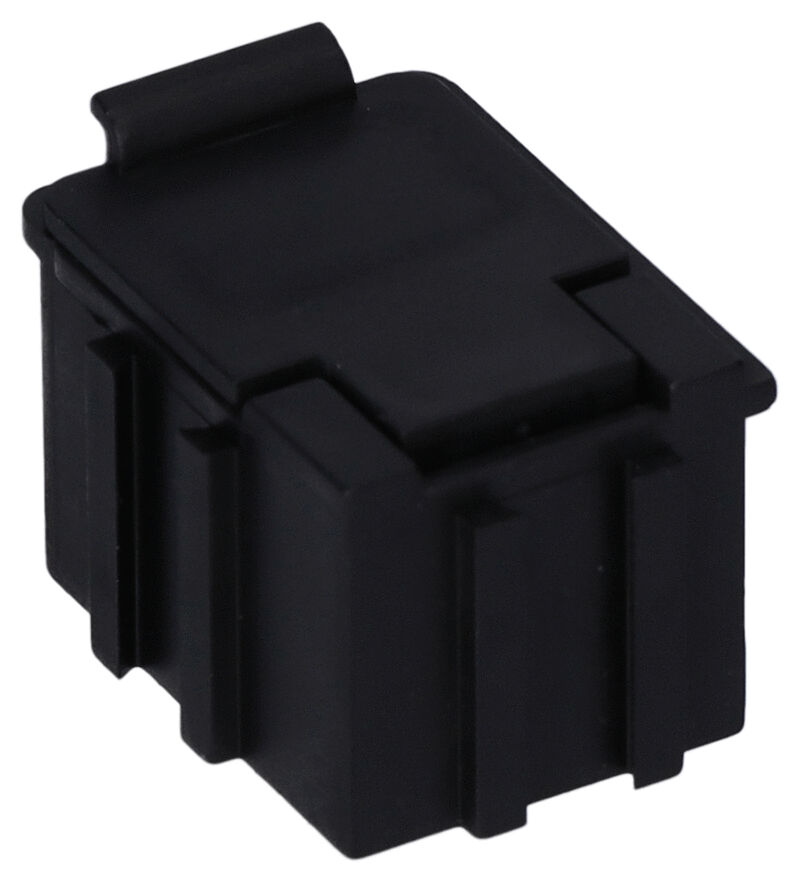

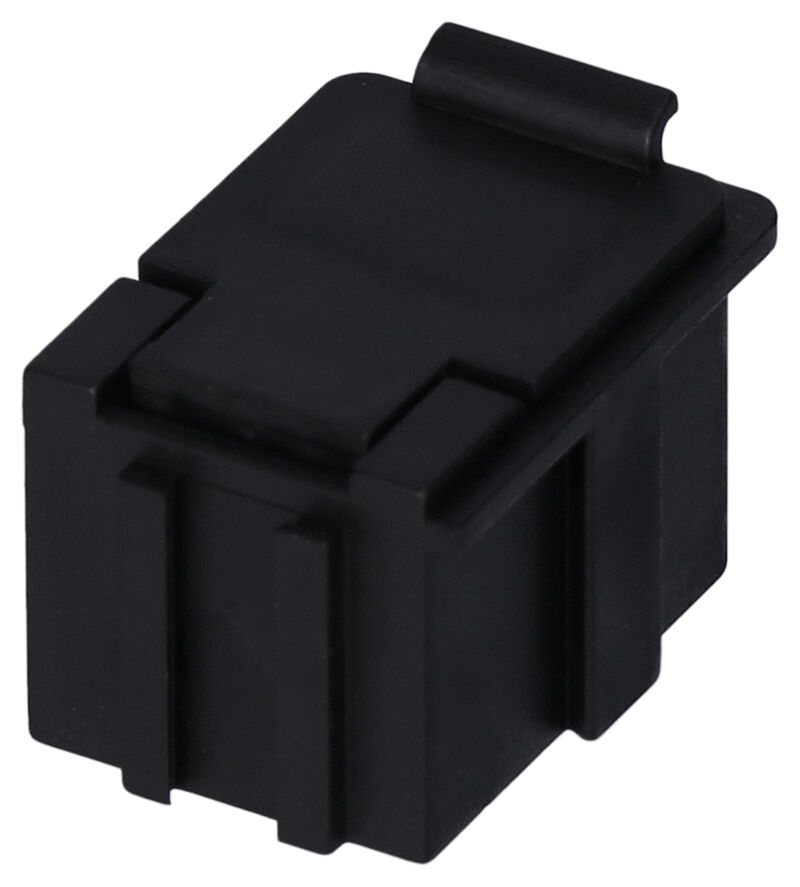

038.402 SMD folding box size N2 (medium), conductive | 29.4 mm | 42.4 mm | 21 mm | 12 mm | 37 mm | 15 mm | 1.50 CHF | |
|
038.403 SMD folding box size N3 (large), conductive | 57.4 mm | 42.3 mm | 21 mm | 41 mm | 37 mm | 15 mm | 1.75 CHF | |
|
038.401 SMD folding box size N1 (small), conductive | 29.4 mm | 21.8 mm | 21 mm | 16 mm | 12 mm | 15 mm | 1.05 CHF | |
|
038.414 SMD folding box size N4 (maxi), conductive/LS | 85.3 mm | 63 mm | 21 mm | 68 mm | 57 mm | 15 mm | 3.55 CHF | |
|
038.404 SMD folding box size N4 (maxi), conductive | 85.3 mm | 63 mm | 21 mm | 68 mm | 57 mm | 15 mm | 2.05 CHF | |
|
038.413 SMD folding box size N3 (large), conductive/LS | 57.4 mm | 42.3 mm | 21 mm | 41 mm | 37 mm | 15 mm | 2.80 CHF | |
|
038.412 SMD folding box size N2 (medium), conductive/LS | 29.4 mm | 42.4 mm | 21 mm | 12 mm | 37 mm | 15 mm | 2.50 CHF | |
|
038.411 SMD folding box size N1 (small), conductive/LS | 29.4 mm | 21.8 mm | 21 mm | 16 mm | 12 mm | 15 mm | 2.00 CHF | |
