SMD folding box size N1 (small), not conductive

Name: SMD folding box size N1 (small), not conductive
SKU: 038.431.[...]
Price: 1.25 CHF
Availability: InStock

ArticleNo: 038.431.[...]

dpvlink:

5215

Further product information

Imprinting / Printing for boxes
configure_now

Color:

1.25 CHF
1.25 CHF per PCE

PCE:

Compare

Notice

Product Info

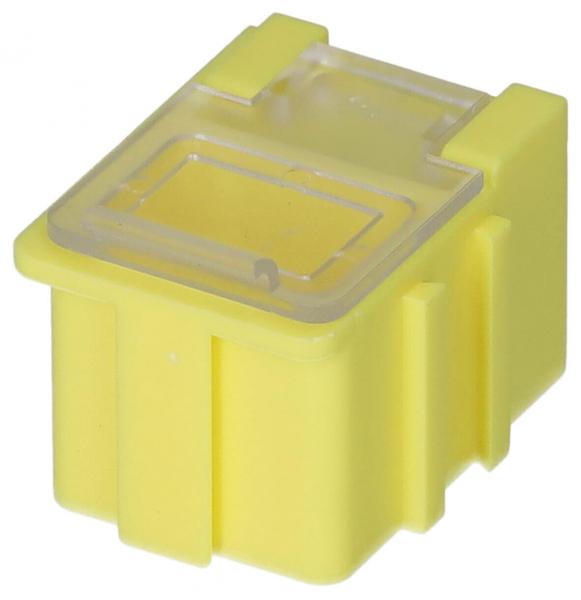

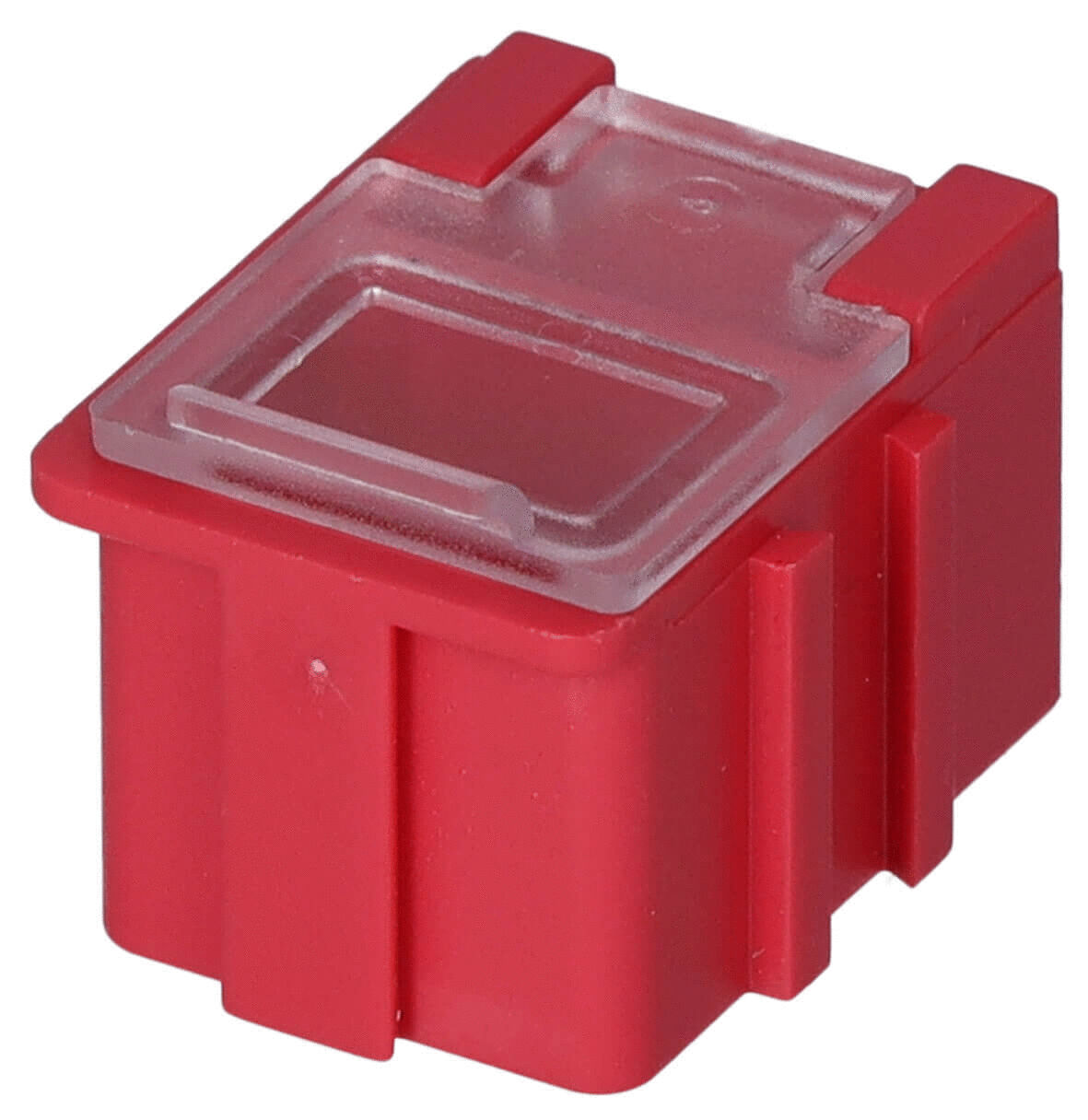

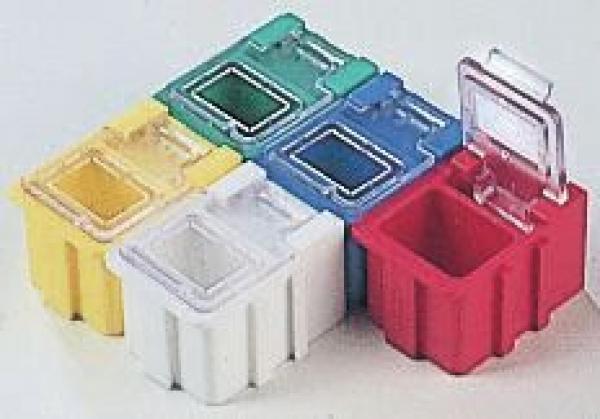

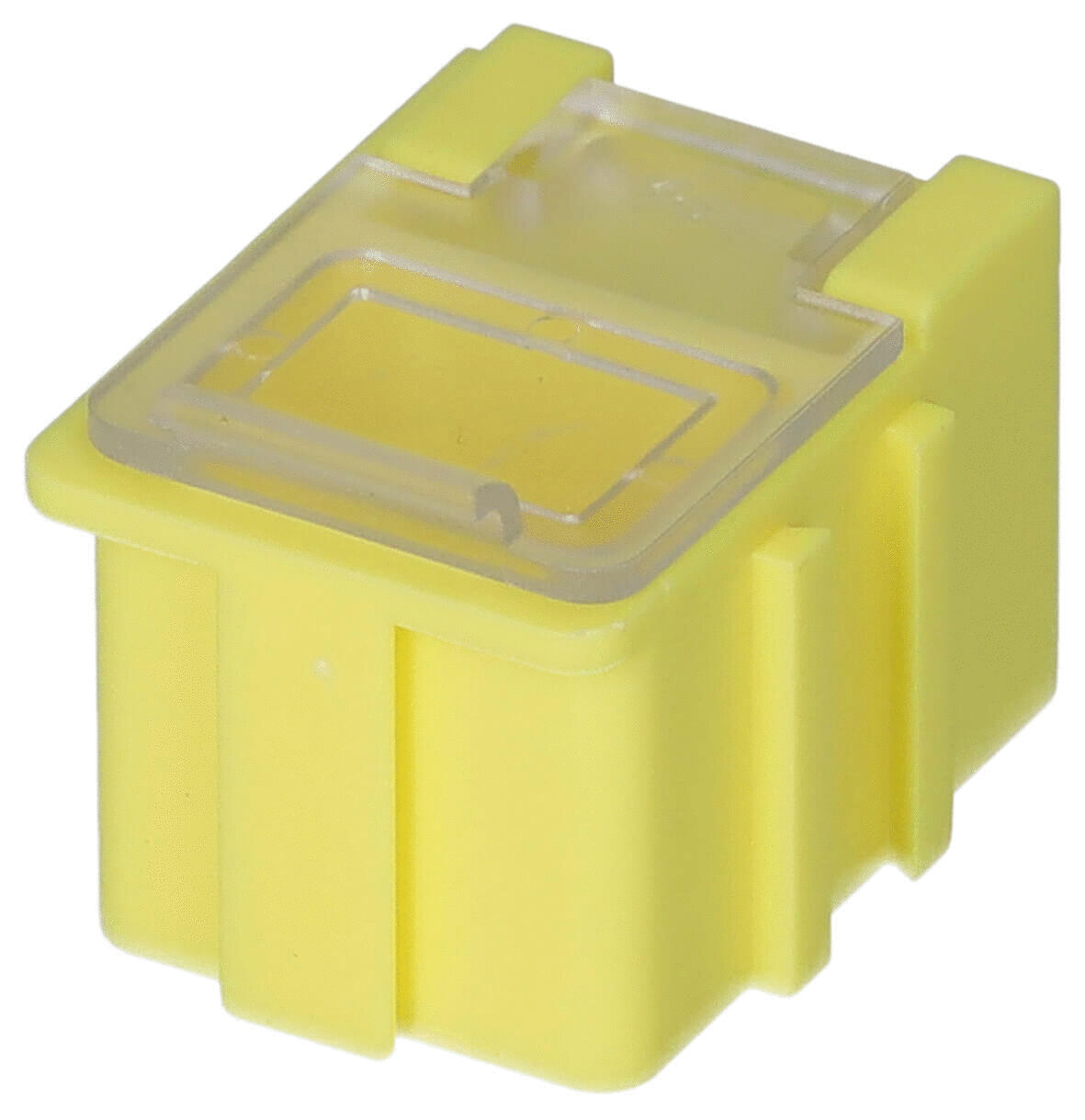

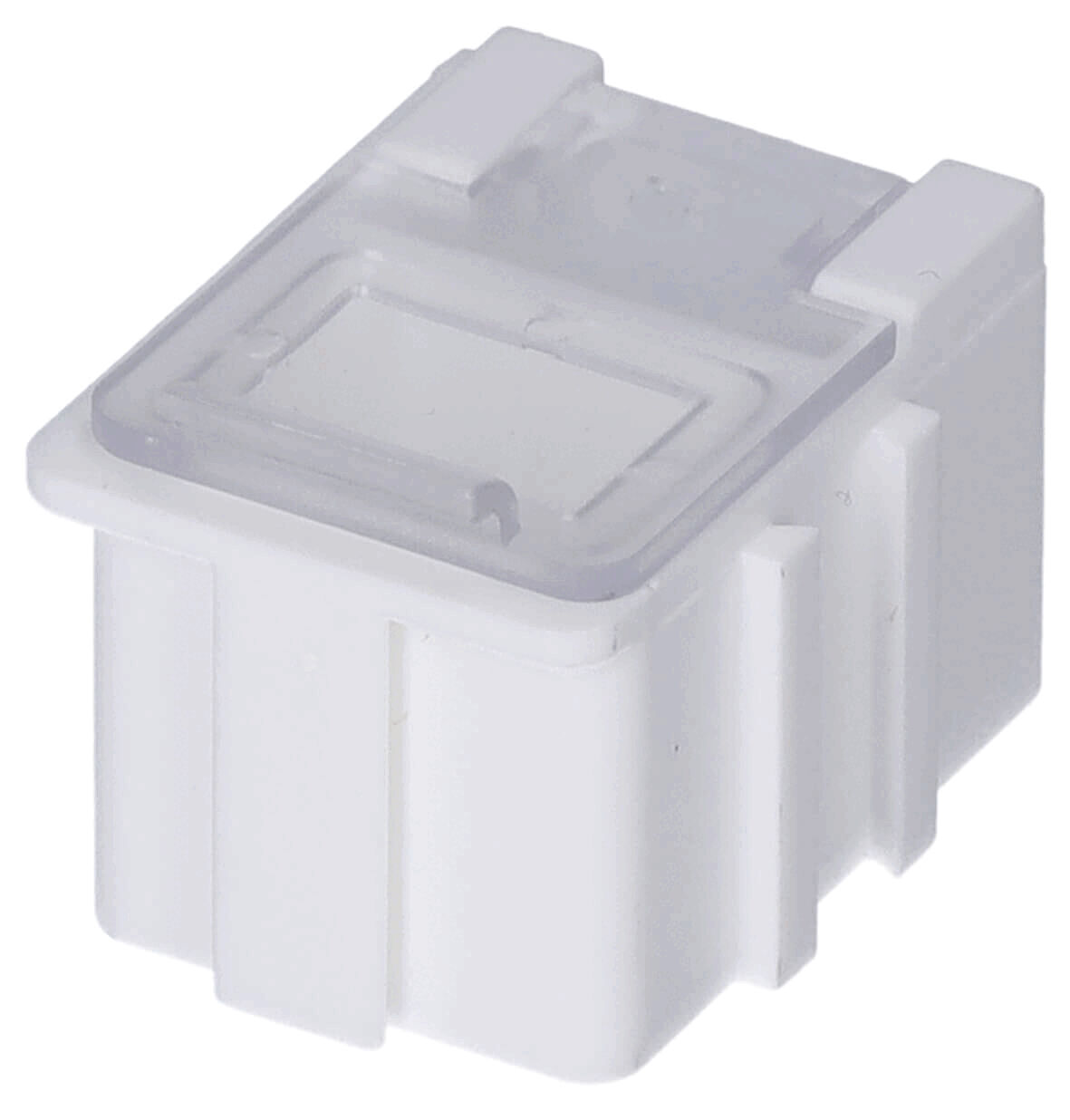

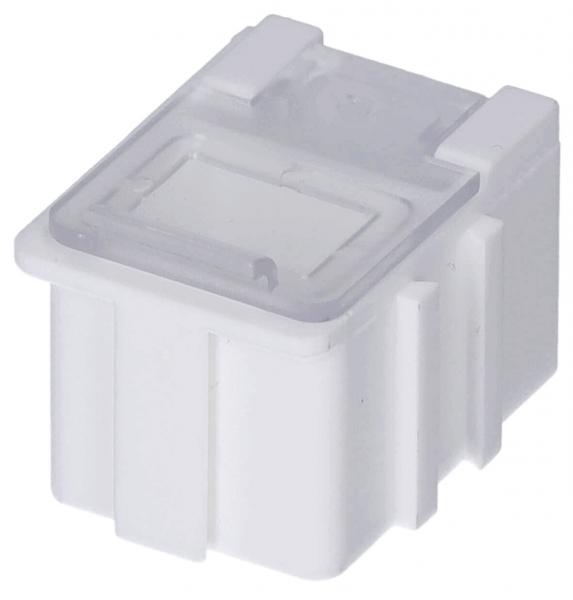

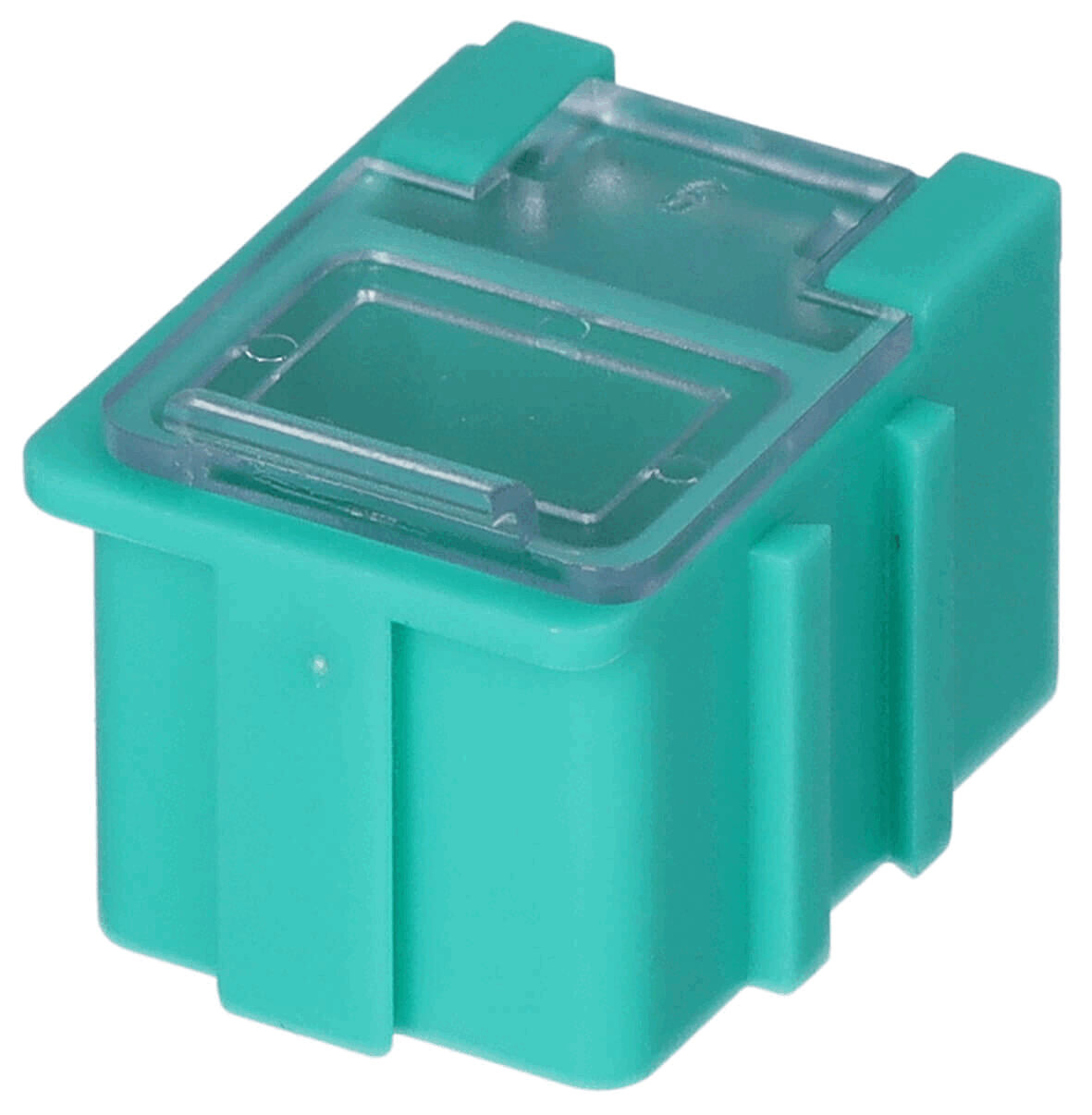

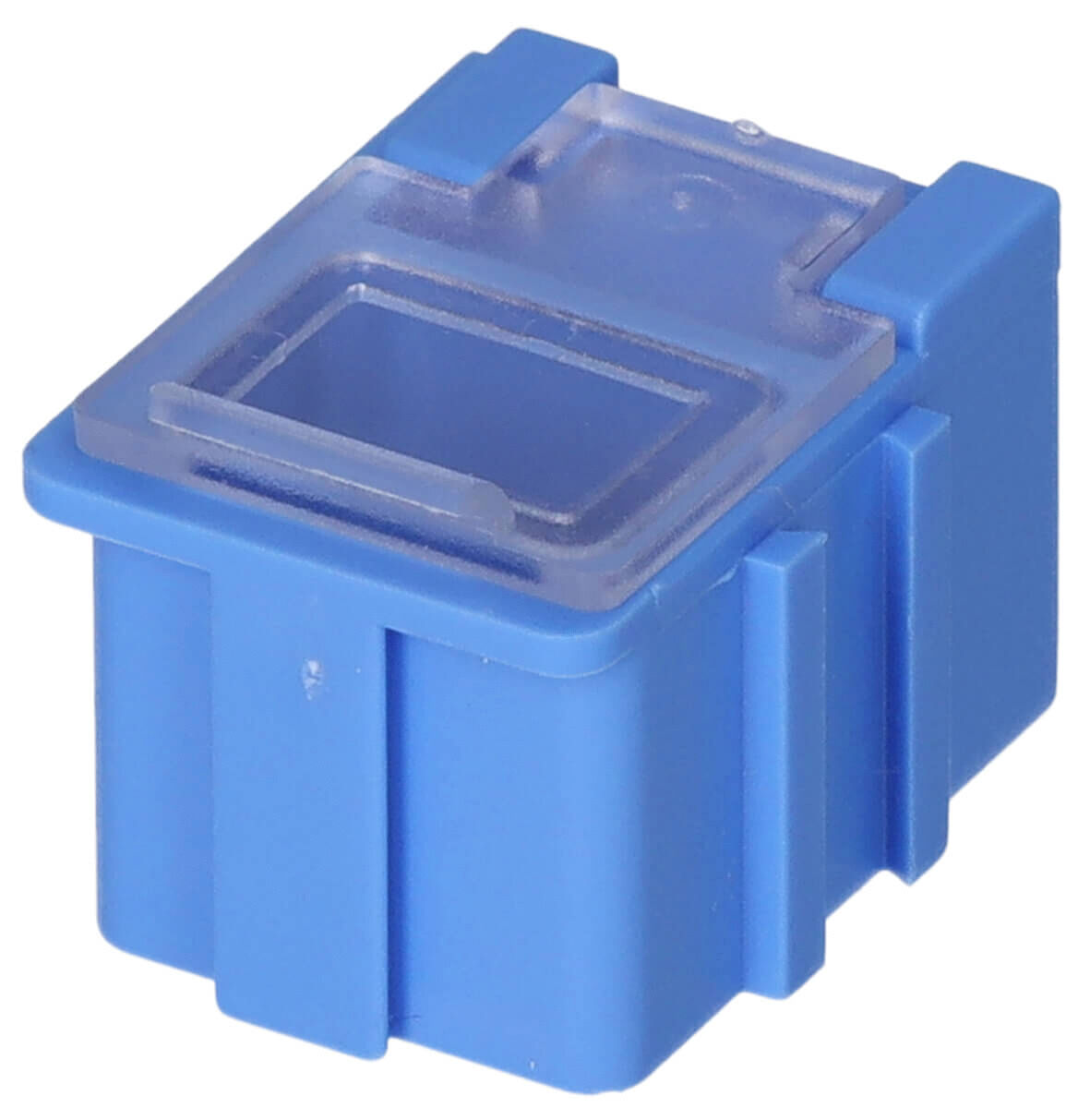

SMD Folding Box Size N1 (small), non-conductive This SMD folding box size N1 (small) is ideally suited for organized and readily accessible storage and provision of SMD components. The model is non-conductive and features a crystal-clear lid that is easy to replace, stays open on its own, and can be securely closed with a spring mechanism. Labeling can be easily done with labels. Additionally, the box can be precisely integrated into setup cabinets of size 2.0 and is available in various colors for the lower part: blue, yellow, green, red, or white. Technical data: - Width: 21.8 mm - Height: 21 mm - Inner width: 12 mm - Inner height: 15 mm - Inner length: 16 mm - Length: 29.4 mm - Weight: 4.7 g - Continuous usage temperature: -20 to 80 °C Item number: 038.431.[...]. Item number: 038.431.[...].

Details

Height [mm] Height [mm]: 21 mm
Internal height Internal height: 15 mm
Internal length Internal length: 16 mm
Internal width Internal width: 12 mm
Length [mm] Length [mm]: 29.4 mm
Width [mm] Width [mm]: 21.8 mm
Size Size: N1 (small)
Continuous use temperature Continuous use temperature: -20-80 °C
Weight [g] Weight [g]: 4.7 g

Common

For a clear and ready-to-hand storage respectively provision of SMD components. The lids can be easily exchanged, stay open independently and can be closed by spring pressure. Labels for inscription can be simply affixed. The SMD folding boxes can be exactly integrated into the racks of size 2.0.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Configurators:

Imprinting / Printing for boxes

Product Family

Article image	Article description	Height [mm]	Internal height	Internal length	Internal width	Length [mm]	Width [mm]	Size	Price
	038.434.[...] SMD folding box size N4 (maxi), not conductive	21 mm	15 mm	68 mm	57 mm	85.3 mm	63 mm	N4 (maxi)	2.20 CHF
	038.433.[...] SMD folding box size N3 (large), not conductive	21 mm	15 mm	41 mm	37 mm	57.4 mm	42.3 mm	N3 (large)	1.80 CHF
	038.431.[...] SMD folding box size N1 (small), not conductive	21 mm	15 mm	16 mm	12 mm	29.4 mm	21.8 mm	N1 (small)	1.25 CHF
	038.432.[...] SMD folding box size N2 (medium), not conductive	21 mm	15 mm	12 mm	37 mm	29.4 mm	42.4 mm	N2 (medium)	1.45 CHF
