Hinged lid box ESD

(Product No.: 032.355)

Mobile Preview: Image

Mobile Preview: Image

Mobile Preview: Image

(Product No.: 032.355)

Hinged lid box ESD

ArticleNo: 032.355

dpvlink:

26392

Length [mm]:

118 mm

Width [mm]:

78 mm

Height [mm]:

20 mm

Internal length:

90 mm

Internal width:

50 mm

Internal height:

15 mm

Shipping Unit:

1000 piece

Properties:

ESD-protective

Further product information

Imprinting / Printing for boxes
configure_now

Product Info

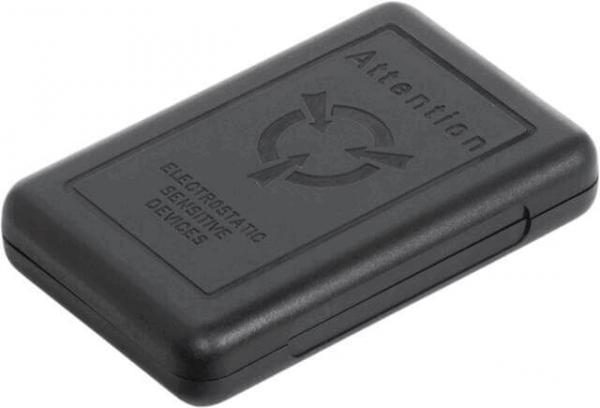

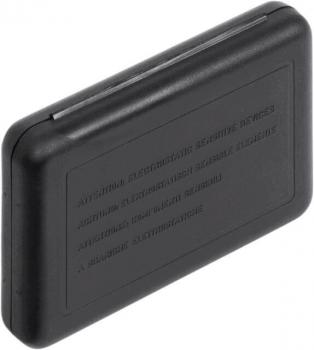

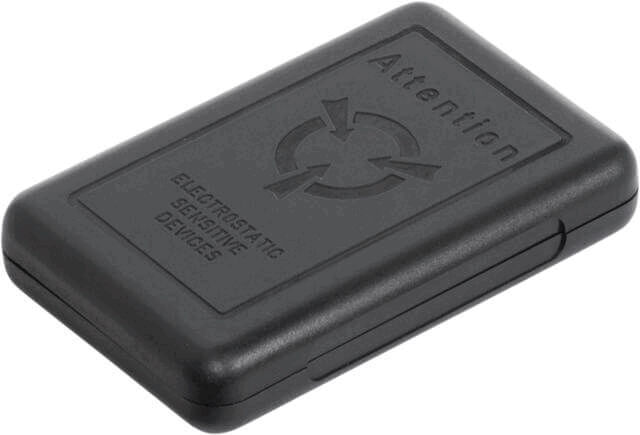

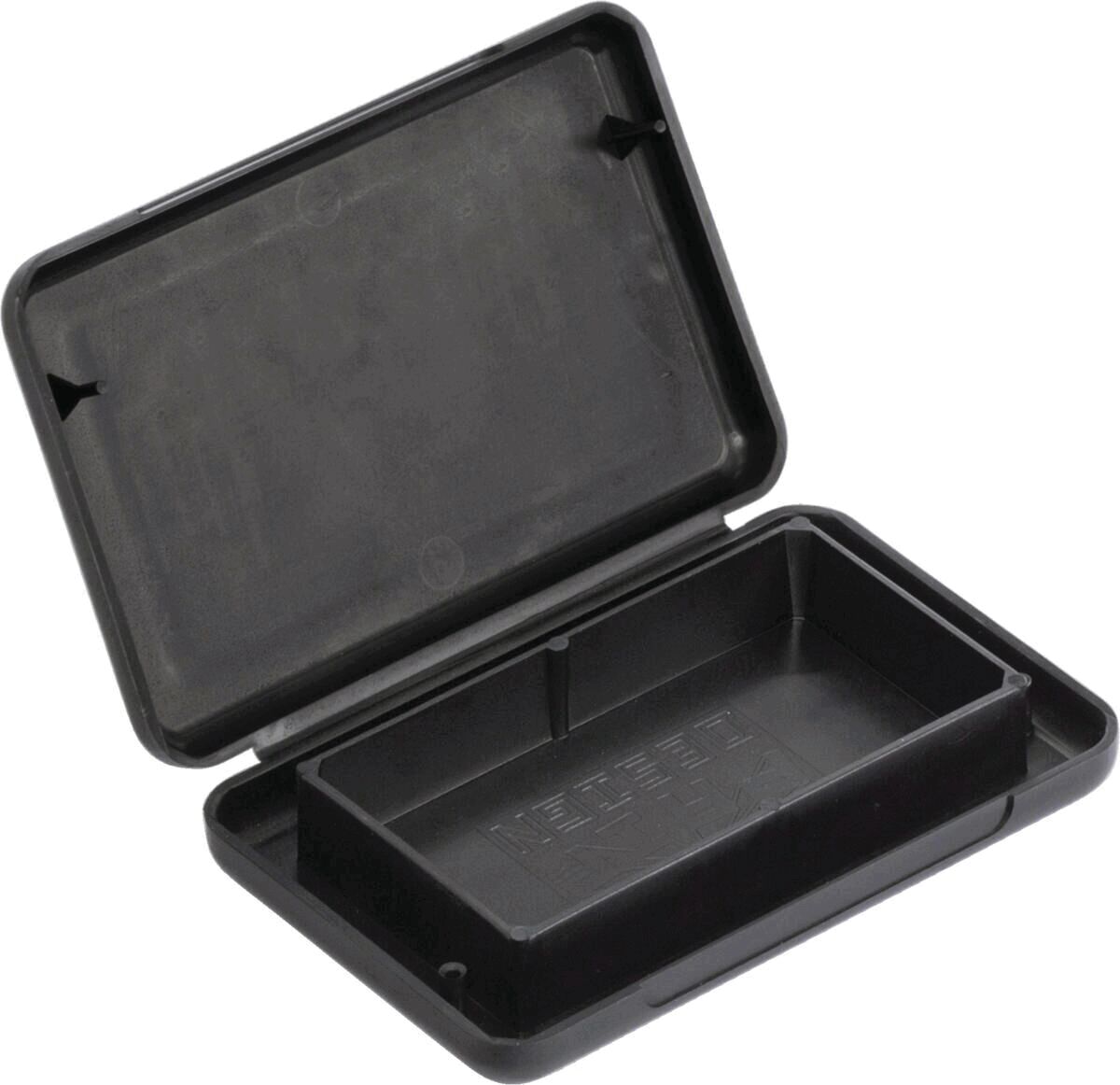

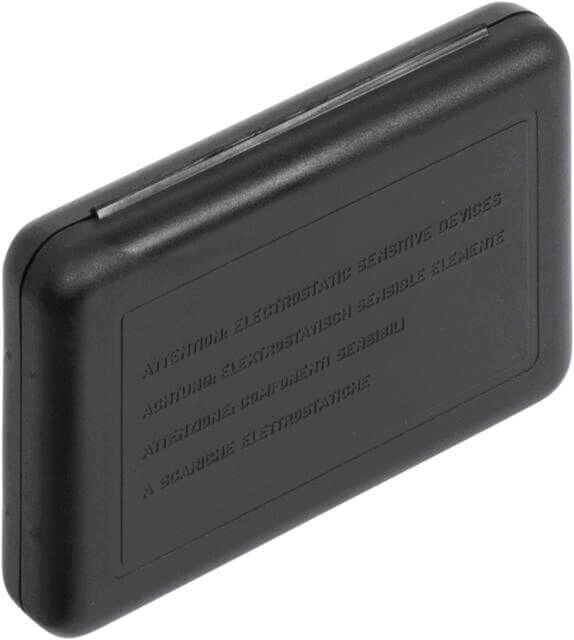

The Flip-Top Box ESD from WEZ provides optimal protection for electronic components against electrostatic discharges, conforming to the standard DIN EN 61340-5-1. This hinged lid box measures externally 118 x 78 x 20 mm and offers an internal dimension of 90 x 50 x 15 mm, ideal for the safe storage and transportation of sensitive components.
The box is characterized by its electrical conductivity and a surface resistance of 10^4 Ω, which further enhances safety. A snap closure guarantees a secure seal of the box, available in black color. This color choice minimizes visible soiling and makes the box particularly suitable for technically demanding environments.
The Flip-Top Box ESD is delivered in a packaging unit of 1000 pieces, making it ideal for large projects and extensive storage requirements.

Details

Length [mm] Length [mm]: 118 mm
Width [mm] Width [mm]: 78 mm
Height [mm] Height [mm]: 20 mm
Internal length: 90 mm
Internal width Internal width: 50 mm
Internal height: 15 mm
Shipping Unit Shipping Unit: 1000 piece
Color Color: black
Conductivity Conductivity: conductive
Surface resistance Rs Surface resistance Rs: 10⁴ Ω

ESD protective

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Complete Catalog 2023 - 2024

Imprinting / Printing for boxes

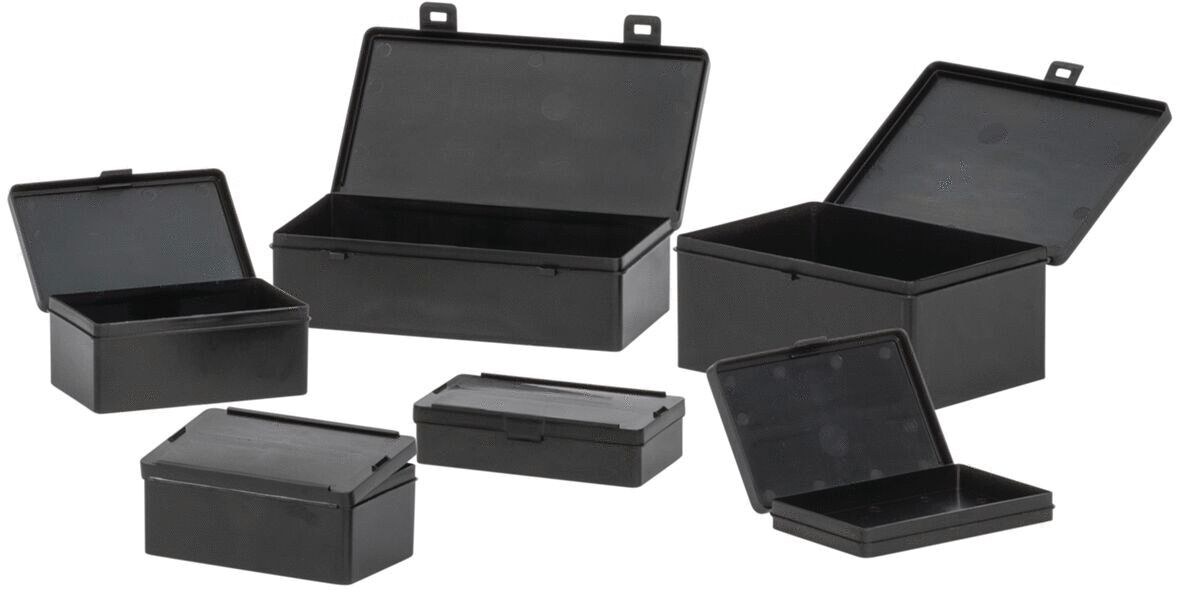

Product Family

Article image

Article description

Length [mm]

Width [mm]

Height [mm]

Internal length

Internal width

Internal height

Shipping Unit

Price

Compare

032.354 - Hinged lid box ESD

032.354
Hinged lid box ESD

225 mm

125 mm

60 mm

221 mm

121 mm

55 mm

9.00 CHF

032.353 - Hinged lid box ESD

032.353
Hinged lid box ESD

180 mm

140 mm

80 mm

178 mm

133 mm

78 mm

7.55 CHF

032.351 - Hinged lid box ESD

032.351
Hinged lid box ESD

136 mm

87 mm

35 mm

130 mm

80 mm

30 mm

5.75 CHF

032.352 - Hinged lid box ESD

032.352
Hinged lid box ESD

136 mm

87 mm

55 mm

130 mm

80 mm

50 mm

6.50 CHF

032.350 - Hinged lid box ESD

032.350
Hinged lid box ESD

136 mm

87 mm

19 mm

130 mm

80 mm

14 mm

5.25 CHF

032.355 - Hinged lid box ESD

032.355
Hinged lid box ESD

118 mm

78 mm

20 mm

90 mm

50 mm

15 mm

1000 piece

-

032.356 - Hinged lid box ESD

032.356
Hinged lid box ESD

190 mm

112 mm

20 mm

162 mm

95 mm

15 mm

10 piece

-
