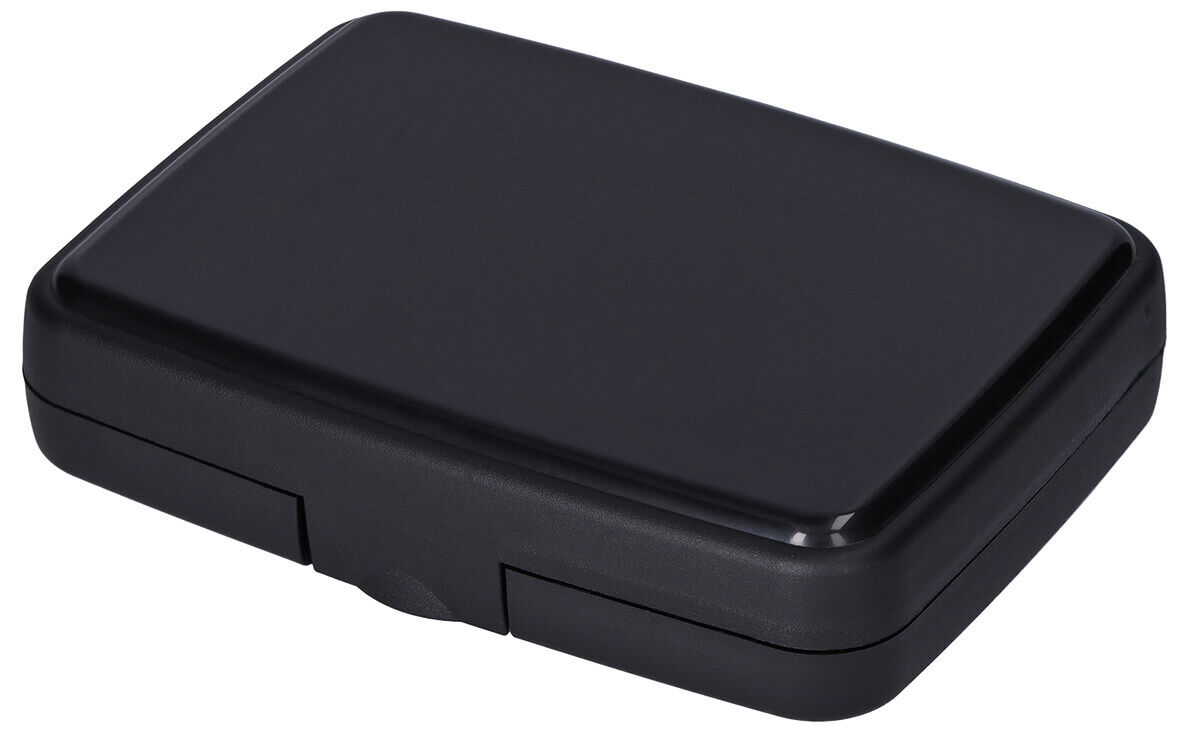

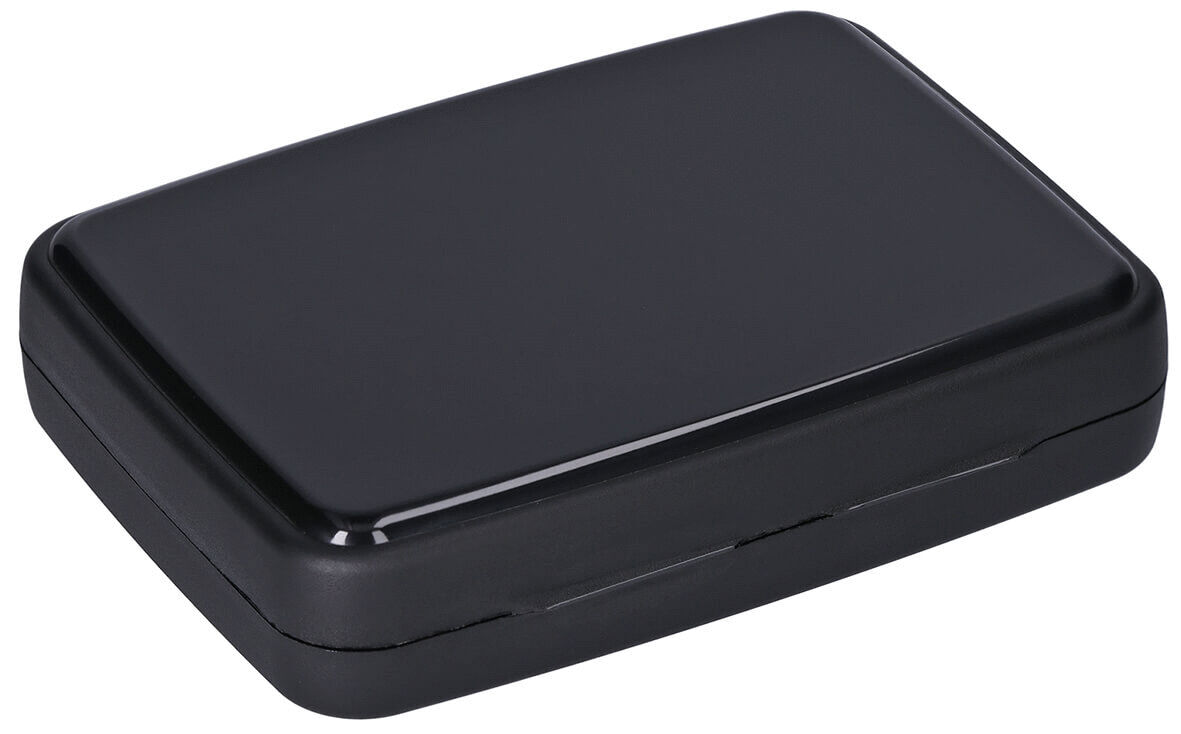

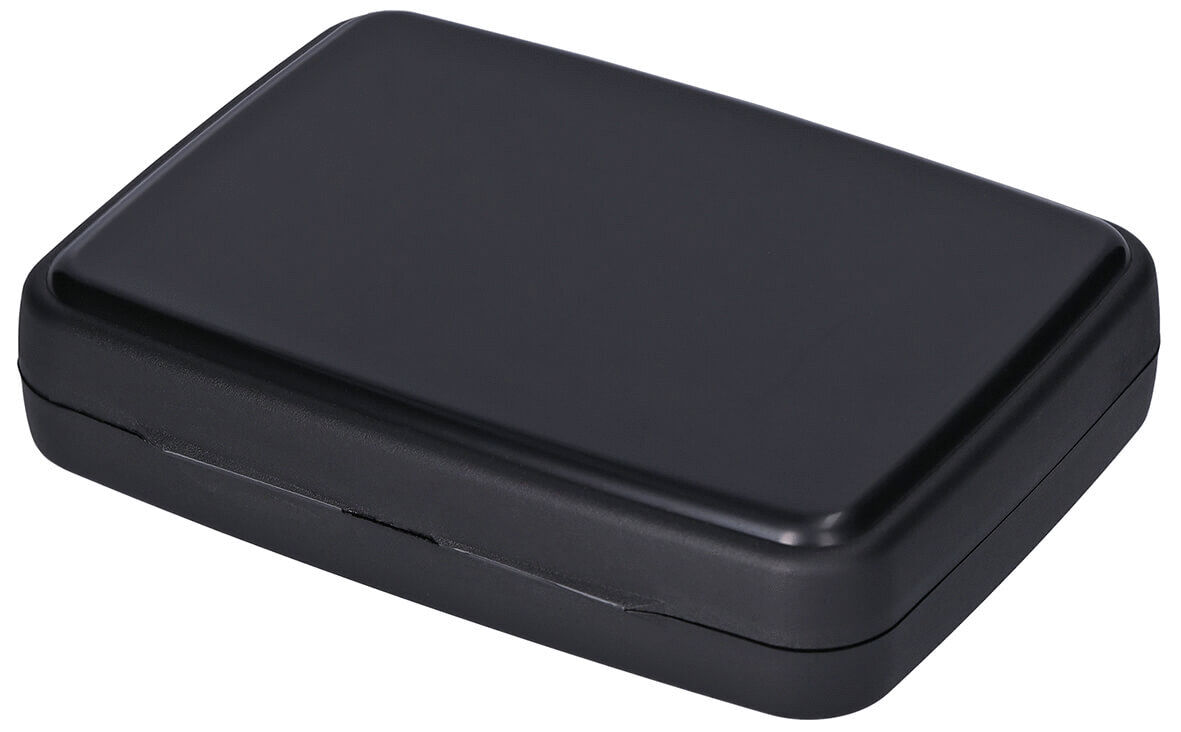

Hinged lid box with snap lock ESD

(Product No.: 032.20.205)

Mobile Preview: Image

Mobile Preview: Image

Mobile Preview: Image

Mobile Preview: Image

(Product No.: 032.20.205)

Hinged lid box with snap lock ESD

ArticleNo: 032.20.205

dpvlink:

14900

Shipping Unit:

100 piece

Length [mm]:

138 mm

Width [mm]:

99 mm

Height [mm]:

34 mm

Internal length:

134 mm

Internal width:

95 mm

Internal height:

30 mm

Properties:

ESD-protective

Note:

- foam inserts available on request -

Further product information

Imprinting / Printing for boxes
configure_now

Minimum order:

100 PCE

2.95 CHF

100 PCE

Product Info

The hinge-lid box from Licefa offers an efficient solution for the safe storage and transport of sensitive electronic components. This box is specifically designed to meet the requirements of DIN EN 61340-5-1, making it ideal for use in ESD-sensitive environments. It features an inner length of 134 mm, an inner width of 95 mm, and an inner height of 30 mm, while the external dimensions are 138 mm in length, 99 mm in width, and 34 mm in height.
The box is characterized by its electrical conductivity, with a surface resistance between 10^4 and 10^11 Ohm, and is available in black. The robust design includes a practical snap closure that securely locks the contents. Each packaging unit (VPE) contains 100 pieces, packed in a carton, which allows for efficient storage and handling. Ideal for technical purchasers who value reliability and protection of sensitive components.

Details

Shipping Unit Shipping Unit: 100 piece
Length [mm] Length [mm]: 138 mm
Width [mm] Width [mm]: 99 mm
Height [mm] Height [mm]: 34 mm
Internal length: 134 mm
Internal width Internal width: 95 mm
Internal height: 30 mm
Color Color: black
Conductivity Conductivity: dissipative
Surface resistance Rs Surface resistance Rs: 10⁴ - 10¹¹ Ω
PU PU: Package piece

ESD protective

- foam inserts available on request -

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Complete Catalog 2023 - 2024

Imprinting / Printing for boxes

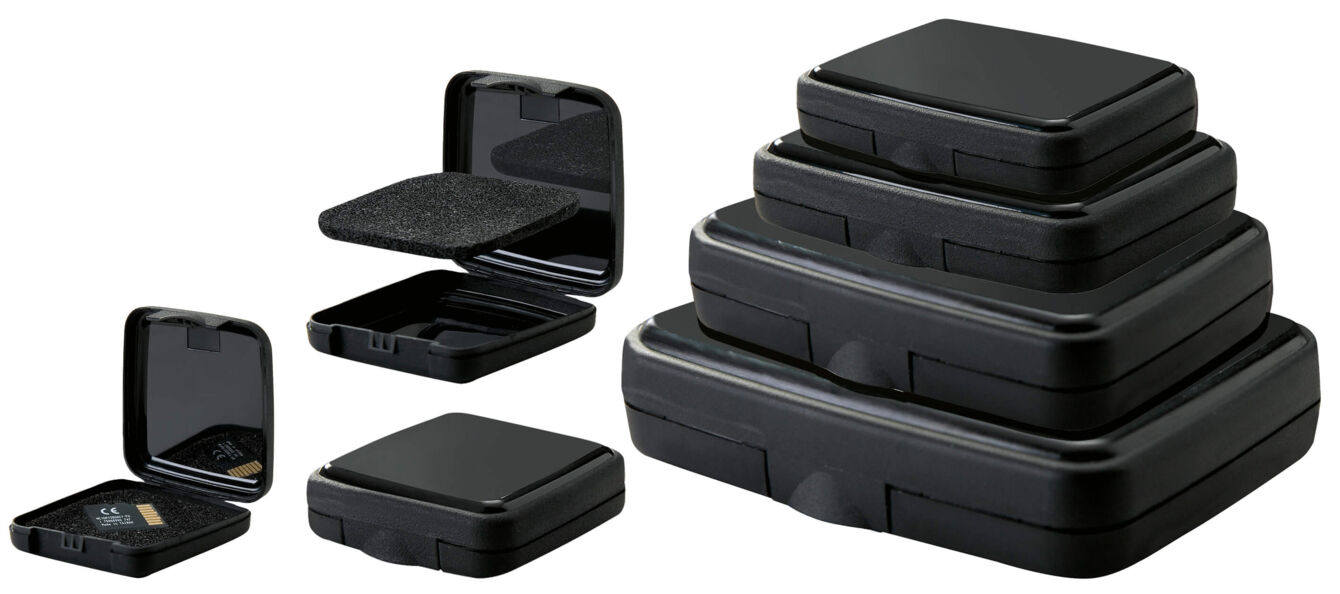

Product Family

Article image

Article description

Shipping Unit

Length [mm]

Width [mm]

Height [mm]

Internal length

Internal width

Internal height

Price

Compare

032.20.200 - Hinged lid box ESD

032.20.200
Hinged lid box ESD

100 piece

36 mm

36 mm

12 mm

32 mm

32 mm

8 mm

032.20.201 - Hinged lid box ESD

032.20.201
Hinged lid box ESD

100 piece

58 mm

43 mm

14 mm

55 mm

39 mm

10 mm

032.20.202 - Hinged lid box ESD

032.20.202
Hinged lid box ESD

100 piece

70 mm

51 mm

17 mm

66 mm

47 mm

13 mm

032.20.203 - Hinged lid box with snap lock ESD

032.20.203
Hinged lid box with snap lock ESD

100 piece

96 mm

69 mm

21 mm

92 mm

65 mm

17 mm

032.20.204 - Hinged lid box with snap lock ESD

032.20.204
Hinged lid box with snap lock ESD

100 piece

115 mm

82 mm

30 mm

111 mm

78 mm

26 mm

032.20.205 - Hinged lid box with snap lock ESD

032.20.205
Hinged lid box with snap lock ESD

100 piece

138 mm

99 mm

34 mm

134 mm

95 mm

30 mm
