ESD Storage box with corrugated base / 400x186x156 mm
ESD Storage box with corrugated base / 400x186x156 mm

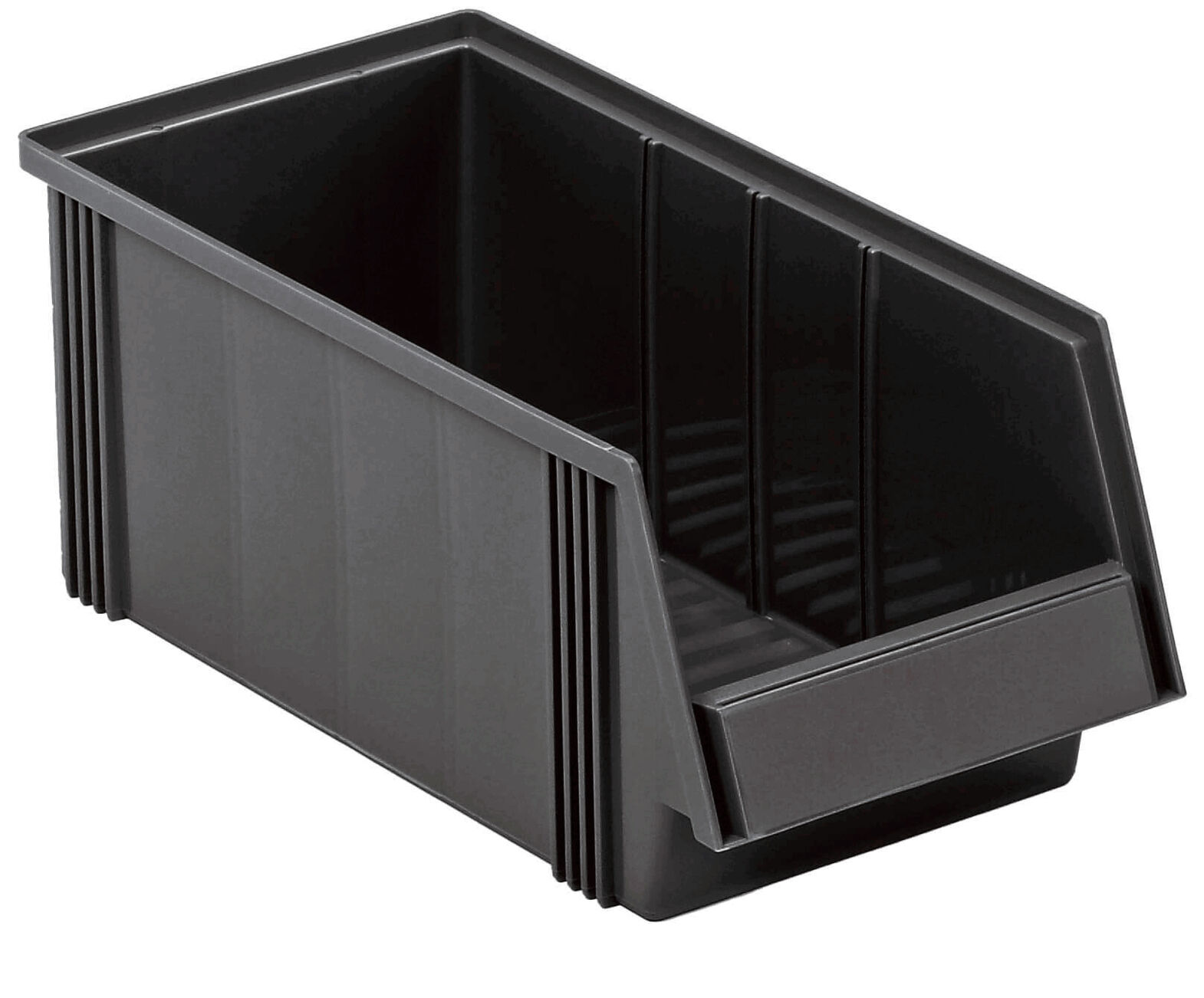

The Treston visible storage bin with dimensions 400 x 186 x 156 mm (LxWxH) is made from conductive polypropylene, making it ideal for use in ESD-protected areas according to DIN EN 61340-5-1. With a volume of 7.2 liters and a load capacity of up to 5 kg, this bin is excellent for storing various materials. It is temperature resistant from -20 to 70 °C and can also be used in cleanrooms.The internal dimensions are 140 mm in height, 155 mm in width, and 330 mm in depth. The corrugated bottom prevents contents from slipping and facilitates the removal of small parts. These bins are stackable and compatible with all common shelving systems, making them particularly versatile. They are also chemically resistant to oils, most acids, and solvents. With a light weight of only 0.73 kg and the ability to attach them to profiles or wall rails, they offer a flexible and efficient storage solution for shops, production facilities, and warehouses.
The black color ensures a discreet integration into existing storage environments.
Details
- Height Height
- 156 mm
- Width Width
- 186 mm
- Depth Depth
- 400 mm
- Internal height
- 140 mm
- Internal width Internal width
- 155 mm
- Internal depth
- 330 mm
- Volume Volume
- 7.2 l
- Load capacity Load capacity
- 5 kg
- Cleanroom Cleanroom
- suitable
- Color Color
- black
- Conductivity Conductivity
- conductive
- Material Material
- polypropylene
- ESD ESD
- yes
- Additional Additional
- suitable for bin rails
- Stackable Stackable
- yes
- Temperature resistance Temperature resistance
- -20 - 70 °C
- Weight Weight
- 0.73 kg
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
ESD Storage boxes with corrugated base
Article image
Article description
Height
Width
Depth
Internal height
Internal width
Internal depth
Volume
Load capacity
Price
Compare
75 mm
105 mm
165 mm
65 mm
90 mm
105 mm
0.6 l
5 kg
105 mm
149 mm
192 mm
90 mm
125 mm
130 mm
1.5 l
5 kg
130 mm
149 mm
250 mm
115 mm
125 mm
185 mm
2.7 l
5 kg
156 mm
186 mm
300 mm
140 mm
155 mm
230 mm
5 l
5 kg
156 mm
186 mm
400 mm
140 mm
155 mm
330 mm
7.2 l
5 kg
