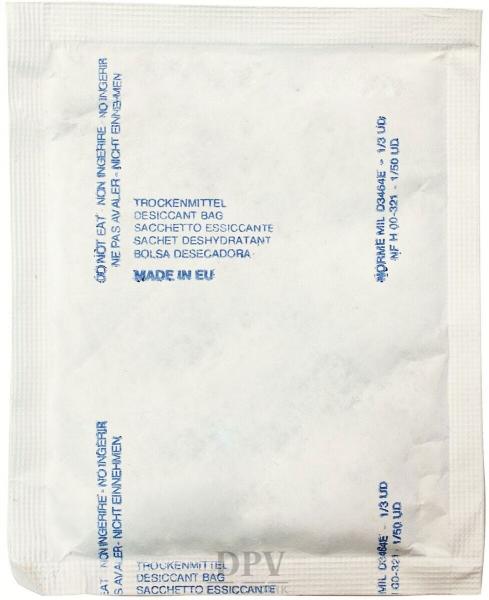

The image shows a white pouch with blue lettering. It is a desiccant used for moisture absorption in packaging.
Desiccant Tyvek bags 1/3
(Product No.: 3775.TA.1/3-1000)

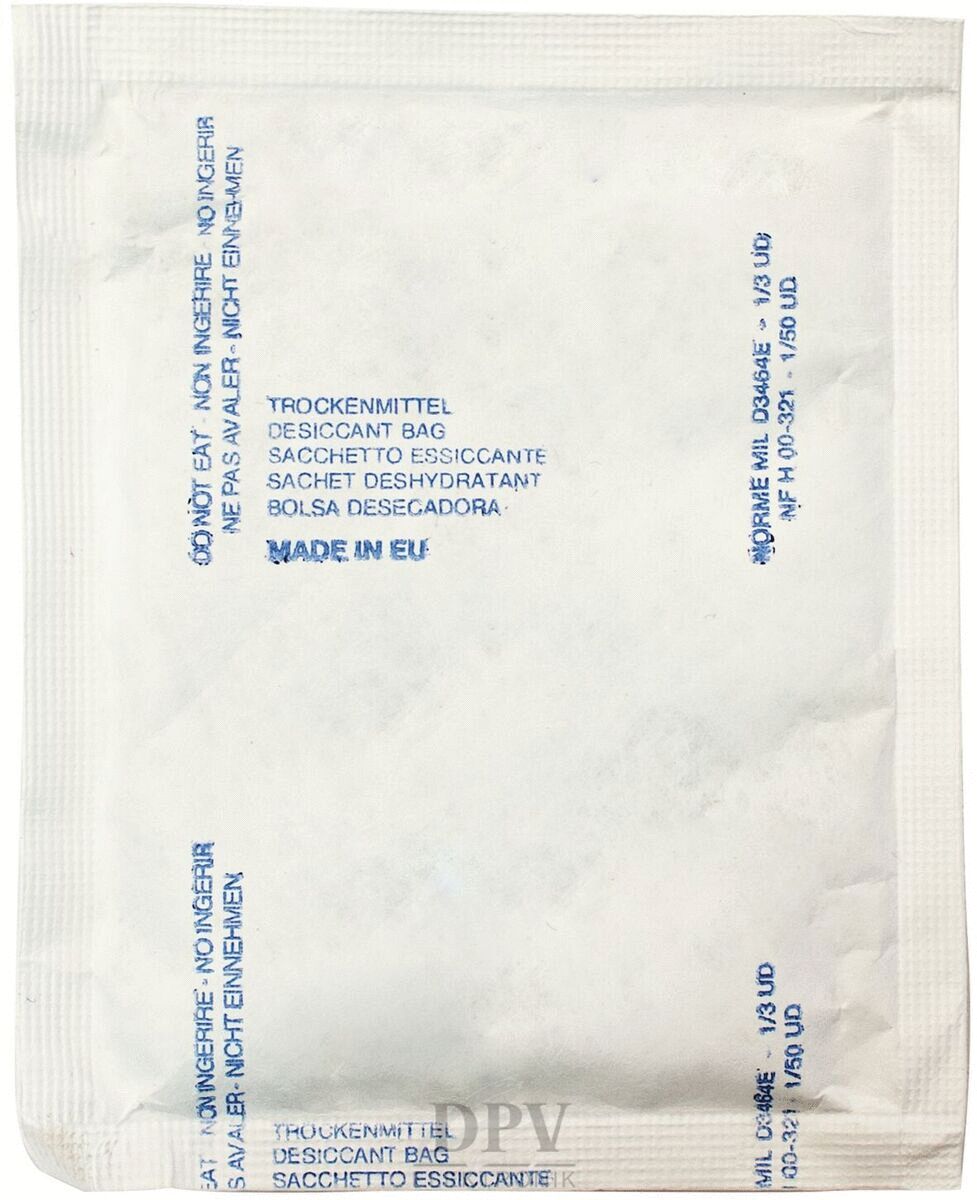

The image shows a white pouch with blue lettering. It is a desiccant used for moisture absorption in packaging.
Notice

Desiccant Tyvek bags 1/3

Desiccant Tyvek bags 1/3

dpvlink:
15353
Weight [g]:
12
Width [mm]:
70
Length [mm]:
95
Further product information
Calculate Desiccants needed according DIN 55474
configure_now
Calculate Desiccants needed for bags according MIL-P-116
configure_now


178.40 CHF

excl. 8.1% tax

1 PCU
Compare Compare
Notice
Product Info

Desiccant Tyvek bags 1/3

The product consists of a desiccant in a Tyvek® pouch, which due to its composition of natural clay offers high moisture absorption at a relative humidity of 40%. Each pouch meets the strict standards NF H 00-321 and MIL D 3464 E and is thus suitable for use in critical environments.
The dimensions of the pouch are 70 mm in width and 95 mm in length, with a weight of 12 grams. This 1/3 unit is designed in execution B according to DIN 55473 and guarantees dust tightness.
The product is delivered in packaging units (VPE) of 1,000 pieces, with each carton keeping the desiccant safe and protected. The shelf life of the desiccant is three years with proper storage. It is also non-conductive, which allows for additional applications.
Weight [g]
Weight
12
Width [mm]
Width
70
Length [mm]
Length
95
TME
TME
1/3
Conductivity
Conductivity
non-conductive
Shelf life
Shelf life
3 years , when stored properly
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 280
Complete Catalog 2023 - 2024
EPApack® ESD packaging solutions
Configurators:
Calculate Desiccants needed according DIN 55474
Configurators:
Calculate Desiccants needed for bags according MIL-P-116
