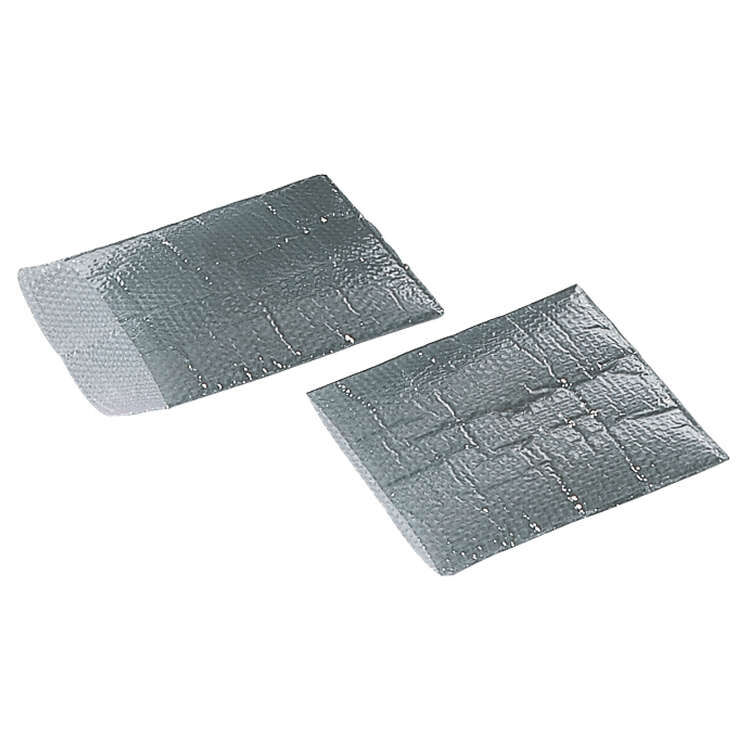

The HIGHSHIELD bubble mailers measuring 250 x 300 mm with an additional 50 mm flap offer an optimal solution for protecting sensitive products with their three-layer film structure. The outer layer consists of smooth HIGHSHIELD film, which has a surface resistance of 10^9 to 10^10 Ohms. The inside is lined with PERMASTAT® film, which also provides a surface resistance in the same range.
These bags are specifically designed for applications requiring electrostatic shielding, with a protection performance of less than 5 nJ according to the Energy Test for ESD. They meet the standard DIN EN 61340-5-1 and are not only conductive but also recyclable, making them an environmentally friendly option.
Despite their sturdy construction, the bags are neither sealable nor resealable, which should be considered when choosing. Their material mix of Highshield and Permastat, combined with the metallized surface, ensures that the products remain safe and protected.
Details
- Width [mm]
Width [mm]
- 250 mm
- Length [mm]
Length [mm]
- 300 mm
- Conductivity
Conductivity
- dissipative
- Electrostatic shielding
Electrostatic shielding
- <5 nJ
- Surface resistance Rs
Surface resistance Rs
- 109 - 1010 Ω
- Volume resistance
Volume resistance
- 109 - 1010 Ω
- Material
Material
- Highshield / Permastat
- heat-sealable
heat-sealable
- no
- Layers
Layers
- 3
- reclosable
reclosable
- no
Customer-specific dimensions with our without flap available on request
