Air bubble film two-layered 600 mm x 100 m
Double Layer Bubble Wrap 600 mm x 100 m

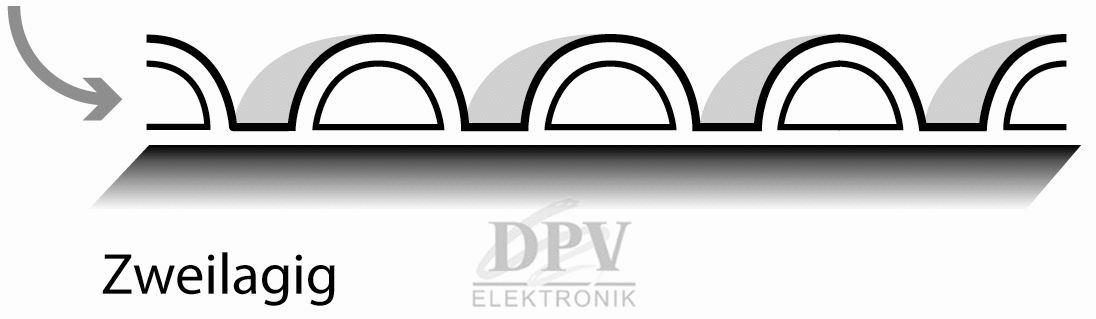

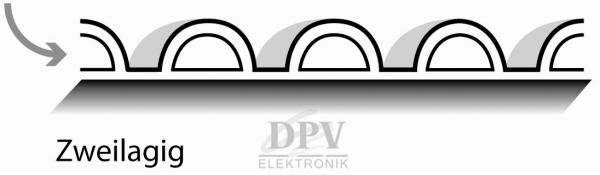

This high-quality bubble wrap provides optimal protection for sensitive electronic components. It meets the ESD standard DIN EN 61340-5-1 and is ideal for use in ESD protected areas (EPA) due to its dissipative properties. The double-layer film is made of recyclable polyethylene, is amine-free, and carries the recycling symbol LDPE 4. The inner side is smooth, which facilitates handling. The pink color serves for quick identification as ESD protective material. Technical Data: - Width: 600 mm - Roll length: 100 m - Total area: 60 m² - Bubble diameter: 10 mm - Bubble height: 4 mm - Thickness: 0.08 mm - Discharge time max.: 2 s - Surface resistance: 10^10 - 10^11 Ω - Material: Polyethylene - Layers: 2 - Color: pink - Sealable: no - Resealable: no
Item number: 3150.2L.600
This high-quality bubble wrap provides optimal protection for sensitive electronic components. It meets the ESD standard DIN EN 61340-5-1 and is ideal for use in ESD protected areas (EPA) due to its dissipative properties. The double-layer film is made of recyclable polyethylene, is amine-free, and carries the recycling symbol LDPE 4. The inner side is smooth, which facilitates handling. The pink color serves for quick identification as ESD protective material. Technical Data: - Width: 600 mm - Roll length: 100 m - Total area: 60 m² - Bubble diameter: 10 mm - Bubble height: 4 mm - Thickness: 0.08 mm - Discharge time max.: 2 s - Surface resistance: 10^10 - 10^11 Ω - Material: Polyethylene - Layers: 2 - Color: pink - Sealable: no - Resealable: no
Item number: 3150.2L.600
Details
- Width [mm] Width [mm]
- 600 mm
- Roll length [m] Roll length [m]
- 100 m
- m²/roll m²/roll
- 60
- Color Color
- rose
- Knob diameter Knob diameter
- 10 mm
- Knob height Knob height
- 4 mm
- Thickness [mm] Thickness [mm]
- 0.08
- Conductivity Conductivity
- dissipative
- Static decay time max. Static decay time max.
- 2 s
- Surface resistance Rs Surface resistance Rs
- 1010 - 1011 Ω
- Material Material
- polyethylene
- heat-sealable heat-sealable
- no
- Layers Layers
- 2
- reclosable reclosable
- no
