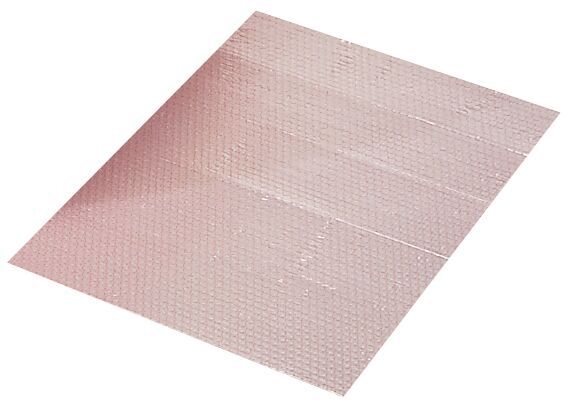

Bubble Wrap Interlayers 350 x 250 mm
The "EPApack" bubble wrap interlayers sized 350 x 250 mm are specifically designed for use in ESD-sensitive environments. These three-layer, pink films are dissipative and antistatic, meeting the requirements of the ESD standard DIN EN 61340-5-1. They are made from recyclable polyethylene and offer additional protection for sensitive products due to their sealability.
Technical Details:
- Width: 250 mm
- Length: 350 mm
- Bubble diameter: 10 mm
- Bubble height: 4 mm
- Thickness: 0.1 mm
- Discharge time: max. 2 s
- Conductivity: conductive
- Surface resistance: 10^10 - 10^11 Ω
- Color: pink
- Material: Polyethylene
- Layers: 3
- Sealable: yes
- Resealable: no
Ideal for technical purchasing that values protection and standard compliance.
Item number: 3152.350.250
Details
- Width [mm]
Width [mm]
- 250 mm
- Length [mm]
Length [mm]
- 350 mm
- Color
Color
- rose
- Knob diameter
Knob diameter
- 10 mm
- Knob height
Knob height
- 4 mm
- Thickness [mm]
Thickness [mm]
- 0.1
- Conductivity
Conductivity
- dissipative
- Static decay time max.
Static decay time max.
- 2 s
- Surface resistance Rs
Surface resistance Rs
- 1010 - 1011 Ω
- Material
Material
- polyethylene
- heat-sealable
heat-sealable
- yes
- Layers
Layers
- 3
- reclosable
reclosable
- no
