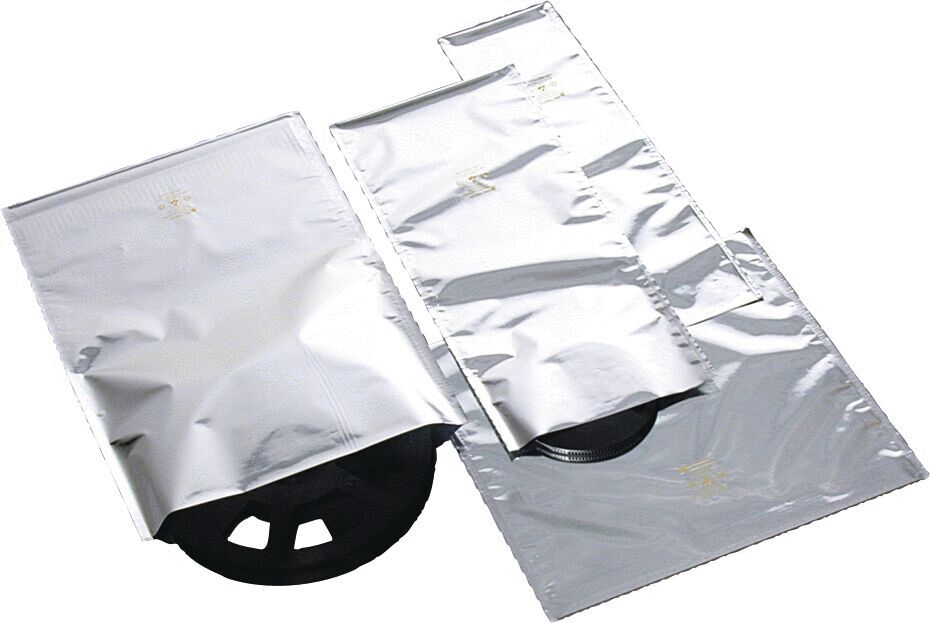

DRY-SHIELD protective bag 254 x 660 mm

(Product No.: 3710.DR.1026)

(Product No.: 3710.DR.1026)

DRY-SHIELD protective bag 254 x 660 mm

ArticleNo: 3710.DR.1026

dpvlink:

597

Tags:

Width [mm]:

254 mm

Length [mm]:

660 mm

PU:

100 piece

Further product information

Minimum order:

100 PCE

99.80 CHF
0.998 CHF per PCE

100 PCE

Product Info

DRY-SHIELD Protective Pouch 254 x 660 mm
The DRY-SHIELD Protective Pouch 254 x 660 mm is an effective ESD/EMI shielding bag that offers optimal protection against moisture and electrostatic charges through its non-transparent, moisture-impermeable, metallized barrier layer made of antistatic polyolefin and metallized polyester film. This pouch meets the standards according to MIL-B81705 Type 1 Class 1 and provides electrostatic shielding of less than 10 nJ and EMI shielding of over 40 dB.
Technical Specifications: - Width: 254 mm - Length: 660 mm - Pack quantity: 100 pieces - Material thickness: 0.09 mm - Surface and volume resistance: 10^9 - 10^10 Ω - Water vapor permeability: 0.155 g/m²
Additional features include the ability to be welded and vacuum-sealed. Standard printing includes ESD warning symbol, moisture symbol, type designation, recycling symbol, and LOT number.
Item number: 3710.DR.1026

Details

Width [mm] Width [mm]: 254 mm
Length [mm] Length [mm]: 660 mm
PU PU: 100 piece
Thickness [mm] Thickness [mm]: 0.09
Conductivity Conductivity: shielding
Electrostatic shielding Electrostatic shielding: <10 nJ
Surface resistance Rs Surface resistance Rs: 10⁹ - 10¹⁰ Ω
Volume resistance Volume resistance: 10⁹ - 10¹⁰ Ω
Material Material: Polyolefin / polyester
Moisture vapor transmission Moisture vapor transmission: 0.155 g/m²
heat-sealable heat-sealable: yes
reclosable reclosable: no
useable for vacuum packaging useable for vacuum packaging: yes

Show accessories

Accessories

Accessories

Desiccant Tyvek bags 1/1

Desiccant TA, - 1/1 TME ++
Plastic bag 1/1 unit approx. 36 g
Design B - DIN 55473 / dustproof
PU = 300 pieces (carton)

109.30 CHF

Desiccant Tyvek bags 1/2

Desiccant TA, 1/2 TME
Tyvek bag, 1/2 unit approx. 18g,
Version B - DIN 55473 / dustproof
PU = 600 pieces (box)

142.60 CHF

Desiccant Tyvek bags 1/3

Desiccant TA, 1/3 TME
Tyvek bag, 1/3 unit approx. 12g,
Version B - DIN 55473 / dustproof
PU = 1000 pieces (box)

181.25 CHF

Desiccant Tyvek bags1/6

Desiccant TA, 1/6 TME
Tyvek bag, 1/6 unit approx. 6g,
Version B - DIN 55473 / dustproof
PU = 2000 pieces (box)

211.20 CHF

Desiccant Tyvek bags 2/1

Desiccant TA, Tyvek bags 2/1 unit approx. 70 g
dust proof Tyvek bags ++ 3M ++
Design B - DIN 55473 / dust proof
Pu = 200 pieces

117.65 CHF

Desiccant VA-ESD bags 1/1

Desiccant VA-ESD, non-woven bag 1/1 unit
approx. 36 g, dust-tight non-woven bag antistatic,
type B - DIN 55473 / dust-tight
Content of carton = 400 pieces
(only complete boxes available)

227.85 CHF

Desiccant VA-ESD bags 1/3

Desiccant VA-ESD, non-woven bag 1/3 unit
approx. 12 g, dust-tight non-woven bag antistatic,
type B - DIN 55473 / dust-tight
Content of carton = 400 pieces
(only complete boxes available)

348.55 CHF

Desiccant VA-ESD bags 2/1

Desiccant VA-ESD, non-woven bag 2/1 unit
approx. 72 g, dust-tight non-woven bag antistatic,
type B - DIN 55473 / dust-tight
Content of carton = 240 pieces
(only complete boxes available)

206.90 CHF

Moisture indicators 5-15% type DPV EPApack®...

Humidity indicators type DPV 5-15%
Size 38x65 mm, measuring range 5-15 % rh.
5, 10, 15% relative humidity, English,
PU = 125 pieces / in metal cans
IPC/JEDEC J-STD-033

23.15 CHF

Moisture indicators 5-60% type DPV EPApack®...

Humidity indicators type DPV 5-60%
Size 50x80 mm, measuring range 5-60 % RH
5, 10, 60% relative humidity, English
PU = 125 pieces / in metal box
IPC/JEDEC J-STD-033

22.55 CHF

Moisture indicators 10-40% type DPV EPApack®...

Humidity indicators type DPV 10-40%
Size 38x80 mm, measuring range 10-40% RH
10, 20, 30, 40 % relative humidity, English
PU = 100 pieces / in metal box

22.35 CHF

Moisture indicators 10-60% type DPV EPApack®...

Humidity indicators type DPV 10-60%
Size 38x110 mm, measuring range 10-60% RH
10, 20, 30, 40, 50, 60 % relative humidity
English, PU = 200 pieces / in metal box

35.95 CHF

Moisture indicators 30-50% type DPV EPApack®...

Humidity indicators type DPV 30-50%
Size 38x65 mm, measuring range 30-50% RH
30, 40, 50 % relative humidity, English
PU = 125 pieces / in metal box

23.55 CHF

Moisture indicators 5-60% type DPV EPApack®...

Humidity Indicators Type DPV cobalt-free 5-60%
Size 50x80 mm, measuring range 5-60 % rh
5, 10, 60% relative humidity, English
PU = 125 pieces / in metal cans
IPC/JEDEC J-STD-033 C

22.80 CHF

Moisture indicators 10-60% type DPV EPApack®...

Moisture indicators type DPV Cobalt-free
Size 38x110 mm, measuring range 10-60 % RH
10, 20, 30, 40, 50, 60 % relative humidity
English, PU = 200 pieces / in metal box
IPC/JEDEC J-STD-033 C

39.70 CHF
