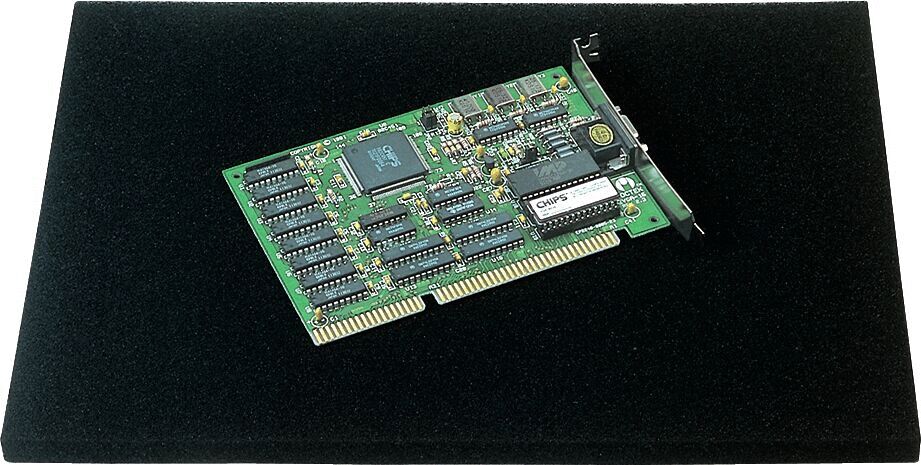

PU foam, soft 553x353x15 mm
The offered PU foam in the size 553x353x15 mm is characterized by its soft, smooth texture and black color. This product made of polyurethane has a material density of 23 kg/cm³ and is specifically designed for applications where electrostatic conductivity is required. The surface resistance ranges from 10^3 to 10^4 Ω, confirming compliance with the ESD standard DIN EN 61340-5-1.
The foam can be used both as padding material and in other applications where soft foam is needed. It is suitable for operating temperatures from -30 to 100 °C, thus offering high flexibility under various operating conditions. This foam is available in either convoluted foam or smooth foam versions, depending on the specific requirements of the application area.
The foam can be used both as padding material and in other applications where soft foam is needed. It is suitable for operating temperatures from -30 to 100 °C, thus offering high flexibility under various operating conditions. This foam is available in either convoluted foam or smooth foam versions, depending on the specific requirements of the application area.
Details
- Length [mm] Length [mm]
- 553 mm
- Version Version
- soft, smooth
- Width [mm] Width [mm]
- 353 mm
- Thickness [mm] Thickness [mm]
- 15 mm
- Color Color
- black
- Conductivity Conductivity
- conductive
- Surface resistance Rs Surface resistance Rs
- 103 - 104 Ω
- Material Material
- polyurethane
- Material density Material density
- 23 kg/cm³
- Operating temperature Operating temperature
- -30 - 100 °C
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
