ESD workplace systems

Efficient, smooth material flow is the main advantage of our workstations for the assembly industry. Processes and production procedures can change at any time, and ergonomic needs vary from person to person. Our answer is modular product solutions that enable us to react quickly and agilely to any new situation and thus ensure continuous production.
Thanks to our versatile range of accessories, the workstations can be adapted to individual needs almost indefinitely. Our range includes, for example, ESD-protected and individually configurable workstations for the electrical industry. These are also ideal for precision mechanics and mechanical engineering.

The image displays a simple, silver aluminum frame. It consists of two vertical poles and a horizontal connection that provides stability. The design is plain and functional.
QuatreX upright profiles AL2X
Upright profile AL2X-110QX
Width : 1060 mm / Height : 1200 mm / Load capacity : 150 kg / suitable for system: QuatreX / suitable for module: 100 /
Upright profile AL2X-150QX
Width : 1489 mm / Height : 1200 mm / Load capacity : 150 kg / suitable for system: QuatreX / suitable for module: 150 /
Upright profile AL2X-180QX
Width : 1789 mm / Height : 1200 mm / Load capacity : 150 kg / suitable for system: QuatreX / suitable for module: 180 /

3 Products
Product No.: AL2X-110QX
from 334.00 CHF
excl. 8.1% tax
to the product family
The image shows a simple, straight rod held by two vertical supports. The surface appears smooth and metallic with a glossy finish.
Preview: The image displays a section of a frame made from silver metal. At the top, there is a clear bar running horizontally, with two black brackets.
Preview: The image shows a simple, straight rod held by two vertical supports. The surface appears smooth and metallic with a glossy finish.
Attachment unit KT / C profile rail
C-profile rail SPR-120
Width : 1200 mm / suitable for system: TPH / suitable for module: KT120
Attachment KT-120
Width : 1200 mm / Height : 590 mm / Depth : 600 mm / suitable for system: TPH, TPB / suitable for module: TPH712 /
Attachment KT-150
Width : 1500 mm / Height : 590 mm / Depth : 600 mm / suitable for system: TPH, TPB / suitable for module: TPH715/915 /
Attachment KT-180
Width : 1800 mm / Height : 590 mm / Depth : 600 mm / suitable for system: TPH, TPB / suitable for module: TPH718/918 /
C-profile rail SPR-150
Width : 1500 mm / suitable for system: TPH / suitable for module: KT150 /
C-profile rail SPR-180
Width : 1800 mm / suitable for system: TPH / suitable for module: KT180 /

6 Products
Product No.: KT-120
from 44.00 CHF
excl. 8.1% tax
to the product family

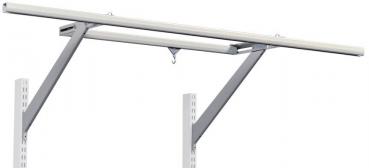

Light and balancer rail
Rail M750 [750 mm]
Width : 750 mm / suitable for system: TP, Concept / suitable for module: 1xM750 /
Rail M750/1500 [1500 mm]
Width : 1500 mm / suitable for system: TP, Concept / suitable for module: 1xM750 /
Rail M900 [900 mm]
Width : 900 mm / suitable for system: TP, Concept,TED / suitable for module: 1xM900 /
Rail M900/1500 [1500 mm]
Width : 1500 mm / suitable for system: TP, Concept / suitable for module: 1xM900 /
Rail M1200 [1200 mm]
Width : 1200 mm / suitable for system: TP, Concept, QuarteX / suitable for module: 1xM1200 /
Rail M1350 [1350 mm]
Width : 1350 mm / suitable for system: TP, Concept,TED / suitable for module: 1xM1350 /
Rail 2 x M500 [1000 mm]
Width : 1000 mm / suitable for system: TP, Concept, QuarteX / suitable for module: 2xM500,1xM1000 /
Rail 2 x M500/1500 [1500 mm]
Width : 1500 mm / suitable for system: TP, Concept / suitable for module: 2xM500,1xM1000 /
Rail 2 x M750 [1500 mm]
Width : 1500 mm / suitable for system: TP, Concept, QuarteX, TED / suitable for module: 2xM750,1xM1500 /
Rail 2 x M900 [1800 mm]
Width : 1800 mm / suitable for system: TP, Concept, QuarteX / suitable for module: 2xM900,1xM1800 /
Rail 3 x M750 [2250 mm]
Width : 2250 mm / suitable for system: TP, Concept / suitable for module: 3xM750,1xM2250 /
Rail 4 x M500 [2000 mm]
Width : 2000 mm / suitable for system: TP, Concept / suitable for module: 4xM500,1xM2000 /

12 Products
Product No.: 918.49001-ESD
from 211.00 CHF
excl. 8.1% tax
to the product family
The image shows a narrow, white table or shelf with a clear, straight line. It has a simple, functional shape and is made of metal with a sturdy structure.
Box shelf TH for TPH series
Box shelf TH-150 ESD
Width : 1419 mm / Depth : 145 mm / suitable for system: TPH / suitable for module: TPH715/915 /
Box shelf TH-180 ESD
Width : 1719 mm / Depth : 145 mm / suitable for system: TPH / suitable for module: TPH718/918 /
Box shelf TH-120 ESD
Width : 1119 mm / Depth : 145 mm / suitable for system: TPH / suitable for module: TPH712 /

3 Products
Product No.: TH-120ESD
from 118.00 CHF
excl. 8.1% tax
to the product family
The image shows a slim, rectangular metal strip in silver color. It has two mounting brackets at the ends and is designed for wall or furniture mounting.
Preview: The image shows a slim, rectangular metal strip in silver color. It has two mounting brackets at the ends and is designed for wall or furniture mounting.
Preview: The image shows an elongated, flat piece of metal in silver color. It has small holes at both ends, apparently for attachment. The surface is smooth and shiny.
Box rail BP
Box rails BP-70 ESD
Width : 685 mm / suitable for system: QuatreX, WB / suitable for module: AKK70, AKK150, AKK180 /
Box rail BP-100 ESD
Width : 985 mm / suitable for system: QuatreX, WB / suitable for module: AKK180,AL2X110W /
Box rail BP-120ESD
Width : 1105 mm / suitable for system: TPH / suitable for module: TPH712 /
Box rail BP-150ESD
Width : 1405 mm / suitable for system: TPH / suitable for module: TPH715/915 /
Box rail BP-180ESD
Width : 1705 mm / suitable for system: TPH / suitable for module: TPH718/918 /

5 Products
Product No.: BP-100ESD
from 86.00 CHF
excl. 8.1% tax
to the product family
The image shows a long, narrow metal strip in silver. It has a straight, rectangular cross-section and two parallel grooves along the surface. Brackets are attached at one end.
Bin rail for storage boxes
Bin rail for M500
Width : 492 mm / Height : 100 mm / suitable for system: Concept, QuatreX, multi cart / suitable for module: M500 /
Bin rail for M750
Width : 742 mm / Height : 100 mm / suitable for system: TP, Concept, QuarteX, multi cart, industrial cabinets / suitable for module: M750 /
Bin rail for M900
Width : 895 mm / Height : 100 mm / suitable for system: TP, Concept, QuarteX, multi cart / suitable for module: M900 /

3 Products
Product No.: 859.15049
from 30.80 CHF
excl. 8.1% tax
to the product family
The image shows a rectangular board with many small, evenly distributed square holes. The base color is light, and the holes are white. It appears modern and simple.

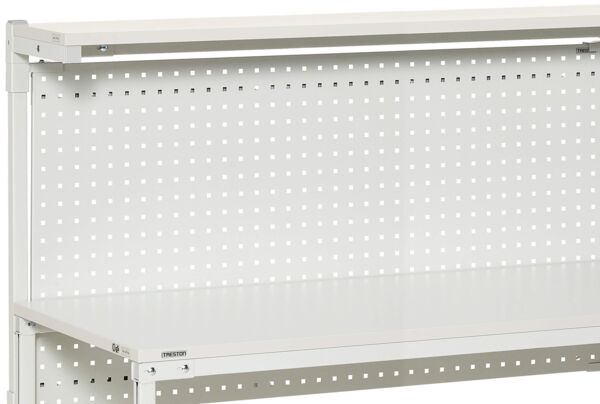

Perforated plate RL
Perforated plate RL-120
Width : 1115 mm / Height : 750 mm / suitable for system: TPH, TPB / suitable for module: TPH712 /
Perforated plate RL-150
Width : 1415 mm / Height : 750 mm / suitable for system: TPH, TPB / suitable for module: TPH715/915 /
Perforated plate RL-180
Width : 1715 mm / Height : 750 mm / suitable for system: TPH, TPB / suitable for module: TPH718/918 /

3 Products
Product No.: RL-120
from 257.00 CHF
excl. 8.1% tax
to the product family
The image shows a rectangular white plate with evenly distributed small square openings. The surface is smooth and bright, with the holes arranged regularly.
Perforated plate ARL for series QuatreX / WB
Perforated plate ARL-70
Width : 668 mm / Height : 500 mm / suitable for system: QuatreX, WB / suitable for module: AKK70,AKK150 /
Perforated plate ARL-100
Width : 968 mm / Height : 500 mm / suitable for system: QuatreX, WB / suitable for module: AKK180 /

2 Products
Product No.: ARL-100
from 105.00 CHF
excl. 8.1% tax
to the product family
The image shows two metal parts in shades of gray. On the left, a block-shaped element with a short protrusion. On the right, a long element with a square cutout and two narrow holes.
Connector set RK for perforated panels RL
suitable for system: TPH / suitable for module: RL120, RL150, RL180 /
Holder for perforated plates RL 120/150/180
(Set = 4 pieces)

Product No.: RK-1
59.00 CHF
excl. 8.1% tax
Show product
The image shows a simple, white wall shelf. It has a long, flat surface and is supported on the sides by two brackets. It is designed in a minimalist style.
Shelf SH for TPH series
Shelf SH-120 ESD
Width : 1200 mm / Depth : 310 mm / Thickness : 25 mm / suitable for system: TPH / suitable for module: TPH712 /
Shelf SH-150 ESD
Width : 1500 mm / Depth : 310 mm / Thickness : 26 mm / suitable for system: TPH / suitable for module: TPH715/915 /
Shelf SH-180 ESD
Width : 1800 mm / Depth : 310 mm / Thickness : 26 mm / suitable for system: TPH / suitable for module: TPH718/918 /

3 Products
Product No.: SH-120ESD
from 286.00 CHF
excl. 8.1% tax
to the product family
The image shows a gray tray attached to a vertical pipe. A lever on the side allows for adjusting or tilting the tray. The surface is smooth and flat.
Adjustable shelves with stepless depth ajustment
Adjustable shelf M500 470x505 mm, stepless depth adjustment
Width : 470 mm / Depth : 505 mm / suitable for system: TP, Concept, multi cart / suitable for module: M500 /
Adjustable shelf M500 470x650 mm, stepless depth adjustment
Width : 470 mm / Depth : 650 mm / suitable for system: TP, Concept, multi cart / suitable for module: M500 /
Adjustable shelf M750 720x650 mm, stepless depth adjustment
Width : 720 mm / Depth : 650 mm / suitable for system: TP, Concept, multi cart / suitable for module: M750 /
Adjustable shelf M750 870x505 mm, stepless depth adjustment
Width : 870 mm / Depth : 505 mm / suitable for system: TP, Concept, multi cart / suitable for module: M900 /
Adjustable shelf M750 870x650 mm, stepless depth adjustment
Width : 870 mm / Depth : 650 mm / suitable for system: TP, Concept, multi cart / suitable for module: M900 /

5 Products
Product No.: 920.49003
from 268.00 CHF
excl. 8.1% tax
to the product family
Extendable shelves
Extendable shelf M900
Width : 870 mm / Depth : 390 mm / suitable for system: TP, Concept, QuarteX / suitable for module: M900 /
Extendable shelf M750
Width : 720 mm / Depth : 390 mm / suitable for system: TP, Concept, QuarteX / suitable for module: M750 /

2 Products
Product No.: 925.49002
from 310.00 CHF
excl. 8.1% tax
to the product family
The image shows a bright, diagonally arranged shelf that is attached to a frame with two vertical rods. The edges are clearly defined, the surface appears smooth.

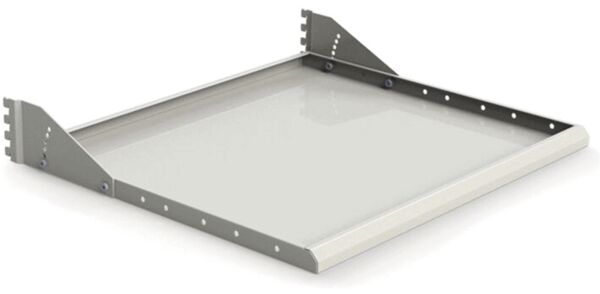

Adjustable shelves
Adjustable shelf M500 470 x 505 mm
Width : 470 mm / Depth : 505 mm / suitable for system: TP, Concept, multi cart / suitable for module: M500 /
Adjustable shelf M500 470 x 650 mm
Width : 470 mm / Depth : 650 mm / suitable for system: TP, Concept, multi cart / suitable for module: M500 /
Adjustable shelf M750 720x505 mm
Width : 720 mm / Depth : 505 mm / suitable for system: TP, Concept, multi cart / suitable for module: M750 /
Adjustable shelf M750 720x650 mm
Width : 720 mm / Depth : 650 mm / suitable for system: TP, Concept, multi cart / suitable for module: M750 /
Adjustable shelf M900 870x505 mm
Width : 870 mm / Depth : 505 mm / suitable for system: TP, Concept, multi cart / suitable for module: M900 /
Adjustable shelf M900 870x650 mm
Width : 870 mm / Depth : 650 mm / suitable for system: TP, Concept, multi cart / suitable for module: M900 /

6 Products
Product No.: 920.49001
from 187.00 CHF
excl. 8.1% tax
to the product family
The image shows a simple, flat shelf. It has a straight, white surface supported by two vertical, gray supports. It appears stable and functional.
Shelves
Shelf M500 490 x 300 mm
suitable for system: TP, Concept, multi cart / suitable for module: M500 / Width : 490 mm / Depth : 300 mm /
Shelf M500 490 x 400 mm
suitable for system: TP, Concept, multi cart / suitable for module: M500 / Width : 490 mm / Depth : 400 mm /
Shelf M750 740 x 300 mm
suitable for system: TP, Concept,TED, multi cart / suitable for module: M750 / Width : 740 mm / Depth : 300 mm /
Shelf M750 740 x 400 mm
suitable for system: TP, Concept,TED, multi cart / suitable for module: M750 / Width : 740 mm / Depth : 400 mm /
Shelf M900 890 x 300 mm
suitable for system: TP, Concept,TED, multi cart / suitable for module: M900 / Width : 890 mm / Depth : 300 mm /
Shelf M900 890 x 400 mm
suitable for system: TP, Concept,TED, multi cart / suitable for module: M900 / Width : 890 mm / Depth : 400 mm /
Shelf M1500 1500 x 300 mm
suitable for system: Concept, TED / suitable for module: 2xM30,1xM60 / Width : 1490 mm / Depth : 300 mm /
Shelf M1500 1500 x 400 mm
suitable for system: Concept, TED / suitable for module: 2xM30,1xM60 / Width : 1490 mm / Depth : 400 mm /

8 Products
Product No.: 890.75649
from 49.00 CHF
excl. 8.1% tax
to the product family
The image displays a rectangular, flat shelf made of gray material with two side brackets. It appears sturdy and is suitable for use in shelving units or other storage solutions.
Steel shelves
Steel shelves M500x650
Width : 468 mm / Depth : 650 mm / Height : 33 mm / suitable for system: TP, Concept,multi cart / suitable for module: M500 /
Steel shelves M750x650
Width : 718 mm / Depth : 650 mm / Height : 33 mm / suitable for system: TP, Concept,multi cart / suitable for module: M750 /
Steel shelves M900x650
Width : 871 mm / Depth : 650 mm / Height : 33 mm / suitable for system: TP, Concept,multi cart / suitable for module: M900 /

3 Products
Product No.: TMTS5-49
from 149.00 CHF
excl. 8.1% tax
to the product family
The image shows a flat, rectangular plate in light gray. On two opposite sides, there are small, rectangular brackets for mounting.
Preview: The image shows a flat, rectangular plate in light gray. On two opposite sides, there are small, rectangular brackets for mounting.
Preview: The image shows a flat, rectangular tray made of white material. It has a slight elevation along the lower edge. It features two brackets protruding on one side.
Preview: The image shows a swiveling tabletop attached to a vertical support. The top is rectangular and made of lightweight metal. It provides space for storage or work.
Preview: The image shows a silver shelf mounted on a white wall or bracket. It has a flat surface and a lateral support that stabilizes it.
Preview: The image shows a flat, rectangular metal shelf. It is silver-colored and has mounting elements on the sides. The shelf appears sturdy and is designed for use in furniture.
Preview: The image displays a white, rectangular metal shelf mounted on a wall. It features a bracket on one side and is flat with slightly raised edges. Ideal for storing items.
Preview: The image shows a white metal wall mount with multiple joints. It has a plate for mounting on the wall and a movable arm structure for flexible positioning.
Preview: The image shows a pull-out shelf. It has sturdy metal brackets on both sides and a flat, white surface. A small, black edge is also visible.
IT shelves for work station systems
Keyboard and mouse tray for laptop / printer shelf
Width : 620 mm / Depth : 270 mm / Load capacity : 5 kg / suitable for system: TP, Concept /
Keyboard tray for monitor/printer shelf
Width : 480 mm / Depth : 270 mm / Load capacity : 5 kg / suitable for system: TP, Concept /
Keyboard tray for LCD holder
Width : 480 mm / Depth : 260 mm / Load capacity : 5 kg / suitable for system: TP, Concept /
Keyboard and mouse tray for LCD shelf
Width : 620 mm / Depth : 260 mm / Load capacity : 5 kg / suitable for system: TP, Concept /
Keyboard tray (attached to the table top)
Width : 680 mm / Depth : 375 mm / Load capacity : 10 kg / suitable for system: TP, Concept /
Monitor/printer shelf with double arm
Width : 365 mm / Depth : 365 mm / Load capacity : 25 kg / suitable for system: TP, Concept, QuarteX, TED /
LCD monitor holder with double arm
Load capacity : 15 kg / suitable for system: TP, Concept, QuarteX /
Keyboard shelf NT-500 ESD
Width : 525 mm / Depth : 399 mm / suitable for system: TP, TPH, Concept, WB, TED, WTR, SAP /

8 Products
Product No.: 860.90349
from 109.00 CHF
excl. 8.1% tax
to the product family
65 to 80 (from a total of 117)
