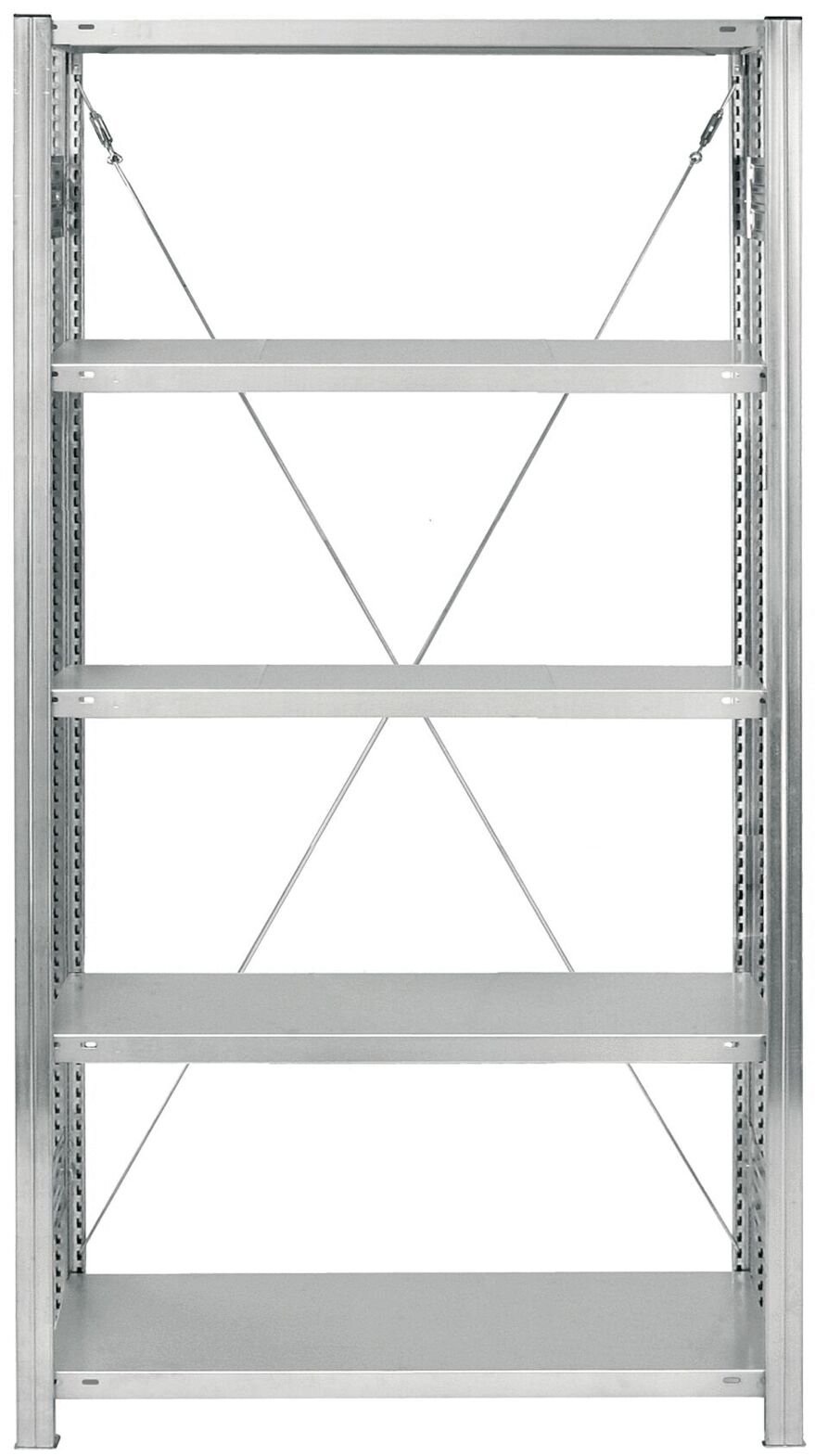

The image displays a sturdy, metallic shelving system with five horizontal shelves. The shelves are open and supported by vertical rods. Diagonal braces provide additional stability.
Basic rack RS1-25613
(Product No.: RS1-25613.ESD)

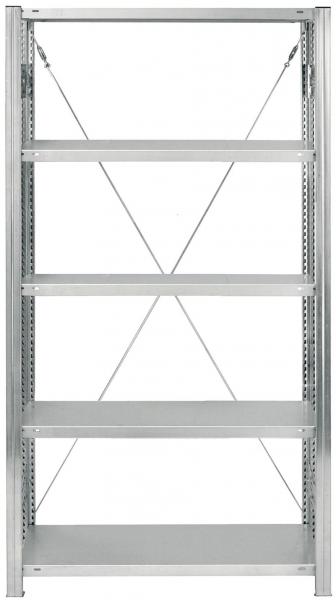

The image displays a sturdy, metallic shelving system with five horizontal shelves. The shelves are open and supported by vertical rods. Diagonal braces provide additional stability.
Notice / Inquire

Basic rack RS1-25613

dpvlink:
16958
Manufacturer:
Rack depth:
635 mm
Rack width:
1360 mm
Rack height:
2500 mm
Shelves:
6
Load capacity :
180 kg
Properties:
Further product information

chevron-down
826.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Basic rack RS1-25613

The basic shelving unit RS1-25613, manufactured by DPV and marketed under the brand EPAstore, is a robust ESD shelving system, specifically designed for the requirements of the electronics industry. With a height of 2500 mm and six shelves, each offering a load capacity of 180 kg, this shelving system meets the needs of demanding storage environments. The shelves are adjustable in a grid of 25 mm and provide a field load of 1000 kg.
The overall dimensions of the shelf are 635 mm in depth, 1360 mm in width, and 2500 mm in height. The galvanized surface with an additional ESD coating in light gray prevents the attraction of dust and facilitates maintenance. The ESD protection feature is ensured by a defined discharge resistance of 10^4 to 10^9 Ω according to DIN EN 61340-5-1:2008, which guarantees the safety of sensitive electronic components.
The shelving system is characterized by simple plug-in assembly and includes two diagonal braces for stabilization. Due to its modular design, the basic shelving unit RS1-25613 can be flexibly expanded and adapted to various storage conditions.
Rack depth
635 mm
Rack width
1360 mm
Rack height
2500 mm
Shelves
Shelves
6
Load capacity
Load capacity
180 kg
Color
Color
light grey
Bleeder resistance
Bleeder resistance
104 - 109 Ω
Bay load
Bay load
1000 kg
Type
Type
Basic rack
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a simple, open shelf with four horizontal shelves. It has a silver metal structure and is secured on one side by a diagonal brace.
Extension rack RS1A-25613
ESD extension shelf RS1A-25613 ESD, height 2500 mm
6 ESD shelves 1300 x 600 mm, plug-in system
Dimensions: 635 x 1310 x 2500 mm / Lxwxh
Surface zinc plated + ESD coating light grey
(DIN EN 61340-5-1)
- capacity max. 180 kg / shelf, shelf load 1000 kg
- shelves adjustable in the grid 25 mm
- shelf height 40 mm
- incl. 1 diagonal brace
- easy installation
dpvlink
16963

708.65 CHF
Show product
The image shows a flat, rectangular shelf or tabletop in a light color. It has a smooth surface and is simply designed, without any decoration.
Preview: Shelf RS1-F613
Preview: The image displays a sturdy, metallic shelving system with five gray, flat shelves. The structure is vertical and features lateral supports as well as diagonally mounted braces.
Shelf RS1-F613
ESD shelf RS1-F613 ESD
1300 x 600 x 40 mm, plug-in system
Surface zinc plated + ESD coating light grey
Load capacity max. 180 kg / shelf
(without shelf holders)
dpvlink
16976

96.70 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 375
Complete Catalog 2023 - 2024

Product Family

ESD Basic rack RS1

Robust ESD shelving system - perfect for the electronics industry

Easy assembly: Quick, screwless plug-in assembly

Height-adjustable shelves: Adjustable in 25 mm increments without tools (edge height: 40 mm)

Durable & protected: Galvanized surface with special ESD coating (light grey)

Dust-repellent: Special coating reduces dust attraction

High load capacity:

  • Height 2000 mm / bay load up to 1600 kg
  • Height 2500 mm / bay load up to 1000 kg

 Made in Germany – quality from German production

Standard-compliant ESD safety:

  • Defined bleeder resistance: 10⁴ to 10⁹ Ω (in accordance to DIN EN 61340-5-1:2008)
  • Tested in accordance to DIN EN 61340-2-3:2016

Scope of delivery (basic shelf):

  • 2 upright frames
  • 5 or 6 shelves
  • 1 cross brace

Article image
Article description
Rack depth
Rack width
Rack height
Shelves
Load capacity
Price
Compare
RS1-20410.ESD - Basic rack RS1-20410
RS1-20410.ESD
Basic rack RS1-20410
435 mm
1060 mm
2000 mm
5
145 kg
505.30 CHF
RS1-20413.ESD - Basic rack RS1-20413
RS1-20413.ESD
Basic rack RS1-20413
435 mm
1360 mm
2000 mm
5
180 kg
601.65 CHF
RS1-20610.ESD - Basic rack RS1-20610
RS1-20610.ESD
Basic rack RS1-20610
635 mm
1060 mm
2000 mm
5
140 kg
585.25 CHF
RS1-20613.ESD - Basic rack RS1-20613
RS1-20613.ESD
Basic rack RS1-20613
635 mm
1360 mm
2000 mm
5
180 kg
700.05 CHF
RS1-25410.ESD - Basic rack RS1-25410
RS1-25410.ESD
Basic rack RS1-25410
435 mm
1060 mm
2500 mm
6
145 kg
594.75 CHF
RS1-25413.ESD - Basic rack RS1-25413
RS1-25413.ESD
Basic rack RS1-25413
435 mm
1360 mm
2500 mm
6
180 kg
710.20 CHF
RS1-25610.ESD - Basic rack RS1-25610
RS1-25610.ESD
Basic rack RS1-25610
635 mm
1060 mm
2500 mm
6
140 kg
688.60 CHF
RS1-25613.ESD - Basic rack RS1-25613
RS1-25613.ESD
Basic rack RS1-25613
635 mm
1360 mm
2500 mm
6
180 kg
826.15 CHF
RS1-20510.ESD - Basic rack RS1-20510
RS1-20510.ESD
Basic rack RS1-20510
535 mm
1060 mm
2000 mm
5
140 kg
545.35 CHF
RS1-20513.ESD - Basic rack RS1-20513
RS1-20513.ESD
Basic rack RS1-20513
535 mm
1360 mm
2000 mm
5
180 kg
650.50 CHF
RS1-25510.ESD - Basic rack RS1-25510
RS1-25510.ESD
Basic rack RS1-25510
535 mm
1060 mm
2500 mm
6
140 kg
641.80 CHF
RS1-25513.ESD - Basic rack RS1-25513
RS1-25513.ESD
Basic rack RS1-25513
535 mm
1360 mm
2500 mm
6
180 kg
767.80 CHF
