ESD electric screwdriver B103LS4
(Product No.: SKD-B103LS4-ESD)
The image shows a black car cigarette lighter. It has a slightly curved shape, a non-slip surface, and a metal tip for insertion into the socket.
Notice / Inquire

ESD electric screwdriver B103LS4

dpvlink:
20208
Torque range:
0.05 - 0.343 Nm
Idle speed High:
280
Idle speed Low:
200
Screw size thread screw:
1.0- 1.7 mm
Screw size self-tapping:
1.0- 2.0 mm
Properties:
KILEWS brushless electric screw technology
Further product information

607.55 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD electric screwdriver B103LS4

The ESD electric screwdriver B103LS4 from Kilews combines advanced technology with high user-friendliness, specifically designed for precise assembly work in sensitive electronic environments. This model from the B 100 series is suitable for both ESD and cleanroom environments due to its brushless technology, which eliminates the emission of carbon dust and makes it ideal for use in electronics manufacturing.

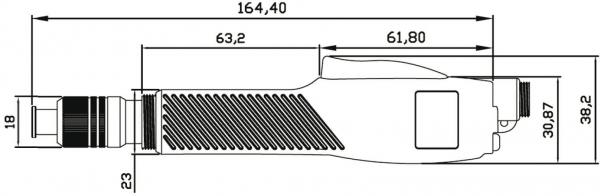

The compact design with a length of 165 mm and a low weight of 170 g allows for fatigue-free work. The screwdriver operates with a voltage of 12 VDC and a power of 25 W, with the speed adjustable in two stages (High: 280, Low: 200). The torque range is between 0.05 and 0.343 Nm, ensuring high accuracy of ±3%.
In addition to its high technical performance, the device is equipped with a lever start and uses a C type wing bit (4 mm). Please note that the appropriate power supply SKP-12HL is not included. This screwdriver is therefore ideal for technical users who require the highest precision and reliability in electronics assembly.
Torque range
Torque range
0.05 - 0.343 Nm
Idle speed High
Idle speed High
280
Idle speed Low
Idle speed Low
200
Screw size thread screw
Screw size thread screw
1.0- 1.7 mm
Screw size self-tapping
Screw size self-tapping
1.0- 2.0 mm
Output voltage DC
Output voltage DC
12 V/DC
Power
Power
25 W
Length
Length
165 mm
ESD
ESD
yes
suitable bit type
suitable bit type
Type C4 Wings
Accuracy
Accuracy
5 %
Series
Series
B 100
Socket
Socket
4.0 mm
Start type
Start type
lever start
Torque setting
Torque setting
stepless
Weight
Weight
170 g
KILEWS brushless electric screw technology
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a black, rectangular device with a cable connection. On the front, there is a label with technical specifications. It appears compact and portable.
Controller SKP-12HL for SKD-B 100
SKP-15HL Power supply unit / Controller KILEWS
100-240V AC, output voltage: DC9 V/DC12 V
+Controller Hi / Lo speed, 2 speeds +
Dimensions: 100 x 50 x 35 mm , weight 0.15 kg
( suitable for SKD-B100 series )
Serial no. ......................
dpvlink
20329

142.75 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 436
Complete Catalog 2023 - 2024

Product Family

Electric screwdrivers B 100 series

Low-voltage electric screwdrivers from the B 100 series are characterized by their low weight and high stability. The reverse button allows the direction of rotation to be changed quickly and easily. The brushless screwdrivers are easy to use and very quiet.

The brushless KILEWS low-voltage screwdrivers at a glance

  • ESD-suitable: For sensitive components in electronics production
  • Suitable for cleanrooms: No carbon dust emissions thanks to brushless technology
  • Durable: All screwdrivers are equipped with long-lasting motors
  • Maintenance-free: The long-lasting motors save you time-consuming maintenance
  • Stepless torque adjustment: enables precise adjustment and prevents material damage like overtwisting

Technical data screwdriver:

Length:165 mm
Weight:170 g
Voltage / power:12 VDC / 25 W
Accuracy:±3 %
Bit type:C type wing shank (4 mm)
Suitable power supply unit:SKP-12HL

 Model SKD-B100L SKD-B100LS4 SKD-B103L SKD-B103LS4
 Start type lever start lever start lever start lever start
 Torque 0.008-0.14 Nm 0.008-0.14 Nm 0.05-0.343 Nm 0.05-0.343 Nm
 Idle speed
 High		 1000 280 1000 280
 Idle speed
 Low		 700 200 700 200
 Screw size
 thread screw		 1.0-1.7 1.0-1.7 1.0-2.3 1.0-1.7
 Screw size
 self-tapping		 1.0-1.5 1.0-1.5 1.0-2.0 1.0-2.0
 Netzteil/Controller

 SKP-12HL


Article image
Article description
Torque range
Idle speed High
Idle speed Low
Screw size thread screw
Screw size self-tapping
Price
Compare
SKD-B100L-ESD - ESD electric screwdriver B100L
SKD-B100L-ESD
ESD electric screwdriver B100L
0.008 - 0.14 Nm
1000
700
1.0- 1.7 mm
1.0- 1.5 mm
555.10 CHF
SKD-B100LS4-ESD - ESD electric screwdriver B100LS4
SKD-B100LS4-ESD
ESD electric screwdriver B100LS4
0.008 - 0.14 Nm
280
200
1.0- 1.7 mm
1.0- 1.5 mm
607.55 CHF
SKD-B103L-ESD - ESD electric screwdriver B103L
SKD-B103L-ESD
ESD electric screwdriver B103L
0.05 - 0.343 Nm
1000
700
1.0- 2.3 mm
1.0- 2.0 mm
555.10 CHF
SKD-B103LS4-ESD - ESD electric screwdriver B103LS4
SKD-B103LS4-ESD
ESD electric screwdriver B103LS4
0.05 - 0.343 Nm
280
200
1.0- 1.7 mm
1.0- 2.0 mm
607.55 CHF
