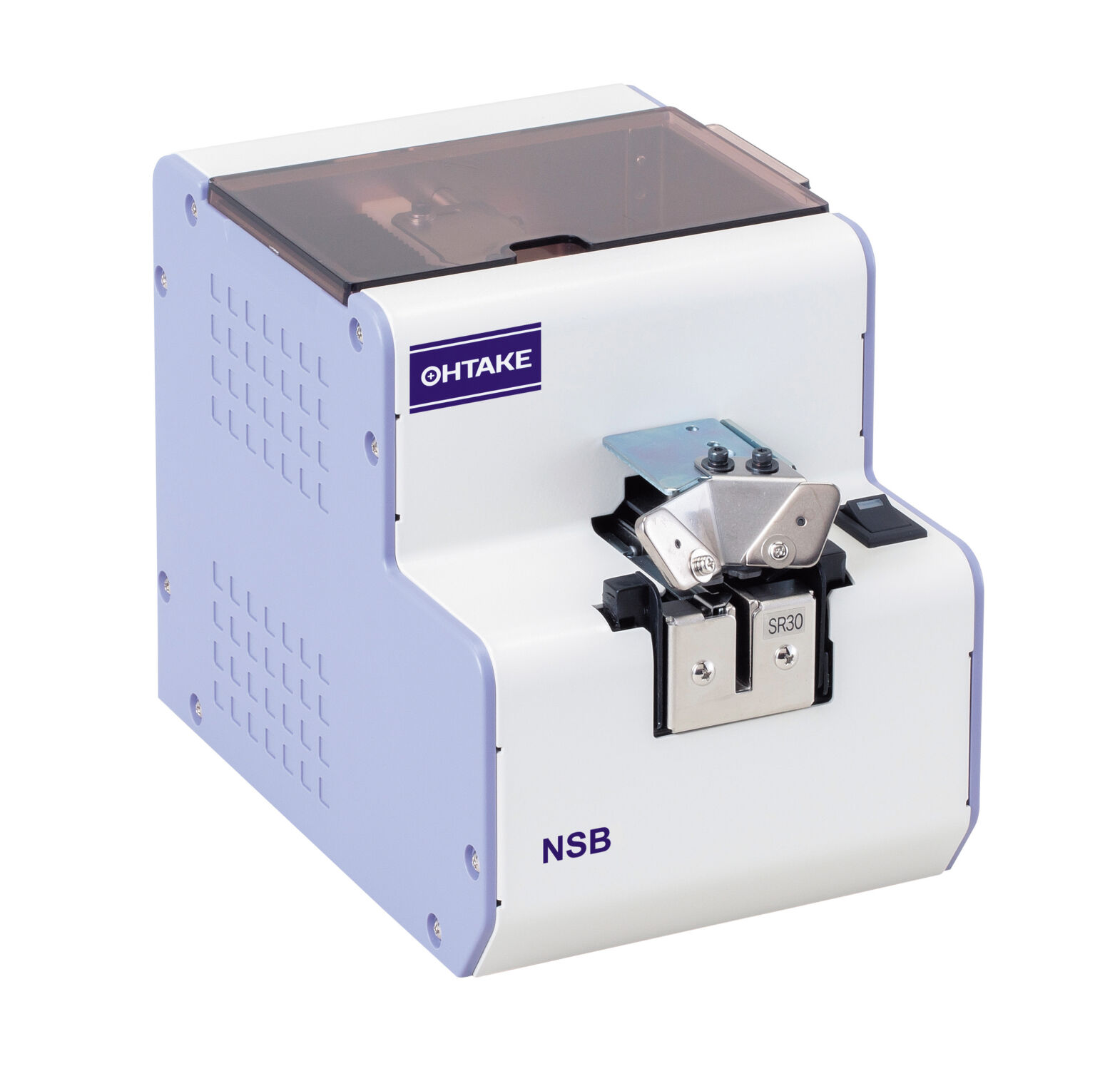

The image displays a white device from OHTAKE. It features a square shape, a transparent cover on top, and a connection for practical use on the front.
NSB - Quicher/Ohtake, screw size M 2.6
(Product No.: NSB-26)
The image displays a white device from OHTAKE. It features a square shape, a transparent cover on top, and a connection for practical use on the front.
Notice

NSB - Quicher/Ohtake, screw size M 2.6

NSB - Quicher/Ohtake, screw size M 2.6

dpvlink:
29959
Screw size:
M2.6
Further product information

1,087.65 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

NSB - Quicher/Ohtake, screw size M 2.6

The Quicher/Ohtake screw dispenser NSB-26 is specifically designed for handling screws of size M 2.6 and offers a maximum thread length of 20 mm. This high-precision feeding system is suitable for metric, imperial, and self-tapping screws and can also process screws with washers or lock washers. With a processing speed of 2 screws per second, the device enables efficient assembly.
The dimensions of the base unit are 123 mm in width, 181 mm in length, and 148 mm in height. The filling volume of the dispenser is 200 cm³. The electrical connection is made via 240V 50/60 Hz, with an AC adapter included in the delivery, and the device operates internally with DC 15V - 1A.
Additional features such as adjustable vibration strength and precisely adjustable bit guidance increase the flexibility and accuracy in screw processing. This makes the NSB-26 an ideal solution for applications requiring high precision.
Screw size
Screw size
M2.6
Height [mm]
Height
148 mm
Length [mm]
Length
181 mm
Thread length
Thread length
20 mm
Width [mm]
Width
123 mm
Filling volume
Filling volume
200 cm³
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 450
Complete Catalog 2023 - 2024
