PoSy80 base frame for wall mounting
PoSy80 Basic Frame for Wall Mounting

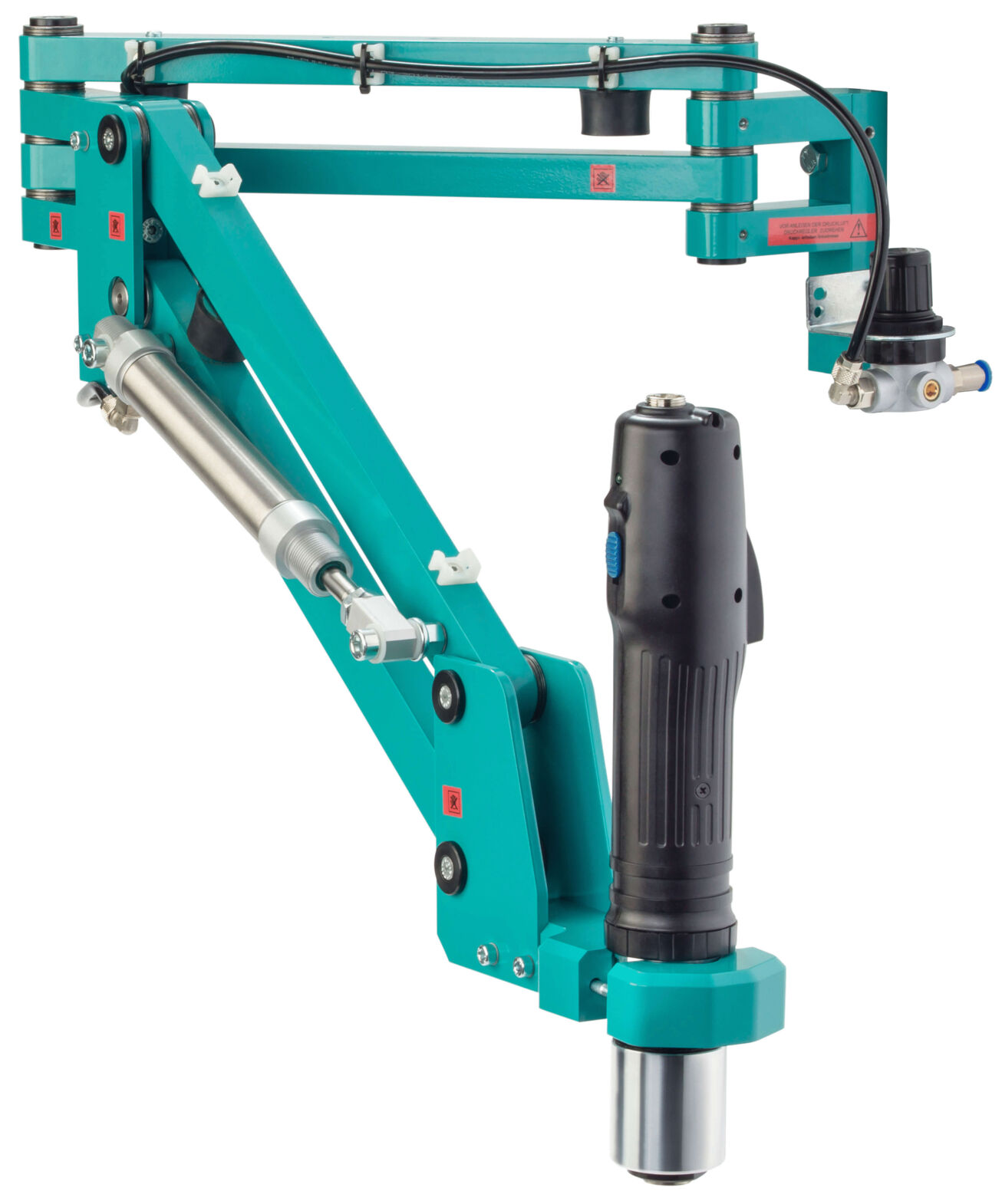

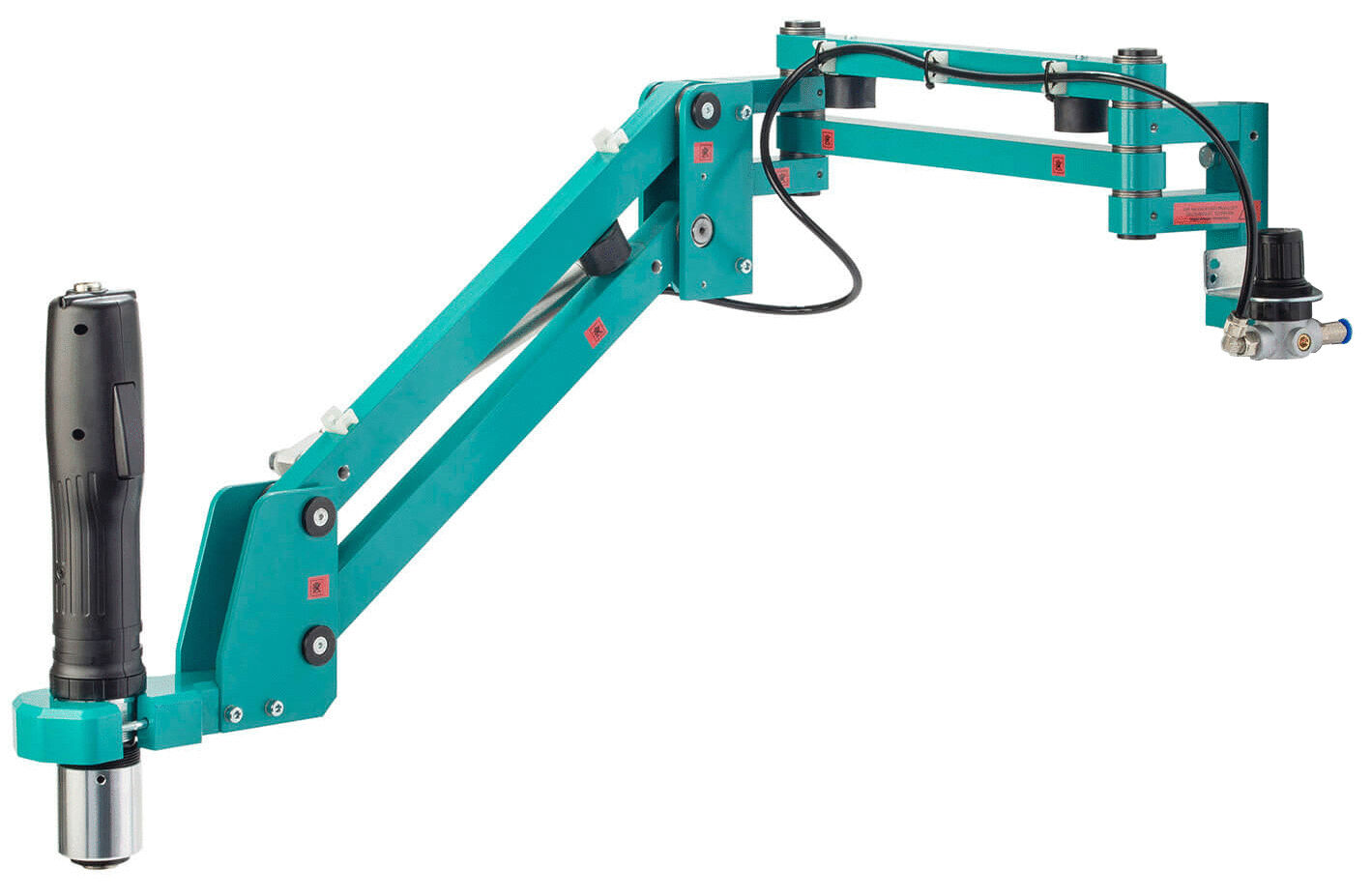

The PoSy80 basic frame for wall mounting is a high-precision positioning system, specifically developed for the exact guidance of tools during screwing operations. It allows for precise determination of any position along the X, Y, and optionally Z-axis within a swivel range up to an accuracy of 0.01 mm. The system is programmable and can store up to 80 positions, making it ideal for use with electric, EC, and pneumatic screwdrivers.
Technical Specifications: - Span: approx. 850 mm - Maximum torque: 80 Nm - Tool holder: 32 - 45 mm - Column height: 600 mm - Pneumatic connection: 6 mm plug connection, 6 bar - Position encoder: SSI absolute encoder - Depth measurement: approx. 0.5 mm - Swivel range: approx. 500 mm, extendable to approx. 800 mm - Power supply: 230 V AC, 50 Hz - Dimensions (L x W x H): 150 x 200 x 200 x 110 mm - Weight: 2.3 kg
The system is characterized by an extremely torsion-resistant construction, is completely ball-bearing mounted, and can absorb reaction moments. The pneumatic cylinder is adjustable for different tool weights and can be expanded to a 3-axis positioning system.
Item number: PoSy-80W
The PoSy80 basic frame for wall mounting is a high-precision positioning system, specifically developed for the exact guidance of tools during screwing operations. It allows for precise determination of any position along the X, Y, and optionally Z-axis within a swivel range up to an accuracy of 0.01 mm. The system is programmable and can store up to 80 positions, making it ideal for use with electric, EC, and pneumatic screwdrivers.
Technical Specifications: - Span: approx. 850 mm - Maximum torque: 80 Nm - Tool holder: 32 - 45 mm - Column height: 600 mm - Pneumatic connection: 6 mm plug connection, 6 bar - Position encoder: SSI absolute encoder - Depth measurement: approx. 0.5 mm - Swivel range: approx. 500 mm, extendable to approx. 800 mm - Power supply: 230 V AC, 50 Hz - Dimensions (L x W x H): 150 x 200 x 200 x 110 mm - Weight: 2.3 kg
The system is characterized by an extremely torsion-resistant construction, is completely ball-bearing mounted, and can absorb reaction moments. The pneumatic cylinder is adjustable for different tool weights and can be expanded to a 3-axis positioning system.
Item number: PoSy-80W
Details
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Price | Compare |
|---|---|---|---|
|
PoSy-80W PoSy80 base frame for wall mounting | 1,551.45 CHF | |
|
PoSy-80S PoSy80 base frame with column | 1,697.40 CHF | |
