Inspection systems

Inspection systems
Lynx EVO with multi-axis stand and ring light
EVO-502 Complete System with Multi axis stand and
Ring light (for large components):
- EVH-001 LynxEVO Stereo Head
- EVZ-040 LynxEVO Zoom 10:1
- EVB-021 Multi-axis stand (without base plate)
- EVF-110 Focus assembly for Multi-axis stand
- EVL-062 Objective x0,62
- EVR-050 LED-Ring light with integral diffusers
- EVP-070 PSU
dpvlink
18856

Product No.: EVO502
14,817.40 CHF
MANTIS PIXO with Verso universal stand incl. extension arm
Mantis PIXO with "Verso universal stand" incl.
extension arm, consisting of:
Stereo head MPH001 (without lenses),
LED lighting, verso arm MTB200/MTB201
Dust cover MTA360, power supply MTA330
dpvlink
27671

Product No.: SMP201
8,066.50 CHF
MANTIS ERGO with Verso universal stand incl. extension arm
Mantis ERGO with "Verso universal stand"
incl. extension arm, composed of:
Stereo head MRH001 (without lenses),
LED lighting, Verso arm MTB200/MTB201
Dust cover MTA360, power supply MTA330
dpvlink
27655

Product No.: SMR201
5,934.50 CHF
TEK-SCOPE PLUS HD optical inspection system
TEK-SCOPE-PLUS FHD optical inspection system
ESD version, LED lighting,
Magnification: optical up to 46x, digital up to
300x, incl. software
(can be connected to a monitor or PC)
Serial number:
dpvlink
23165

Product No.: I-TEK.SCOPE-PLUS
3,490.00 CHF
MANTIS IOTA with Verso universal stand
Mantis-IOTA with "Verso universal stand"
composed of:
Stereo head MIH001 (without lenses),
LED lighting, Verso arm MTB200,
Dust cover MTA360, power supply MTA330
dpvlink
27627

Product No.: SMI200
3,222.70 CHF
EVO Cam II video microscope (magnification 30x optical / 12x digital) ECO2513
ECO-2513 EVO-Cam II Video microscope
(Full-HD 1080p , optical magnification range
1.7x - 300x) with double-arm column stand
consisting of:
- ECH-005 EVO-Cam II video microscope camera head / LED incident light / USB stick)
- S-041EC double-arm column stand with focus, incl. adapter EVB-90
!!! Basic equipment without lens / TFT monitor / accessories !!!!
dpvlink
21622

Product No.: ECO2513
8,048.30 CHF
EVO Cam II video microscope (magnification 30x optical / 12x digital) ECO2510
ECO-2510 EVO-Cam II Video microscope (Full HD
1080p, optical magnification range 1.7x - 300x)
with table stand,
consisting of:
- ECH-005 EVO-Cam II video microscope(camera head / LED incident light / USB stick)
- S-003EC table stand with focus, incl. adapter EVB-90

!!! Basic equipment without lens / TFT monitor / accessories !!!!
dpvlink
21622

Product No.: ECO2510
7,722.00 CHF
Lens 8-fold for MANTIS Elite
Lens / ancillary lens 8 x magnification
Working distance 59 mm
(suitable for MANTIS Elite)
dpvlink
7274

Product No.: MEO-008
955.50 CHF
VE Cam 50 with single arm stand (S-206)
VECM001 VE Cam 50 video microscope
field of view 40 x 30 mm, working distance 163 mm
magnification* 49.9x, column stand
composed of:
- VECM001 basic unit
- S-206 column stand
- VCM102 mounting adapter for stand S-206
- VECE 0134 Monitor 24" Full-HD, LED (1920x1080)
- Mouse, cable and power supply


* with 24" screen
dpvlink
26865

Product No.: VECM001
3,052.40 CHF
MANTIS PIXO head
Mantis PIXO projection head (without lenses),
Stereo head, with built-in 5MP digital camera
LED lighting, incl. power supply,
glare protection, user manual on USB and
ViCapture Software
dpvlink
27668

Product No.: MPH001
6,877.00 CHF
MANTIS Compact "Flexibel"
MANTIS compact "Flexible" consisting of:
Head MCH-001 (without lenses), swivel stand
MCF-001, LED incident light
for table mounting incl. power supply 230V/50 Hz
For general incident light application with zoom x 4 or x 6 (option), inspection and rework "freehand" on small and large parts from all technical fields, a single-station system with clamping or 3-hole mounting on the workstation
dpvlink
10973

Product No.: MC-Flex
4,031.30 CHF
MANTIS IOTA with Verso universal stand incl. extension arm
Mantis-IOTA with "Verso universal stand"
incl. extension arm, composed of:
Stereo head MIH001 (without lenses),
LED lighting, Verso arm MTB200/MTB201
Dust cover MTA360, power supply MTA330
dpvlink
27627

Product No.: SMI201
3,490.50 CHF

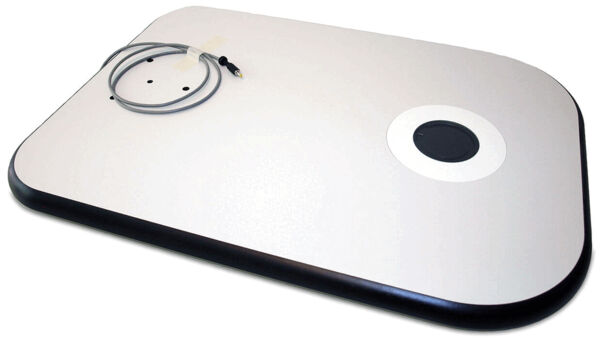

Base plate for multi-axis stand EVB021
Base plate
(suitable for multi-axis stand EVB021)


>>suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

Product No.: EVB022
663.00 CHF
Projection head (without lenses) for MANTIS Compact
MANTIS compact projection head (without lenses)
LED lighting
(matching stand MCS 005 or MCS 006)
dpvlink
7294

Product No.: MCH-001
1,523.60 CHF
Inspection from any angle, including 4D lens
TEK-SCOPE 360° inspection table and 4D lens
TEK-SCOPE 360° inspection table and 4D lens
ESD version, inspection from all sides,
Including 4D lens
dpvlink
22037

Product No.: I-TEK.TILT-PLUS
622.85 CHF
DimensionTwo Software
DimensionOne documentation & measurement software
(suitable for MHD, LynxEVO SmartCam, EVOCamII)
dpvlink
28106

Product No.: VIS004
2,067.00 CHF
1 to 16 (from a total of 192)
