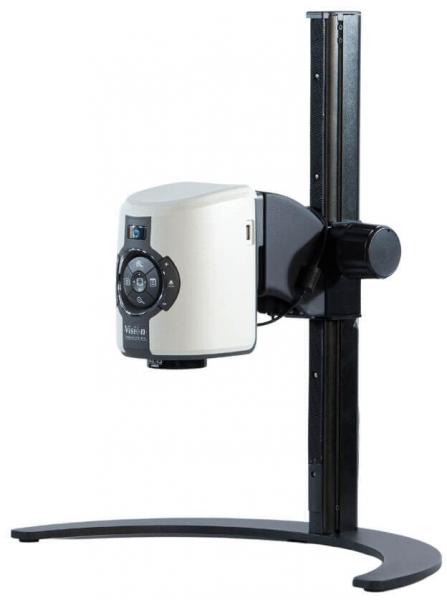

Preview: The image shows a device with a central control block that has large buttons and knobs. It stands on a sturdy, black stand. The shape is modern and functional.

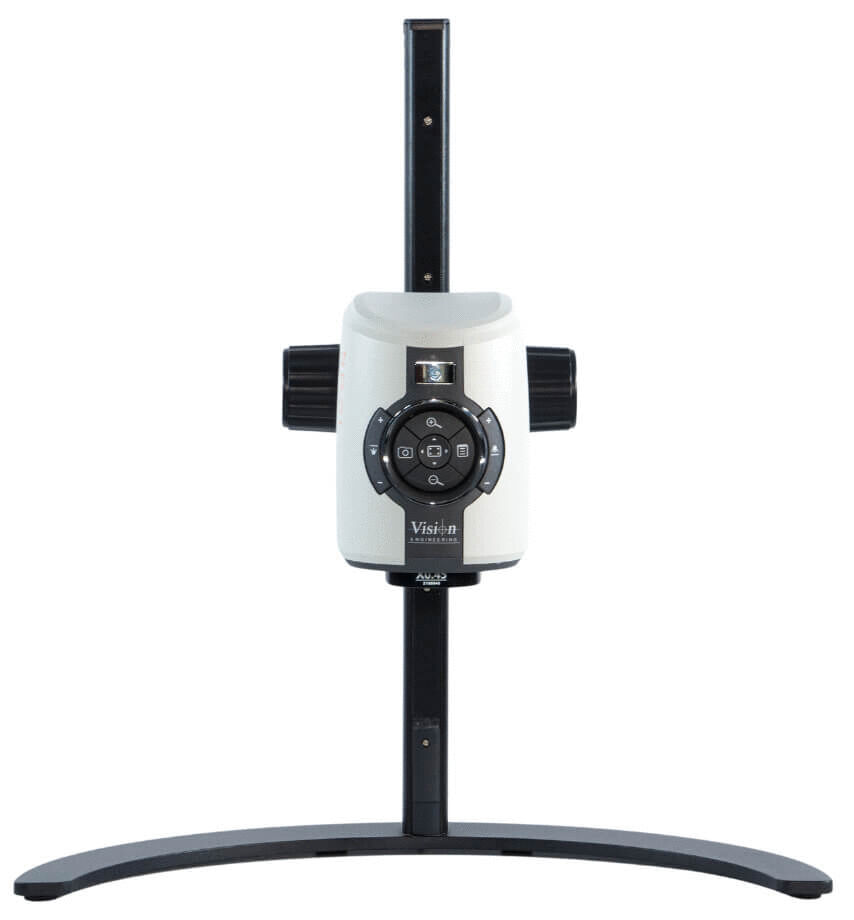

Preview: The image shows a compact projector with a white casing, mounted on a black, sturdy stand. The projector has control buttons on the front.

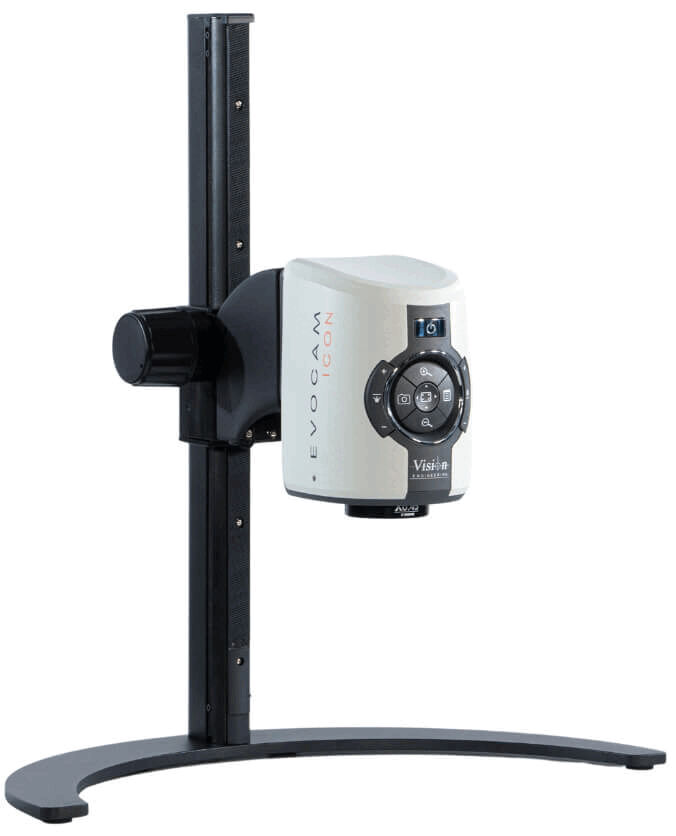

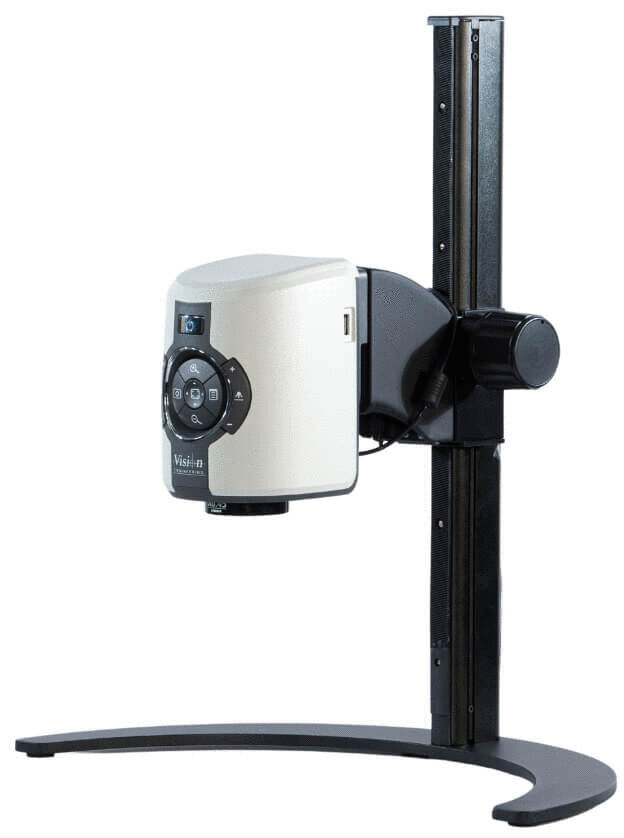

Preview: The image shows a device with a rectangular body, a large lens at the front, and buttons on the front side. It is mounted on a stable, round base and attached to a vertical stand.

EVO-Cam ICON video microscope with arc stand

(Product No.: ICO2504)

Mobile Preview: The image shows a device with a central control block that has large buttons and knobs. It stands on a sturdy, black stand. The shape is modern and functional.

Mobile Preview: The image shows a compact projector with a white casing, mounted on a black, sturdy stand. The projector has control buttons on the front.

Mobile Preview: The image shows a device with a rectangular body, a large lens at the front, and buttons on the front side. It is mounted on a stable, round base and attached to a vertical stand.

(Product No.: ICO2504)

EVO-Cam ICON video microscope with arc stand

Name: EVO-Cam ICON video microscope with arc stand
SKU: ICO2504
Price: 4708.80 CHF
Availability: InStock

ArticleNo: ICO2504

EVO-Cam ICON video microscope with arc stand

dpvlink:

29903

Further product information

NEW

4,708.80 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

EVO-Cam ICON video microscope with arc stand

The digital microscope EVO Cam ICON from Vision Engineering offers a powerful, versatile, easy-to-use imaging solution that enables uncompromising optical performance.

Powerful
EVO Cam ICON enhances the accuracy and efficiency of your inspection with impressive clarity and precision. The high-quality camera, sensor, custom lenses, and advanced software features together provide stunning image quality. With an optical zoom range of 30:1 and up to 725x magnification, you can easily see every detail. Digital zoom extends this range further, while Full-HD video, manual and automatic focusing ensure sharp images at all times. The powerful processing capabilities enable fast image capture and analysis, making your inspection processes faster
and more efficient.

Flexible
EVO Cam ICON offers exceptional flexibility, making it a compelling solution for a variety of environments. Configure 10 presets for
faster transitions between tasks or operators. Effortlessly integrate additional devices by sharing settings. Customize the system with a comprehensive range of stands, lenses, and other accessories to fit your workspace and application. EVO Cam ICON is easily adaptable to your evolving inspection requirements, quality demands, and industry standards.

Intuitive
Thanks to its clear design and straightforward user interface, EVO Cam ICON is simple and efficient to operate and seamlessly integrates into your workflow. EVO Cam ICON is ready to use in minutes. Simply turn on the camera to view and capture Full-HD images. The intuitive on-screen controls and various language options ensure that you can quickly become proficient with minimal training.

Applications
Electronics
In electronics manufacturing, you can use EVO Cam ICON to view connections and solder joints with high magnification and exceptional clarity. This improves both the accuracy and speed of rework and inspections.

Medical Devices
The manufacture of medical devices is a highly regulated industry. Choosing EVO Cam ICON as your digital microscope solution provides outstanding clarity to detect fine deviations and capture high-resolution images for traceability and compliance reporting.

Precision Engineering
If you design, manufacture, and maintain machines and components with tight tolerances and high accuracy, EVO Cam ICON delivers exceptional image quality that allows you to easily check and measure your parts for compliance with required specifications.

Benefits

High-quality images: An optical zoom range of 30:1 with up to
725x optical magnification allows you to see the details you need to truly understand the object.
Large field of view: With a field of view of up to 660 mm, you can effortlessly
see more of your subject.
Large working distance: When you need to perform repair or rework tasks
under magnification, you have ample space for handling tools.
Easy image capture: Capture high-resolution images at the push of a button,
either directly onto a USB memory stick, wirelessly, or directly on a PC.
Consistency: Consistent quality checks across multiple units, multiple
users, and multiple locations, with 10 customizable presets,
that can be easily shared.
Integrated measurement: Provide fast and reliable measurements at
various points on your object, which are critical for safety and performance.
Customizable: A wide range of stands, lenses, and
accessories to ensure that your EVO Cam ICON setup fits your
workflow, now and in the future.

Specifications:

Specifications
Camera	Full HD
Lighting	8-point ring light, color temperature 5,500 K (adjustable with filter options)
Transmitted light	Optional
Control	On/Off, Zoom in, Zoom out, Overview, Light intensity of the incident light, Light intensity of the transmitted light, Image capture, Menu
Control console	Optional
Interfaces	HDMI, USB3 (PC connection), USB2 (standalone image capture), WiFi (optional)

Camera Specifications
Camera Zoom	30:1
Digital Zoom	12:1
Camera Resolution	1920x1080
Sensor	1/2.8-inch CMOS back-illuminated
Frame Rate	50fps & 60fps (switchable)
Stored File Type	PNG, JPEG+,JPEG,JPEG-

Focus control

Features retained in "Front Panel Lock" mode

User-programmable presets

Image capture

Languages

Image mode

Features
Inspection capabilities	Save/import/export settings
Report generation	Image capture, timestamp
Measurement functions	Virtual caliper (x-axis distance, y-axis distance, Diagonal – point-to-point), scalable grid
General functions	Image capture, image playback, noise reduction, light control
Exposure control	Auto, aperture priority, manual
Automatic, manual
Hotkeys	Presets, white balance, front panel lock, AE/ME switch, AF/MF switch
Image capture
10 (Save, Import/Export)
USB memory stick or via PC connection
English, French, German, Spanish, Italian, Portuguese, Russian, Chinese, Japanese, Korean
Automatic white balance, black and white, broad dynamic range, noise reduction, infrared mode, capture button function

Package includes:

ECH-007 EVO-Cam ICON Video Microscope (Camera Head / LED Incident Light / USB Stick)
OEB-100 Column for Arch or Table Stand including Focus
OEB-200 Base Arch Stand for mounting on column
OEB-220 Adapter for mounting ICON on arch or table stand

Details

Illuminant Illuminant: LED
Capture resolution Capture resolution: 1920 x 1080
Digital zoom max. Digital zoom max.: 12x
Light color Light color: 5,500 K
Optical zoom max. Optical zoom max.: 30x
Support Support: Arch Stand
Working distance Working distance: 500 mm
