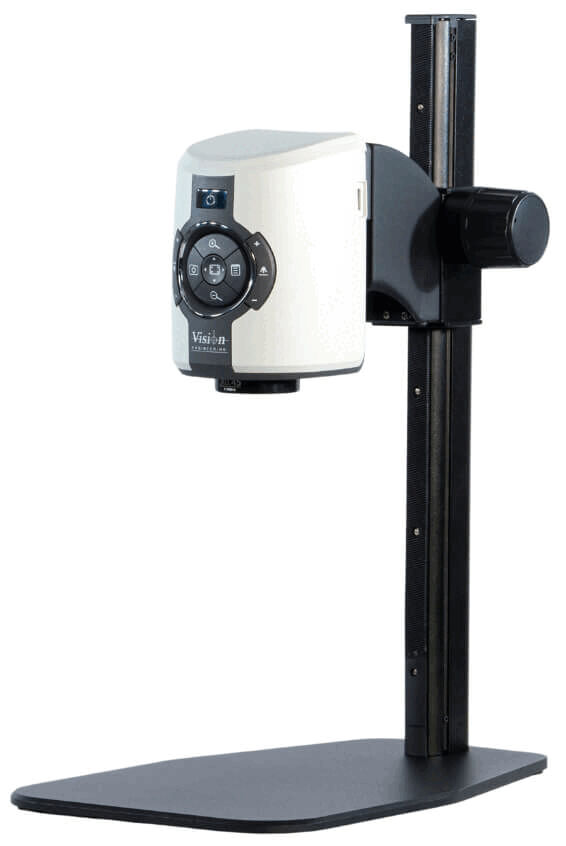

Preview: The image shows a device on a stable, rectangular base. In the center, there is a rectangular casing with buttons for operation. It has two side wheels and is mounted on a long, black stand.

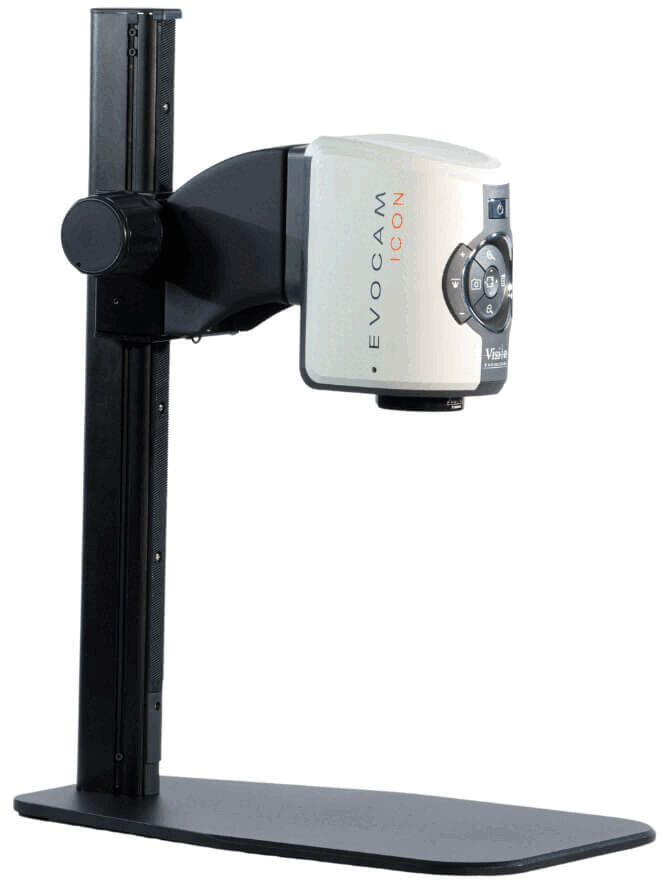

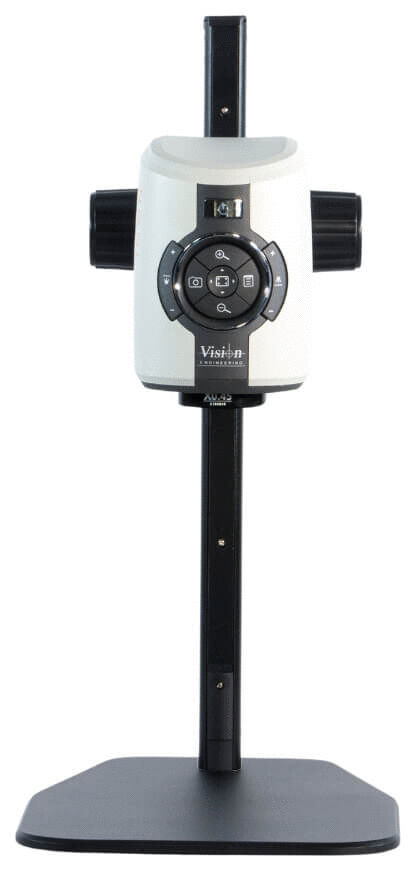

Preview: The image shows a device with a white top and an operable panel. It is attached to a black stand that sits stably on a rectangular base.

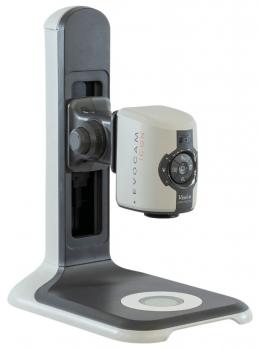

Preview: The image shows a device called Evogam Icon. It has a rectangular base and a vertical stand. There is a camera with control buttons on an arm.

EVO-Cam ICON video microscope with column table stand

(Product No.: ICO2505)

Mobile Preview: The image shows a device on a stable, rectangular base. In the center, there is a rectangular casing with buttons for operation. It has two side wheels and is mounted on a long, black stand.

Mobile Preview: The image shows a device with a white top and an operable panel. It is attached to a black stand that sits stably on a rectangular base.

Mobile Preview: The image shows a device called Evogam Icon. It has a rectangular base and a vertical stand. There is a camera with control buttons on an arm.

(Product No.: ICO2505)

EVO-Cam ICON video microscope with column table stand

Name: EVO-Cam ICON video microscope with column table stand
SKU: ICO2505
Price: 4708.80 CHF
Availability: InStock

ArticleNo: ICO2505

EVO-Cam ICON video microscope with column table stand

dpvlink:

29903

Further product information

NEW

4,708.80 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

EVO-Cam ICON video microscope with column table stand

The digital microscope EVO Cam ICON from Vision Engineering offers a powerful, versatile, easy-to-use imaging solution that enables uncompromising optical performance.

Powerful
EVO Cam ICON enhances the accuracy and efficiency of your inspection with impressive clarity and detail accuracy. The high-quality camera, sensor, custom lenses, and advanced software features together provide impressive image quality. With an optical zoom range of 30:1 and up to 725x magnification, you can easily see every detail. Digital zoom extends this range further, while Full-HD video, manual and automatic focusing ensure sharp images at all times. The powerful processing capabilities enable fast image capture and analysis, making your inspection processes faster
and more efficient.

Flexible
EVO Cam ICON offers exceptional flexibility, making it a compelling solution for a variety of environments. Configure 10 presets for
faster transitions between tasks or operators. Effortlessly integrate additional devices by sharing settings. Customize the system with a comprehensive range of tripods, lenses, and other accessories to suit your workspace and application. EVO Cam ICON easily adapts to your evolving inspection requirements, quality demands, and industry standards.

Intuitive
Thanks to its clear design and straightforward user interface, EVO Cam ICON is simple and efficient to operate and seamlessly integrates into your workflow. EVO Cam ICON is ready to use in minutes. Simply turn on the camera to view and capture Full-HD images. The intuitive on-screen controls and various language options ensure that you can get up to speed quickly with minimal training.

Applications
Electronics
In electronics manufacturing, you can view connections and solder joints with high magnification and exceptional clarity using EVO Cam ICON. This improves both the accuracy and speed of rework and inspections.

Medical Devices
The manufacture of medical devices is a highly regulated industry. Choosing EVO Cam ICON as your digital microscope solution provides outstanding clarity to detect fine deviations and capture high-resolution images for traceability and compliance reporting.

Precision Engineering
When you design, manufacture, and maintain machines and components with tight tolerances and high accuracy, EVO Cam ICON delivers exceptional image quality, allowing you to easily check and measure your parts for compliance with required specifications.

Benefits

High-quality images: An optical zoom range of 30:1 with up to
725x optical magnification allows you to see the details
you need to truly understand the object.
Large field of view: With a field of view of up to 660 mm, you can effortlessly
see more of your subject.
Large working distance: When you need to perform repair or rework tasks
under magnification, you have ample space for
handling tools.
Easy image capture: Capture high-resolution images at the push of a button,
either directly on a USB memory stick, via wireless, or directly on a PC.
Consistency: Consistent quality checks across multiple units, multiple
users, and multiple locations, with 10 customizable presets,
that can be easily shared.
Integrated measurement: Provide fast and reliable measurements at
various points on your object, which are crucial for safety and performance.
Customizable: A wide selection of tripods, lenses, and
accessories to ensure that your EVO Cam ICON setup fits your
workflow, now and in the future.

Technical Specifications:

Specifications
Camera	Full HD
Lighting	8-point ring light, color temperature 5,500 K (adjustable with filter options)
Transmitted light	Optional
Control	On/Off, Zoom in, Zoom out, Overview, Illuminance of the incident light, Illuminance of the transmitted light, Image capture, Menu
Control console	Optional
Interfaces	HDMI, USB3 (PC connection), USB2 (standalone image capture), WiFi (optional)

Camera Specifications
Camera Zoom	30:1
Digital Zoom	12:1
Camera Resolution	1920x1080
Sensor	1/2.8-inch CMOS back-illuminated
Frame rate	50fps & 60fps (switchable)
Stored file type	PNG, JPEG+,JPEG,JPEG-

Features
Inspection capabilities	Save/import/export settings
Reporting	Image capture, timestamp
Measurement features	Virtual caliper (x-axis distance, y-axis distance, Diagonal – point-to-point), scalable grid
General features	Image capture, image playback, noise reduction, light control
Exposure control	Auto, Aperture priority, manual
Focus control	Automatic, manual
Shortcut keys	Presets, white balance, front panel lock, AE/ME switch, AF/MF switch
Features retained in "Front Panel Lock" mode	Image capture
User-programmable presets	10 (Save, Import/Export)
Image capture	USB memory stick or via PC connection
Languages	English, French, German, Spanish, Italian, Portuguese, Russian, Chinese, Japanese, Korean
Image mode	Automatic white balance, black and white, wide dynamic range, noise reduction, infrared mode, capture button function

Scope of Delivery:

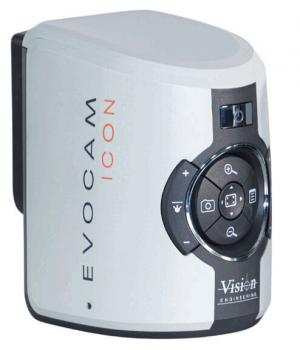

ECH-007 EVO-Cam ICON Video Microscope (Camera Head / LED Incident Light / USB Stick)

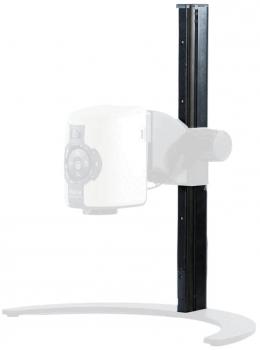

OEB-100 Column for Arch or Table Stand incl. Focus
OEB-210 Base Table Stand for attachment to column
OEB-220 Adapter for mounting ICOn on arch or table stand

Details

Illuminant Illuminant: LED
Capture resolution Capture resolution: 1920 x 1080
Digital zoom max. Digital zoom max.: 12x
Light color Light color: 5,500 K
Optical zoom max. Optical zoom max.: 30x
Support Support: table stand
Working distance Working distance: 500 mm

Show accessories

Accessories

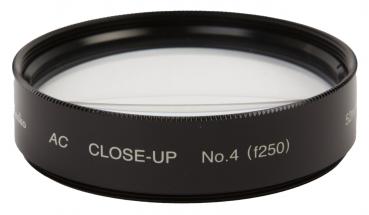

The image shows a black filter ring with a crystal-clear lens in the center. On the rim are white inscriptions "AC CLOSE-UP No.4 (f250)" that describe the type of filter.

Wide-field objective lens 4 diopters

Wide-field objective lens ECL-040 S / 4 diopters
Zoom 1.9x-53x(106x), working distance 250 mm

>> suitable for EVO Cam II <<
