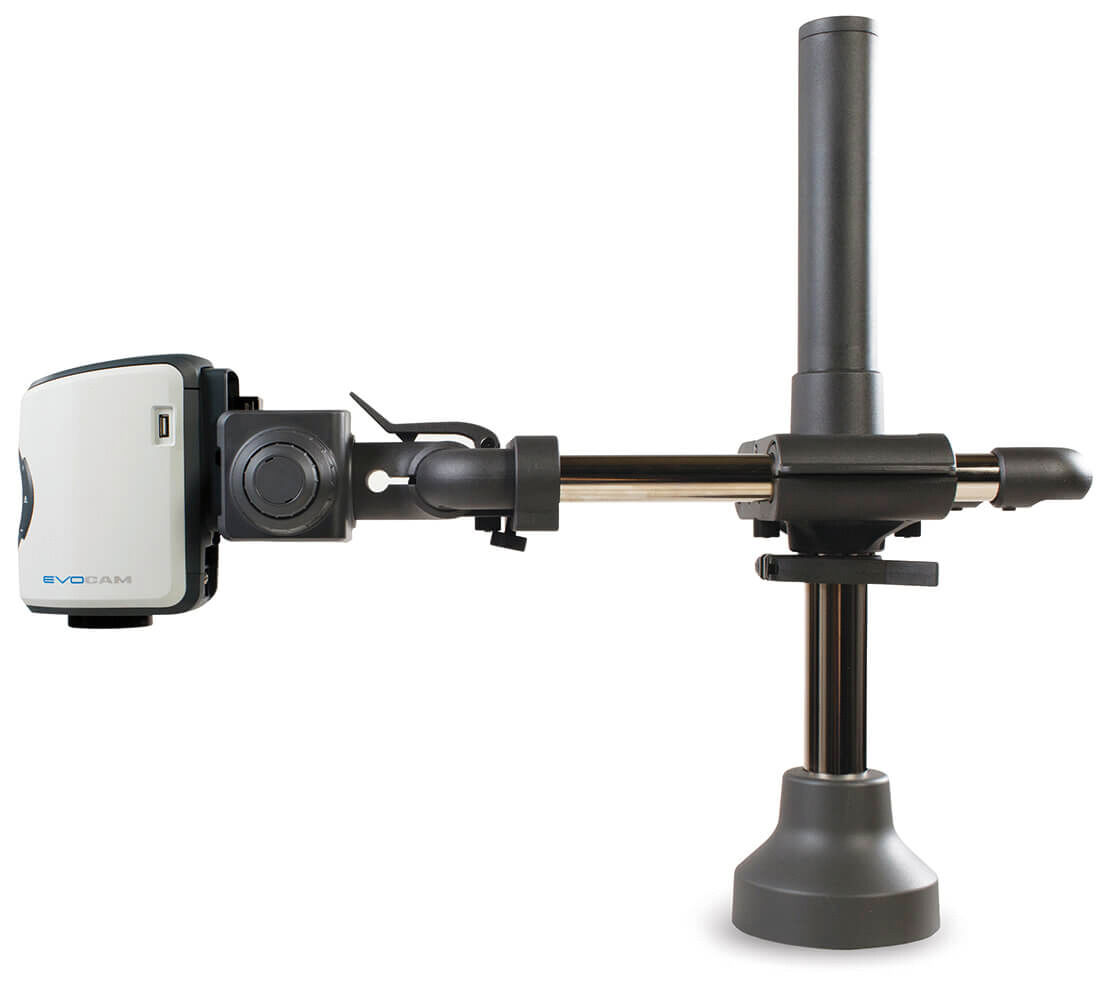

The image displays a compact camera device on a stable stand. It has a silver surface with controls and an elongated, black mount. The design is functional and modern.

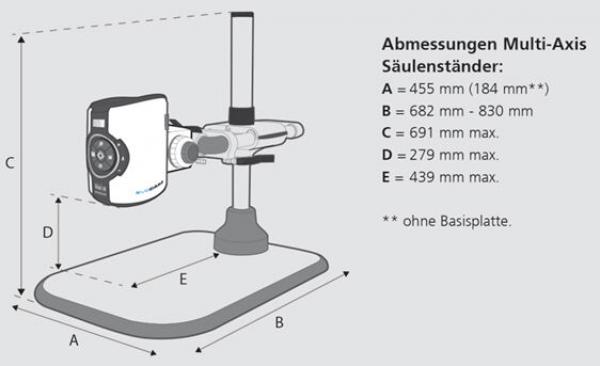

The image shows a technical draft of a Multi-Axis Column Stand with descriptions of dimensions A to E. It is a schematic representation without colors.
Preview: The image displays a compact camera device on a stable stand. It has a silver surface with controls and an elongated, black mount. The design is functional and modern.
Preview: The image shows a technical draft of a Multi-Axis Column Stand with descriptions of dimensions A to E. It is a schematic representation without colors.
EVO Cam II with multi-axis stand
(Product No.: ECO2502)
The image displays a compact camera device on a stable stand. It has a silver surface with controls and an elongated, black mount. The design is functional and modern.
The image shows a technical draft of a Multi-Axis Column Stand with descriptions of dimensions A to E. It is a schematic representation without colors.
Mobile Preview: The image displays a compact camera device on a stable stand. It has a silver surface with controls and an elongated, black mount. The design is functional and modern.
Mobile Preview: The image shows a technical draft of a Multi-Axis Column Stand with descriptions of dimensions A to E. It is a schematic representation without colors.
Notice / Inquire

EVO Cam II with multi-axis stand

EVO Cam II with multi-axis stand

dpvlink:
21622
Further product information

9,439.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

EVO Cam II with multi-axis stand

The EVO Cam II, manufactured by Vision, is an advanced video microscope system specifically designed for demanding visual inspections and precision applications. This system is characterized by its robust construction and the multi-axis column stand, which allows for flexible positioning.
Included in the package are the camera head with integrated LED incident light and USB stick, as well as a focus module with counterweight, which supports stable and precise focusing. The base plate is available separately.
The device offers impressive optical performance with a maximum optical zoom of 30x and a digital zoom of up to 12x. The recording resolution is 1920 x 1080 pixels, ensuring clear and detailed images. The LED lighting, with a color temperature of 5500 K, provides natural color reproduction.
Technically designed for a power supply between 100 and 240 V and a power consumption of 72 W, the system is both energy-efficient and powerful. With a height of 691 mm and a variable depth between 682 and 830 mm, it adapts to various work environments. The working distance of 279 mm allows for flexible handling of various objects.
Power
Power
72 W
Voltage
Voltage
100 - 240 V
Depth
Depth
682 - 830 mm
Height
Height
691 mm
Illuminant
Illuminant
LED
Capture resolution
Capture resolution
1920 x 1080
Digital zoom max.
Digital zoom max.
12x
Light color
Light color
5500 K
Optical zoom max.
Optical zoom max.
30x
Support
Support
multi-axis stand
Working distance
Working distance
279 mm
Show accessories
Accessories

Accessories

The image shows an electric magnifying device on a sturdy, black stand. It features a round, illuminated area for objects and a camera with controls on top.
Ergo stand with fine/coarse focusing
Ergo stand with corse/fine focus control EVB-010



suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

3,078.00 CHF
The image shows a device with a flat base that has a rectangular opening on top. In the center, there is a small, blue, rectangular object with raised dots. The rest is in neutral colors.
Sliding table for Ergo stand
Sliding table, 100 x 100 mm
(for ERGO stand EVB010)
dpvlink
21623

1,186.80 CHF
The image shows a black filter ring with a crystal-clear lens in the center. On the rim are white inscriptions "AC CLOSE-UP No.4 (f250)" that describe the type of filter.
Wide-field objective lens 4 diopters
Wide-field objective lens ECL-040 S / 4 diopters
Zoom 1.9x-53x(106x), working distance 250 mm


>> suitable for EVO Cam II <<
dpvlink
21656

406.80 CHF
The image shows a round macro filter made of black metal with a smooth, transparent glass surface. On the filter, it reads "CLOSE-UP No.5" and a serial number. The filter is used for close-up photography.
Wide-field objective lens 5 diopters
Wide-field objective lens ECL-050S / 5 diopters
Zoom 2.4x-65x(130x), working distance 250 mm


>> suitable for EVO Cam II <<
dpvlink
21656

406.80 CHF
The image shows a flat, rectangular surface with rounded corners. The surface is shiny and silver-colored, while the edge is black. It resembles a plastic or metal object.
Base plate for multi-axis stand EVB021
Base plate
(suitable for multi-axis stand EVB021)


>>suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

612.00 CHF
The image shows a modern, black charging station with a circular, white area in the center. The edges are rounded, and the surface appears smooth and shiny.
LED transmitted light for Ergo stand
LED transmitted light EVS-012 for EVB-010
(suitable for EVO-cam)
dpvlink
30036

1,186.80 CHF
The image displays a black computer screen on a sturdy stand. The screen is blank and exhibits a uniform, dark hue.
Screen 24" Full HD resolution
TFT monitor 24 "full HD resolution
dpvlink
21623

422.30 CHF
The image displays a black lens or objective in a round casing. The front reads "Vision Engineering X0.45" along with a sequence of numbers. The surface is smooth and glossy.
Precision lens 0.45x
ECL-001 Precision lens 0.45x
Zoom 2.3x-68x, working distance 160 mm


>>for EVO Cam + EVO Cam II + Makrolite 4K <<
dpvlink
21656

469.20 CHF
The image shows a round, black lens with a smooth surface. On the front it reads "Vision Engineering" and the numbers "X0.62" and "2190580" are printed.
Precision lens 0.62x
ECL-002 Precision lens 0.62x
Zoom 3.1x-93.7x, working distance 106 mm


>>for EVO Cam + EVO Cam II + Makrolite 4K <<
dpvlink
21656

361.20 CHF
The image shows a black lens with a round shape. On the front, it has the inscription "Vision Engineering X1.0" in silver lettering. It has a smooth surface and a clear lens.
Precision lens 1.00x
ECL-003 Precision lens 1.0x
Zoom 5x-151.2x, working distance 85 mm


>>for EVO Cam + EVO Cam II + Makrolite 4K <<
dpvlink
21656

426.00 CHF
The image shows a round, black lens in a casing with a clear, curved glass cover. On the side, there is the inscription "Vision Engineering". The lens has a smooth surface.
Precision lens 1.5x
ECL-150 Precision lens 1.5x
Zoom 7.6x-226.8x, working distance 43 mm
can only be used together with a transmitted light
or separated incident light
>>for EVO Cam + EVO Cam II + Makrolite 4K <<
dpvlink
21656

913.20 CHF
The image shows a cylindrical lens attachment in black. It has a smooth surface and a clear lens in the center, below which "X2.0" is indicated as a reference to the magnification.
Precision lens 2.0x
ECL-20 Precision lens 2.0x
Zoom 10x-302.4x, working distance 29 mm
can only be used together with a transmitted light
or separated incident light
>>for EVO Cam + EVO Cam II + Makrolite 4K <<
dpvlink
21656

1,279.20 CHF
The image displays a black control unit with an oval shape. In the center, there are three buttons arranged in a circle. Above, several labeled buttons are scattered.
Console control
ECX-155 EVO-Cam II Remote control



>>for EVO Cam + EVO Cam II + Makrolite 4K <<
dpvlink
21623

534.00 CHF
The image displays a modern camera with a round lens and control knobs. It features an elegant, silver casing and is mounted on a tripod.
UV-LED ring light with power supply unit
EVA-330 UV-LED ring light with PSU



>>for EVO Cam II<<
dpvlink
30036

2,869.20 CHF
The image shows a USB stick in a dark color with a rounded bottom. At the top, two thin contacts are visible, which look like a plug.
WiFi Dongle for EVO Cam II
WiFi dongle for EVOCam II and EVOCam



>>suitable for EVO Cam + EVO Cam II <<
dpvlink
21623

274.80 CHF
The image displays a black computer screen on a sturdy stand. The screen is blank and exhibits a uniform, dark hue.
Screen 12 inch Full HD resolution
TFT monitor 12 "full HD resolution
dpvlink
21623

685.10 CHF
The image shows a rectangular, gray plate with rounded corners. There is a round cutout at the top. It has a smooth surface and appears sturdy.
ESD mat for base plate EVB022
ESD mat for base plate EVB022
LynxEvo/EVOCam
dpvlink
21623

71.80 CHF
The image shows a rectangular, rounded tabletop in a light shade. In the center, there is a black and a gray round element visible, as well as a gray cable.
Base plate with transmitted light unit for...
Base plate with transmitted light unit for EVB-021
for EVO Cam and EVO Cam II
dpvlink
21623

1,452.00 CHF
The image displays a technical device with a compact casing. It features a round rotary knob and a USB port. The device is mounted on a stable arm.
Safety Stop for double-arm column stand S-241...
Safety Stop EVB094 for double-arm column stand
S-241
suitable for EVO-Cam II and VE Cam)
dpvlink
21623

99.60 CHF
The image shows a round, flat plate with a black edge. The interior is white and smooth, while the outer rim has a textured surface. The plate appears simple and minimalist.
Microlens adapter for 5x/10x lenses for EVO...
ECL-098 microlens adapter for 5x/10x lenses
max. magnification 756x (10x lens)


>>for EVO Cam II <<
dpvlink
21656

79.20 CHF
The image shows a black, hemispherical object adapter. It has a smooth surface and an opening in the middle. A circular ring is next to it.
Preview: Light adapter EVA-316 for EVO Cam II
Preview: The image shows a round metal ring with an inner recess. The ring is gray in color and features openings on the sides. The edges are smooth and even.
Preview: The image shows a device for optical magnification. It has a round, central button with several control knobs around it and is mounted on a stable, black stand.
Light adapter EVA-316 for EVO Cam II
EVA-316 light adapter for 1.5x and 2.0x lenses



>>for EVO Cam II<<
dpvlink
21623

406.80 CHF
The image shows a round, black metal ring with a narrow, green lens and two markings ("FRONT" and "POL"). It contains three small screws.
Polarization filter for incident light
EVA-331 Polarization filter
Polarizes the incident light


>>for EVO Cam II<<
dpvlink
30037

214.80 CHF
The image shows a round, black filter frame with several transparent areas. The frame is marked with "2800K" and "FRONT".
Light filter 2800K
EVA-332 light filter 2800K
(for ECH005/ECH006)


>>for EVO Cam II<<
dpvlink
30037

214.80 CHF
The image displays a circular black filter frame with several light brown filter segments. There are holes on the sides for attachment. The frame is marked with "FRONT" and "3400K".
Light filter 3400K
EVA-333 light filter 3400K
(for ECH005/ECH006)


>>for EVO Cam II<<
dpvlink
30037

214.80 CHF
The image shows a round, black ring with transparent elements. On the ring are inscriptions indicating the color temperature (4000K) and the marking "FRONT".
Light filter 4000K
EVA-334 light filter 4000K
(for ECH005/ECH006)


>>for EVO Cam II<<
dpvlink
30037

214.80 CHF
The image shows a round filter frame made of black plastic. It has several transparent areas and is labeled with "4350K" and "FRONT". The frame has two small holes for attachments.
Light filter 4350K
EVA-335 light filter 4350K
(for ECH005/ECH006)


>>for EVO Cam II<<
dpvlink
30037

214.80 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 561
Complete Catalog 2023 - 2024
EVO Cam II - Digital micoscope Full-HD

Product Family

EVO Cam II - complete devices (basic equipment)

Article image
Article description
Power
Voltage
Depth
Height
Width
Illuminant
Capture resolution
Digital zoom max.
Light color
Optical zoom max.
Operating temperature
Storage temperature
Support
Working distance
Price
Compare
ECO2OEM - EVO Cam II video microscope head
ECO2OEM
EVO Cam II video microscope head
72 W
100 - 240 V
14 mm
16.5 mm
11 mm
LED
1920 x 1080
12x
5500 K
30x
5 - 40 °C
-10 - 60 °C


5,988.00 CHF
ECO2502 - EVO Cam II with multi-axis stand
ECO2502
EVO Cam II with multi-axis stand
72 W
100 - 240 V
682 - 830 mm
691 mm

LED
1920 x 1080
12x
5500 K
30x


multi-axis stand
279 mm
9,439.20 CHF
ECO2504 - EVO Cam II with multi-axis stand and rotating viewer
ECO2504
EVO Cam II with multi-axis stand and rotating viewer


682 - 830 mm
691 mm

LED
1920 x 1080
12x
5500 K
30x


multi-axis stand
294 mm
14,347.20 CHF
ECO2501 - EVO Cam II with Ergo stand
ECO2501
EVO Cam II with Ergo stand
72 W
100 - 240 V
420 mm
515 mm
280 mm
LED
1920 x 1080
12x
5500 K
30x


Ergo stand
192 mm
9,066.00 CHF
ECO2503 - EVO Cam II with Ergo stand and rotating viewer
ECO2503
EVO Cam II with Ergo stand and rotating viewer


420 mm
515 mm
280 mm
LED
1920 x 1080
12x
5500 K
30x


Ergo stand

13,974.00 CHF
ECO2513 - EVO Cam II with double arm column stand
ECO2513
EVO Cam II with double arm column stand
72 W
100 - 240 V



LED
1920 x 1080
12x
5500 K
30x


Double-arm column stand

7,429.20 CHF
ECO2511 - EVO Cam II with column stand
ECO2511
EVO Cam II with column stand
72 W
100 - 240 V



LED
1920 x 1080
12x
5500 K
30x


Column stand

7,158.00 CHF
ECO2510 - EVO Cam II with table stand
ECO2510
EVO Cam II with table stand
72 W
100 - 240 V



LED
1920 x 1080
12x
5500 K
30x


table stand

7,128.00 CHF
ECO2CE1 - EVO Cam II with flexible articulated arm
ECO2CE1
EVO Cam II with flexible articulated arm
72 W
100 - 240 V



LED
1920 x 1080
12x
5500 K
30x


flexible articulated arm

6,576.00 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a microscope with a stable metal base. It has two eyepieces and a stage for the object. Next to the microscope is a control panel with buttons.
SX LED ring light with power supply unit
SX LED ring light with power supply
dimmable 0-100%, 4-segment control
dpvlink
11075

463.20 CHF
The image shows two elongated, silver metal cylinders lying parallel to each other. They have a smooth surface and a larger diameter at one end.
Arm extension for multi-axis stand
Arm extension for Multi-axis column stand
(suitable for multi-axis stand EVB021)
dpvlink
27251

367.20 CHF
The image displays a simple, black table with an oval top and a sturdy, round base. The table features an adjustable, cylindrical stand.
Preview: Tilting table with rubber adhesive plate
Preview: The image displays a simple, black table with a square tabletop. The table features a sturdy, cylindrical base and an adjustable mechanism for height modification.
Tilting table with rubber adhesive plate
Tilting table for object support with rubberized
adhesive plate
tiltable and height-adjustable object holder
(suitable for Mantis IOTA, ERGO, PIXO, OPTA and
VE Cam / EVO Cam II)
dpvlink
27225

786.00 CHF
The image shows a black, round table with a perforated top. The table has a central pillar and a stable, round base. It appears modern and functional.
Preview: Tilting table with rubber perforated plate
Preview: The image shows a round, black plate, perforated with many small, evenly spaced holes. The holes are arranged in a circular pattern, and the plate appears flat and stable.
Preview: The image displays a simple, black table with a square tabletop. The table features a sturdy, cylindrical base and an adjustable mechanism for height modification.
Tilting table with rubber perforated plate...
Tilting table for object support with rubberized
perforated plate for VE Cam / EVO Cam II
tiltable and height-adjustable object holder
(suitable for Mantis IOTA, ERGO, PIXO, OPTA and
VE Cam / EVO Cam II)
dpvlink
27225

877.20 CHF
The image displays a simple, black table with an oval top and a sturdy, round base. The table features an adjustable, cylindrical stand.
Preview: Tilting table with rubber adhesive and perforated plate
Preview: The image displays a simple, black table with a square tabletop. The table features a sturdy, cylindrical base and an adjustable mechanism for height modification.
Preview: The image shows a round, black plate, perforated with many small, evenly spaced holes. The holes are arranged in a circular pattern, and the plate appears flat and stable.
Tilting table with rubber adhesive and perforated...
Tilting table for object support with rubberized
adhesive and perforated plate for
VE Cam / EVO Cam II
dpvlink
27225

934.80 CHF

This product is similar to:

The image shows a round filter frame made of black plastic. It has several transparent areas and is labeled with "4350K" and "FRONT". The frame has two small holes for attachments.
Light filter 4350K
EVA-335 light filter 4350K
(for ECH005/ECH006)


>>for EVO Cam II<<
dpvlink
30037

214.80 CHF
The image shows a round, black filter frame with several transparent areas. The frame is marked with "2800K" and "FRONT".
Light filter 2800K
EVA-332 light filter 2800K
(for ECH005/ECH006)


>>for EVO Cam II<<
dpvlink
30037

214.80 CHF
The image shows a rectangular, gray plate with rounded corners. There is a round cutout at the top. It has a smooth surface and appears sturdy.
ESD mat for base plate EVB022
ESD mat for base plate EVB022
LynxEvo/EVOCam
dpvlink
21623

71.80 CHF
The image shows an electric magnifying device on a sturdy, black stand. It features a round, illuminated area for objects and a camera with controls on top.
Ergo stand with fine/coarse focusing
Ergo stand with corse/fine focus control EVB-010



suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

3,078.00 CHF
