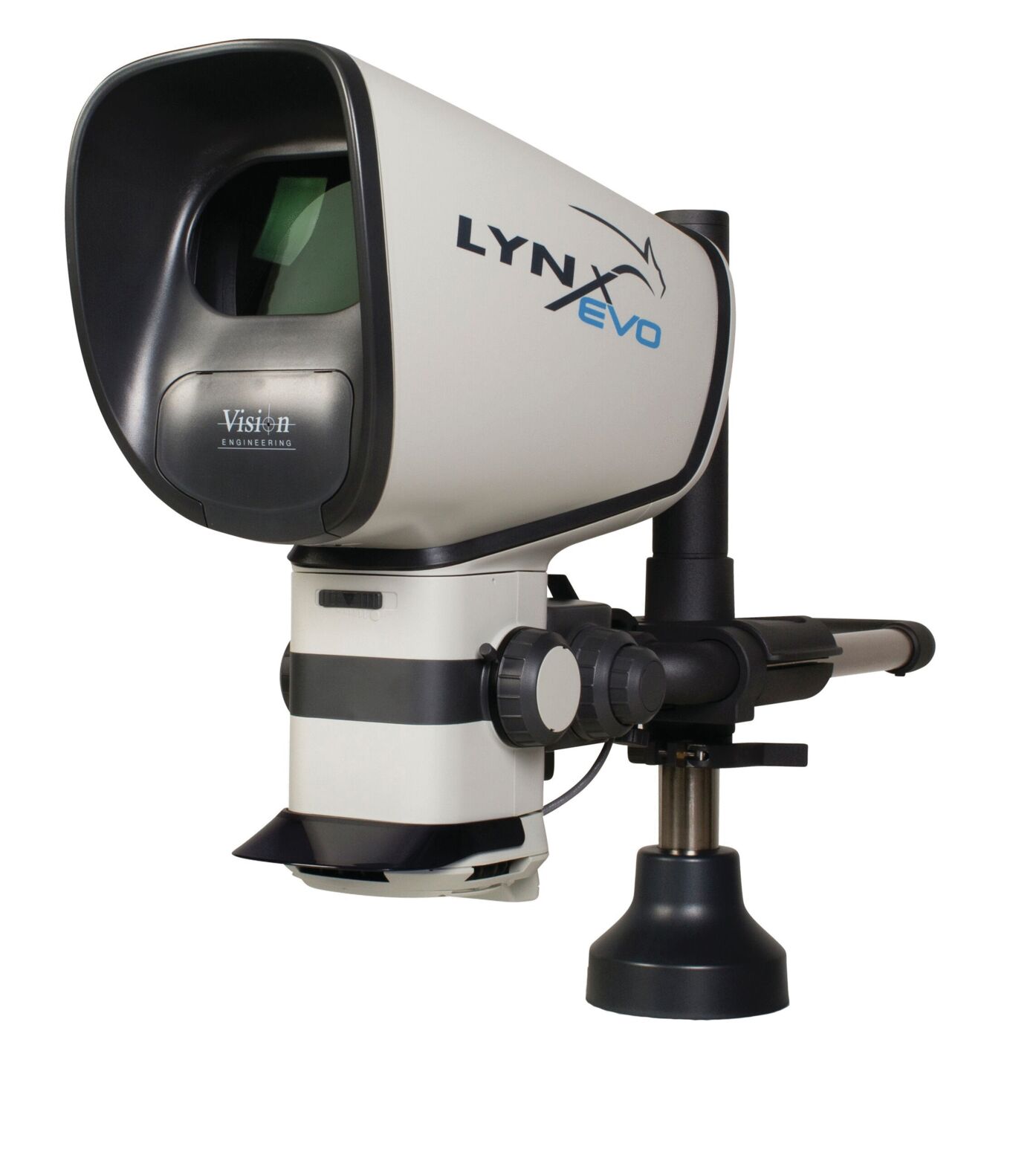

Lynx EVO with multi-axis stand and rotating viewer
The Lynx EVO system, manufactured by Vision, is a state-of-the-art visual inspection solution designed for efficiency and precision. This system comes with a multi-axis column stand and innovative angle optics that provide 360° LED lighting. The stand allows for flexible positioning of the stereo head, which covers a zoom range from 4.2x to 42x.The dimensions of the device are 455 mm in width, 425 mm in height, and 635 mm in depth, with a total weight of 26.6 kg. It is designed for a voltage of 100 to 240 V, which allows for a wide range of applications in various environments. The working distance of 270 mm together with a capture resolution of 2592 x 1944 pixels allows for detailed viewing of objects down to a minimum size of 3.8 mm at maximum zoom.
Included in the delivery are the LynxEVO stereo head with cover, a focusing module, and the multi-axis column stand without base plate. These components ensure high adaptability and user-friendliness for various inspection tasks.
Details
- Voltage Voltage
- 100 - 240 V
- Depth Depth
- 635 mm
- Height Height
- 425 mm
- Width Width
- 455 mm
- Illuminant Illuminant
- LED
- Capture resolution Capture resolution
- 2592 x 1944
- Field of view max. zoom Field of view max. zoom
- 3.8 mm
- Field of view min. zoom Field of view min. zoom
- 10.2 mm
- Support Support
- multi-axis stand
- Working distance Working distance
- 270 mm
- Zoom range Zoom range
- 4.2x - 42x
- Weight Weight
- 26.6 kg
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Lynx EVO eyepieceless stereo microscope
Work better for longer
Lynx EVO is designed to increase productivity and efficiency through superior ergonomics. Whatever the challenge - inspection, rework or revision - high-resolution, high-contrast 3D stereo images will make you more comfortable and focused. Magnifications from 2.7x to 240x make it ideal for a wide range of applications.
Greater efficiency
Lynx EVO offers improved hand-eye coordination, more working space for tools and better peripheral vision for easy interaction with the wider working environment, transforming the way you work. With no eyepieces to adjust, you can easily share between multiple users for maximum return on your investment.
Dynascope technology for superior imaging
Dynascope technology has redefined the science of microscopy, overcoming the physical limitations of conventional microscopes to help laboratories and workshops improve quality and productivity. At its heart is a multi-lens disk that contains more than 3.5 million individual lenses, each just a few microns in diameter. The multi-lens disk rotates at high speed to combine the millions of individual optical paths into an image with high clarity and contrast.
Exceptional ease of use
Lynx EVO is extremely easy to use. There is no need to adjust the diopter or interpupillary distance. Focusing and illumination are set using rotary knobs. The dual iris control is controlled with a single slider.
Health and productivity
The award-winning Lynx EVO offers significant advantages over conventional binocular microscopes. The eyepiece-less optics provide a high level of comfort and significantly reduce operator fatigue. It minimizes the risk of physical impairment that can result from working in poor posture on one side.
Not so with Lynx EVO. The increased freedom of movement, instead of rigid head posture, leads to less fatigue for the user, even over a longer period of time.
Lynx EVO is also suitable for wearers of (safety) glasses. They look into the microscope with visual aids.
Companies choose the Lynx EVO because they know that their users work more efficiently, precisely and productively with this instrument. It benefits not only the operator, but also the company.
Lynx EVO basic system
Very stable for fine details. Enables working with up to 240x magnification. With reflected and transmitted light illumination for applications with opaque, transparent or perforated objects.
Configuration with the 25° tube
This configuration offers an angled view of the subject. The enlarged working area enables convenient post-processing or flexible inspection of large components.
Lynx EVO with EVOTIS
EVOTIS is an advanced inspection workstation for large area objects such as printed circuit boards and multi-layered components, enabling fast and efficient inspection of fine details.
Options for every challenge
A choice of fixed or zoomable magnification settings and a variety of useful accessories allow you to configure the Lynx EVO to your exact requirements. A choice of fixed or zoomable magnification settings and a variety of useful accessories allow you to configure the Lynx EVO to suit your individual needs.
360° ANGLED OPTICS
The 360° angle optics allow for enhanced detail viewing in many application areas such as electronics, precision mechanics, medical technology and the plastics industry.
The operator can easily switch between a 34° oblique view and a vertical view.
Choice of stands
Lynx EVO is suitable for any industrial or life science application thanks to the wide range of ergonomic stands. Especially suitable for applications in laminar flow boxes/cabinets. The eyepiece-less technology allows comfortable microscopy behind the safety glass.
Still and video camera
The integrated SmartCam HD camera enables seamless image/video storage and labeling for documentation purposes. Simultaneous display on the screen (via PC) is possible. Also suitable for demonstrations or training courses.
Software
A choice of fixed or zoomable magnification settings and a variety of useful accessories allow you to configure the Lynx EVO to suit your individual needs.
