ESD magnifier lamp TEVISIO RLLQ 48/2AR-ESD

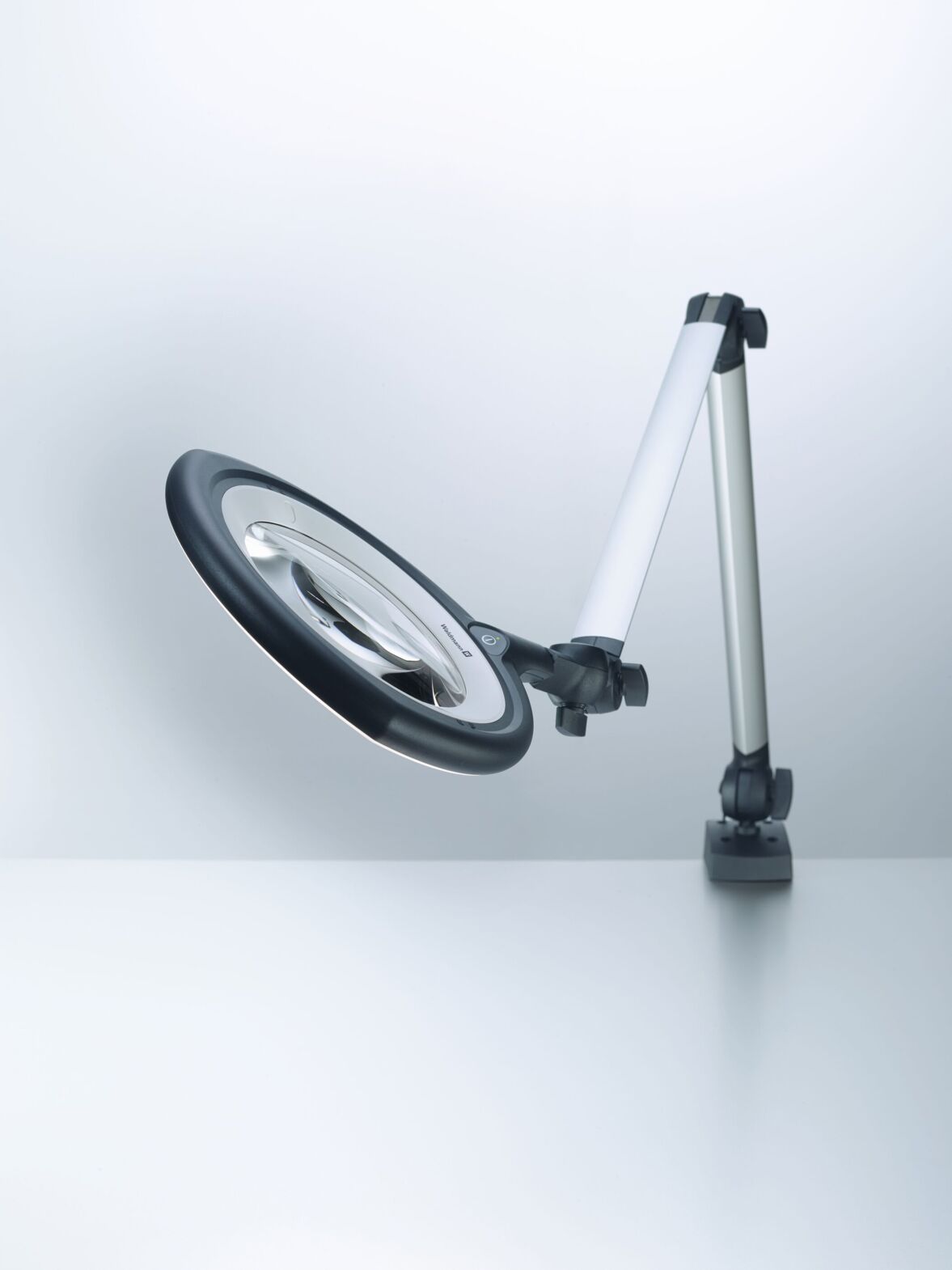

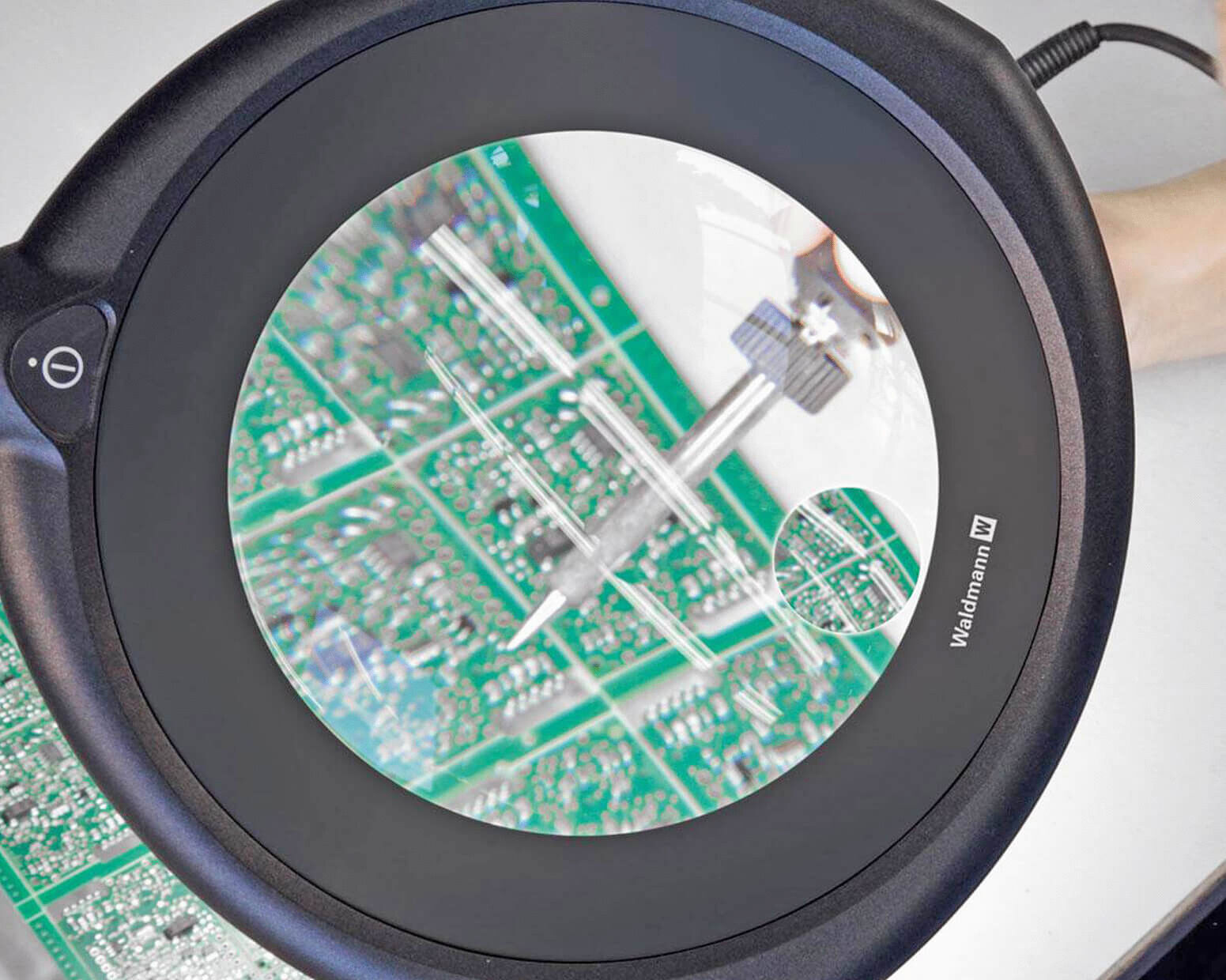

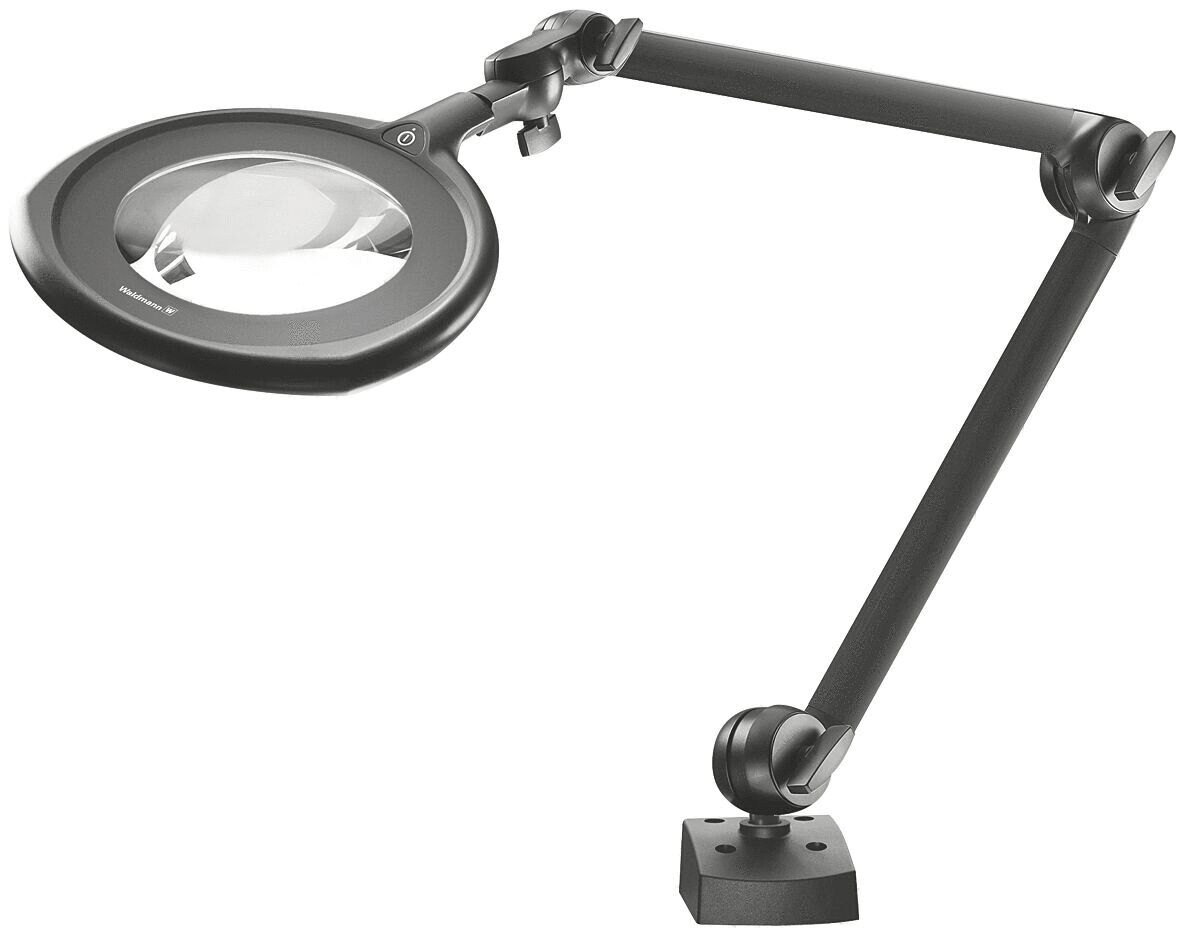

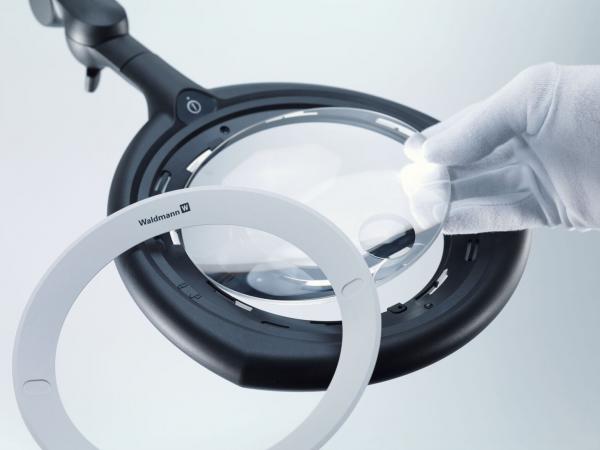

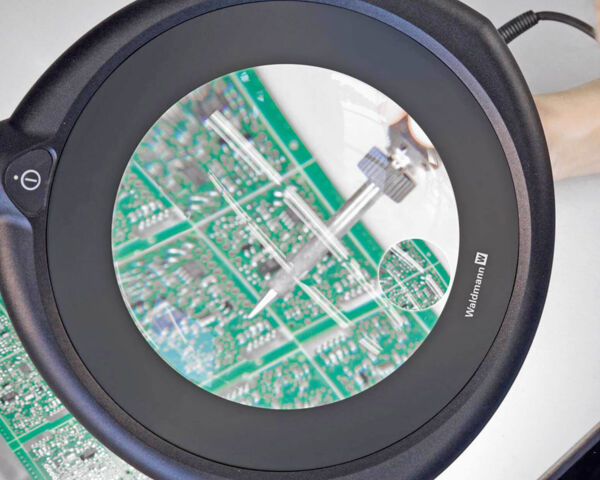

The LED magnifying lamp ESD TEVISIO RLLQ 48/2AR-ESD from Waldmann is specifically designed for demanding visual tasks in technical and industrial environments. With its advanced LED technology and a neutral white light color of 4,000 K, it provides excellent color rendering (Ra ≥ 90). The lamp features a glass lens with a diameter of 160 mm and 3.5 diopters, enabling a magnification of 1.875x. The housing is made of black, ESD-safe plastic and colorless anodized aluminum, making the lamp particularly suitable for ESD-protected areas.

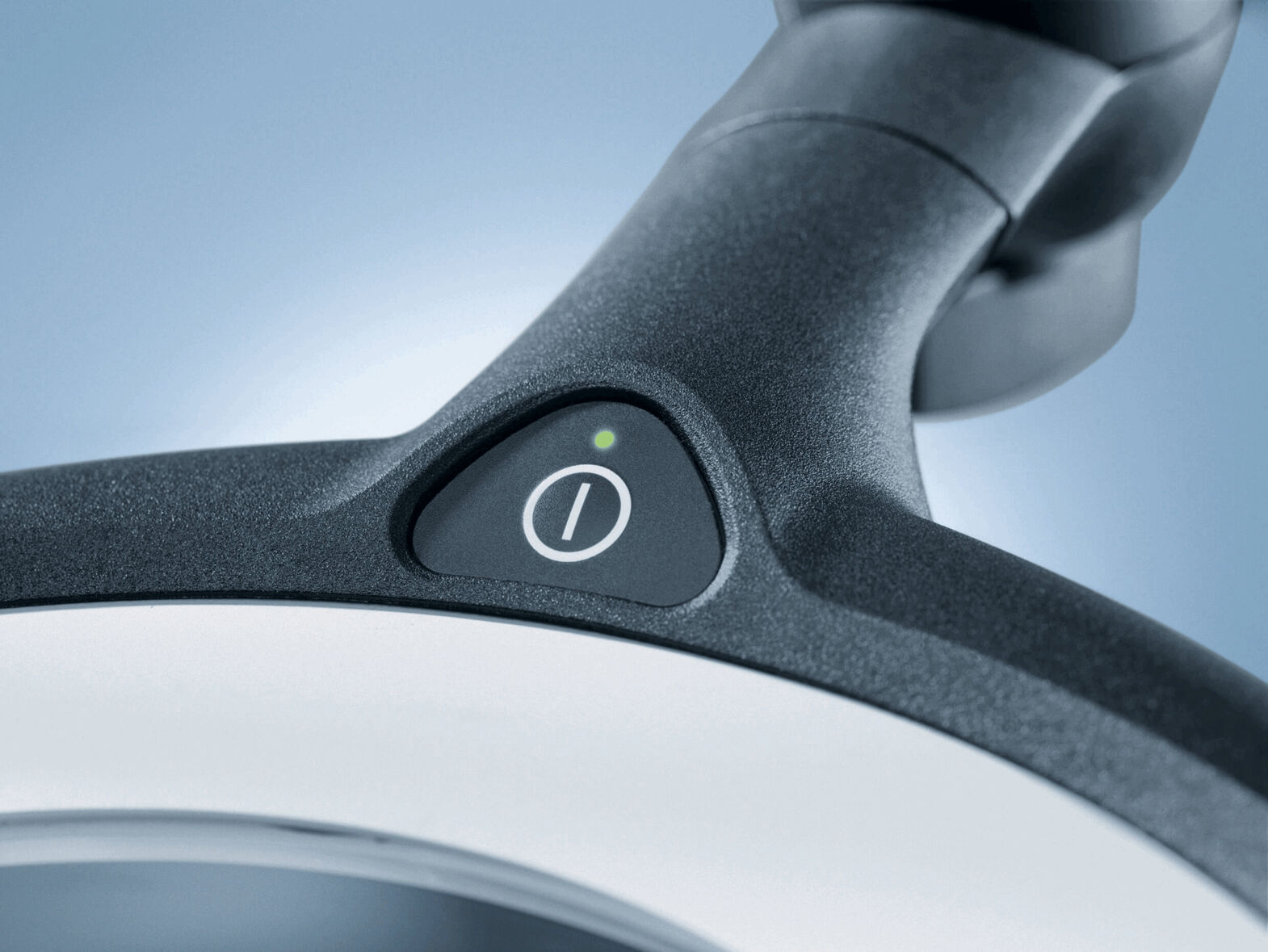

The TEVISIO is equipped with a multifunctional button that controls turning on and off, dimming, and the Visualizer function. The spring-balanced armature and the 3D head joint allow for flexible and individual adjustments. The lamp is continuously dimmable, and the light characteristics can be adjusted with a three-stage switch. With a protection rating of IP 20 and a power consumption of about 16 W, it is energy-efficient and safe to use. It comes with a 3.30 m long power cord and a plug-in power supply that can be connected to 100-240 V, 50/60 Hz.
This high-quality lighting tool combines ergonomics with advanced technology, ideal for precise work in protected environments.
The TEVISIO is equipped with a multifunctional button that controls turning on and off, dimming, and the Visualizer function. The spring-balanced armature and the 3D head joint allow for flexible and individual adjustments. The lamp is continuously dimmable, and the light characteristics can be adjusted with a three-stage switch. With a protection rating of IP 20 and a power consumption of about 16 W, it is energy-efficient and safe to use. It comes with a 3.30 m long power cord and a plug-in power supply that can be connected to 100-240 V, 50/60 Hz.
This high-quality lighting tool combines ergonomics with advanced technology, ideal for precise work in protected environments.
Details
- Diopters Diopters
- 3,5

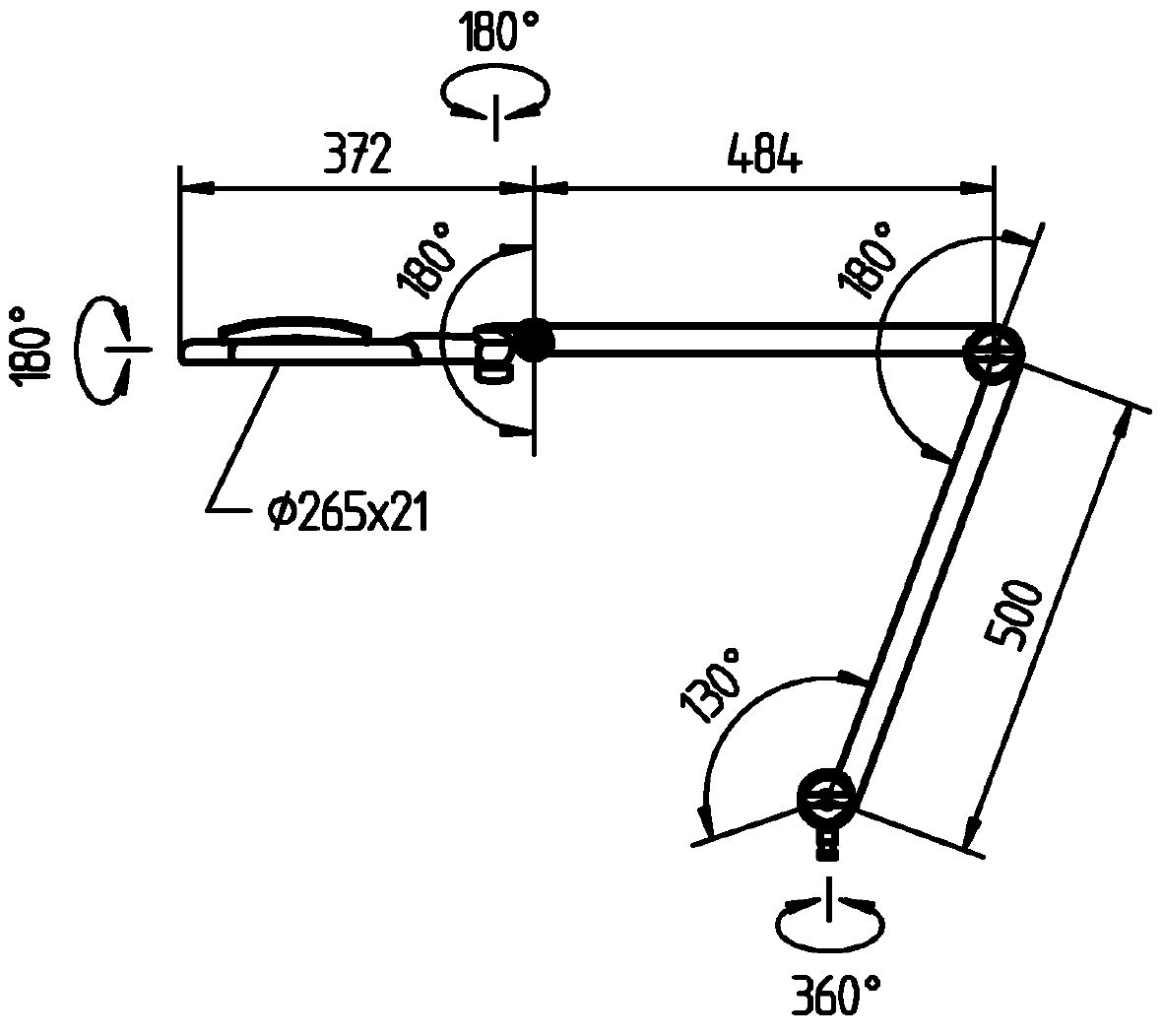

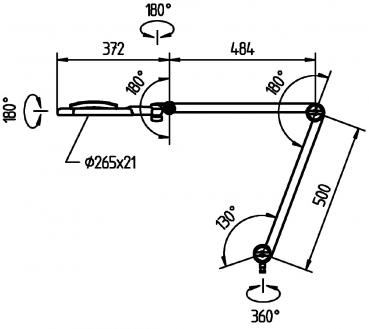

- Swivel arm/frame Swivel arm/frame
- 484 / 500 mm
- Color Color
- black / aluminum anodized
- Voltage Voltage
- 100 - 240 V
- Diameter in mm Diameter in mm
- 160 mm
- Illuminant Illuminant
- LED
- Luminous color Luminous color
- neutral white
- Power [W] Power [W]
- 16 W
- Lens Lens
- glass lens
- Magnification Magnification
- 1.875x
- ESD ESD
- yes
- Color temperature Color temperature
- 4,000 K
- Weight [g] Weight [g]
- 2500
!!! Table clamp not included in the scope of delivery !!!
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
