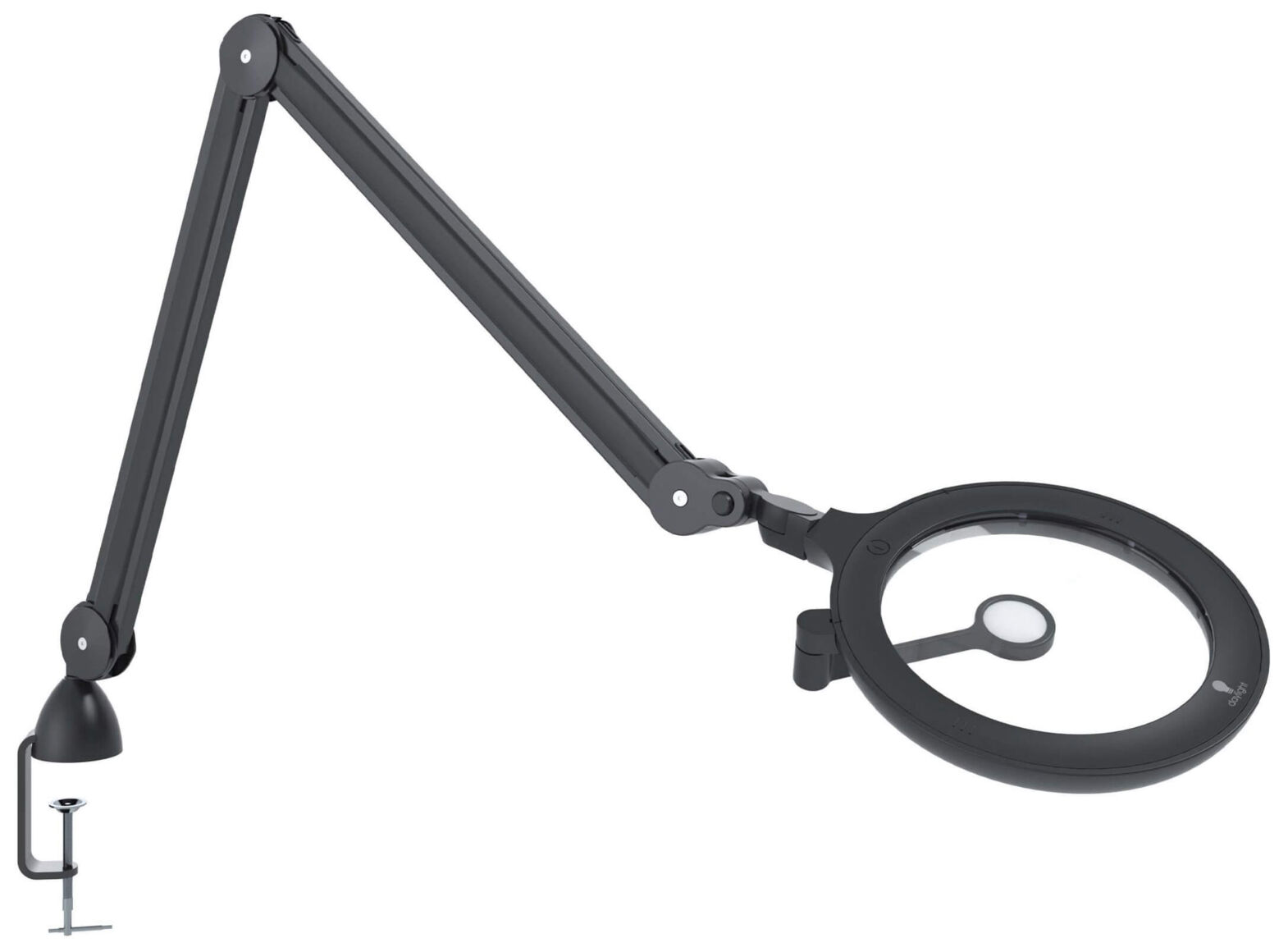

LED magnifier lamp iQ ESD
The daylight iQ ESD LED magnifying lamp is specifically designed for use in electrostatic protected areas and meets the standards of IEC 61340-5-1 and ANSI/ESD 20:20. This high-quality magnifying lamp combines a 17.5 cm quality glass lens with a magnification of 1.75x (3 diopters) and an additional swing arm lens with 4x magnification (12 diopters) to enable precise inspections.Equipped with a dual illumination function, the device offers both daylight LEDs with a color temperature of 6,000 K for clear, shadow-free viewing, and UV-A LEDs (365 nm) for special inspection of coatings and connections. The durable carbon fiber head and joint allow for flexible and stable positioning with a reach of 118 cm.
The lamp has two brightness levels that can be adjusted as needed, and is equipped with a 12 watt LED module. The robust design includes a 940 mm long spring-jointed arm and a clamp mount, which allows for easy installation and adjustment. Weighing 3800 g and with a cable length of 2.6 meters, the magnifying lamp is both practical and efficient for diverse applications.
Details
- Diopters Diopters
- 3 / 12
- Illuminant Illuminant
- LED/LED UV-A
- Magnification Magnification
- 1.75x/4x
- Color temperature Color temperature
- 6,000 K
- Swivel arm/frame Swivel arm/frame
- 1180 mm
- Cable length Cable length
- 2.0 m
- Color Color
- black
- Diameter in mm Diameter in mm
- 175 mm
- Illuminance Illuminance
- 6,000 / 4,000 Lux
- Luminous flux Luminous flux
- 700 Lumen
- Power [W] Power [W]
- 12 W
- Color rendering index Color rendering index
- 95+
- Lens Lens
- glass lens
- ESD ESD
- yes
- Weight Weight
- 4000 g
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Magnifier lamp DAYLIGHT iQ ESD
Seeing with precision
Thanks to our close relationships with industrial customers in the fields of manufacturing, mechanical and electronic inspection and ESD testing, we are very familiar with the special requirements in these areas.
As a pioneer in this field, we have consistently developed our product range in line with the state of the art. We are proud to offer the world's highest quality industrial and inspection lights and magnifiers.
When it comes to light, magnification and ergonomics
The inspection of mechanical and electrical components is of central importance when it comes to maintaining high quality standards. This is especially true in ESD-safe environments. Here, it is not just a question of the right light intensity and color temperature, but also of simple alignment of the lighting and the right magnification so that even the finest details can be seen.

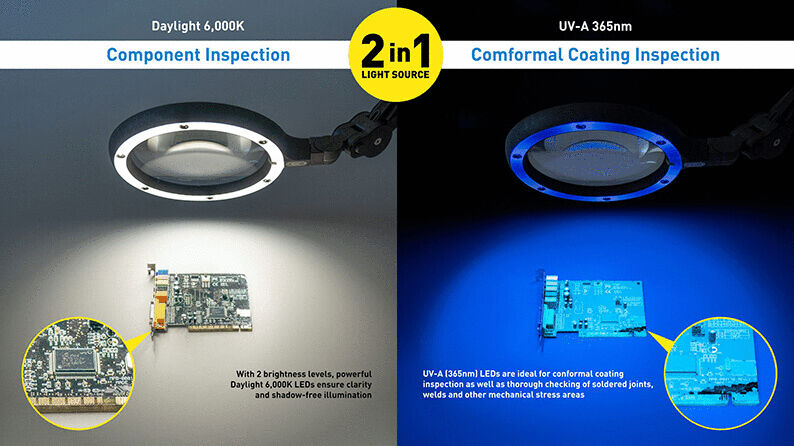

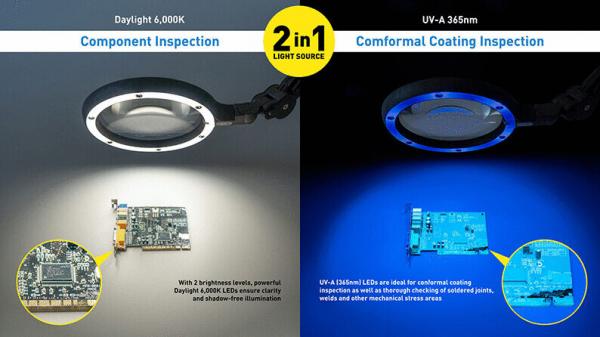

2-in-1 light source
Easy switching between powerful daylight (6,000K) with two brightness levels and UV-A LEDs (365nm). As the properties of plastic diffusers can deteriorate over time, resulting in reduced UV output, we deliberately use metal reflectors to ensure longevity and consistent performance.
Large reach
Large reach of 118cm allows the light to be directed exactly where it is needed.

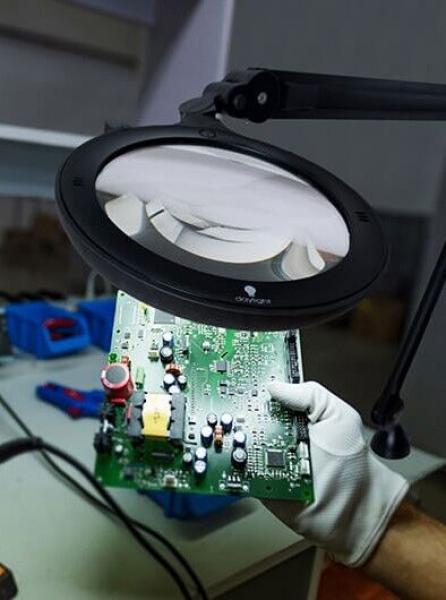

Bright and brilliant view
The 17.5 cm quality glass lens of the iQ ESD magnifier light with daylight & UV light provides an excellent view of the printed circuit board to be inspected. Daylight has developed the only lens of this size that offers complete ESD safety thanks to ESD coating on both sides.

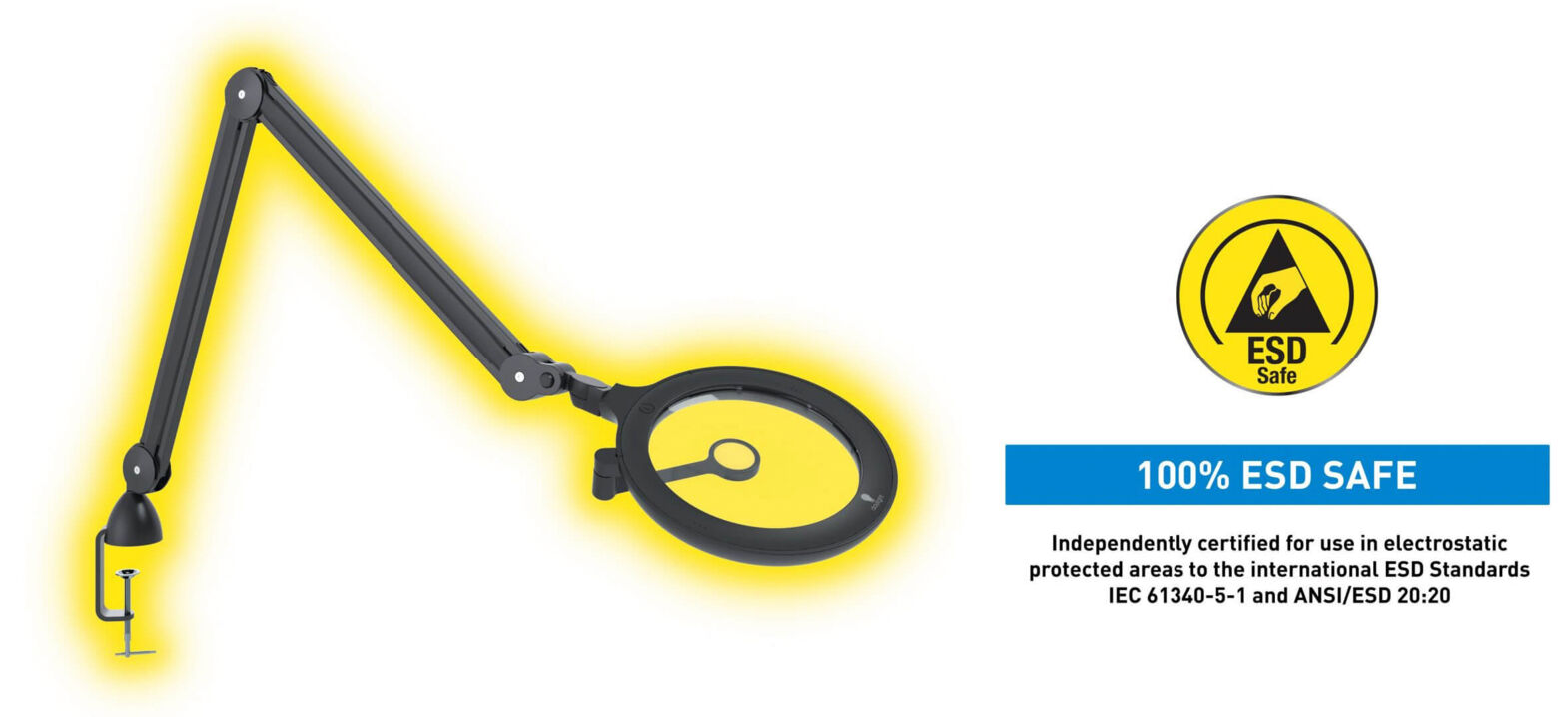

100% ESD-safe magnifier light
100% ESD-safe magnifier light to ensure complete protection against static electricity and complete ESD safety in your electrostatically protected work area.
Safe and hygienic
The arms of the magnifier light are fully covered with a cover, making it easier to clean, safer to use and providing a smoother aesthetic.

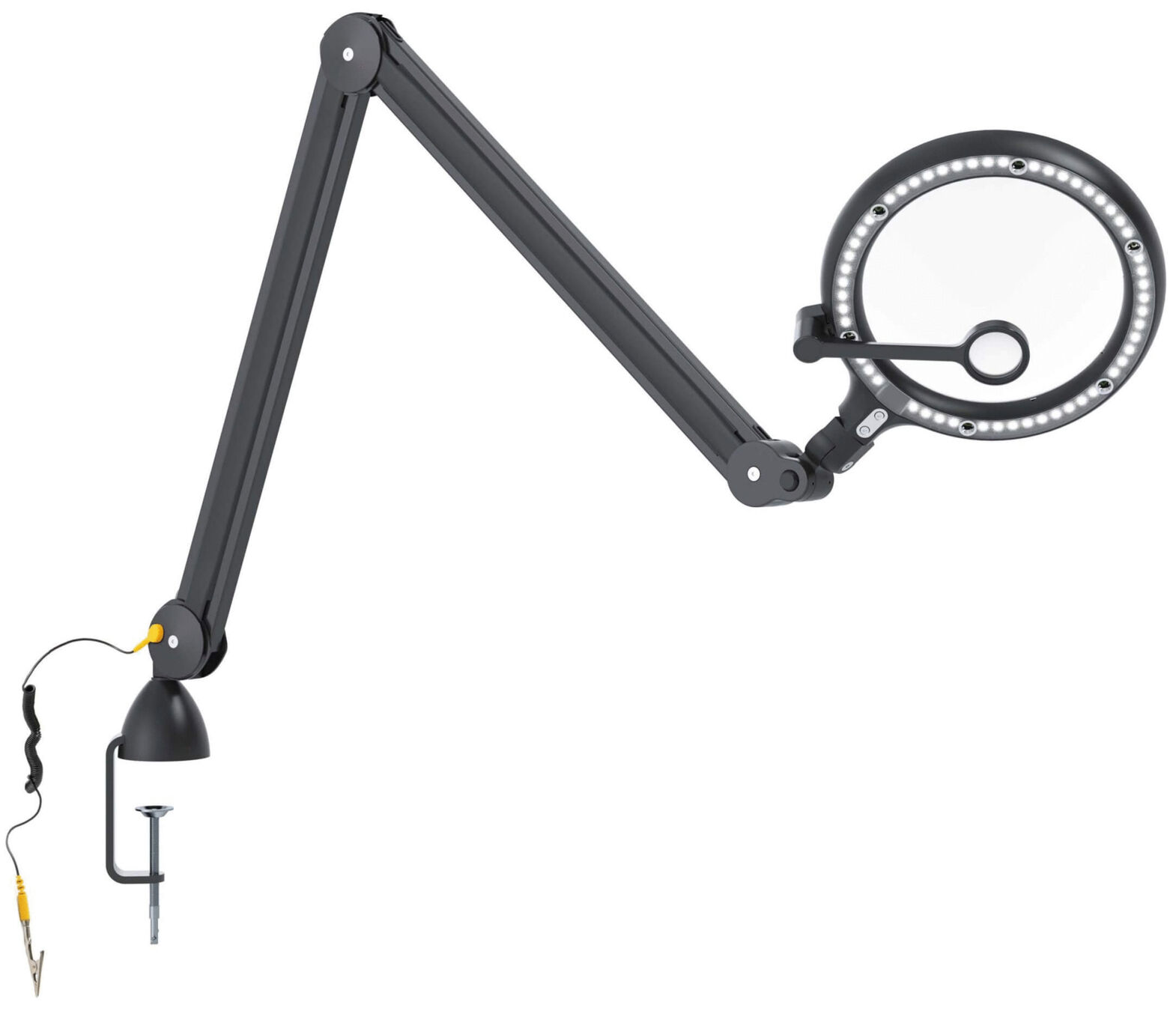

Simple and precise positioning

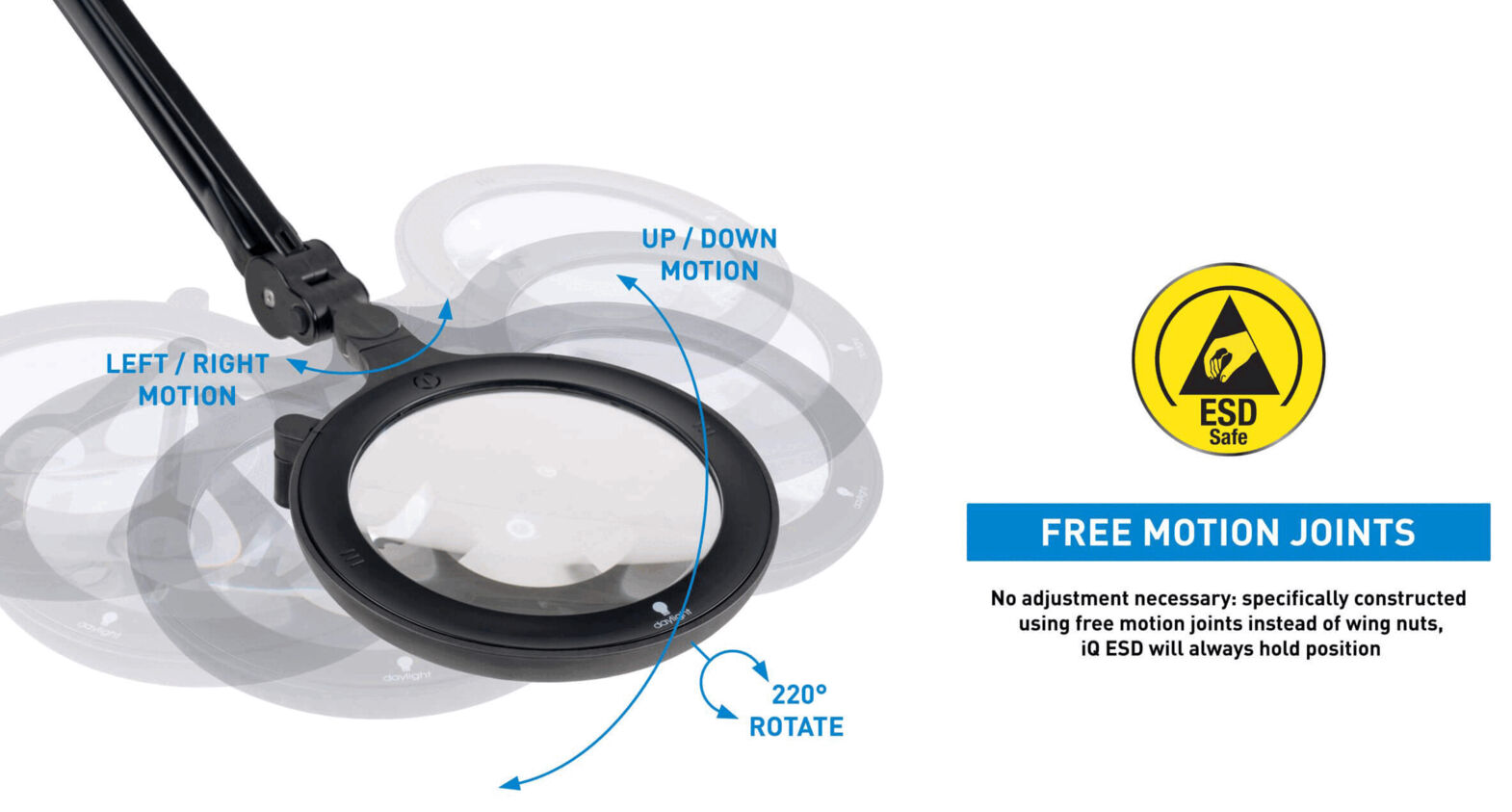

The spring-hinged arm and the freely movable head give the magnifying lamp great mobility - forwards, backwards, to the left, right, up and down as well as the 220° rotation of the head. This allows the magnifying lamp to be positioned exactly as required by the working environment.
2 magnification options
In addition to the main lens with 3 diopters (1.75X), the iQ ESD magnifying lamp with daylight & UV light has a swivel arm lens with 12 diopters (4X). If required, this can simply be swiveled to the center of the head to provide an even more precise view of the workpiece.
