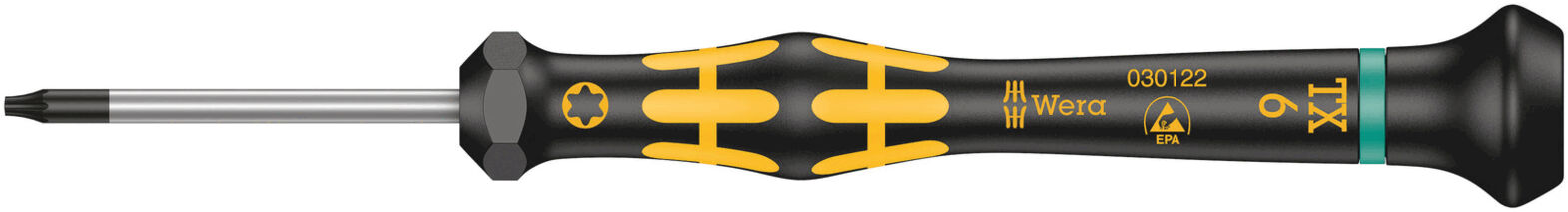

Micro-screwdriver 1567 TX 6

(Product No.: WE-1567ESD.TX6x40)

Mobile Preview: The image shows a screwdriver with a black, non-slip handle that has yellow accents. The blade is straight and narrow, suitable for precise screws.

Mobile Preview: The image shows a black screwdriver with yellow accents. The handle has an ergonomic shape, while the blade is straight and thin. There is a symbol on the top of the handle.

Mobile Preview: The image shows a screwdriver with a long, slender handle. The handle is black with yellow, rubber-like grip areas for better hold. At the end, there is a Phillips head tip.

Mobile Preview: The image shows a screwdriver with a black, rubberized handle and gold-colored accents. It has a long, thin blade. Markings and the size '0' can be seen on the handle.

Mobile Preview: The image shows a hand holding a screwdriver with a black handle and yellow accents. The screwdriver has a pointed blade and is held vertically. The background is gray.

Mobile Preview: The image shows a screw head with a black, round part on top. Below it is a wider, flat metal surface. The screw has a threaded structure.

(Product No.: WE-1567ESD.TX6x40)

Micro-screwdriver 1567 TX 6

Name: Micro-screwdriver 1567 TX 6
SKU: WE-1567ESD.TX6x40
Price: 8.45 CHF
Availability: InStock

ArticleNo: WE-1567ESD.TX6x40

Micro-screwdriver 1567 TX 6

dpvlink:

18102

Screwdriver type:

Torx

Tip:

TX6

Shank-Ø:

3.0 mm

Shank length:

40 mm

Handle length:

97 mm

Properties:

Further product information

Tip / Shank length:

8.45 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

Micro-screwdriver 1567 TX 6

The Wera 1567 TX 6 micro screwdriver is specifically designed for precise and secure work on Torx® screws. This electrostatically safe tool prevents damage from electrostatic discharges with its surface resistance of ≤ 109 Ohm. The screwdriver features a multi-component Kraftform Micro handle that allows for fast and ergonomic screwing, supported by a rotating cap and a rapid-turning zone for efficient work without frequent repositioning.
The total length of the tool is 137 mm, with a shaft length of 40 mm and a shaft diameter of 3.0 mm. The integrated power zone with soft zones allows the transmission of high loosening and tightening torques, while the precision zone is ideally suited for adjustment tasks. The Wera Black Point tip (TX6) ensures high accuracy and improved corrosion protection. Additional features like the roll-off protection and the color-coded "Take it easy" tool finder with size stamping make handling and selection of the right tool easier. With a weight of only 10 g, this screwdriver is lightweight and handy.

Details

Screwdriver type Screwdriver type: Torx
Tip Tip: TX6
Shank-Ø Shank-Ø: 3.0 mm
Shank length Shank length: 40 mm
Handle length Handle length: 97 mm
Length Length: 137 mm
ESD ESD: yes
Weight Weight: 10 g

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Torx

The Torx head is a screw head shape characterized by a star-shaped, six-pointed profile. This shape is specially designed to provide excellent power transmission and minimize tool slippage (cam-out). Torx screws are operated with a Torx screwdriver or Torx bit.

Accessories

Magnetizer

Magnetizer
Size: 50 x 50 x 29 mm / WxHxD

for magnetizing and demagnetizing of blades and similar tools made of steel

dpvlink

10806

13.70 CHF

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 426

Complete Catalog 2023 - 2024

Product Family

Micro-screwdriver 1567 ESD TORX

Electrostatic-protected micro screwdriver. Reliable protection against electrostatic energy and associated damage. Lightning-fast twirling is possible by resting the hand on the rotating cap and thanks to the fast rotation zone below the rotating cap. No more time-consuming regripping. Power zone with integrated soft zones ensures the transmission of high loosening and tightening torques. Precision zone for the correct angle of rotation for adjustment work. The Black Point tip offers a precise fit and optimized corrosion protection. Take it easy tool finder with color coding according to profiles and size stamping - for finding the required tool quickly and easily.

Kraftform Micro Torx® screwdriver suitable for Torx® screws
Electrostatic safe tool due to surface resistance of ≤ 10⁹ Ohm
Multi-component Kraftform Micro handle for fast and ergonomic screwdriving
The Wera Black Point tip offers a precise fit and optimized corrosion protection
With Take it easy tool finder: color coding according to profiles and size stamping
With roll-off protection and rotating cap for fast twirling
