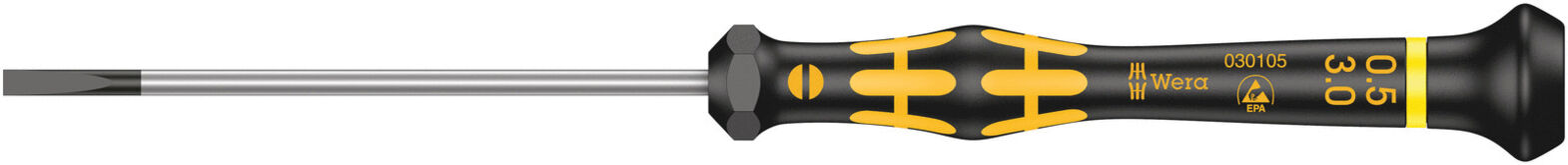

The image shows a screwdriver with a black handle and yellow accents. The blade is thin and straight. The handle has an ergonomic shape for a better grip.
The image shows a black screwdriver with yellow accents. The handle has an ergonomic shape, while the blade is straight and thin. There is a symbol on the top of the handle.
The image shows a screwdriver with a long, slender handle. The handle is black with yellow, rubber-like grip areas for better hold. At the end, there is a Phillips head tip.
The image shows a screwdriver with a black, rubberized handle and gold-colored accents. It has a long, thin blade. Markings and the size '0' can be seen on the handle.
The image shows a hand holding a screwdriver with a black handle and yellow accents. The screwdriver has a pointed blade and is held vertically. The background is gray.
The image shows a metallic drill with a narrow, pointed blade. The drill has a spiral structure and a smooth, shiny surface.
Preview: The image shows a screwdriver with a black handle and yellow accents. The blade is thin and straight. The handle has an ergonomic shape for a better grip.
Preview: The image shows a black screwdriver with yellow accents. The handle has an ergonomic shape, while the blade is straight and thin. There is a symbol on the top of the handle.
Preview: The image shows a screwdriver with a long, slender handle. The handle is black with yellow, rubber-like grip areas for better hold. At the end, there is a Phillips head tip.
Preview: The image shows a screwdriver with a black, rubberized handle and gold-colored accents. It has a long, thin blade. Markings and the size '0' can be seen on the handle.
Preview: The image shows a hand holding a screwdriver with a black handle and yellow accents. The screwdriver has a pointed blade and is held vertically. The background is gray.
Preview: The image shows a metallic drill with a narrow, pointed blade. The drill has a spiral structure and a smooth, shiny surface.
Slotted micro-screwdriver 1578A 3.0
(Product No.: WE-1578A-ESD3.0x80)
The image shows a screwdriver with a black handle and yellow accents. The blade is thin and straight. The handle has an ergonomic shape for a better grip.
The image shows a black screwdriver with yellow accents. The handle has an ergonomic shape, while the blade is straight and thin. There is a symbol on the top of the handle.
The image shows a screwdriver with a long, slender handle. The handle is black with yellow, rubber-like grip areas for better hold. At the end, there is a Phillips head tip.
The image shows a screwdriver with a black, rubberized handle and gold-colored accents. It has a long, thin blade. Markings and the size '0' can be seen on the handle.
The image shows a hand holding a screwdriver with a black handle and yellow accents. The screwdriver has a pointed blade and is held vertically. The background is gray.
The image shows a metallic drill with a narrow, pointed blade. The drill has a spiral structure and a smooth, shiny surface.
Mobile Preview: The image shows a screwdriver with a black handle and yellow accents. The blade is thin and straight. The handle has an ergonomic shape for a better grip.
Mobile Preview: The image shows a black screwdriver with yellow accents. The handle has an ergonomic shape, while the blade is straight and thin. There is a symbol on the top of the handle.
Mobile Preview: The image shows a screwdriver with a long, slender handle. The handle is black with yellow, rubber-like grip areas for better hold. At the end, there is a Phillips head tip.
Mobile Preview: The image shows a screwdriver with a black, rubberized handle and gold-colored accents. It has a long, thin blade. Markings and the size '0' can be seen on the handle.
Mobile Preview: The image shows a hand holding a screwdriver with a black handle and yellow accents. The screwdriver has a pointed blade and is held vertically. The background is gray.
Mobile Preview: The image shows a metallic drill with a narrow, pointed blade. The drill has a spiral structure and a smooth, shiny surface.
Notice

Slotted micro-screwdriver 1578A 3.0

Slotted micro-screwdriver 1578A 3.0

dpvlink:
18106
Screwdriver type:
Slotted
Tip:
3
Thickness:
0.5 mm
Shank-Ø:
3.0 mm
Shank length:
80 mm
Handle length:
97 mm
Properties:
Further product information

chevron-down
5.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Slotted micro-screwdriver 1578A 3.0

The Wera 1578A-ESD 3.0x80 micro slot screwdriver is specifically designed for precise and safe screwdriving tasks where protection against electrostatic discharge is required. This electrostatically safe tool has a surface resistance of ≤ 109 Ohms, making it ideal for working on sensitive electronic components.
The screwdriver features a slot blade measuring 3.0 x 0.5 x 80 mm and has a total length of 139 mm. The handle is 97 mm long, which, together with the multi-component Kraftform Micro handle, allows for ergonomic working. The turning cap and the rapid-turning zone beneath it enable quick twisting without the need to reposition the grip frequently.
The integrated power zone with soft zones allows for the transmission of high loosening and tightening torques, while the precision zone provides the correct turning angle for adjustment tasks. The Wera Black Point tip ensures fit accuracy and optimized corrosion protection. Additionally, the Take it easy tool finder with color coding makes it easy to quickly locate the needed tool.
Weighing just 10 g and with a shaft diameter of 3.0 mm, this screwdriver is lightweight and handy. The roll-off protection prevents it from rolling away at the workplace, further enhancing handling.
Screwdriver type
Screwdriver type
Slotted
Tip
Tip
3
Thickness
Thickness
0.5 mm
Shank-Ø
Shank-Ø
3.0 mm
Shank length
Shank length
80 mm
Handle length
Handle length
97 mm
Length
Length
177 mm
ESD
ESD
yes
Weight
Weight
10 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Slotted
The slotted head, also known as the flat slotted head, is one of the oldest and simplest screw head shapes. It has a single, straight slot on the top of the screw head, which is operated with a flat screwdriver (slotted screwdriver).

Accessories

Accessories

The image shows a red, rectangular tool for magnetization and demagnetization. It has two areas with symbols, instructions in German, and the "wiha" logo at the bottom edge.
Magnetizer
Magnetizer
Size: 50 x 50 x 29 mm / WxHxD


for magnetizing and demagnetizing of blades and similar tools made of steel
dpvlink
10806

13.70 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 426
Complete Catalog 2023 - 2024

Product Family

Slotted micro-screwdriver 1578A ESD

Electrostatic-protected micro screwdriver. Reliable protection against electrostatic energy and associated damage. Lightning-fast twirling is possible by resting the hand on the rotating cap and thanks to the fast rotation zone underneath the rotating cap. No more time-consuming regripping. Power zone with integrated soft zones ensures the transmission of high loosening and tightening torques. Precision zone for the correct angle of rotation for adjustment work. The Black Point tip offers a precise fit and optimized corrosion protection. Take it easy tool finder with color coding according to profiles and size stamping - for finding the required tool quickly and easily.

  • Kraftform Micro slotted screwdriver for slotted screws
  • Electrostatic safe tool due to surface resistance of ≤ 109 Ohm
  • Multi-component Kraftform Micro handle for fast and ergonomic screwdriving
  • The Wera Black Point tip offers a precise fit and optimized corrosion protection
  • With Take it easy tool finder: color coding according to profiles and size stamping
  • With roll-off protection and rotating cap for quick twirling

Article image
Article description
Screwdriver type
Tip
Thickness
Shank-Ø
Shank length
Handle length
Price
Compare
WE-1578A-ESD1.2x40 - Slotted micro-screwdriver 1578A 1.2
WE-1578A-ESD1.2x40
Slotted micro-screwdriver 1578A 1.2
Slotted
1.2
0.25 mm
2.0 mm
40 mm
97 mm
6.00 CHF
WE-1578A-ESD1.5x40 - Slotted micro-screwdriver 1578A1.5
WE-1578A-ESD1.5x40
Slotted micro-screwdriver 1578A1.5
Slotted
1.5
0.23 mm
2.0 mm
40 mm
97 mm
6.50 CHF
WE-1578A-ESD1.8x60 - Slotted micro-screwdriver 1578A 1.8
WE-1578A-ESD1.8x60
Slotted micro-screwdriver 1578A 1.8
Slotted
1.8
0.3 mm
2.0 mm
60 mm
97 mm
5.70 CHF
WE-1578A-ESD2.0x60 - Slotted micro-screwdriver 1578A 2.0
WE-1578A-ESD2.0x60
Slotted micro-screwdriver 1578A 2.0
Slotted
2
0.4 mm
2.5 mm
60 mm
97 mm
5.70 CHF
WE-1578A-ESD2.5x80 - Slotted micro-screwdriver 1578A 2.5
WE-1578A-ESD2.5x80
Slotted micro-screwdriver 1578A 2.5
Slotted
2.5
0.4 mm
2.5 mm
80 mm
97 mm
4.90 CHF
WE-1578A-ESD3.0x80 - Slotted micro-screwdriver 1578A 3.0
WE-1578A-ESD3.0x80
Slotted micro-screwdriver 1578A 3.0
Slotted
3
0.5 mm
3.0 mm
80 mm
97 mm
5.20 CHF
WE-1578A-ESD3.5x80 - Slotted micro-screwdriver 1578A 3.5
WE-1578A-ESD3.5x80
Slotted micro-screwdriver 1578A 3.5
Slotted
3.5
0.6 mm
4.0 mm
80 mm
97 mm
6.55 CHF
WE-1578A-ESD4.0x80 - Slotted micro-screwdriver 1578A 4.0
WE-1578A-ESD4.0x80
Slotted micro-screwdriver 1578A 4.0
Slotted
4
0.8 mm
4.0 mm
80 mm
97 mm
7.15 CHF
