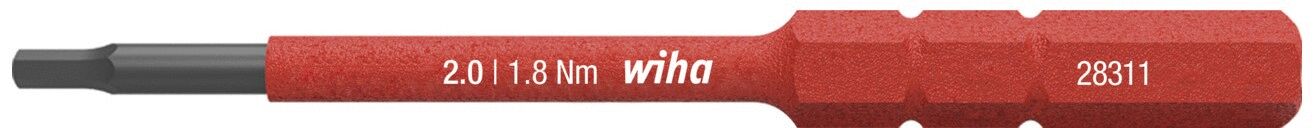

The image shows a red screwdriver with a black metal tip. The handle displays information about torque and brand. The handle has a diamond-shaped structure for better grip.
Hexagon exchangeable blade slimBit 2831 VDE 2.0
(Product No.: 2831VDE.SK20)
The image shows a red screwdriver with a black metal tip. The handle displays information about torque and brand. The handle has a diamond-shaped structure for better grip.
Notice / Inquire

Hexagon exchangeable blade slimBit 2831 VDE 2.0

Hexagon exchangeable blade slimBit 2831 VDE 2.0

dpvlink:
21988
Tags:
Screwdriver type:
Hexagonal
Tip:
2
Shank-Ø:
6.0 mm
max. Nm:
1.8 Nm
Properties:
Further product information

chevron-down
9.70 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Hexagon exchangeable blade slimBit 2831 VDE 2.0

The hexagonal slimBit 2831 VDE 2.0 from Wiha is distinguished by its innovative slimTECHNOLOGY, which allows for safe and efficient access to deep-set screws. This technology integrates the protective insulation directly into the blade, achieving a blade width reduction of up to 33% compared to conventional models.
The blade has a shaft width of 6.0 mm and a tip width of 2.0 mm with a length of 75 mm. It is specifically designed for use in slimVario® and slimTorque VDE bit holders, and should therefore be used exclusively in these bit holders. The maximum torque capacity is 1.8 Nm, and it weighs a mere 8 g.
Each slimBit is individually tested according to the international standard IEC 60900, is tested at 10,000 V AC, and is approved for work on live parts up to 1,000 V AC. This not only guarantees the highest safety but also a space-saving solution through the interchangeable bit system, which facilitates access to hard-to-reach screws.
Screwdriver type
Screwdriver type
Hexagonal
Tip
Tip
2
Shank-Ø
Shank-Ø
6.0 mm
max. Nm
max. Nm
1.8 Nm
Length
Length
75 mm
Tip width
Tip width
2.0 mm
ESD
ESD
no
Weight
Weight
8 g
Show accessories
Pictograms
VDE
The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).
Hexagon socket
The hexagon socket head is a widely used screw head shape that has a hexagonal recess in the head of the screw. This recess is operated with a hexagon socket wrench, also known as an Allen key.

Accessories

Accessories

The image shows three screwdrivers. At the top, a yellow-red screwdriver with a wide blade. In the middle, a red screwdriver with a special tip. At the bottom, a black screwdriver with a simple blade.
Preview: Torque handle TV 3 VDE 2872
Preview: Two hands holding different screwdrivers: one black with
Preview: A person is holding a screwdriver and working on an electrical panel, which is equipped with multiple devices and colorful cables.
Torque handle TV 3 VDE 2872
Torque handle TV 3 / VDE, red/yellow
with scale, maximum torque 0.5-2.0 Nm,
adjustable ++ Wiha TorqueVario-S++
1000V EN 60900
dpvlink
9370

192.75 CHF
Show product
The image shows three screwdrivers. At the top, a yellow-red screwdriver with a wide blade. In the middle, a red screwdriver with a special tip. At the bottom, a black screwdriver with a simple blade.
Preview: Torque handle TV 4 VDE 2872
Preview: Two hands holding different screwdrivers: one black with
Preview: A person is holding a screwdriver and working on an electrical panel, which is equipped with multiple devices and colorful cables.
Preview: A hand holds a screwdriver with a red and yellow handle. Another small attachment is pushed onto the end. Tools are visible in the background.
Torque handle TV 4 VDE 2872
Torque handle TV 4 / VDE, red/yellow
with scale, maximum torque 0.8-5.0 Nm;
adjustable ++ Wiha TorqueVario-S++
1000V EN 60900
dpvlink
9370

200.25 CHF
Show product
The image shows three screwdrivers. At the top, a yellow-red screwdriver with a wide blade. In the middle, a red screwdriver with a special tip. At the bottom, a black screwdriver with a simple blade.
Preview: Torque handle TV 5 VDE 2872
Preview: Two hands holding different screwdrivers: one black with
Preview: A person is holding a screwdriver and working on an electrical panel, which is equipped with multiple devices and colorful cables.
Preview: A hand holds a screwdriver with a red and yellow handle. The screwdriver is pointed at a screw on a black bicycle. The background is bright and blurry.
Torque handle TV 5 VDE 2872
Torque handle TV 5 / VDE, red/yellow
with scale, maximum torque 2.0- 7.0 Nm;
adjustable ++ Wiha TorqueVario-S++
1000V EN 60900
dpvlink
9370

214.05 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 434
Complete Catalog 2023 - 2024

Product Family

Wiha slimBit hexagon - exchangeable blade VDE

The blade diameter of conventional electrician's screwdrivers is often too large to reach deep-set screws. However, removing the insulation is not permitted and also puts your own safety at risk. With Wiha slimTECHNOLOGY, specially developed for electrical applications, the protective insulation has been integrated into the blade to enable blades that are up to 33% slimmer. This means that even low-lying screw and spring elements can be reached effortlessly with the slimBits.

The insulated slimBits are subjected to routine testing in accordance with the international IEC 60900 standard and enable safe working in the area of live parts up to 1,000 V AC. 6 mm slimBits can only be used in the slimVario® bit holder and slimTorque VDE bit holder (VDE torque system).

  • Increases your safety - Wiha slimBits ensure good and protected access to low-lying screws.
  • Saves space - space-saving thanks to extensive interchangeable bit system.
  • Offers you full protection - each tool individually tested at 10,000 V AC and approved for 1,000 V AC.




Article image
Article description
Screwdriver type
Tip
Shank-Ø
max. Nm
Price
Compare
2831VDE.SK15 - Hexagon exchangeable blade slimBit 2831 VDE 1,5
2831VDE.SK15
Hexagon exchangeable blade slimBit 2831 VDE 1,5
Hexagonal
1.5
6.0 mm
0.9 Nm
9.70 CHF
2831VDE.SK20 - Hexagon exchangeable blade slimBit 2831 VDE 2.0
2831VDE.SK20
Hexagon exchangeable blade slimBit 2831 VDE 2.0
Hexagonal
2
6.0 mm
1.8 Nm
9.70 CHF
2831VDE.SK25 - Hexagon exchangeable blade slimBit 2831 VDE 2.5
2831VDE.SK25
Hexagon exchangeable blade slimBit 2831 VDE 2.5
Hexagonal
2.5
6.0 mm
3.8 Nm
9.70 CHF
2831VDE.SK30 - Hexagon exchangeable blade slimBit 2831 VDE 3.0
2831VDE.SK30
Hexagon exchangeable blade slimBit 2831 VDE 3.0
Hexagonal
3
6.0 mm
5.5 Nm
9.70 CHF
2831VDE.SK40 - Hexagon exchangeable blade slimBit 2831 VDE 4.0
2831VDE.SK40
Hexagon exchangeable blade slimBit 2831 VDE 4.0
Hexagonal
4
6.0 mm
5.5 Nm
9.70 CHF
2831VDE.SK50 - Hexagon exchangeable blade slimBit 2831 VDE 5.0
2831VDE.SK50
Hexagon exchangeable blade slimBit 2831 VDE 5.0
Hexagonal
5
6.0 mm
5.5 Nm
9.70 CHF
2831VDE.SK60 - Hexagon exchangeable blade slimBit 2831 VDE 6.0
2831VDE.SK60
Hexagon exchangeable blade slimBit 2831 VDE 6.0
Hexagonal
6
6.0 mm
5.5 Nm
9.70 CHF
