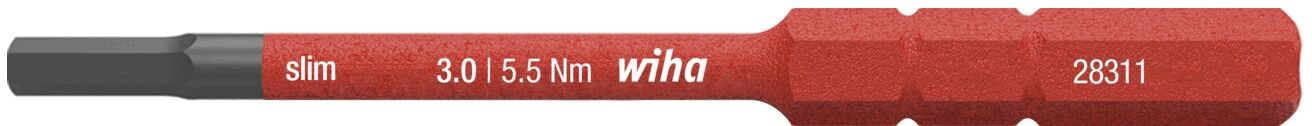

Hexagon exchangeable blade slimBit 2831 VDE 3.0

Name: Hexagon exchangeable blade slimBit 2831 VDE 3.0
SKU: 2831VDE.SK30
Price: 9.85 CHF
Availability: InStock

ArticleNo: 2831VDE.SK30

dpvlink:

21988

Tags:

Screwdriver type:

Hexagonal

Tip:

Shank-Ø:

6.0 mm

max. Nm:

5.5 Nm

Properties:

Further product information

9.85 CHF

1 PCE

Compare

Notice

Product Info

Hexagon interchangeable slimBit 2831 VDE 3.0 To reach deep-set screws, the blade diameter of conventional electrician's screwdrivers is often too large. However, removing the insulation is not permissible and also endangers personal safety. With the Wiha slimTECHNOLOGY, specially developed for electrical applications, the protective insulation is integrated into the blade, allowing for blades that are up to 33% slimmer. Thus, with the slimBits, deep-set screws and spring elements can be effortlessly accessed. The insulated slimBits are subjected to individual testing according to the international standard IEC 60900 and enable safe working in areas with live parts up to 1,000 V AC. 6 mm slimBits should only be used in the slimVario® bit holder and slimTorque VDE bit holder (VDE torque system). - Increases your safety - Wiha slimBits ensure good and protected access to deep-set screws. - Saves space - Space saving through extensive interchangeable bit system. - Provides full protection - Each tool individually tested at 10,000 V AC and approved for 1,000 V AC.

Details

Screwdriver type Screwdriver type: Hexagonal
Tip Tip: 3
Shank-Ø Shank-Ø: 6.0 mm
max. Nm max. Nm: 5.5 Nm
Length [mm] Length [mm]: 75 mm
Tip width Tip width: 3.0 mm
ESD ESD: no
Weight Weight: 8 g

Pictograms

VDE

Marking for conformity with VDE regulations or European or internationally harmonized standards for electrical products

Hexagon socket

The hexagon socket head is a widely used screw head shape that has a hexagonal recess in the head of the screw. This recess is operated with a hexagon socket wrench, also known as an Allen key.
