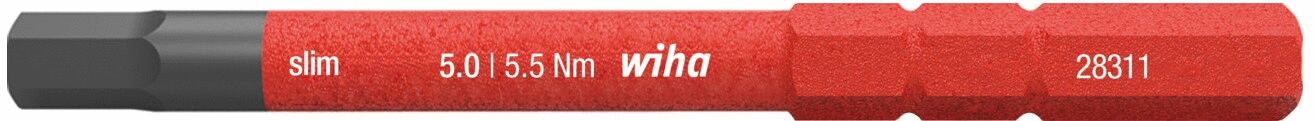

Hexagon exchangeable blade slimBit 2831 VDE 5.0
Hexagon Swap Blade slimBit 2831 VDE 5.0

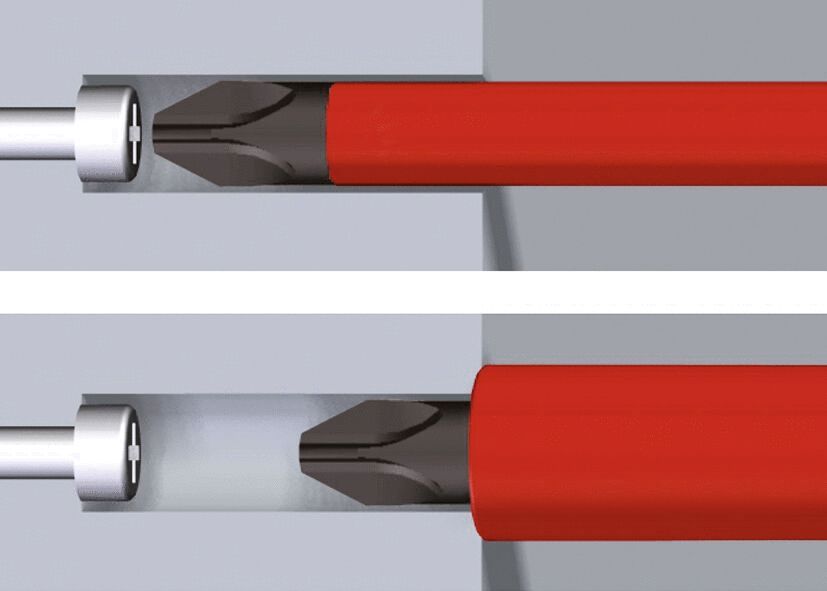

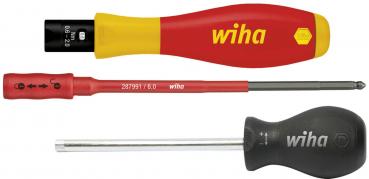

To reach deep-seated screws, the blade diameter of conventional electrician screwdrivers is often too large. However, removing the insulation is not allowed and also endangers one's own safety. With the Wiha slimTECHNOLOGY, specially developed for electrical applications, the protective insulation has been integrated into the blade, allowing for up to 33% slimmer blades. This enables the slimBits to effortlessly reach deep-seated screw and spring elements. The insulated slimBits are subjected to individual testing according to the international standard IEC 60900 and allow for safe working in areas with live parts up to 1,000 V AC. 6 mm slimBits should only be used in the slimVario® bit holder and slimTorque VDE bit holder (VDE torque system).
- Increases your safety - Wiha slimBits ensure good and protected access to deep-seated screws.
- Saves space - Space saving through an extensive interchangeable bit system.
- Provides you with full protection - Each tool individually tested at 10,000 V AC and approved for 1,000 V AC.
Details
- Screwdriver type Screwdriver type
- Hexagonal
- Tip Tip
- 5
- Shank-Ø Shank-Ø
- 6.0 mm
- max. Nm max. Nm
- 5.5 Nm
- Length [mm] Length [mm]
- 75 mm
- Tip width Tip width
- 5.0 mm
- ESD ESD
- no
- Weight Weight
- 11 g
Show accessories
Hexagon socket
The hexagon socket head is a widely used screw head shape that has a hexagonal recess in the head of the screw. This recess is operated with a hexagon socket wrench, also known as an Allen key.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Screwdriver type | Tip | Shank-Ø | max. Nm | Price | Compare |
|---|---|---|---|---|---|---|---|
|
2831VDE.SK15 Hexagon exchangeable blade slimBit 2831 VDE 1,5 | Hexagonal | 1.5 | 6.0 mm | 0.9 Nm | 9.85 CHF | |
|
2831VDE.SK25 Hexagon exchangeable blade slimBit 2831 VDE 2.5 | Hexagonal | 2.5 | 6.0 mm | 3.8 Nm | 9.85 CHF | |
|
2831VDE.SK50 Hexagon exchangeable blade slimBit 2831 VDE 5.0 | Hexagonal | 5 | 6.0 mm | 5.5 Nm | 9.85 CHF | |
|
2831VDE.SK30 Hexagon exchangeable blade slimBit 2831 VDE 3.0 | Hexagonal | 3 | 6.0 mm | 5.5 Nm | 9.85 CHF | |
|
2831VDE.SK60 Hexagon exchangeable blade slimBit 2831 VDE 6.0 | Hexagonal | 6 | 6.0 mm | 5.5 Nm | 9.85 CHF | |
|
2831VDE.SK20 Hexagon exchangeable blade slimBit 2831 VDE 2.0 | Hexagonal | 2 | 6.0 mm | 1.8 Nm | 9.85 CHF | |
|
2831VDE.SK40 Hexagon exchangeable blade slimBit 2831 VDE 4.0 | Hexagonal | 4 | 6.0 mm | 5.5 Nm | 9.85 CHF | |
| Show Compare List (0) | |||||||
