Slotted/Philips exchangeable blade slimBit 2831 VDE SL/PH1
Slotted/Philips exchangeable blade slimBit 2831 VDE SL/PH1

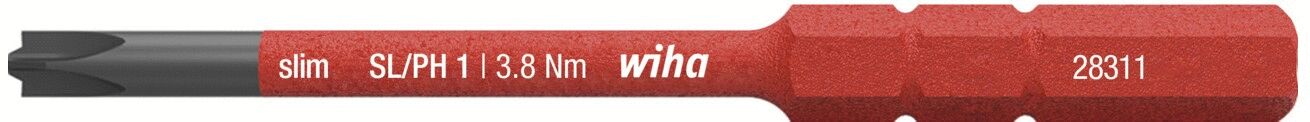

The Wiha 2831 VDE SL/PH1 slimBit slot/Phillips interchangeable blade is specifically designed for electrical applications to reach even hard-to-access screws. By integrating the protective insulation into the blade, Wiha slimTECHNOLOGY allows for up to 33% slimmer blades without compromising safety. This technology prevents the improper removal of insulation and simultaneously provides safe access to deep-set screws and spring elements.The interchangeable blade meets the international standard IEC 60900 and is suitable for working on live parts up to 1,000 V AC. Each blade is individually tested at 10,000 V AC and is intended exclusively for use in slimVario® and slimTorque VDE bit holders.
Technical details: The screwdriver type is a slot/cross slot (Philips) with a tip SL/PZH1 and a shaft diameter of 6.0 mm. The blade has a length of 75 mm and weighs 8 g. The maximum torque is 3.8 Nm. ESD protection is not available in this model.
Details
- Screwdriver type Screwdriver type
- Slotted / Crosstip (Philips)
- Tip Tip
- SL/PZH1
- Shank-Ø Shank-Ø
- 6.0 mm
- max. Nm max. Nm
- 3.8 Nm
- Length Length
- 75 mm
- ESD ESD
- no
- Weight Weight
- 8 g
Show accessories
VDE
The VDE mark indicates that electrical products comply with the requirements of IEC 60900. It ensures the highest safety and quality standards for devices designed for use at voltages up to 1000 V AC (alternating current) and 1500 V DC (direct current).
Crosstip
The crosstip head is one of the most commonly used screw head shapes, characterized by a cross-shaped profile in the middle of the screw head. This type of screw is operated with a crosstip screwdriver (also known as a Phillips screwdriver)
Slotted
The slotted head, also known as the flat slotted head, is one of the oldest and simplest screw head shapes. It has a single, straight slot on the top of the screw head, which is operated with a flat screwdriver (slotted screwdriver).
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Screwdriver type
Tip
Shank-Ø
max. Nm
Price
Compare
Slotted / Crosstip (Philips)
SL/PZH1
6.0 mm
3.8 Nm
Slotted / Crosstip (Philips)
SL/PH2
6.0 mm
5.5 Nm
