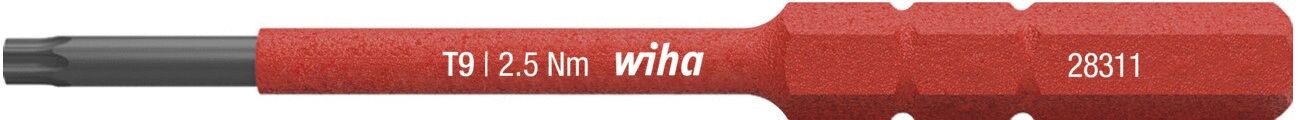

TORX exchangeable blade slimBit 2831 VDE T9
**TORX SlimBit Exchange Blade 2831 VDE T9**
To reach deep-set screws, the blade diameter of conventional electrician's screwdrivers is often too large. Removing the insulation, however, is not permitted and additionally endangers one's own safety. With the Wiha slimTECHNOLOGY, specially developed for electrical applications, the protective insulation has been integrated into the blade to allow for up to 33% slimmer blades. Thus, with the slimBits, even deep-set screws and spring elements can be effortlessly accessed. The insulated slimBits are subjected to individual testing according to the international standard IEC 60900, enabling safe work in areas with live parts up to 1,000 V AC. 6 mm slimBits should only be used in the slimVario® bit holder and slimTorque VDE bit holder (VDE torque system).
- Increases your safety - Wiha slimBits ensure good and protected access to deep-set screws.
- Saves space - Space savings through an extensive exchange bit system.
- Provides you with full protection - Each tool individually tested at 10,000 V AC and approved for 1,000 V AC.
Details
- Screwdriver type Screwdriver type
- Torx
- Tip Tip
- T9
- Shank-Ø Shank-Ø
- 6.0 mm
- max. Nm max. Nm
- 1.3 Nm
- Length [mm] Length [mm]
- 75 mm
- ESD ESD
- no
- Weight Weight
- 8 g
Show accessories
Torx
The Torx head is a screw head shape characterized by a star-shaped, six-pointed profile. This shape is specially designed to provide excellent power transmission and minimize tool slippage (cam-out). Torx screws are operated with a Torx screwdriver or Torx bit.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Screwdriver type | Tip | Shank-Ø | max. Nm | Price | Compare |
|---|---|---|---|---|---|---|---|
|
2831VDE.T8 TORX exchangeable blade slimBit 2831 VDE T8 | Torx | T8 | 6.0 mm | 1.3 Nm | 9.85 CHF | |
|
2831VDE.T9 TORX exchangeable blade slimBit 2831 VDE T9 | Torx | T9 | 6.0 mm | 1.3 Nm | 9.85 CHF | |
|
2831VDE.T10 TORX exchangeable blade slimBit 2831 VDE T10 | Torx | T10 | 6.0 mm | 3.8 Nm | 9.85 CHF | |
|
2831VDE.T15 TORX exchangeable blade slimBit 2831 VDE T15 | Torx | T15 | 6.0 mm | 5.0 Nm | 9.85 CHF | |
|
2831VDE.T20 TORX exchangeable blade slimBit 2831 VDE T20 | Torx | T20 | 6.0 mm | 5.5 Nm | 9.85 CHF | |
|
2831VDE.T25 TORX exchangeable blade slimBit 2831 VDE T25 | Torx | T25 | 6.0 mm | 5.5 Nm | 9.85 CHF | |
| Show Compare List (0) | |||||||
