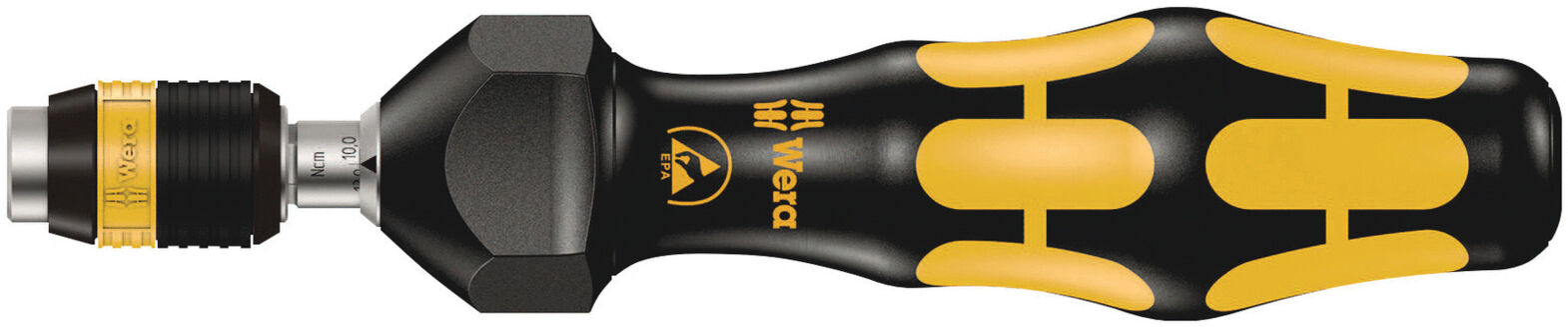

Torque Screwdriver 7441-ESD
Torque Screwdriver 7441-ESD

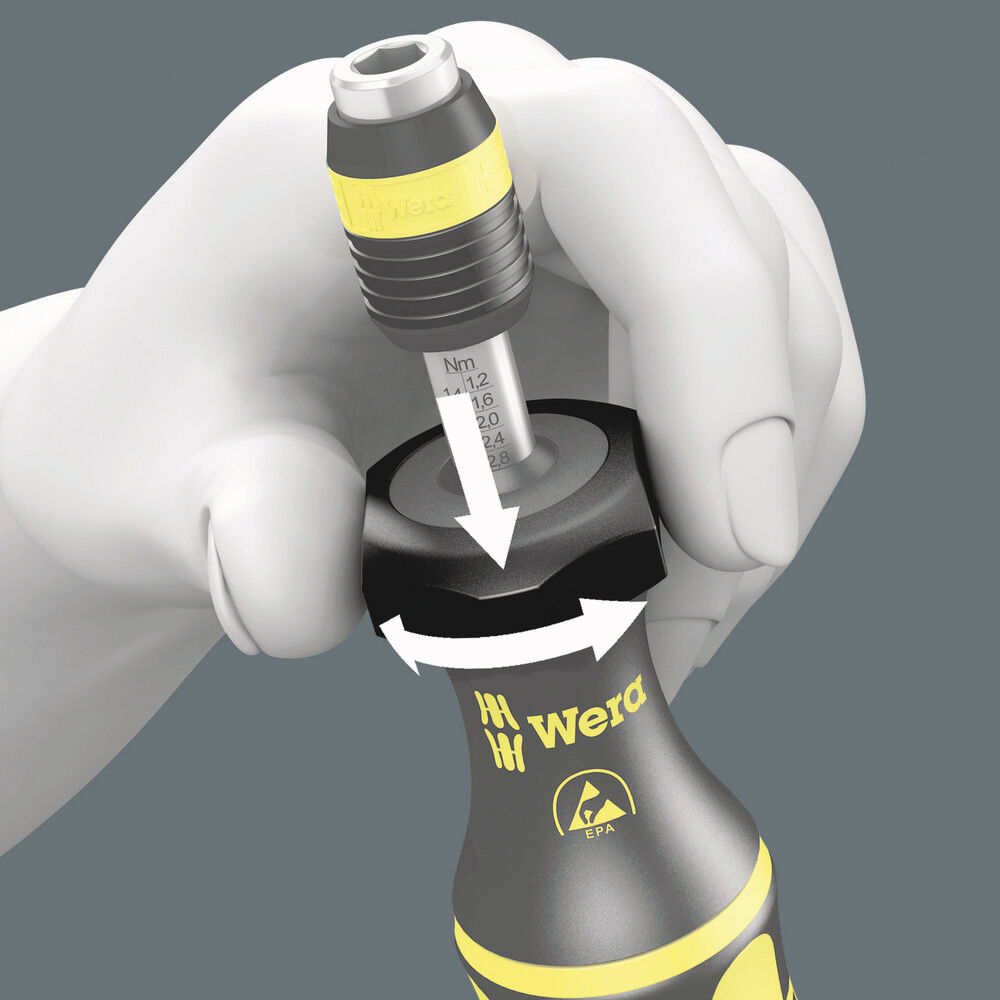

The Torque Screwdriver 7441-ESD is an adjustable, electrostatically safe tool that offers a surface resistance of ≤ 109 Ohms, thus protecting against electrostatic energy and the associated damages. This model features a Rapidaptor quick-release chuck for fast bit changes and is compatible with 1/4" hex drive bits according to DIN ISO 1173-C 6.3 and E 6.3. The multi-component Kraftform handle allows for fast and ergonomic working, while the hexagonal roll-off protection prevents rolling away.
Technical Specifications:
- Accuracy: +/- 6%
- Graduation: 0.10 Nm
- Torque range: 1.2 - 3.0 Nm
- Handle length: 105 mm
- Total length: 155 mm
- Chuck diameter: 4.0
- ESD-safe: yes
Complies with ESD standard DIN EN 61340-5-1. Ideal for precision work in ESD-sensitive areas.
Item number: WE-7441ESD
The Torque Screwdriver 7441-ESD is an adjustable, electrostatically safe tool that offers a surface resistance of ≤ 109 Ohms, thus protecting against electrostatic energy and the associated damages. This model features a Rapidaptor quick-release chuck for fast bit changes and is compatible with 1/4" hex drive bits according to DIN ISO 1173-C 6.3 and E 6.3. The multi-component Kraftform handle allows for fast and ergonomic working, while the hexagonal roll-off protection prevents rolling away.
Technical Specifications:
- Accuracy: +/- 6%
- Graduation: 0.10 Nm
- Torque range: 1.2 - 3.0 Nm
- Handle length: 105 mm
- Total length: 155 mm
- Chuck diameter: 4.0
- ESD-safe: yes
Complies with ESD standard DIN EN 61340-5-1. Ideal for precision work in ESD-sensitive areas.
Item number: WE-7441ESD
Details
- Screwdriver type Screwdriver type
- bit holder
- Socket Ø Socket Ø
- 4.0
- Torque range Torque range
- 1.2 - 3.0 Nm
- Handle length Handle length
- 105 mm
- Length [mm] Length [mm]
- 155 mm
- ESD ESD
- yes
External hexagon
The external hexagon head is one of the most common head shapes for screws and bolts. It has a hexagonal shape and is designed so that it can be turned with a wrench, socket wrench or ring wrench.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Screwdriver type | Socket Ø | Torque range | Price | Compare |
|---|---|---|---|---|---|---|
|
WE-7440ESD Torque Screwdriver 7440-ESD | bit holder | 4.0 | 0.3 - 1.2 Nm | 113.80 CHF | |
|
WE-7441ESD Torque Screwdriver 7441-ESD | bit holder | 4.0 | 1.2 - 3.0 Nm | 113.80 CHF | |
| Show Compare List (0) | ||||||
