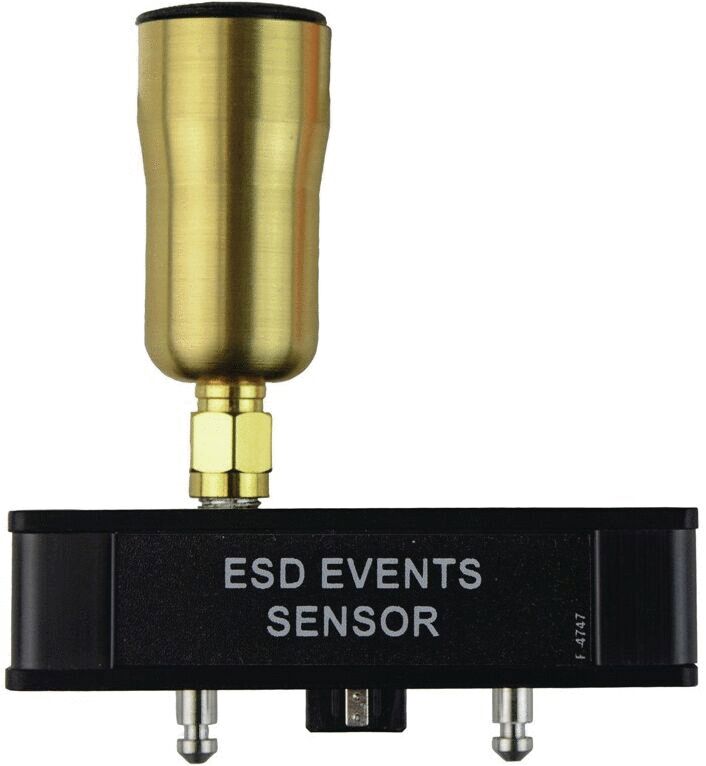

The image shows an ESD event sensor. It has a black body with the label "ESD EVENTS SENSOR" and a golden, domed cap on top. Two connectors are visible on the lower part.
ESD sensor for EM-EYE-METER
(Product No.: 3M-CTC21)
The image shows an ESD event sensor. It has a black body with the label "ESD EVENTS SENSOR" and a golden, domed cap on top. Two connectors are visible on the lower part.
Notice / Inquire

ESD sensor for EM-EYE-METER

ESD sensor for EM-EYE-METER

dpvlink:
15219
Properties:
Further product information

1,569.10 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD sensor for EM-EYE-METER

The 3M CTM048 EM-EYE-METER is a sophisticated, portable measuring device specifically designed for monitoring and analyzing electromagnetic fields (EMF), electrostatic fields, and radio frequencies (RF). It plays a crucial role in minimizing ESD risks, ensuring compliance with relevant safety standards, and identifying sources of interference in electronic devices. This device is widely used in electronics manufacturing, maintenance, research, and IT to ensure a safe and interference-free working environment.
The EM EYE Meter features an ESD sensor module that detects and analyzes ESD events according to discharge models CMD, MM, HBM, or Raw Input. It enables the measurement of maximum voltage, average values, threshold settings, and the recording and evaluation of the voltage of individual ESD events. Additionally, the device offers an event counter and a Raw Input mode for detailed analyses.
Technically, the device is characterized by its modular design and a variety of features, such as a touchscreen with advanced user guidance, speaker and headphone output, the choice of remote and local antennas, and data recording that occurs event-based or at adjustable intervals. The data is stored on a standard microSD card and can be displayed directly on the device. The frequency bandwidth ranges from 1 MHz to 2.5 GHz, and the device is equipped with both a lithium-ion battery and an option for mains operation.
Compact in dimensions (W 65 x H 32 x L 105 mm) and with an operating temperature of 10-40°C, the EM EYE Meter offers a flexible and efficient solution for monitoring electrostatic and electromagnetic fields in various technical environments.
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 212
Complete Catalog 2023 - 2024

Product Family

EM EYE Meter

An EM Eye Meter is a portable measuring device used to monitor and analyze electromagnetic fields (EMF), electrostatic fields and radio frequencies (RF). It helps to minimize ESD risks, ensure compliance with safety standards and identify sources of interference in electronic devices. The device is versatile and can be used in electronics manufacturing, maintenance, research and IT to ensure a safe and interference-free working environment. With additional optional attachments (sensors), the EYE-Meter becomes a portable detector for the detection of ESD events (discharges) and electromagnetic fields.

  • Detection, measurement and counting of ESD events that cause faults and damage components power slide switch
  • Calculation of the event size for the Charged Device Model (CDM), the Human Body Model (HBM) and the Machine Model (MM)
  • Power slide switch to save power from the rechargeable lithium-ion battery during storage (item no. 770715)
  • Storage of all measurements on microSD card for downloading to PC for further processing or archiving
  • Intuitive operation thanks to touchscreen display

EFM module field strength sensor

For the use as EM field strength meter, power density meter or EIRP meter. The EM EYE Meter detects and measures high-frequency electric fields by a miniaturized directional antenna. For measuring and recording of single and average values.

- further information about the EMF module on request -

Sensor types

ESD sensor module

The EM EYE Meter is able to detect ESD events according to the discharge models CMD, MM, HBM, or Raw Input.

Measurement of

  • maximum voltage
  • average values
  • threshold values setting
  • voltage of each ESD event
  • Event counter
  • Raw input mode to record and evaluate the measured voltages for later analysis

Properties

  • Modular construction
  • Touch screen with modern user interface TFT 240x320px
  • Speaker and headphone output
  • Selection of remote and local antennas
  • Time display, hold function
  • Data recording event-related or in selectable intervals
  • Data logging by using a standard microSD card
  • Data table display also on the monitor of the instrument
  • Frequency range 1 MHz to 2.5 GHz
  • Lithium ion rechargeable battery with charger or power supply operation

Specifications

  • Dimensions W 65 x H 32 x L 105 mm
  • Data acquisition interval:
    Peak values: 1 – 360 s
    average values: 0.1 – 360 s
  • Operation temperature: 10-40 C
  • head set plug: 3.5 mm
  • Antenna/cable connection:
    reversible SMA

- further information available on request -


Article image
Article description
Recommended calibration interval
Voltage
Height
Length
Width
Operating temperature
Price
Compare
3M-CTM048-21 - EM EYE METER with ESD sensor
3M-CTM048-21
EM EYE METER with ESD sensor
12 months bzw. according to test equipment list
100 - 24 V
32 mm
105 mm
65 mm
10 - 40 °C
6,548.10 CHF
3M-CTC21 - ESD sensor for EM-EYE-METER
3M-CTC21
ESD sensor for EM-EYE-METER






1,569.10 CHF
3M-CTC28 - EMI Sensor for EM EYE METER
3M-CTC28
EMI Sensor for EM EYE METER






1,320.80 CHF
