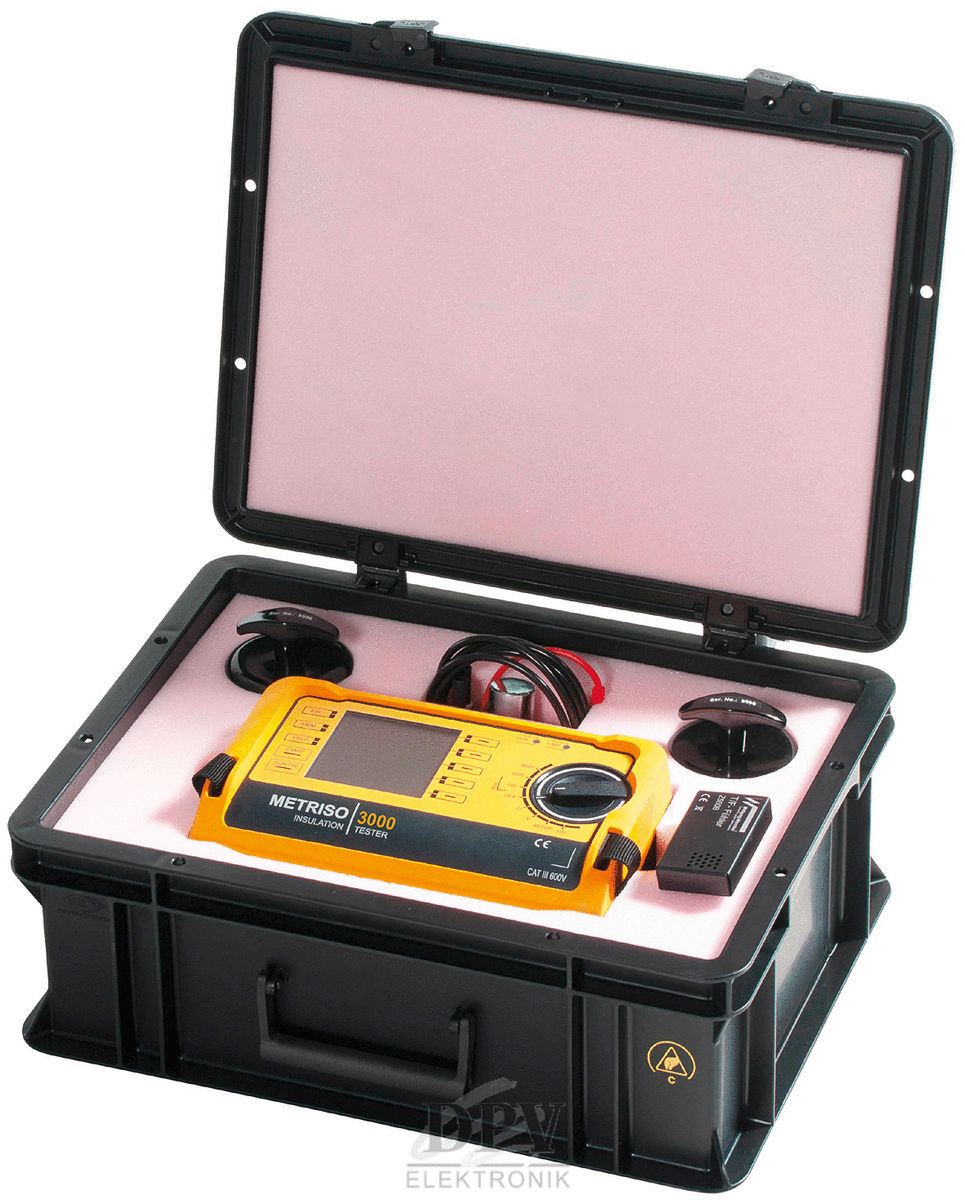

The image shows a black hard-shell suitcase that is open. Inside, there is a yellow measuring device with a screen, surrounded by cables and two round controls.
METRISO® 3000 - measurement kit complete
(Product No.: 7100.3000.MK)
The image shows a black hard-shell suitcase that is open. Inside, there is a yellow measuring device with a screen, surrounded by cables and two round controls.
Notice / Inquire

METRISO® 3000 - measurement kit complete

METRISO® 3000 - measurement kit complete

dpvlink:
16556
Further product information

2,745.55 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

METRISO® 3000 - measurement kit complete

The METRISO® 3000 test kit is a comprehensive system for testing ESD protective measures, ideal for measuring point-to-point resistances, grounding resistances, and the system resistance of human/shoe/floor systems. This kit includes a digital megohmmeter, attachable temperature and humidity sensors, a USB interface, PC software for Windows®, two test electrodes, a hand electrode, measuring cables, an instruction manual in German and English, a factory calibration certificate, and a conductive carrying case with dissipative pink foam compliant with DIN EN 61340-4-1.
The device offers a measuring voltage of 10 V, 100 V, up to 500 V DC and covers a resistance range from 1 kΩ to 1 TΩ in the high resistance range and from 1 Ω to 9.99 kΩ in the low resistance range. It is suitable for both battery and rechargeable battery operation and features a USB interface as well as interfaces for temperature/humidity sensors and barcode scanners. The dimensions are 225 x 130 x 140 mm and the total weight of the kit is 9 kg.
In addition to the hardware features, the METRISO® 3000 includes an integrated data storage for up to 50,000 measurements and a logging software "ETC" for creating test reports. The device supports automatic capture of measurement points using a barcode scanner and enables menu-driven measurement with automatic setting of limit values. The display language can be selected (DE, EN, FR, ES). Operating temperatures range from -10 to 70 °C with a humidity of 10 to 90 %.
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Humidity
Humidity
10 - 90 %
Operating temperature
Operating temperature
-10 - 70 °C
Weight
Weight
9 kg
Show accessories
Accessories

Accessories

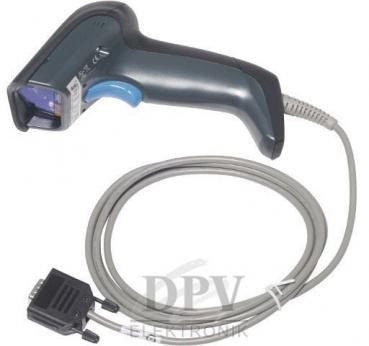

The image shows a black hand scanner with blue accents. It has a long cable connection that leads to a rectangular plug. Ideal for scanning barcodes.
Barcode scanner for 2D and 1D codes for Metriso...
Barcode scanner for Metriso 3000 / 1D-2D
dpvlink
19753

459.20 CHF
Show product

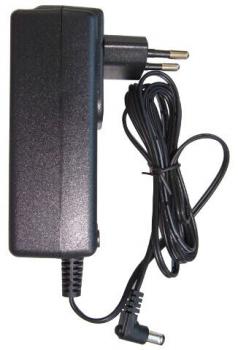

The image shows a black power adapter with two socket pins on one side and a cable leading to a round plug. The cable is coiled and moves sideways.
NEW
NEW
Wide-range charger for rechargeable battery...
Wide-range charger for battery pack Metriso 3000
EU, US, UK
Input: 100 - 240 VAC / output: 16.5 VDC
(operation only with rechargeable battery)
dpvlink
19753

147.30 CHF
Show product

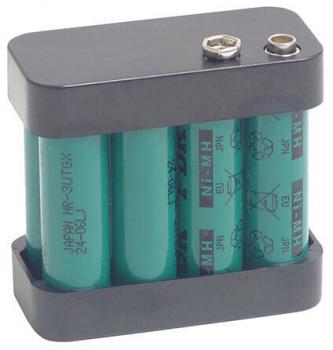

The image shows a rechargeable battery holder made of black plastic with three green cells. The cells are printed with information, and there are connectors on the top.
NEW
NEW
Rechargeable battery pack for Metriso 3000...
Rechargeable battery pack for Metriso 3000
2600mAh
dpvlink
19753

130.55 CHF
Show product

Spares

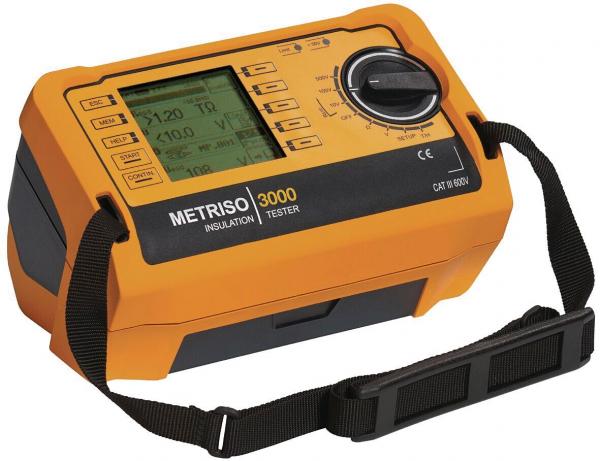

The image shows an orange measuring device with a digital display and a large rotary knob. It has buttons and a carrying strap on the side. It is used for performing insulation measurements.
METRISO® 3000 measuring device single
Metriso 3000 meter with measuring lines
Menu language German/English
(without accessories)

Scope of delivery:
high resistance meter Metriso 3000, measuringl lines, user manual, calibration certificate

serial number:
dpvlink
16556

2,104.20 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 204
Complete Catalog 2023 - 2024

Product Family

METRISO® 3000 measurement device

METRISO 3000 is a professional measuring device for testing ESD protection measures. It measures very high resistances and is particularly suitable for point-to-point measurements and for measuring the leakage resistance to earth. The device is available as an individual device or as a measuring kit in a conductive carrying case with electrodes and other accessories.

  • Suitable for measuring point-to-point resistances and leakage resistances as well as the system resistance of people/shoes/floor system
  • Integrated data memory for storing 50,000 measured values
  • USB interface for reading out the data on a PC
  • "ETC" logging software for creating and archiving a complete test report
  • Menu-guided measurement with selection of the ESD control element and automatic specification of limit values
  • Automatic recording of measuring points before the measurement by using a barcode scanner
  • Selectable display language (DE, EN, FR, ES)

Technical data:

Measuring voltage:

10 V, 100 V, 500 V DC

Resistance range:

1 kΩ to 1 TΩ (high resistance range)

1 Ω to 9.99 kΩ (low resistance range)

Operating mode:

Battery or rechargeable battery operation

Dimensions (BxHxD):

225 x 130 x 140 mm

Weight:

1.4 kg (single device)

9 kg (complete kit)

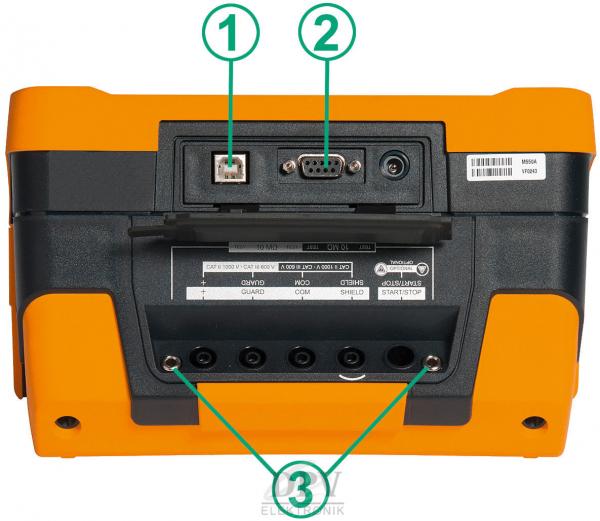

  1. USB port
  2. interface for temperature/humidity sensor and barcode scanner
  3. 2 sockets for testing the reference resistance 10 MΩ

Article image
Article description
Recommended calibration interval
Humidity
Operating temperature
Weight
Price
Compare
7100.3000.MK - METRISO® 3000 - measurement kit complete
7100.3000.MK
METRISO® 3000 - measurement kit complete
24 months bzw. according to test equipment list
10 - 90 %
-10 - 70 °C
9 kg
2,745.55 CHF
7100.3000.G - METRISO® 3000 measuring device single
7100.3000.G
METRISO® 3000 measuring device single
24 months bzw. according to test equipment list
10 - 90 %
-10 - 70 °C
1.4 kg
2,104.20 CHF
Show Compare List (0)

This product is compatible with (for example):

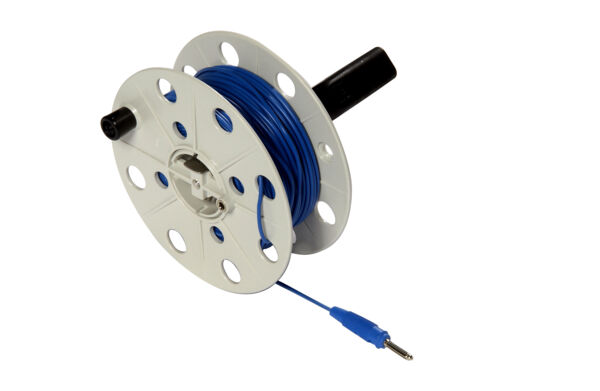

The image shows a cable reel with blue cord. The reel is round, has a central axis, and several holes in the rim. At one end of the cord, there is a connector plug.
Cable reel 50 m (for METRISO® 2000, 3000...
Cable drum 50 m with unwinder for ground
measurement
dpvlink
19753

161.05 CHF
Show product
The image shows an opened metal case lined with foam inside. It contains a yellow device, as well as several tools and cables, neatly arranged.
Preview: ESD Audit case Metriso 3000 with walking test kit and electrode type 850
Preview: The image shows an orange measuring device with a digital display and a large rotary knob. It has buttons and a carrying strap on the side. It is used for performing insulation measurements.
Preview: The image shows a cylindrical metal object with a smooth, shiny surface. At the top is a small, round area, and a red cable leads out.
Preview: The image shows a round, black component with a central, flat element made of lightweight material. It has a red and a black connector on the side. This component could be part of a speaker or similar device.
Preview: The image displays a black surface resistance meter with a large white button in the center and two sockets at the bottom. Colored scales for resistance values are shown at the top.
Preview: The image shows an electrostatic measuring device, consisting of a large, stable base unit with a display and a handheld sensor. Both are designed in yellow and black.
Preview: The image displays a rectangular, rounded metal plate with a matte finish. At the top center, there is a small hole, likely for hanging. The surface is smooth and monochromatic.
Preview: The image shows two black, cylindrical measuring devices with a flat bottom and a rounded top. On the surface are white inscriptions about the model and technical specifications.
Preview: The image shows a cable reel with blue cord. The reel is round, has a central axis, and several holes in the rim. At one end of the cord, there is a connector plug.
Preview: The image shows a control unit with a rectangular white base and seven yellow buttons. A round yellow part with a power button is attached by a cable.

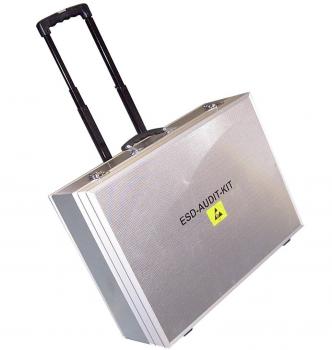

Preview: The picture shows a silver suitcase with a telescopic handle, standing on wheels. On the front, the inscription
ESD Audit case Metriso 3000 with walking...
ESD Audit case M-3000 is equipped with:



7110.600 ESD audit case
7100.3000.G* Metriso 3000 with measuring lines
7100.3000.TF Temperature / humidity sensor
7220.450 Hand electrode model 450
7220.840* Two-point electrode
7220.880* Ring electrode model 880
7100SRM110* SRM110
7100.EFM51.CPS* Charge-Plate kit
7220.850 Electrode 850 (2x)
2200.110 Grounding plug
7110.E8 8-times grounding distributor
7100.2000.TR50 Cable drum
7100.PGT100.102 Metal plate 400 x 300 x 2 mm
2287.10.10 BA adapter 10 mm
7220.880.6 Plastic plate 120 x 120 x 6 mm
7220.880.9 Counter electrode metal diameter 120 mm
7220.880.L Guard cable blueu, 1.5 m
In addition:
7100.EFM51.WT.MK MK51 high-voltage measuring head
7100.WT5000.ML Measuring line for contacting the hand electrode with MK51

* Devices with factory calibration certificate
dpvlink
17719

6,959.00 CHF
Show product
The image shows an opened aluminum toolbox. It contains various measuring devices, cables, and accessories, securely embedded in foam. The case has a convenient handle.
Preview: ESD Audic case Metriso 3000 with walking test kit and electrode 870
Preview: The image shows an orange measuring device with a digital display and a large rotary knob. It has buttons and a carrying strap on the side. It is used for performing insulation measurements.
Preview: The image shows a cylindrical metal object with a smooth, shiny surface. At the top is a small, round area, and a red cable leads out.
Preview: The image shows a round, black component with a central, flat element made of lightweight material. It has a red and a black connector on the side. This component could be part of a speaker or similar device.
Preview: The image displays a black surface resistance meter with a large white button in the center and two sockets at the bottom. Colored scales for resistance values are shown at the top.
Preview: The image shows an electrostatic measuring device, consisting of a large, stable base unit with a display and a handheld sensor. Both are designed in yellow and black.
Preview: The image displays a rectangular, rounded metal plate with a matte finish. At the top center, there is a small hole, likely for hanging. The surface is smooth and monochromatic.
Preview: The image shows a round, yellow device with a black handle on top. It has two holes and a label that provides information about the model. It appears sturdy and handy.
Preview: The image shows a cable reel with blue cord. The reel is round, has a central axis, and several holes in the rim. At one end of the cord, there is a connector plug.
Preview: The image shows three metallic rods of different lengths. Two are cylindrical and have a smooth surface at one end. A third piece is a T-shaped handle that holds the rods.
Preview: The image shows a control unit with a rectangular white base and seven yellow buttons. A round yellow part with a power button is attached by a cable.
Preview: The picture shows a silver suitcase with a telescopic handle, standing on wheels. On the front, the inscription
ESD Audic case Metriso 3000 with walking...
ESD Audit Case M-3000 equipped with:



7110.600 ESD audit case
7100.3000.G* Metriso 3000 with measuring lines
7100.3000.TF Temperature/humidity sensor
7220.450 Hand electrode model 450
7220.840* Two-point electrode
7220.880* Ring electrode model 880
7100SRM110* SRM110
7100.EFM51.CPS* Charge-Plate-Set
7220.870 Electrode 870 (2x)
7220.870.V.SET 3-piece extension rod for
ground scanning
2200.110 grounding plug
7110.E8 8-fold grounding distributor
7100.2000.TR50 cable drum
7100.PGT100.102 Metal plate 400 x 300 x 2 mm
7220.880.6 Plastic plate 120x120x6 mm
7220.880.9 Counter electrode diameter120 mm
7220.880.L Guard line, blue, 1.5 m
Plus:
7100.EFM51.WT.MK MK51 high-voltage measuring head
7100.WT5000.ML Measuring line for contacting the hand electrode with MK51

* device with certificate
dpvlink
17719

6,908.60 CHF
Show product
