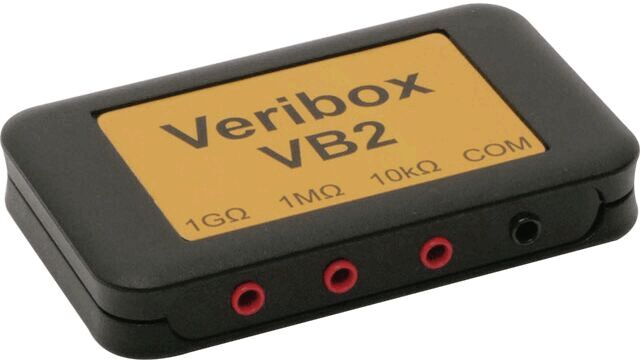

The image shows a compact, rectangular device in black with a yellow top layer that reads "Veribox VB2". It has three red and one black connector on the front.

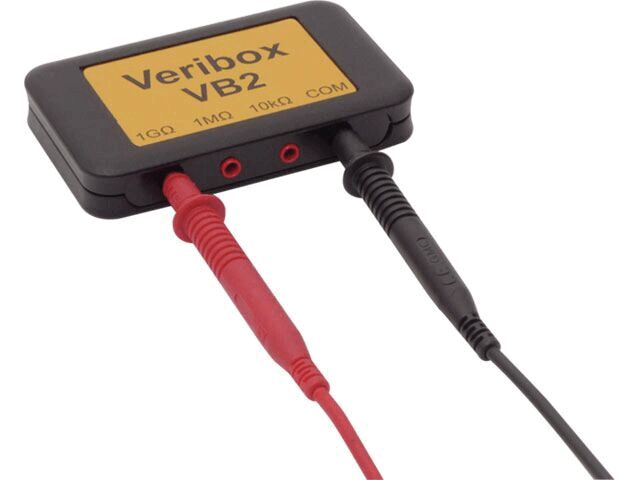

The image displays a compact, rectangular device with a yellow surface labeled "Veribox VB2". It features red and black inputs for electrical connections.

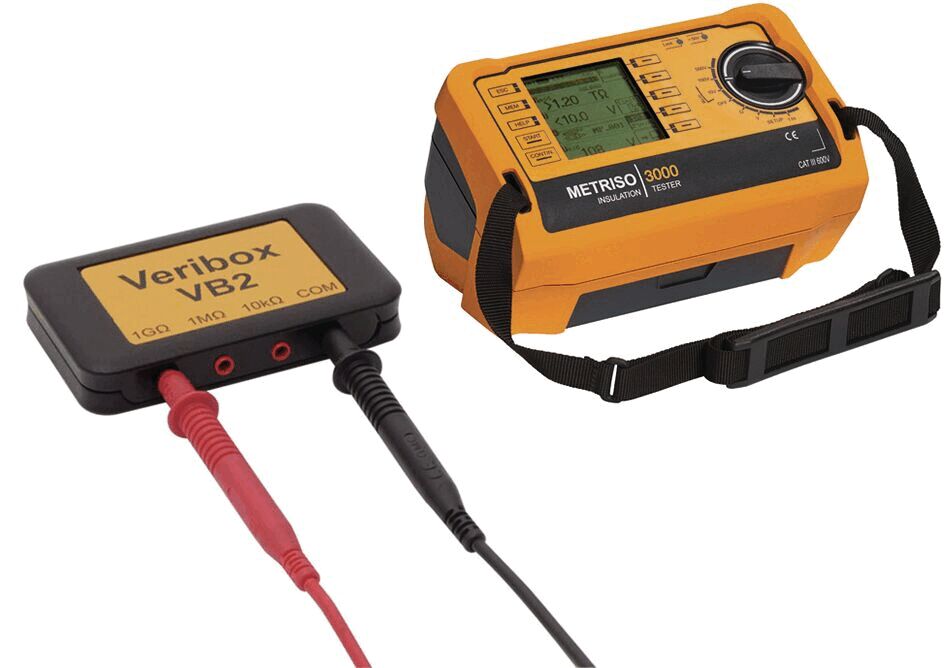

The image displays an orange measuring device with a screen and buttons, connected to a black box called "Veribox VB2". Red and black cables are attached.
Preview: The image shows a compact, rectangular device in black with a yellow top layer that reads "Veribox VB2". It has three red and one black connector on the front.
Preview: The image displays a compact, rectangular device with a yellow surface labeled "Veribox VB2". It features red and black inputs for electrical connections.
Preview: The image displays an orange measuring device with a screen and buttons, connected to a black box called "Veribox VB2". Red and black cables are attached.
Veribox
(Product No.: 7100.VB)
The image shows a compact, rectangular device in black with a yellow top layer that reads "Veribox VB2". It has three red and one black connector on the front.
The image displays a compact, rectangular device with a yellow surface labeled "Veribox VB2". It features red and black inputs for electrical connections.
The image displays an orange measuring device with a screen and buttons, connected to a black box called "Veribox VB2". Red and black cables are attached.
Mobile Preview: The image shows a compact, rectangular device in black with a yellow top layer that reads "Veribox VB2". It has three red and one black connector on the front.
Mobile Preview: The image displays a compact, rectangular device with a yellow surface labeled "Veribox VB2". It features red and black inputs for electrical connections.
Mobile Preview: The image displays an orange measuring device with a screen and buttons, connected to a black box called "Veribox VB2". Red and black cables are attached.
Notice / Inquire

Veribox

Veribox

dpvlink:
17667
Properties:
Further product information

153.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Veribox

The Veribox is an essential tool for testing high-resistance measuring devices and ensures reliable functional checks before their deployment. This testing device is equipped with three different resistances: 10 kOhm, 1 MOhm, and 1 GOhm, each having separate connectors. This modularity allows for flexible handling and precise measurements.
The Veribox is characterized by its compact dimensions with a width of 65 mm, a height of 20 mm, and a length of 105 mm. Weighing just 65 grams, the device is exceptionally light, making it ideal for mobile use. Additionally, a calibration interval of three years is recommended, which minimizes maintenance efforts and ensures reliability over extended periods.
Recommended calibration interval
Recommended calibration interval
3 years bzw. according to test equipment list
Height [mm]
Height
20
Length [mm]
Length
105
Width [mm]
Width
65
Weight
Weight
65 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 207
Complete Catalog 2023 - 2024

Product Family

Veribox VB2

Article image
Article description
Recommended calibration interval
Height [mm]
Length [mm]
Width [mm]
Weight
Price
Compare
7100.VB - Veribox
7100.VB
Veribox
3 years bzw. according to test equipment list
20
105
65
65 g
153.40 CHF
