Mounting accessories

Mounting accessories

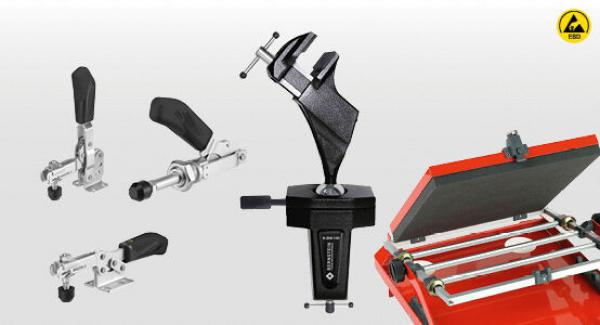

High-quality manufacturing is an essential part of a sustainable and efficient manufacturing process in your company. To help you achieve this, we offer an extensive selection of ESD-compliant mounting accessories. Our products are designed to protect sensitive components while enabling efficient and precise assembly. See for yourself or get advice from our knowledgeable experts.

Screw head SPANNFIX
Screw head (Vise)
Clamping pressure 150 kp, jaw width 50 mm
opening of jaws 70 mm, clamping depth 38 mm,
0.600 kg, non-conductive version, color grey
dpvlink
6952

Product No.: 9-252
117.10 CHF
Cover plate SPANNFIX for equipped frames (to 9-253)
Cover plate for equipped PCBs
covered with 20 mm foam
(suitable for PCB holder standard 9-253)
non-conductive version, color grey
dpvlink
6956

Product No.: 9-256
102.85 CHF
Bow-shaped handle ESD 26 x 133 x 50 mm
Bow-shaped handle ESD 26 x 133 x 50 mm
(without screws)
ESD version (DIN EN 61340-5-1)

**Fixing with socket screws e.g. M6x20
dpvlink
24456

Product No.: 631.3842.133
Price on request
ESD knurled knob M6, L = 15mm
ESD knurled knob M6, L = 15mm
ESD version (DIN EN 61340-5-1)
dpvlink
24456

Product No.: KI-247.15
Price on request
ESD Wing grip "Miniwing" M6, shape L
ESD wing grip "Miniwing" M6, shape L
ESD version (DIN EN 61340-5-1)
dpvlink
24456

Product No.: KI-274.ML
Price on request
Spannfix BERNSTEIN ESD Vario base with table clamp mounting SET
Spannfix base with ball joint SET
table clamp, grounding cable 1MOhm
2x snap 10 - 1.5 meter, grounding plug (2x 10 mm
an M5 connection) weight 0.95 kg
ESD version, color black
dpvlink
24632

Product No.: 9-251.ESD.SET1
142.70 CHF
ESD Horizontal toggle clamp typ 6830, size 0
ESD horizontal toggle clamp type 6830, size 0
clamping screw M4 x 25, holding force 0.5 - 0.4 kN
Weight 35g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.0
33.75 CHF
ESD Push-pull type toggle clamp type 6840, size 3
ESD push-pull type toggle clamp type 6840, size 3
clamping screw M8 x 35, holding force 2.5 - 2.5 kN
Weight 330g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.3
61.80 CHF
ESD vertical toggle clamp type 6800, size 1
ESD vertical toggle clamp type 6800, size 1
clamping screw M5 x 30, holding force 0.6 - 1.1 kN
Weight 105g, ESD version
(DIN EN 61340-5-1)
dpvlink
24596

Product No.: 630.6800.1
35.25 CHF
ESD vertical toggle clamp type 6800, size 3
ESD vertical toggle clamp type 6800, size 3
clamping screw M8 x 45, holding force 1.2 - 2.5 kN
Weight 410g, ESD version
(DIN EN 61340-5-1)
dpvlink
24596

Product No.: 630.6800.3
49.90 CHF
ESD Horizontal toggle clamp typ 6830, size 1
ESD horizontal toggle clamp type 6830, size 1
clamping screw M5 x 30, holding force 0.8 - 1.1 kN
Weight 105g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.1
39.90 CHF
ESD Horizontal toggle clamp typ 6830, size 2
ESD horizontal toggle clamp type 6830, size 2
clamping screw M6 x 35, holding force 1.0 - 1.2 kN
Weight 185g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.2
41.20 CHF
ESD Horizontal toggle clamp typ 6830, size 3
ESD horizontal toggle clamp type 6830, size 3
clamping screw M8 x 45, holding force 1.8 - 2.5 kN
Weight 320g, ESD version
(DIN EN 61340-5-1)
dpvlink
24730

Product No.: 630.6830.3
48.50 CHF
ESD Push-pull type toggle clamp type 6840, size 0
ESD push-pull type toggle clamp type 6840, size 0
clamping screw M4 x 25, holding force 0.8 - 0.8 kN
Weight 60g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.0
48.50 CHF
ESD Push-pull type toggle clamp type 6840, size 1
ESD push-pull type toggle clamp type 6840, size 1
clamping screw M4 x 20, holding force 1.0-1.0 kN
Weight 100g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.1
52.75 CHF
ESD Push-pull type toggle clamp type 6840, size 2
ESD push-pull type toggle clamp type 6840, size 2
clamping screw M6 x 25, holding force 2.0 - 2.0 kN
Weight 245g, ESD version
(DIN EN 61340-5-1)
dpvlink
24735

Product No.: 630.6840.2
56.35 CHF
17 to 32 (from a total of 78)
