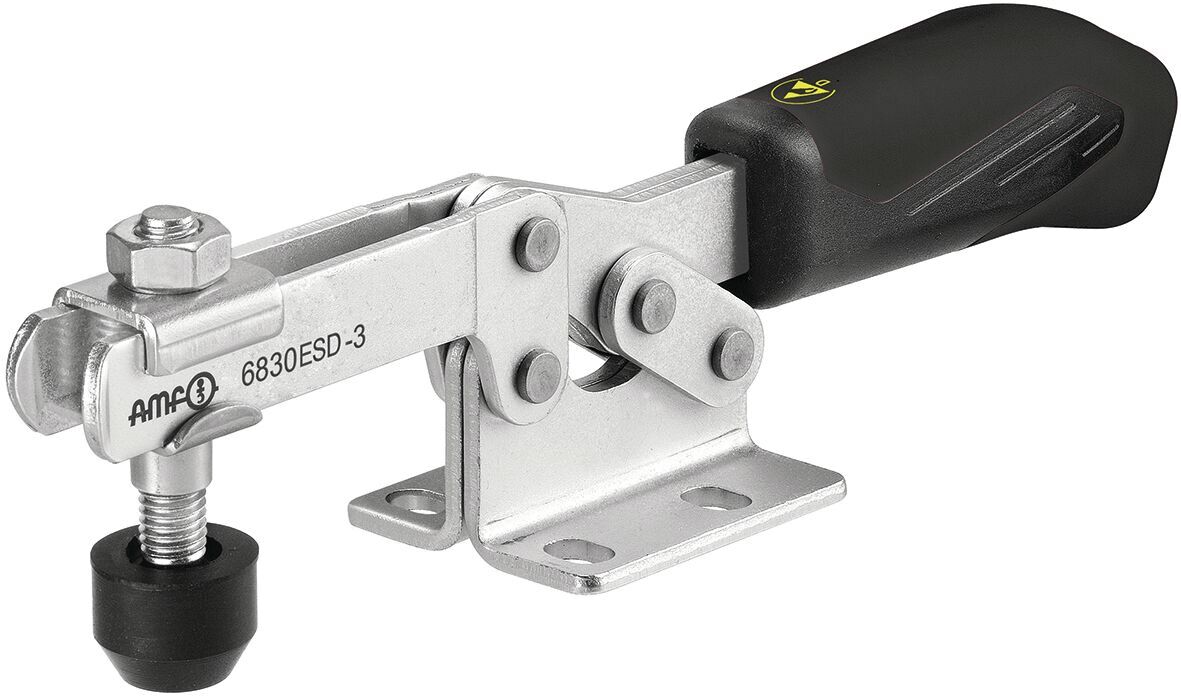

The image displays a sturdy, metallic toggle clamp with a black handle. It is used to securely fasten workpieces. The mechanism is precise and robust.

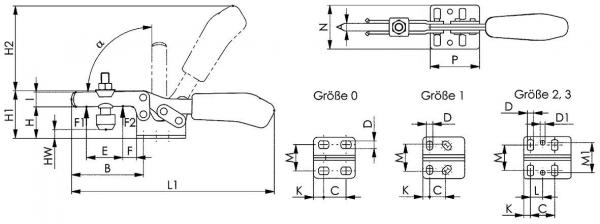

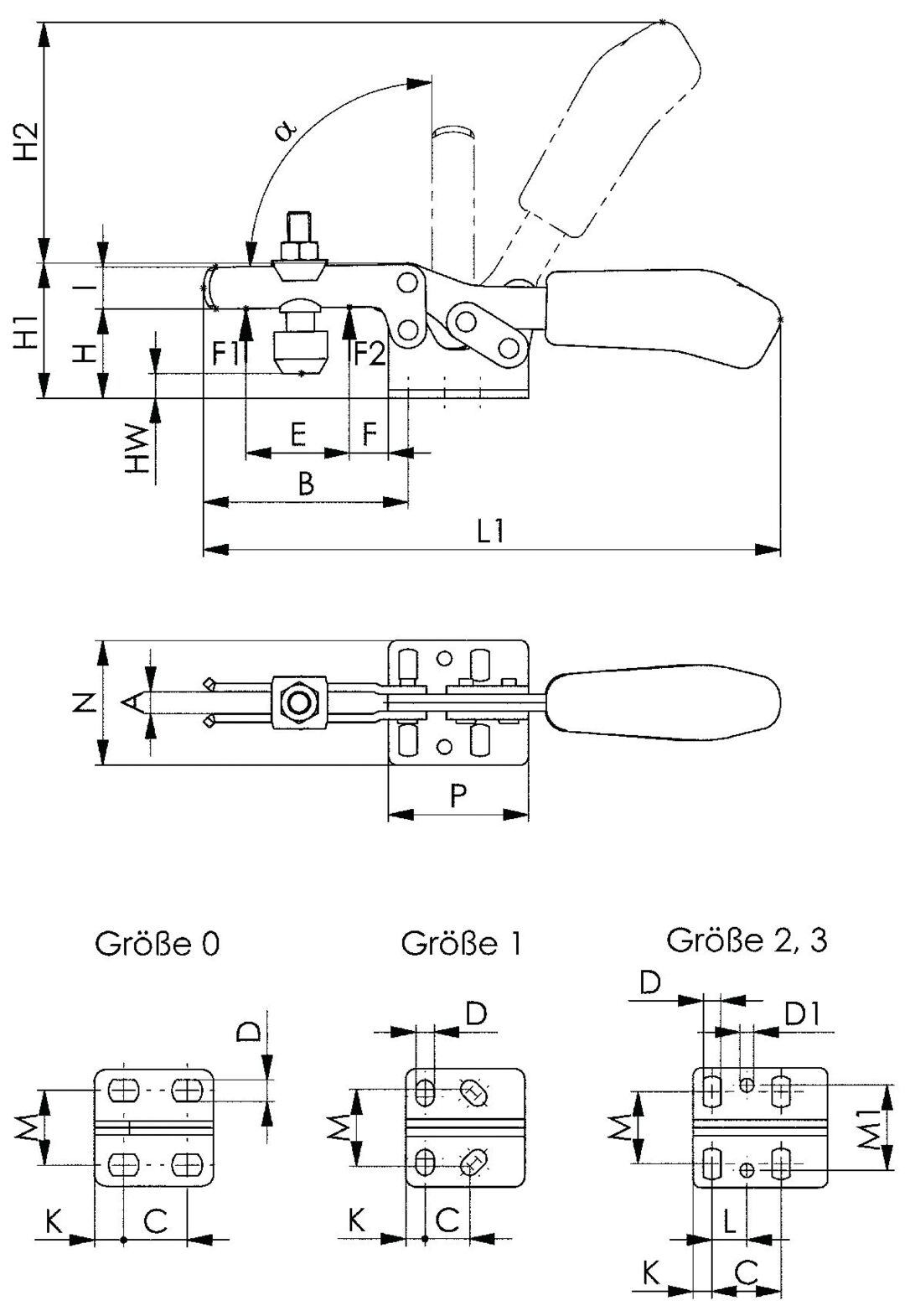

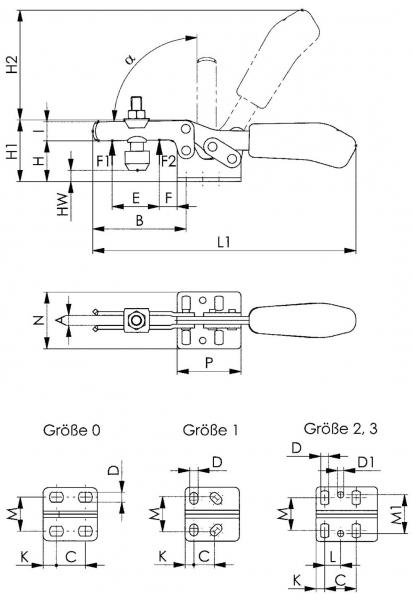

The image displays technical drawings of a lever mechanism. At the top, dimensions such as H1, H2, B, and L1 are shown, while at the bottom various sizes (0, 1, 2, 3) with specific measurements are depicted.
Preview: The image displays a sturdy, metallic toggle clamp with a black handle. It is used to securely fasten workpieces. The mechanism is precise and robust.
Preview: The image displays technical drawings of a lever mechanism. At the top, dimensions such as H1, H2, B, and L1 are shown, while at the bottom various sizes (0, 1, 2, 3) with specific measurements are depicted.
ESD Horizontal toggle clamp typ 6830, size 2
(Product No.: 630.6830.2)
The image displays a sturdy, metallic toggle clamp with a black handle. It is used to securely fasten workpieces. The mechanism is precise and robust.
The image displays technical drawings of a lever mechanism. At the top, dimensions such as H1, H2, B, and L1 are shown, while at the bottom various sizes (0, 1, 2, 3) with specific measurements are depicted.
Mobile Preview: The image displays a sturdy, metallic toggle clamp with a black handle. It is used to securely fasten workpieces. The mechanism is precise and robust.
Mobile Preview: The image displays technical drawings of a lever mechanism. At the top, dimensions such as H1, H2, B, and L1 are shown, while at the bottom various sizes (0, 1, 2, 3) with specific measurements are depicted.
Notice

ESD Horizontal toggle clamp typ 6830, size 2

ESD Horizontal toggle clamp typ 6830, size 2

dpvlink:
24730
Properties:
Further product information

41.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

ESD Horizontal toggle clamp typ 6830, size 2

The ESD horizontal toggle clamp type 6830, size 2 is specifically designed for use in ESD protection zones to safely handle electrostatically sensitive components. This model is equipped with a thrust screw M6 x 35 and offers a clamping force between 1.0 and 1.2 kN, ensuring reliable fixation. The weight of the clamp is 185 g.
The construction includes an electrostatically dissipative handle and protective cap, an open holding arm, and a horizontal base. Galvanization and passivation ensure durability and corrosion resistance, while the stainless steel rivets in case-hardened bearing bushes provide high mechanical load capacity. Additionally, the bearing points are greased to ensure smooth movement.
Additional features such as an ergonomic, oil-resistant handle with a large hand rest and soft component, and a loss prevention device for the thrust screw at the end of the clamping arm enhance the user-friendliness and functionality of this tool.
Conductivity
Conductivity
dissipative
clamping screw
clamping screw
M6 x 35
holding force
holding force
1,0 - 1,2 kN
Weight
Weight
185 g
