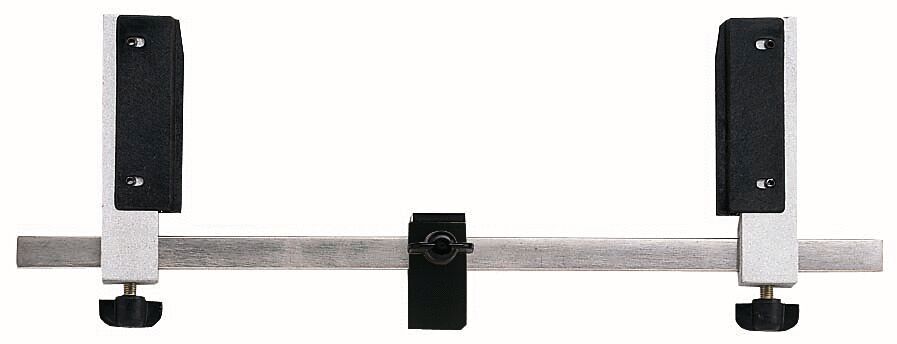

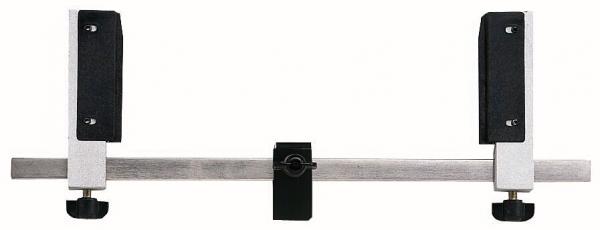

PCB holder ESD SPANNFIX
PCB holder ESD SPANNFIX
The ESD circuit board holder SPANNFIX by Bernstein offers a flexible and secure solution for mounting electronic components during manufacturing or repair. This product features an adjustable clamping range from 25 to 270 mm and a maximum height of 70 mm, while weighing only 0.28 kg. The ESD version is specifically conductive and available in black, ensuring compliance with ESD safety standards.The SPANNFIX circuit board holder allows for proper clamping by adjusting the center position and guarantees a firm clamp of the printed circuit thanks to the built-in spring in the mounting bars. These features make the product an optimal choice for technical applications where reliability and precision are paramount.
Details
- Color Color
- black
- Height [mm] Height
- 70 mm
- ESD version ESD
- yes
- Opening of jaws Opening of jaws
- 25 - 270 mm
- Weight Weight
- 0.28 kg
The SPANNFIX Vario individual elements can be combined arbitrarily.
Application example 1 | Application example 2 |
9-251.ESD | 9-251.ESD |
9-253.ESD | 9-252.ESD |
9-255.ESD |
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
